VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1VDFTV

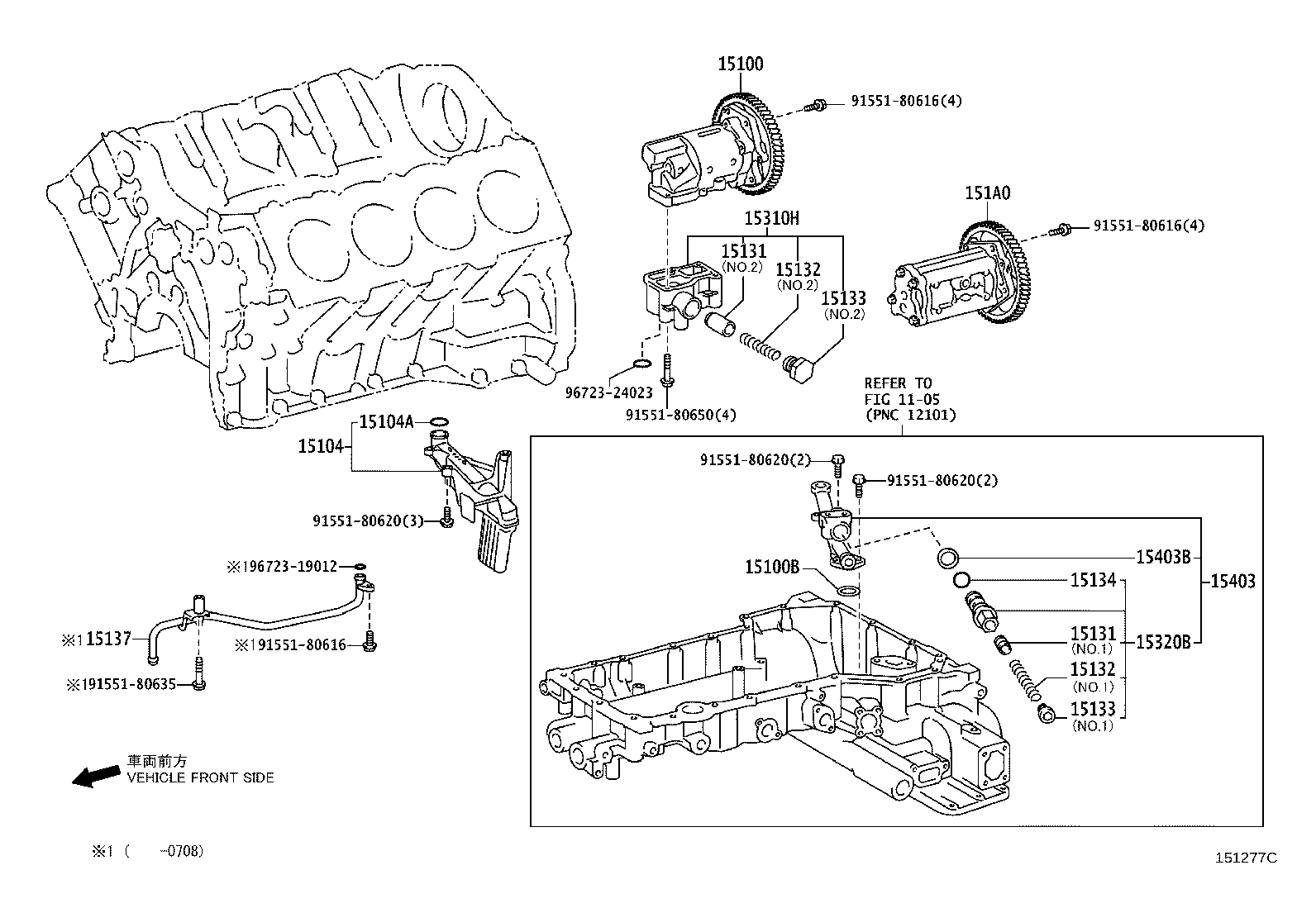

Click highlighted areas on diagram

diagram 1105 15100 15100B 15104 15104A 15131 15131 15132 15132 15133 15133 15134 15137 151A0 15310H 15320B 15403 15403B 9155180616 9155180616 9155180616 9155180620 9155180620 9155180620 9155180635 9155180650 9672319012 9672324023
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-51020

1VDFTV..VDJ7#

 1
15100-51021

1VDFTV..VDJ7#

 1
15100B - RING, O(FOR OIL PUMP)
90301-24020

1VDFTV..VDJ7#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-51020

1VDFTV..VDJ7#

 1
15104A - RING, O(FOR OIL STRAINER)
90301-27013

1VDFTV..VDJ7#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-51010

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
15131-51020

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
15131 - VALVE, OIL PUMP RELIEF
15131-51010

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
15131-51020

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-51020

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
15132-51010

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-51020

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
15132-51010

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-51020

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
15133-51010

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-51020

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
15133-51010

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-51010

1VDFTV..VDJ7#

 1
15137 - STRAINER, OIL PUMP
15137-51011

1VDFTV..VDJ7#

 1
151A0 - PUMP ASSY, SCAVENGING
151A0-51020

1VDFTV..VDJ7#

 1
151A0-51010

1VDFTV..VDJ7#

 1
15310H - REGULATOR ASSY, OIL
15310-51010

1VDFTV..VDJ7#

 1
15320B - REGULATOR ASSY, OIL PRESSURE
15320-51010

1VDFTV..VDJ7#

 1
15320-51020

1VDFTV..VDJ7#

 1
15403 - PIPE SUB-ASSY, OIL PUMP OUTLET
15403-51011

1VDFTV..VDJ7#

 1
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-27005

1VDFTV..VDJ7#

 1
Common parts
91551-80616
91551-80620
91551-80635
91551-80650
96723-19012
96723-24023
Linked diagrams
1105
