VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1VDFTV

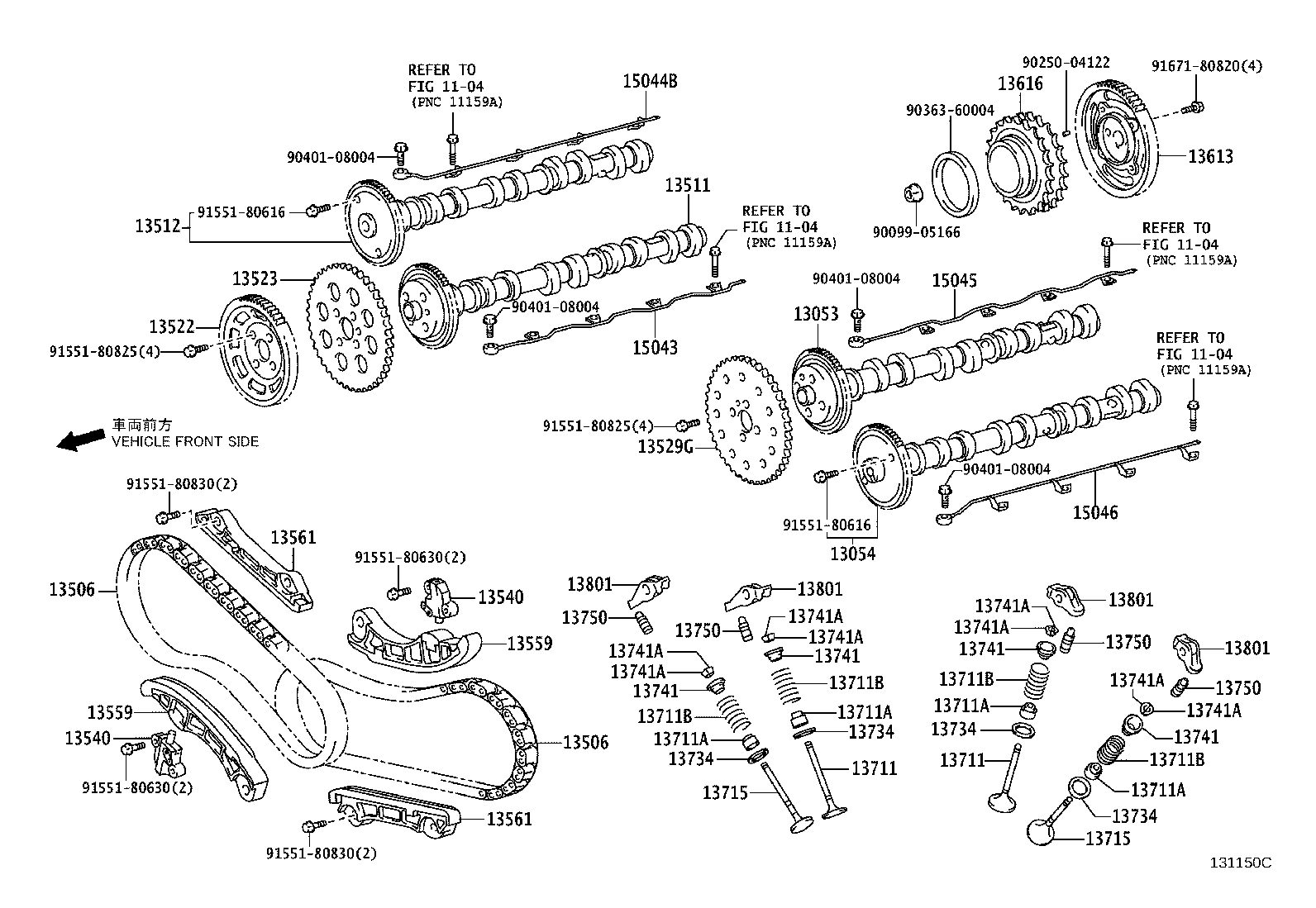

Click highlighted areas on diagram

diagram 1104 1104 1104 1104 13053 13054 13506 13506 13511 13512 13522 13523 13529G 13540 13540 13559 13559 13561 13561 13613 13616 13711 13711 13711A 13711A 13711A 13711A 13711B 13711B 13711B 13711B 13715 13715 13734 13734 13734 13734 13741 13741 13741 13741 13741A 13741A 13741A 13741A 13741A 13741A 13741A 13741A 13750 13750 13750 13750 13801 13801 13801 13801 15043 15044B 15045 15046 9009905166 9025004122 9036360004 9040108004 9040108004 9040108004 9040108004 9155180616 9155180616 9155180630 9155180630 9155180825 9155180825 9155180830 9155180830 9167180820
Part # Description Qty Price
13053 - CAMSHAFT SUB-ASSY, NO.3
13053-51010

1VDFTV..VDJ7#

 1
13054 - CAMSHAFT SUB-ASSY, NO.4
13054-51010

1VDFTV..VDJ7#

 1
13506 - CHAIN SUB-ASSY
13506-51020

1VDFTV..VDJ7#

 2
13506 - CHAIN SUB-ASSY
13506-51020

1VDFTV..VDJ7#

 2
13511 - CAMSHAFT
13501-51010

1VDFTV..VDJ7#

 1
13512 - CAMSHAFT, NO.2
13502-51010

1VDFTV..VDJ7#

 1
13522 - GEAR, PUMP DRIVE SHAFT
13522-51010

1VDFTV..VDJ7#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-51020

1VDFTV..VDJ7#

 1
13529G - SPROCKET ASSY, CAMSHAFT TIMING, NO.2
13529-51020

1VDFTV..VDJ7#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-51020

1VDFTV..VDJ7#

 2
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-51020

1VDFTV..VDJ7#

 2
13559 - SLIPPER, CHAIN TENSIONER
13559-51010

1VDFTV..VDJ7#

 2
13559 - SLIPPER, CHAIN TENSIONER
13559-51010

1VDFTV..VDJ7#

 2
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-51020

1VDFTV..VDJ7#

 2
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-51020

1VDFTV..VDJ7#

 2
13613 - GEAR, INJECTION PUMP DRIVE
13613-51010

1VDFTV..VDJ7#

 1
13616 - GEAR, INJECTION PUMP SHAFT
13616-51010

1VDFTV..VDJ7#

 1
13711 - VALVE, INTAKE
13711-51030

1VDFTV..VDJ7#

 16
13711 - VALVE, INTAKE
13711-51030

1VDFTV..VDJ7#

 16
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02124

1VDFTV..VDJ7#

 32
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02124

1VDFTV..VDJ7#

 32
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02124

1VDFTV..VDJ7#

 32
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02124

1VDFTV..VDJ7#

 32
13711B - SPRING, COMPRESSION(FOR INNER)
90501-28039

1VDFTV..VDJ7#

 32
13711B - SPRING, COMPRESSION(FOR INNER)
90501-28039

1VDFTV..VDJ7#

 32
13711B - SPRING, COMPRESSION(FOR INNER)
90501-28039

1VDFTV..VDJ7#

 32
13711B - SPRING, COMPRESSION(FOR INNER)
90501-28039

1VDFTV..VDJ7#

 32
13715 - VALVE, EXHAUST
13715-51030

1VDFTV..VDJ7#

 16
13715 - VALVE, EXHAUST
13715-51030

1VDFTV..VDJ7#

 16
13734 - SEAT, VALVE SPRING
90562-13002

1VDFTV..VDJ7#

 32
13734-33020

1VDFTV..VDJ7#

 32
13734 - SEAT, VALVE SPRING
90562-13002

1VDFTV..VDJ7#

 32
13734-33020

1VDFTV..VDJ7#

 32
13734 - SEAT, VALVE SPRING
90562-13002

1VDFTV..VDJ7#

 32
13734-33020

1VDFTV..VDJ7#

 32
13734 - SEAT, VALVE SPRING
90562-13002

1VDFTV..VDJ7#

 32
13734-33020

1VDFTV..VDJ7#

 32
13741 - RETAINER, VALVE SPRING
13741-33020

1VDFTV..VDJ7#

 32
13741-0R010

1VDFTV..VDJ7#

 32
13741 - RETAINER, VALVE SPRING
13741-33020

1VDFTV..VDJ7#

 32
13741-0R010

1VDFTV..VDJ7#

 32
13741 - RETAINER, VALVE SPRING
13741-33020

1VDFTV..VDJ7#

 32
13741-0R010

1VDFTV..VDJ7#

 32
13741 - RETAINER, VALVE SPRING
13741-33020

1VDFTV..VDJ7#

 32
13741-0R010

1VDFTV..VDJ7#

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1VDFTV..VDJ7#

 64
13750 - ADJUSTER ASSY, VALVE LASH
13750-26010

1VDFTV..VDJ7#

 32
13750-0R020

1VDFTV..VDJ7#

 32
13750 - ADJUSTER ASSY, VALVE LASH
13750-26010

1VDFTV..VDJ7#

 32
13750-0R020

1VDFTV..VDJ7#

 32
13750 - ADJUSTER ASSY, VALVE LASH
13750-26010

1VDFTV..VDJ7#

 32
13750-0R020

1VDFTV..VDJ7#

 32
13750 - ADJUSTER ASSY, VALVE LASH
13750-26010

1VDFTV..VDJ7#

 32
13750-0R020

1VDFTV..VDJ7#

 32
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-26010

1VDFTV..VDJ7#

 32
13801-0R010

1VDFTV..VDJ7#

 32
13801-51020

1VDFTV..VDJ7#

 32
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-26010

1VDFTV..VDJ7#

 32
13801-0R010

1VDFTV..VDJ7#

 32
13801-51020

1VDFTV..VDJ7#

 32
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-26010

1VDFTV..VDJ7#

 32
13801-0R010

1VDFTV..VDJ7#

 32
13801-51020

1VDFTV..VDJ7#

 32
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-26010

1VDFTV..VDJ7#

 32
13801-0R010

1VDFTV..VDJ7#

 32
13801-51020

1VDFTV..VDJ7#

 32
15043 - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY
15043-51010

1VDFTV..VDJ7#

 1
15044B - PIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.2
15044-51010

1VDFTV..VDJ7#

 1
15045 - PIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.3
15045-51010

1VDFTV..VDJ7#

 1
15046 - PIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.4
15046-51010

1VDFTV..VDJ7#

 1
Common parts
90099-05166
90250-04122
90363-60004
90401-08004
91551-80616
91551-80630
91551-80825
91551-80830
91671-80820
Linked diagrams
1104
