VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
(0701- )1VDFTV

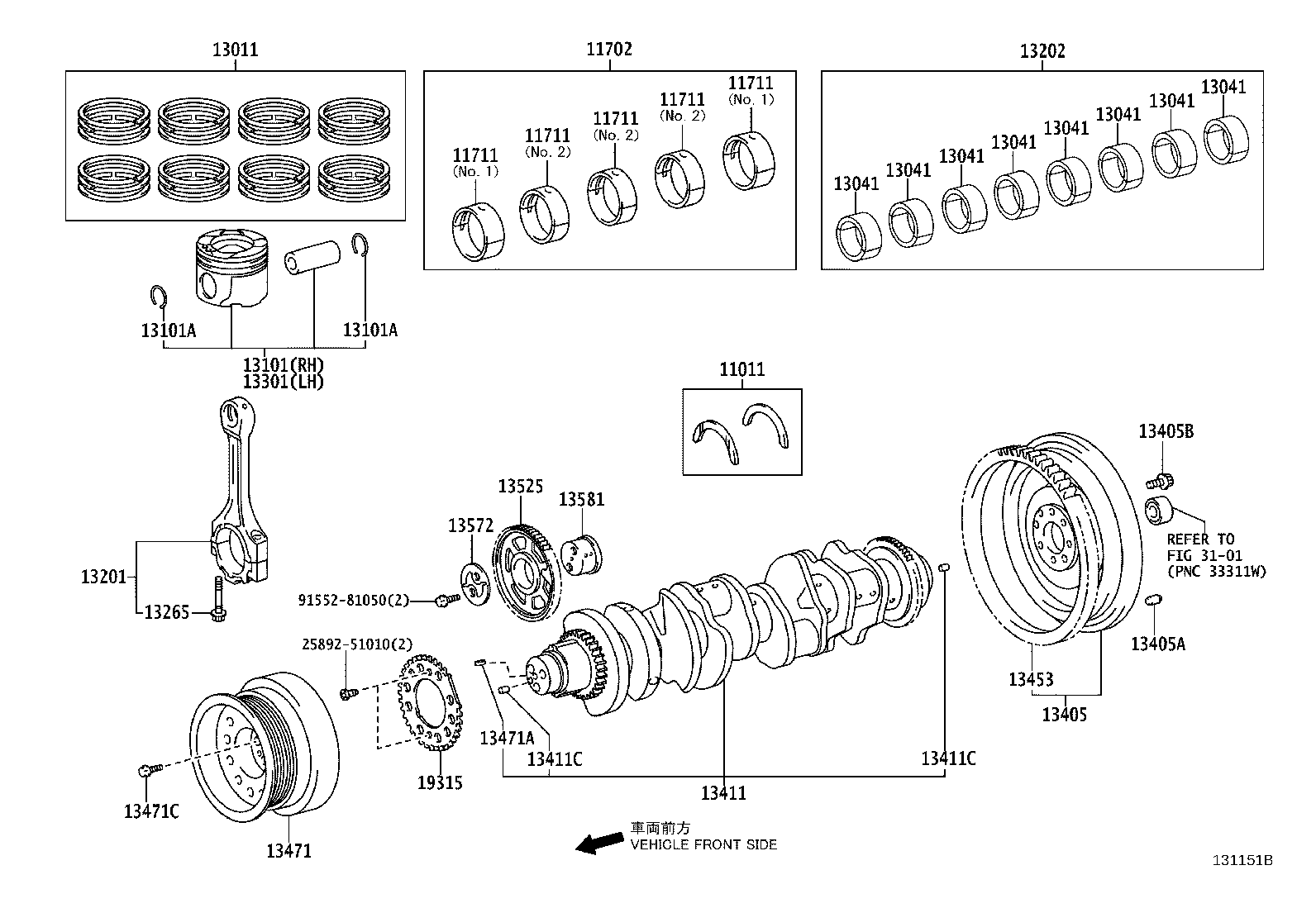

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-51010 |
1VDFTV..VDJ7# STD |
1 | ||
| 11012-51010 |
1VDFTV..VDJ7# O/S 0.125 |
1 | ||
| 11013-51010 |
1VDFTV..VDJ7# O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-51020 |
1VDFTV..VDJ7# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-5101005 |
1VDFTV..VDJ7# MARK5,NO.2,REFER R/M |
3 | ||
| 11071-5101001 |
1VDFTV..VDJ7# MARK1,NO.2,REFER R/M |
3 | ||
| 11071-5101002 |
1VDFTV..VDJ7# MARK2,NO.2,REFER R/M |
3 | ||
| 11071-5101006 |
1VDFTV..VDJ7# MARK6,NO.2,REFER R/M |
3 | ||
| 11071-5101003 |
1VDFTV..VDJ7# MARK3,NO.2,REFER R/M |
3 | ||
| 11071-5101007 |
1VDFTV..VDJ7# MARK7,NO.2,REFER R/M |
3 | ||
| 11701-5102003 |
1VDFTV..VDJ7# MARK3,NO.1,REFER R/M |
2 | ||
| 11701-5102006 |
1VDFTV..VDJ7# MARK6,NO.1,REFER R/M |
2 | ||
| 11701-5102007 |
1VDFTV..VDJ7# MARK7,NO.1,REFER R/M |
2 | ||
| 11701-5102002 |
1VDFTV..VDJ7# MARK2,NO.1,REFER R/M |
2 | ||
| 11701-5102005 |
1VDFTV..VDJ7# MARK5,NO.1,REFER R/M |
2 | ||
| 11701-5102001 |
1VDFTV..VDJ7# MARK1,NO.1,REFER R/M |
2 | ||
| 11071-5101004 |
1VDFTV..VDJ7# MARK4,NO.2,REFER R/M |
3 | ||
| 11701-5102004 |
1VDFTV..VDJ7# MARK4,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-5101005 |
1VDFTV..VDJ7# MARK5,NO.2,REFER R/M |
3 | ||
| 11071-5101001 |
1VDFTV..VDJ7# MARK1,NO.2,REFER R/M |
3 | ||
| 11071-5101002 |
1VDFTV..VDJ7# MARK2,NO.2,REFER R/M |
3 | ||
| 11071-5101006 |
1VDFTV..VDJ7# MARK6,NO.2,REFER R/M |
3 | ||
| 11071-5101003 |
1VDFTV..VDJ7# MARK3,NO.2,REFER R/M |
3 | ||
| 11071-5101007 |
1VDFTV..VDJ7# MARK7,NO.2,REFER R/M |
3 | ||
| 11701-5102003 |
1VDFTV..VDJ7# MARK3,NO.1,REFER R/M |
2 | ||
| 11701-5102006 |
1VDFTV..VDJ7# MARK6,NO.1,REFER R/M |
2 | ||
| 11701-5102007 |
1VDFTV..VDJ7# MARK7,NO.1,REFER R/M |
2 | ||
| 11701-5102002 |
1VDFTV..VDJ7# MARK2,NO.1,REFER R/M |
2 | ||
| 11701-5102005 |
1VDFTV..VDJ7# MARK5,NO.1,REFER R/M |
2 | ||
| 11701-5102001 |
1VDFTV..VDJ7# MARK1,NO.1,REFER R/M |
2 | ||
| 11071-5101004 |
1VDFTV..VDJ7# MARK4,NO.2,REFER R/M |
3 | ||
| 11701-5102004 |
1VDFTV..VDJ7# MARK4,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-5101005 |
1VDFTV..VDJ7# MARK5,NO.2,REFER R/M |
3 | ||
| 11071-5101001 |
1VDFTV..VDJ7# MARK1,NO.2,REFER R/M |
3 | ||
| 11071-5101002 |
1VDFTV..VDJ7# MARK2,NO.2,REFER R/M |
3 | ||
| 11071-5101006 |
1VDFTV..VDJ7# MARK6,NO.2,REFER R/M |
3 | ||
| 11071-5101003 |
1VDFTV..VDJ7# MARK3,NO.2,REFER R/M |
3 | ||
| 11071-5101007 |
1VDFTV..VDJ7# MARK7,NO.2,REFER R/M |
3 | ||
| 11701-5102003 |
1VDFTV..VDJ7# MARK3,NO.1,REFER R/M |
2 | ||
| 11701-5102006 |
1VDFTV..VDJ7# MARK6,NO.1,REFER R/M |
2 | ||
| 11701-5102007 |
1VDFTV..VDJ7# MARK7,NO.1,REFER R/M |
2 | ||
| 11701-5102002 |
1VDFTV..VDJ7# MARK2,NO.1,REFER R/M |
2 | ||
| 11701-5102005 |
1VDFTV..VDJ7# MARK5,NO.1,REFER R/M |
2 | ||
| 11701-5102001 |
1VDFTV..VDJ7# MARK1,NO.1,REFER R/M |
2 | ||
| 11071-5101004 |
1VDFTV..VDJ7# MARK4,NO.2,REFER R/M |
3 | ||
| 11701-5102004 |
1VDFTV..VDJ7# MARK4,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-5101005 |
1VDFTV..VDJ7# MARK5,NO.2,REFER R/M |
3 | ||
| 11071-5101001 |
1VDFTV..VDJ7# MARK1,NO.2,REFER R/M |
3 | ||
| 11071-5101002 |
1VDFTV..VDJ7# MARK2,NO.2,REFER R/M |
3 | ||
| 11071-5101006 |
1VDFTV..VDJ7# MARK6,NO.2,REFER R/M |
3 | ||
| 11071-5101003 |
1VDFTV..VDJ7# MARK3,NO.2,REFER R/M |
3 | ||
| 11071-5101007 |
1VDFTV..VDJ7# MARK7,NO.2,REFER R/M |
3 | ||
| 11701-5102003 |
1VDFTV..VDJ7# MARK3,NO.1,REFER R/M |
2 | ||
| 11701-5102006 |
1VDFTV..VDJ7# MARK6,NO.1,REFER R/M |
2 | ||
| 11701-5102007 |
1VDFTV..VDJ7# MARK7,NO.1,REFER R/M |
2 | ||
| 11701-5102002 |
1VDFTV..VDJ7# MARK2,NO.1,REFER R/M |
2 | ||
| 11701-5102005 |
1VDFTV..VDJ7# MARK5,NO.1,REFER R/M |
2 | ||
| 11701-5102001 |
1VDFTV..VDJ7# MARK1,NO.1,REFER R/M |
2 | ||
| 11071-5101004 |
1VDFTV..VDJ7# MARK4,NO.2,REFER R/M |
3 | ||
| 11701-5102004 |
1VDFTV..VDJ7# MARK4,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-5101005 |
1VDFTV..VDJ7# MARK5,NO.2,REFER R/M |
3 | ||
| 11071-5101001 |
1VDFTV..VDJ7# MARK1,NO.2,REFER R/M |
3 | ||
| 11071-5101002 |
1VDFTV..VDJ7# MARK2,NO.2,REFER R/M |
3 | ||
| 11071-5101006 |
1VDFTV..VDJ7# MARK6,NO.2,REFER R/M |
3 | ||
| 11071-5101003 |
1VDFTV..VDJ7# MARK3,NO.2,REFER R/M |
3 | ||
| 11071-5101007 |
1VDFTV..VDJ7# MARK7,NO.2,REFER R/M |
3 | ||
| 11701-5102003 |
1VDFTV..VDJ7# MARK3,NO.1,REFER R/M |
2 | ||
| 11701-5102006 |
1VDFTV..VDJ7# MARK6,NO.1,REFER R/M |
2 | ||
| 11701-5102007 |
1VDFTV..VDJ7# MARK7,NO.1,REFER R/M |
2 | ||
| 11701-5102002 |
1VDFTV..VDJ7# MARK2,NO.1,REFER R/M |
2 | ||
| 11701-5102005 |
1VDFTV..VDJ7# MARK5,NO.1,REFER R/M |
2 | ||
| 11701-5102001 |
1VDFTV..VDJ7# MARK1,NO.1,REFER R/M |
2 | ||
| 11071-5101004 |
1VDFTV..VDJ7# MARK4,NO.2,REFER R/M |
3 | ||
| 11701-5102004 |
1VDFTV..VDJ7# MARK4,NO.1,REFER R/M |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-51030 |
1VDFTV..VDJ7# STD |
1 | ||
| 13011-51032 |
1VDFTV..VDJ7# STD |
1 | ||
| 13011-51031 |
1VDFTV..VDJ7# STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5102003 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5102001 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102004 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102002 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102005 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102102 |
1VDFTV..VDJ7# MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5102105 |
1VDFTV..VDJ7# MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041-5102101 |
1VDFTV..VDJ7# MARK1,REFER REPAIR MANUAL |
8 | ||
| 13041-5102104 |
1VDFTV..VDJ7# MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5102103 |
1VDFTV..VDJ7# MARK3,REFER REPAIR MANUAL |
8 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0W020 |
1VDFTV..VDJ7# STD,REFER REPAIR MANUAL |
4 | ||
| 13101-0W020B0 |
1VDFTV..VDJ7# STD,MARK B,REFER REPAIR MANUAL |
4 | ||
| 13101-0W020A0 |
1VDFTV..VDJ7# STD,MARK A,REFER REPAIR MANUAL |
4 | ||
| 13101-0W020C0 |
1VDFTV..VDJ7# STD,MARK C,REFER REPAIR MANUAL |
4 | ||
| 13101-0W021C0 |
1VDFTV..VDJ7# STD,MARK C,REFER REPAIR MANUAL |
4 | ||
| 13101-0W021B0 |
1VDFTV..VDJ7# STD,MARK B,REFER REPAIR MANUAL |
4 | ||
| 13101-0W021A0 |
1VDFTV..VDJ7# STD,MARK A,REFER REPAIR MANUAL |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-W0001 |
1VDFTV..VDJ7# |
16 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-W0001 |
1VDFTV..VDJ7# |
16 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-51020 |
1VDFTV..VDJ7# REFER REPAIR MANUAL |
8 | ||
| 13201-51021 |
1VDFTV..VDJ7# REFER REPAIR MANUAL |
8 | ||
| 13201-51021B0 |
1VDFTV..VDJ7# MARK B,REFER REPAIR MANUAL |
8 | ||
| 13201-51021C0 |
1VDFTV..VDJ7# MARK C,REFER REPAIR MANUAL |
8 | ||
| 13201-51021A0 |
1VDFTV..VDJ7# MARK A,REFER REPAIR MANUAL |
8 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-51021 |
1VDFTV..VDJ7# U/S 0.25 |
1 | ||
| 13204-51020 |
1VDFTV..VDJ7# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22031 |
1VDFTV..VDJ7# |
16 | ||
| 13265-22030 |
1VDFTV..VDJ7# |
16 | ||
| 13301 - PISTON SUB-ASSY, W/PIN, LH | ||||
| 13301-0W010C0 |
1VDFTV..VDJ7# STD,MARK C,REFER REPAIR MANUAL |
4 | ||
| 13301-0W011C0 |
1VDFTV..VDJ7# STD,MARK C,REFER REPAIR MANUAL |
4 | ||
| 13301-0W010 |
1VDFTV..VDJ7# STD,REFER REPAIR MANUAL |
4 | ||
| 13301-0W011B0 |
1VDFTV..VDJ7# STD,MARK B,REFER REPAIR MANUAL |
4 | ||
| 13301-0W010B0 |
1VDFTV..VDJ7# STD,MARK B,REFER REPAIR MANUAL |
4 | ||
| 13301-0W010A0 |
1VDFTV..VDJ7# STD,MARK A,REFER REPAIR MANUAL |
4 | ||
| 13301-0W011A0 |
1VDFTV..VDJ7# STD,MARK A,REFER REPAIR MANUAL |
4 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-51020 |
1VDFTV..VDJ7# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10040 |
1VDFTV..VDJ7# L=22,OD=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01026 |
1VDFTV..VDJ7# |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-51010 |
1VDFTV..VDJ7# |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90250-08046 |
1VDFTV..VDJ7# |
2 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90250-08046 |
1VDFTV..VDJ7# |
2 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-51010 |
1VDFTV..VDJ7# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-51010 |
1VDFTV..VDJ7# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
1VDFTV..VDJ7# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 91552-G1245 |
1VDFTV..VDJ7# |
3 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-51010 |
1VDFTV..VDJ7# |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-17021 |
1VDFTV..VDJ7# |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-17012 |
1VDFTV..VDJ7# |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-51010 |
1VDFTV..VDJ7# |
1 | ||
| Common parts | ||||
| 25892-51010 | ||||
| 91552-81050 | ||||
| Linked diagrams | ||||
| 3101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
