VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1VDFTV

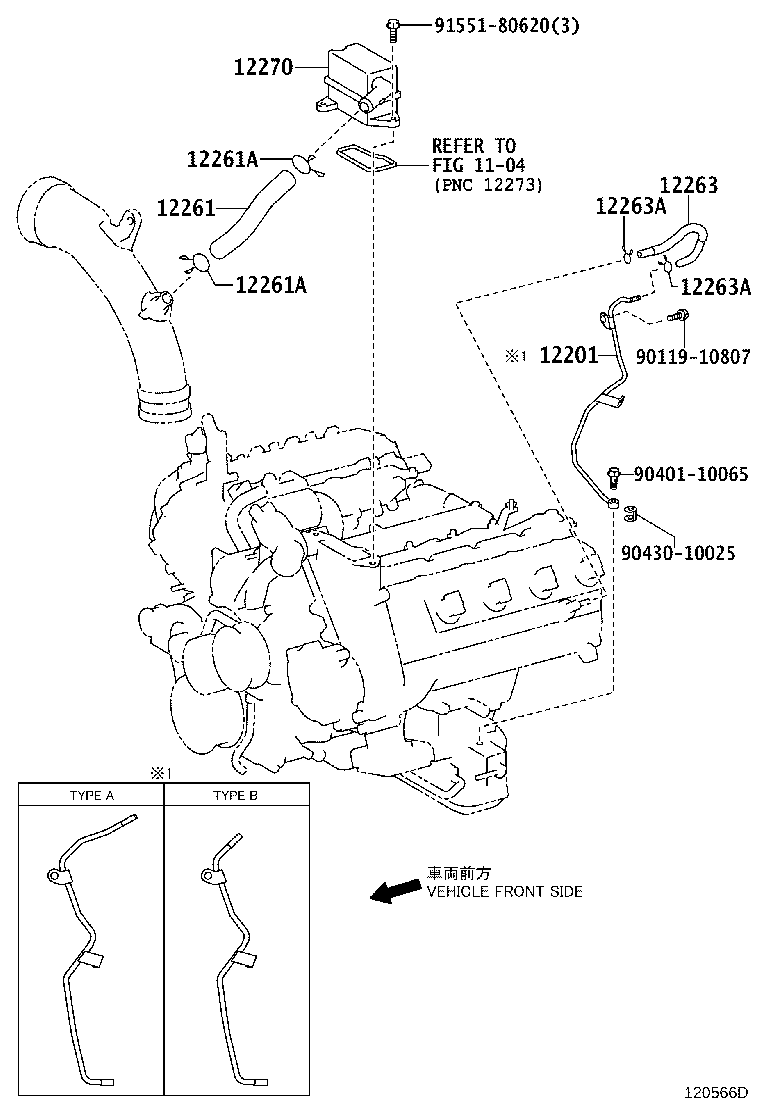

Click highlighted areas on diagram

diagram 1104 12201 12261 12261A 12261A 12263 12263A 12263A 12270 9011910807 9040110065 9043010025 9155180620
Part # Description Qty Price
12201 - TUBE SUB-ASSY, VENTILATION
12201-51012

1VDFTV..VDJ7#

TYPE B:REFER ILLUST.

 1
12201-51011

1VDFTV..VDJ7#

TYPE A:REFER ILLUST.

 1
12261 - HOSE, VENTILATION
12261-51020

1VDFTV..VDJ7#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1VDFTV..VDJ7#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1VDFTV..VDJ7#

 2
12263 - HOSE, VENTILATION, NO.3
12263-51010

1VDFTV..VDJ7#

 1
12263-51011

1VDFTV..VDJ7#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-13103

1VDFTV..VDJ7#

 2
90467-12058

1VDFTV..VDJ7#

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-13103

1VDFTV..VDJ7#

 2
90467-12058

1VDFTV..VDJ7#

 2
12270 - SEPARATOR ASSY, OIL
12270-51010

1VDFTV..VDJ7#

 1
Common parts
90119-10807
90401-10065
90430-10025
91551-80620
Linked diagrams
1104
