VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1VDFTV

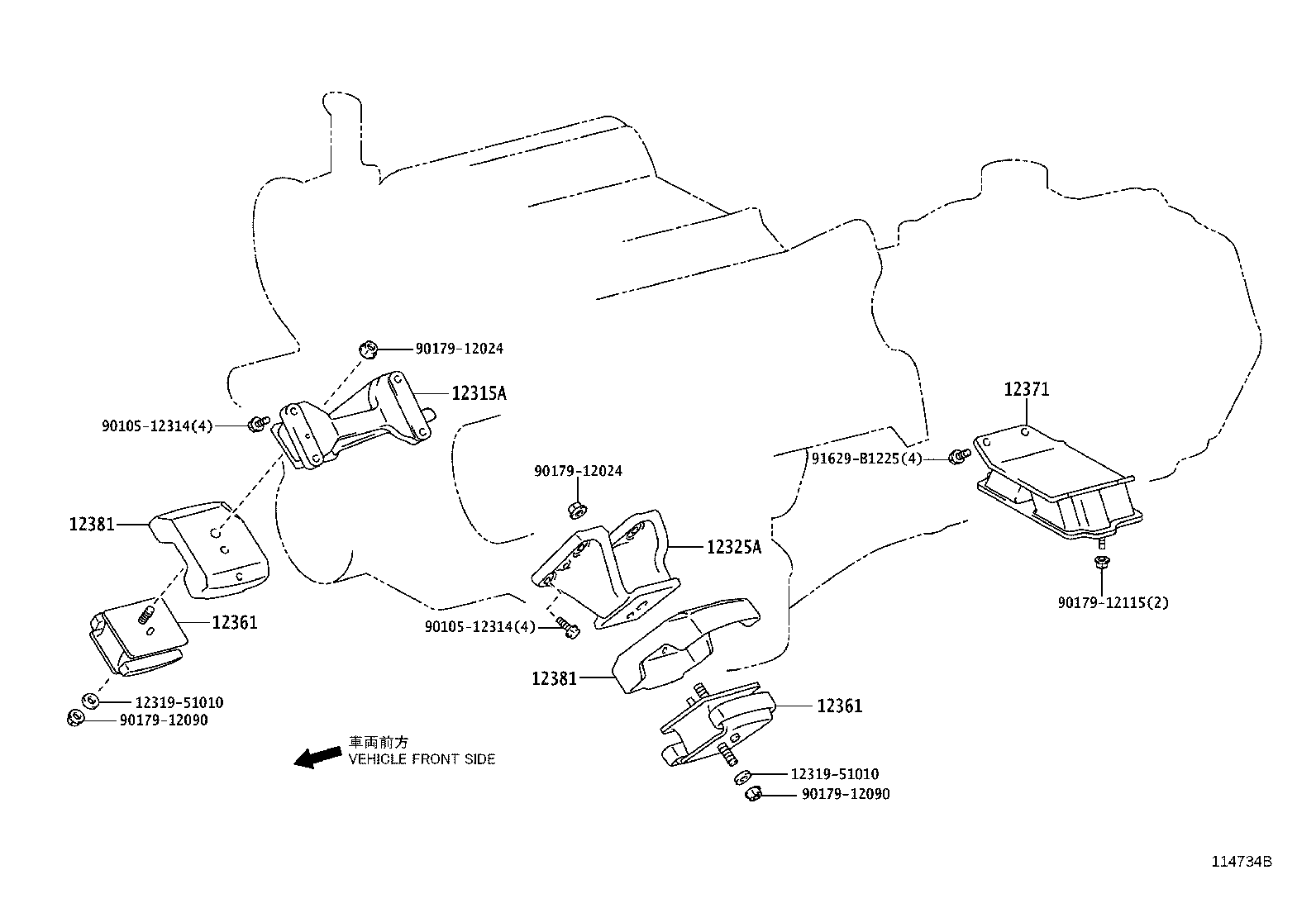

Click highlighted areas on diagram

diagram 12315A 1231951010 1231951010 12325A 12361 12361 12371 12381 12381 9010512314 9010512314 9017912024 9017912024 9017912090 9017912090 9017912115 91629B1225
Part # Description Qty Price
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-51020

1VDFTV..VDJ7#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-51010

1VDFTV..VDJ7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-51020

1VDFTV..VDJ7#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-51020

1VDFTV..VDJ7#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-17120

1VDFTV..VDJ7#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-51020

1VDFTV..VDJ7#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-51020

1VDFTV..VDJ7#

 2
Common parts
12319-51010
90105-12314
90179-12024
90179-12090
90179-12115
91629-B1225
