VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

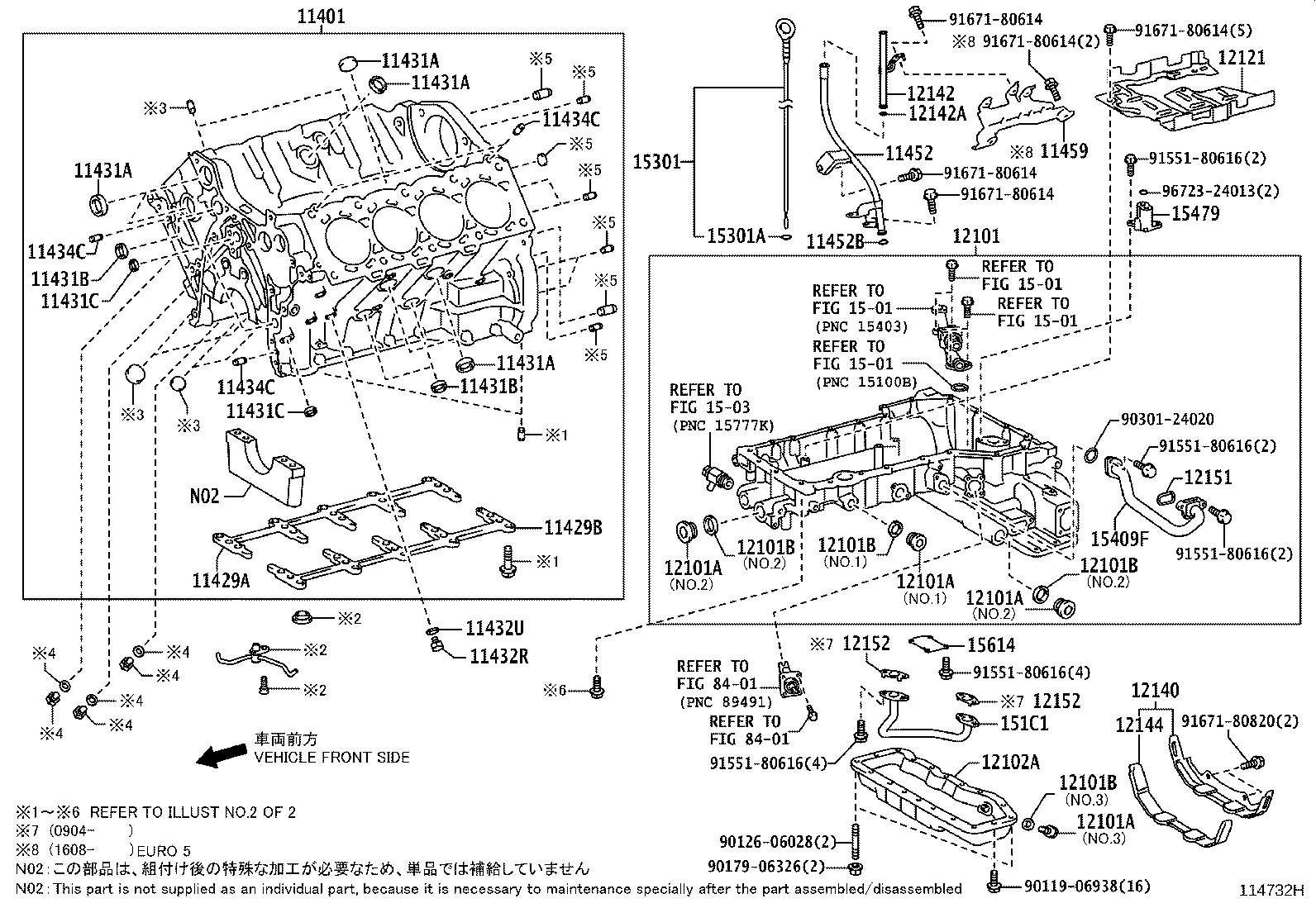

ILLUST NO. 1 OF 2(0701- )1VDFTV

Click highlighted areas on diagram

diagram 11401 11429A 11429B 11431A 11431A 11431A 11431A 11431B 11431B 11431C 11431C 11432R 11432U 11434C 11434C 11434C 11452 11452B 11459 12101 12101A 12101A 12101A 12101A 12101B 12101B 12101B 12101B 12102A 12121 12140 12142 12142A 12144 12151 12152 12152 1501 1501 1501 1501 1503 151C1 15301 15301A 15409F 15479 15614 8401 8401 9011906938 9012606028 9017906326 9030124020 9155180616 9155180616 9155180616 9155180616 9155180616 9167180614 9167180614 9167180614 9167180614 9167180614 9167180820 9672324013
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80764

1VDFTV..VDJ7#

 1
11401-80768

1VDFTV..VDJ7#

 1
11429A - PLATE, CYLINDER BLOCK STIFFENING
11429-51020

1VDFTV..VDJ7#

 1
11429-51010

1VDFTV..VDJ7#

 1
11429B - PLATE, CYLINDER BLOCK STIFFENING
1142A-51010

1VDFTV..VDJ7#

 1
11429-51020

1VDFTV..VDJ7#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500

1VDFTV..VDJ7#

 8
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500

1VDFTV..VDJ7#

 8
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500

1VDFTV..VDJ7#

 8
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500

1VDFTV..VDJ7#

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-62500

1VDFTV..VDJ7#

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-62500

1VDFTV..VDJ7#

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-61800

1VDFTV..VDJ7#

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-61800

1VDFTV..VDJ7#

 4
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-12011

1VDFTV..VDJ7#

 2
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-12221

1VDFTV..VDJ7#

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08048

1VDFTV..VDJ7#

L=15,OD=8

 6
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08048

1VDFTV..VDJ7#

L=15,OD=8

 6
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08048

1VDFTV..VDJ7#

L=15,OD=8

 6
11452 - GUIDE, OIL LEVEL GAGE
11452-51010

1VDFTV..VDJ7#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018

1VDFTV..VDJ7#

 1
12101 - PAN SUB-ASSY, OIL
12101-51021

1VDFTV..VDJ7#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-20013

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90341-27006

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
90341-12012

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-20013

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90341-27006

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
90341-12012

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-20013

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90341-27006

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
90341-12012

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-20013

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90341-27006

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
90341-12012

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-20004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90430-12031

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
90430-27005

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-20004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90430-12031

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
90430-27005

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-20004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90430-12031

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
90430-27005

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-20004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90430-12031

1VDFTV..VDJ7#

NO.3:REFER ILLUST.

 1
90430-27005

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
12102A - PAN SUB-ASSY, OIL, NO.2
12102-51010

1VDFTV..VDJ7#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-51021

1VDFTV..VDJ7#

 1
12140 - COVER, OIL PAN
12140-51010

1VDFTV..VDJ7#

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-51010

1VDFTV..VDJ7#

 1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010

1VDFTV..VDJ7#

 1
96741-19010

1VDFTV..VDJ7#

 1
12144 - SILENCER, OIL PAN COVER
12144-51010

1VDFTV..VDJ7#

 1
12151 - GASKET, OIL PAN
12151-51020

1VDFTV..VDJ7#

 1
12152 - GASKET, OIL PAN, NO.2
15472-51010

1VDFTV..VDJ7#

 2
12152 - GASKET, OIL PAN, NO.2
15472-51010

1VDFTV..VDJ7#

 2
151C1 - PIPE, SCAVENGING PUMP
151C1-51010

1VDFTV..VDJ7#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-30070

1VDFTV..VDJ7#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1VDFTV..VDJ7#

 1
15409F - PIPE SUB-ASSY, OIL FILTER OUTLET
15409-51010

1VDFTV..VDJ7#

 1
15479 - FLANGE, TURBO OIL PIPE
15479-51010

1VDFTV..VDJ7#

 1
15614 - COVER, OIL FILTER ELEMENT, LOWER
15614-51010

1VDFTV..VDJ7#

 1
Common parts
90119-06938
90126-06028
90179-06326
90301-24020
91551-80616
91671-80614
91671-80820
96723-24013
Linked diagrams
1501
1503
8401

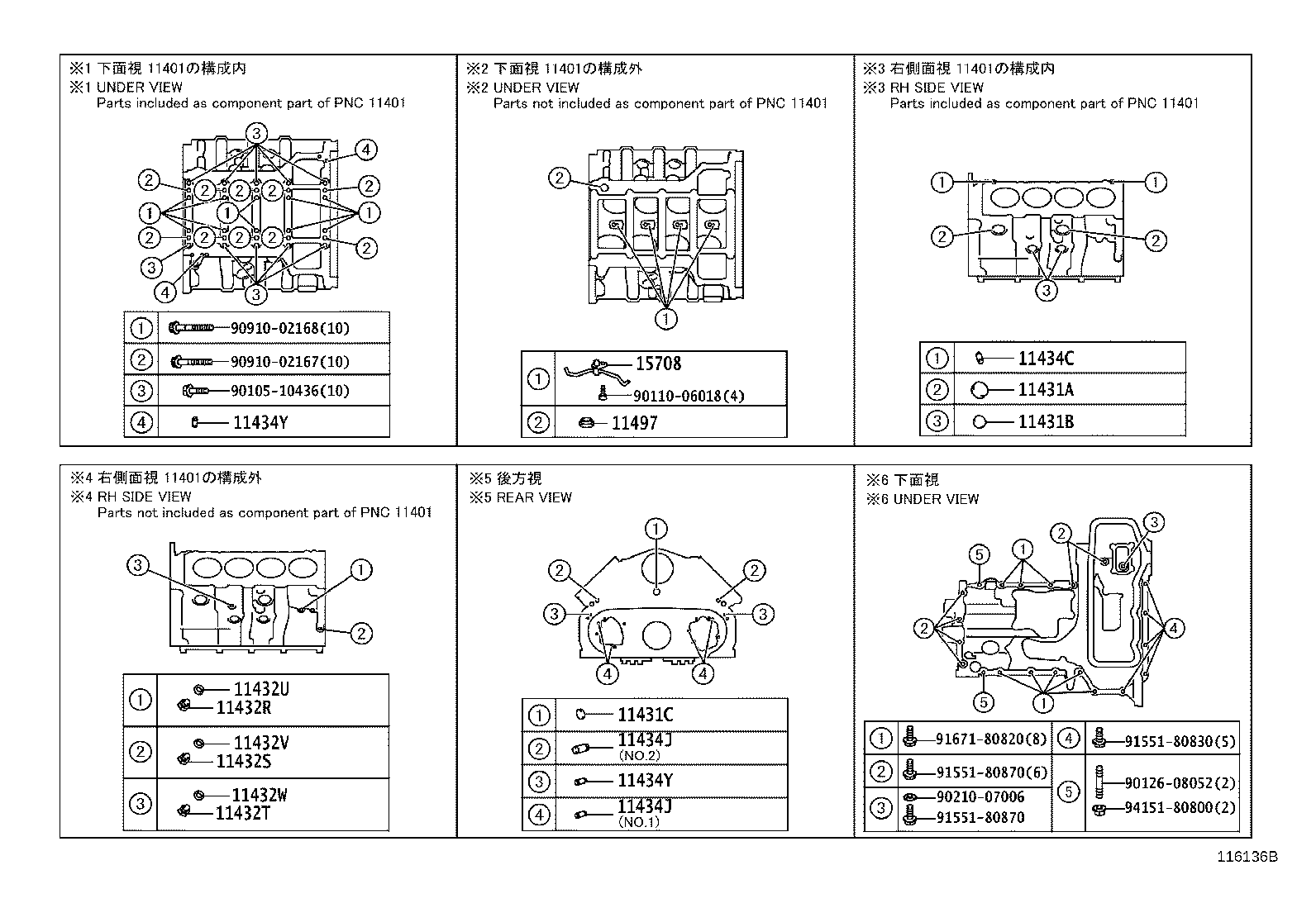

ILLUST NO. 2 OF 2(0701- )1VDFTV

Click highlighted areas on diagram

diagram 11431A 11431B 11431C 11432R 11432S 11432T 11432U 11432V 11432W 11434C 11434J 11434J 11434Y 11434Y 11497 15708 9010510436 9011006018 9012608052 9021007006 9091002167 9091002168 9155180830 9155180870 9155180870 9167180820 9415180800
Part # Description Qty Price
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500

1VDFTV..VDJ7#

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-62500

1VDFTV..VDJ7#

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-61800

1VDFTV..VDJ7#

 4
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-12011

1VDFTV..VDJ7#

 2
11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
90341-12011

1VDFTV..VDJ7#

 1
11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
90341-12011

1VDFTV..VDJ7#

 1
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-12221

1VDFTV..VDJ7#

 2
11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
90430-12221

1VDFTV..VDJ7#

 1
11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
90430-12221

1VDFTV..VDJ7#

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08048

1VDFTV..VDJ7#

L=15,OD=8

 6
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90250-04122

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 4
90250-10040

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90250-04122

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 4
90250-10040

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-06013

1VDFTV..VDJ7#

 4
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-06013

1VDFTV..VDJ7#

 4
11497 - GASKET, CYLINDER BLOCK OIL HOLE
11497-51010

1VDFTV..VDJ7#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-51010

1VDFTV..VDJ7#

 4
Common parts
90105-10436
90110-06018
90126-08052
90210-07006
90910-02167
90910-02168
91551-80830
91551-80870
91671-80820
94151-80800
