VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-1608)1VDFTV ; (1608- )1VDFTV..GCC,GEN

Click highlighted areas on diagram

EXCEPT EURO 5

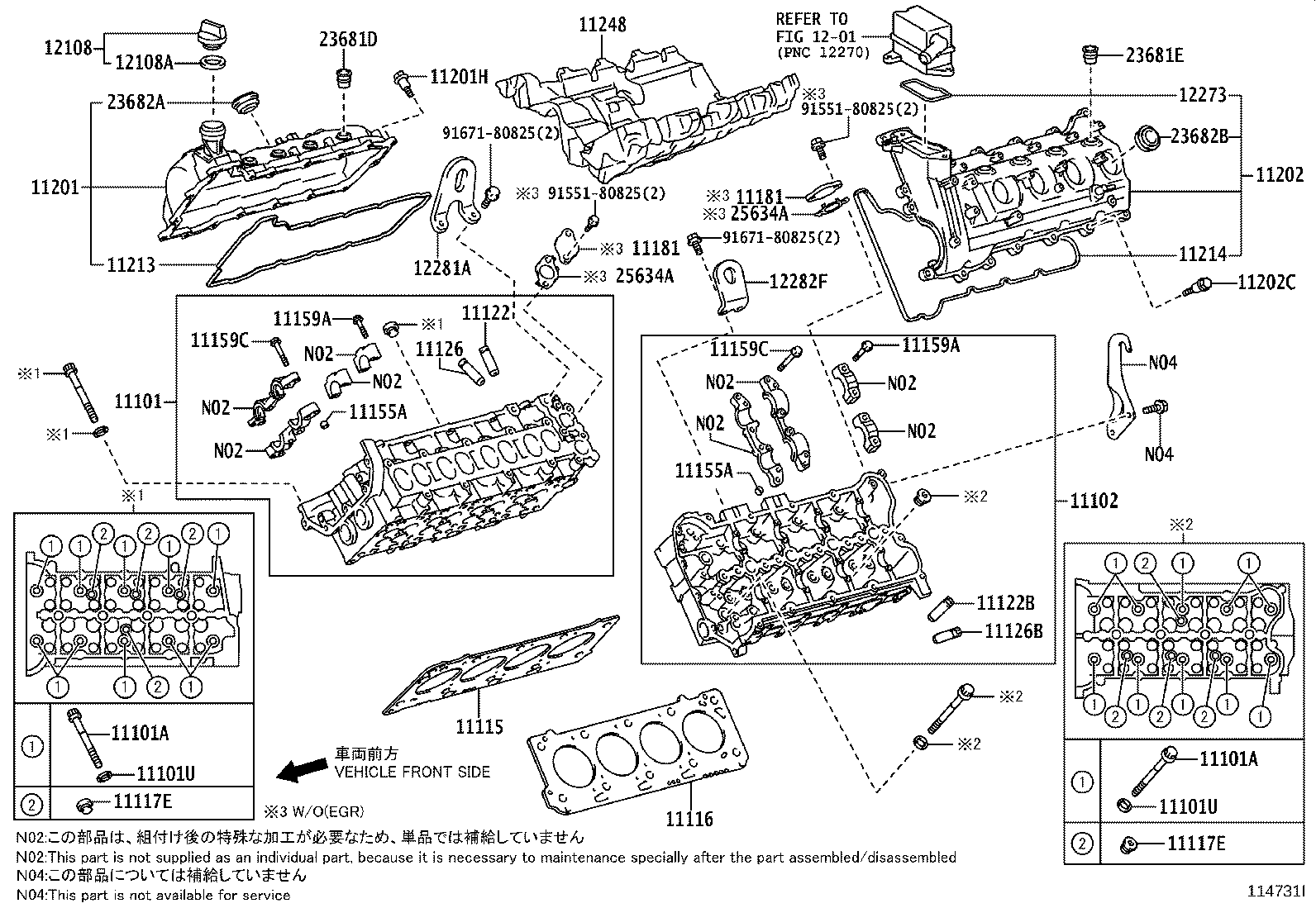

diagram 11101 11101A 11101A 11101U 11101U 11102 11115 11116 11117E 11117E 11122 11122B 11126 11126B 11155A 11155A 11159A 11159A 11159C 11159C 11181 11181 11201 11201H 11202 11202C 11213 11214 11248 1201 12108 12108A 12273 12281A 12282F 23681D 23681E 23682A 23682B 25634A 25634A 9155180825 9155180825 9167180825 9167180825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-51020

1VDFTV..VDJ7#

 1
11101-51021

1VDFTV..VDJ7#

 1
11101-51022

1VDFTV..VDJ7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02169

1VDFTV..VDJ7#

 20
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02169

1VDFTV..VDJ7#

 20
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-14033

1VDFTV..VDJ7#

 20
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-14033

1VDFTV..VDJ7#

 20
11102 - HEAD, CYLINDER, LH
11102-51012

1VDFTV..VDJ7#

 1
11102-51010

1VDFTV..VDJ7#

 1
11102-51011

1VDFTV..VDJ7#

 1
11115 - GASKET, CYLINDER HEAD
11115-51030D0

1VDFTV..VDJ7#

MARKD,REFER REPAIR MANUAL

 1
11115-51030B0

1VDFTV..VDJ7#

MARKB,REFER REPAIR MANUAL

 1
11115-51030E0

1VDFTV..VDJ7#

MARKE,REFER REPAIR MANUAL

 1
11115-51030C0

1VDFTV..VDJ7#

MARKC,REFER REPAIR MANUAL

 1
11115-51030A0

1VDFTV..VDJ7#

MARKA,REFER REPAIR MANUAL

 1
11116 - GASKET, CYLINDER HEAD, NO.2
11116-51030D0

1VDFTV..VDJ7#

MARKD,REFER REPAIR MANUAL

 1
11116-51030B0

1VDFTV..VDJ7#

MARKB,REFER REPAIR MANUAL

 1
11116-51030C0

1VDFTV..VDJ7#

MARKC,REFER REPAIR MANUAL

 1
11116-51030E0

1VDFTV..VDJ7#

MARKE,REFER REPAIR MANUAL

 1
11116-51030A0

1VDFTV..VDJ7#

MARKA,REFER REPAIR MANUAL

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015

1VDFTV..VDJ7#

 8
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015

1VDFTV..VDJ7#

 8
11122 - BUSH, INTAKE VALVE GUIDE
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11122-0R010

1VDFTV..VDJ7#

STD

 8
11122B - BUSH, INTAKE VALVE GUIDE, NO.2
11122-0R010

1VDFTV..VDJ7#

STD

 8
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11122-0R010

1VDFTV..VDJ7#

STD

 8
11126B - BUSH, EXHAUST VALVE GUIDE, NO.2
11122-0R010

1VDFTV..VDJ7#

STD

 8
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11155A - PIN, RING W/HEAD
90253-11021

1VDFTV..VDJ7#

 4
11155A - PIN, RING W/HEAD
90253-11021

1VDFTV..VDJ7#

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80630

1VDFTV..VDJ7#

 16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80630

1VDFTV..VDJ7#

 16
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80860

1VDFTV..VDJ7#

 4
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80860

1VDFTV..VDJ7#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-51031

1VDFTV..VDJ7#

 1
11201-51030

1VDFTV..VDJ7#

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90109-06384

1VDFTV..VDJ7#

 18
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-51010

1VDFTV..VDJ7#

 1
11202C - BOLT(FOR CYLINDER HEAD COVER LH)
90109-06384

1VDFTV..VDJ7#

 17
11213 - GASKET, CYLINDER HEAD COVER
11213-51020

1VDFTV..VDJ7#

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-51010

1VDFTV..VDJ7#

 1
11248 - SILENCER, V-BANK
11248-51010

1VDFTV..VDJ7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

1VDFTV..VDJ7#

 1
12180-38010

1VDFTV..VDJ7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

1VDFTV..VDJ7#

 1
90430-37140

1VDFTV..VDJ7#

 1
12273 - GASKET, OIL SEPARATOR
12273-51010

1VDFTV..VDJ7#

 1
12281A - HANGER, ENGINE, NO.1
12281-51040

1VDFTV..VDJ7#

 1
12282F - HANGER, ENGINE, NO.2
12282-51040

1VDFTV..VDJ7#

 1
23681D - SEAL, NOZZLE HOLDER, RH
23681-51010

1VDFTV..VDJ7#

 4
23681E - SEAL, NOZZLE HOLDER, LH
23681-51010

1VDFTV..VDJ7#

 4
23682A - GASKET, NOZZLE HOLDER, RH
23682-51010

1VDFTV..VDJ7#

 4
23682B - GASKET, NOZZLE HOLDER, LH
23682-51010

1VDFTV..VDJ7#

 4
Common parts
91551-80825
91671-80825
Linked diagrams
1201
