VDJ200R-GNTNZQ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)RHD..LUB

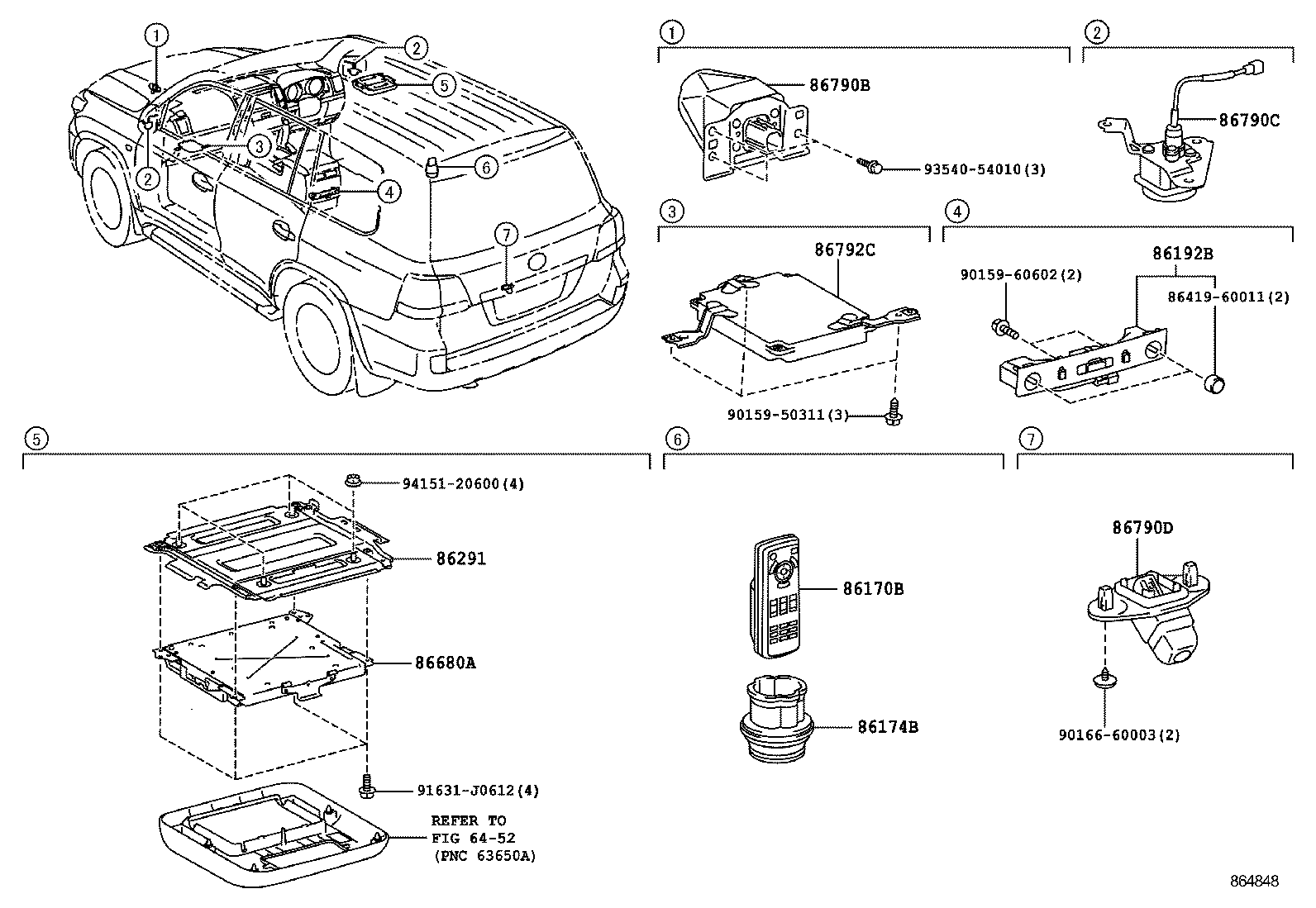

Click highlighted areas on diagram

diagram 6452 86170B 86174B 86192B 86291 8641960011 86680A 86790B 86790C 86790D 86792C 9015950311 9015960602 9016660003 91631J0612 9354054010 9415120600
Part # Description Qty Price
86790D - CAMERA ASSY, TELEVISION, RR
86790-60081

URJ202,VDJ200..ARL..LUB

BACK MONITOR-WITH(ONLY CAMERA)

 1
86790-60082

URJ202,VDJ200..ARL..LUB

BACK MONITOR-WITH(ONLY CAMERA)

 1
Common parts
86419-60011
90159-50311
90159-60602
90166-60003
91631-J0612
93540-54010
94151-20600
Linked diagrams
6452
