VDJ200R-GNTNZ (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )VDJ200..RHD

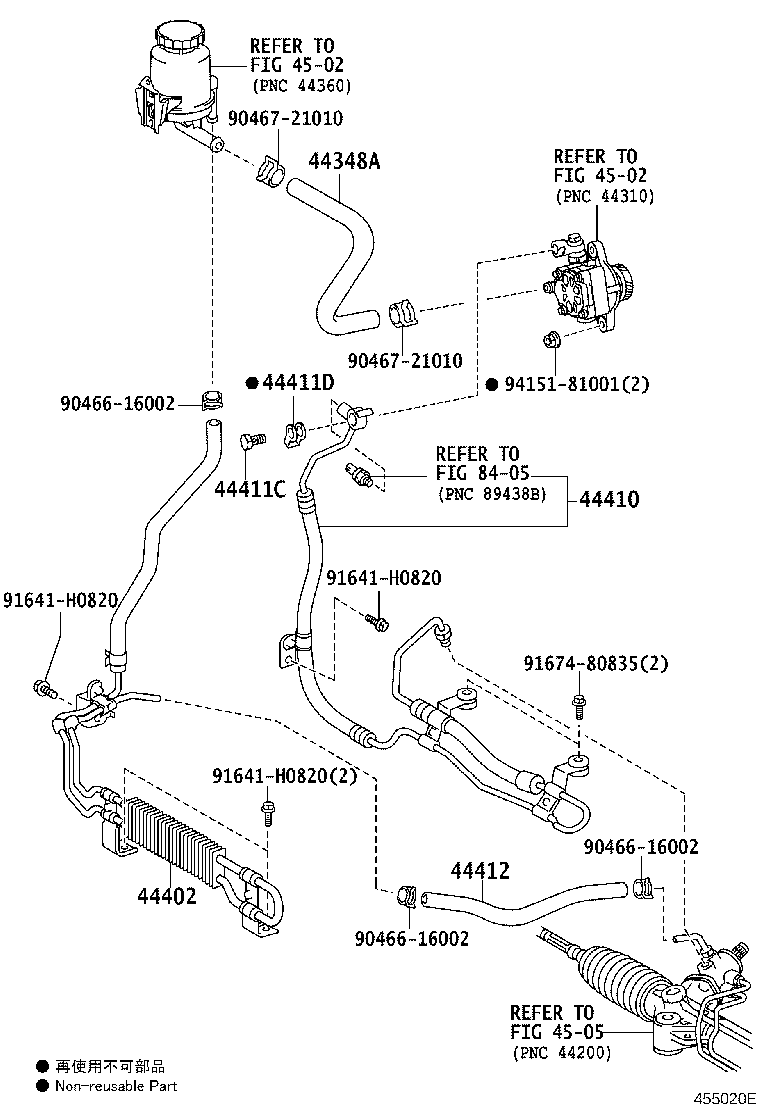

Click highlighted areas on diagram

diagram 44348A 44402 44410 44411C 44411D 44412 4502 4502 4505 8405 9046616002 9046616002 9046616002 9046721010 9046721010 91641H0820 91641H0820 91641H0820 9167480835 9415181001
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60420

VDJ200..G

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-60040

VDJ200

 1
44402-60042

VDJ200..G

 1
44402-60041

VDJ200

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60681

VDJ200..RHD..G

 1
44410-60680

VDJ200..RHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G

 1
44412 - HOSE, RETURN
44412-60330

VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S

 1
Common parts
90466-16002
90467-21010
91641-H0820
91674-80835
94151-81001
Linked diagrams
4502
4505
8405
