VDJ200R-GNTEZQ (2007)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(0709- )1VDFTV
AIR CLEANER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17346C - HOSE, NO.6 | ||||
| 17346-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) | ||||
| 90460-70003 |
1VDFTV..VDJ200..G |
1 | ||
| 17347C - HOSE, AIR, NO.7 | ||||
| 17347-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17347F - CLAMP OR CLIP(FOR AIR HOSE) | ||||
| 90460-67008 |
1VDFTV..VDJ200..G |
2 | ||
| 17347F - CLAMP OR CLIP(FOR AIR HOSE) | ||||
| 90460-67008 |
1VDFTV..VDJ200..G |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-51050 |
1VDFTV..VDJ200..G |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-51050 |
1VDFTV..VDJ200..G |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-38010 |
1VDFTV..VDJ200..G |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-51030 |
1VDFTV..VDJ200..G |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17752-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17886-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90460-67008 |
1VDFTV..VDJ200..G |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17873-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17877 - PIPE, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17877-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-51030 |
1VDFTV..VDJ200 |
1 | ||
| 17881-51031 |
1VDFTV..VDJ200..G |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-11000 |
1VDFTV..VDJ200..G |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-11000 |
1VDFTV..VDJ200..G |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-51010 |
1VDFTV..VDJ200..G |
1 | ||
| Common parts | ||||
| 17778-38010 | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90119-06942 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 1 OF 2(0709- )1VDFTV
AIR CLEANER,W(SNORKEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17346C - HOSE, NO.6 | ||||
| 17346-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) | ||||
| 90460-70003 |
1VDFTV..VDJ200..G |
1 | ||
| 17347C - HOSE, AIR, NO.7 | ||||
| 17347-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17347F - CLAMP OR CLIP(FOR AIR HOSE) | ||||
| 90460-67008 |
1VDFTV..VDJ200..G |
2 | ||
| 17347F - CLAMP OR CLIP(FOR AIR HOSE) | ||||
| 90460-67008 |
1VDFTV..VDJ200..G |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-51050 |
1VDFTV..VDJ200..G |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-51050 |
1VDFTV..VDJ200..G |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-38010 |
1VDFTV..VDJ200..G |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-51030 |
1VDFTV..VDJ200..G |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60010 |
1VDFTV..VDJ200..(ARL,GEN)..G AIR CLEANER-SNORKEL TYPE |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-51010 |
1VDFTV..VDJ200..(ARL,GEN)..G AIR CLEANER-SNORKEL TYPE |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-51020 |
1VDFTV..VDJ200..(ARL,GEN)..G AIR CLEANER-SNORKEL TYPE |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17752-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17886-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90460-67008 |
1VDFTV..VDJ200..G |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17873-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17877 - PIPE, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17877-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-51030 |
1VDFTV..VDJ200 |
1 | ||
| 17881-51031 |
1VDFTV..VDJ200..G |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-11000 |
1VDFTV..VDJ200..G |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-11000 |
1VDFTV..VDJ200..G |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-70004 |
1VDFTV..VDJ200..G |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 53295G - RETAINER, COOL AIR INTAKE PIPE | ||||
| 53295-60060 |
VDJ200..(ARL,GEN)..G AIR CLEANER-SNORKEL TYPE |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-60210 |
VDJ200..(ARL,GEN)..G AIR CLEANER-SNORKEL TYPE |
1 | ||
| 53709B - BRACKET SUB-ASSY, AIR CLEANER INLET SEAL | ||||
| 53709-60010 |
VDJ200..(ARL,GEN)..G AIR CLEANER-SNORKEL TYPE |
1 | ||
| Common parts | ||||
| 17778-38010 | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90119-06942 | ||||
| 90119-08518 | ||||
| 90119-08A06 | ||||
| 90387-10078 | ||||
| 90480-16013 | ||||
| 91631-B0820 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 1701 | ||||

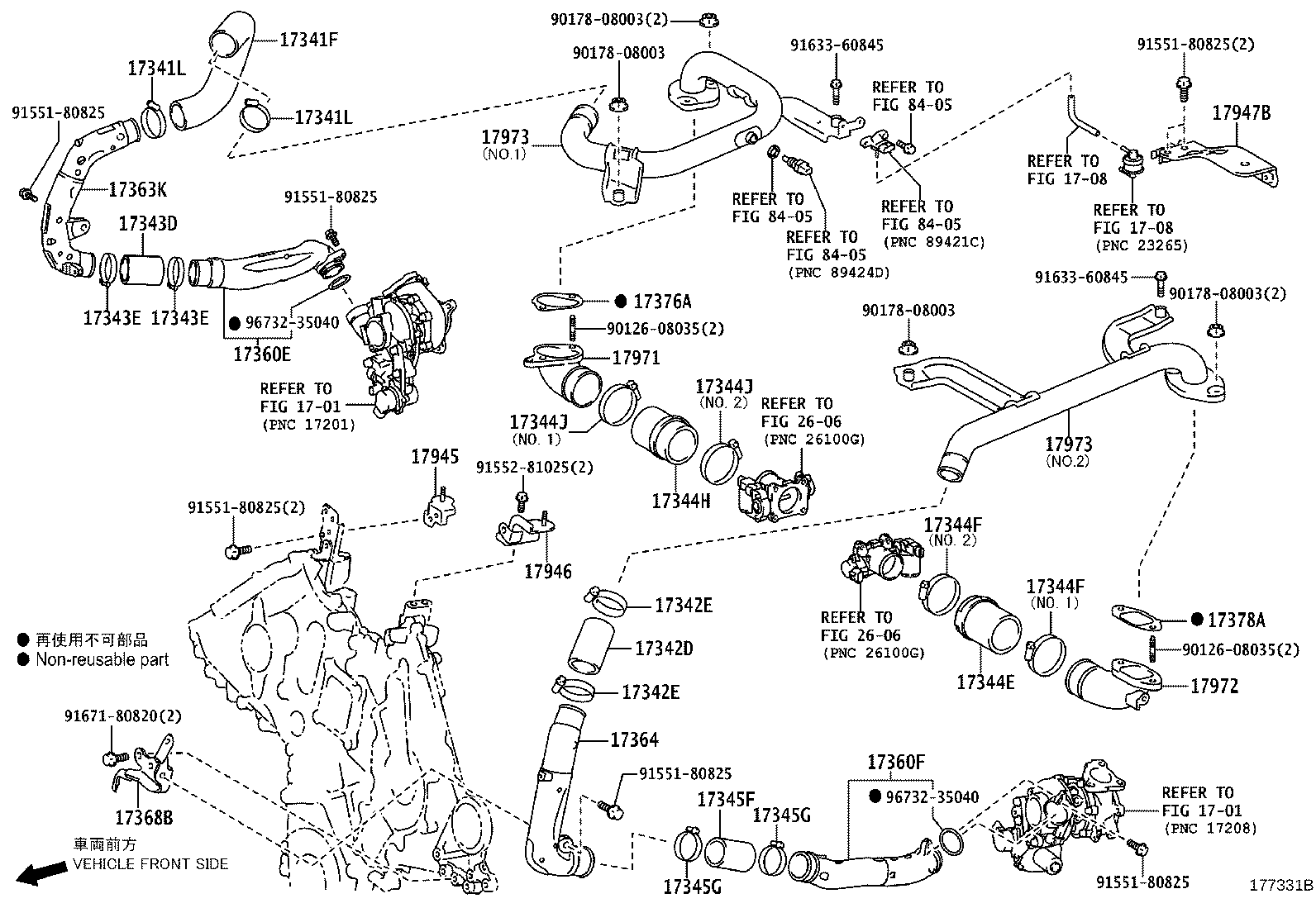

ILLUST NO. 2 OF 2(0709- )1VDFTV
W(INTERCOOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12601E - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-51010 |
1VDFTV..VDJ200 |
1 | ||
| 12601-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 12631C - BRACKET, ENGINE COVER | ||||
| 12631-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17344H - HOSE, AIR, NO.4(FOR INTERCOOLER) | ||||
| 17344-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17345F - HOSE, AIR, NO.5 | ||||
| 17345-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17360E - TUBE ASSY, AIR, NO.1 | ||||
| 17360-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17360F - TUBE ASSY, AIR, NO.2 | ||||
| 17030-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) | ||||
| 17363-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17364 - TUBE, AIR, NO.4 | ||||
| 17364-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17368B - SUPPORT, AIR TUBE | ||||
| 17368-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17378A - GASKET, AIR TUBE, NO.3 | ||||
| 17378-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17900-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17945-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17971 - INLET, COOL AIR, NO.1 | ||||
| 17971-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17972 - INLET, COOL AIR, NO.2 | ||||
| 17972-51010 |
1VDFTV..VDJ200..G |
1 | ||
| Common parts | ||||
| 90126-06019 | ||||
| 90126-08035 | ||||
| 90176-06023 | ||||
| 90178-08003 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 91621-60614 | ||||
| 91633-60845 | ||||
| 91671-80820 | ||||
| 96732-35040 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 7455 | ||||
| 8405 | ||||
ILLUST NO. 2 OF 2(1109- )1VDFTV
W/O(INTERCOOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17344H - HOSE, AIR, NO.4(FOR INTERCOOLER) | ||||
| 17344-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-77002 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90460-74004 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 17345F - HOSE, AIR, NO.5 | ||||
| 17345-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90460-60006 |
1VDFTV..VDJ200..G |
2 | ||
| 17360E - TUBE ASSY, AIR, NO.1 | ||||
| 17360-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17360F - TUBE ASSY, AIR, NO.2 | ||||
| 17030-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) | ||||
| 17363-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17364 - TUBE, AIR, NO.4 | ||||
| 17364-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17368B - SUPPORT, AIR TUBE | ||||
| 17368-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17378A - GASKET, AIR TUBE, NO.3 | ||||
| 17378-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17945-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17971 - INLET, COOL AIR, NO.1 | ||||
| 17971-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17972 - INLET, COOL AIR, NO.2 | ||||
| 17972-51010 |
1VDFTV..VDJ200..G |
1 | ||
| Common parts | ||||
| 90126-08035 | ||||
| 90178-08003 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 91633-60845 | ||||
| 91671-80820 | ||||
| 96732-35040 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
