VDJ200R-GNTEZ (2015)
Toyota Land Cruiser

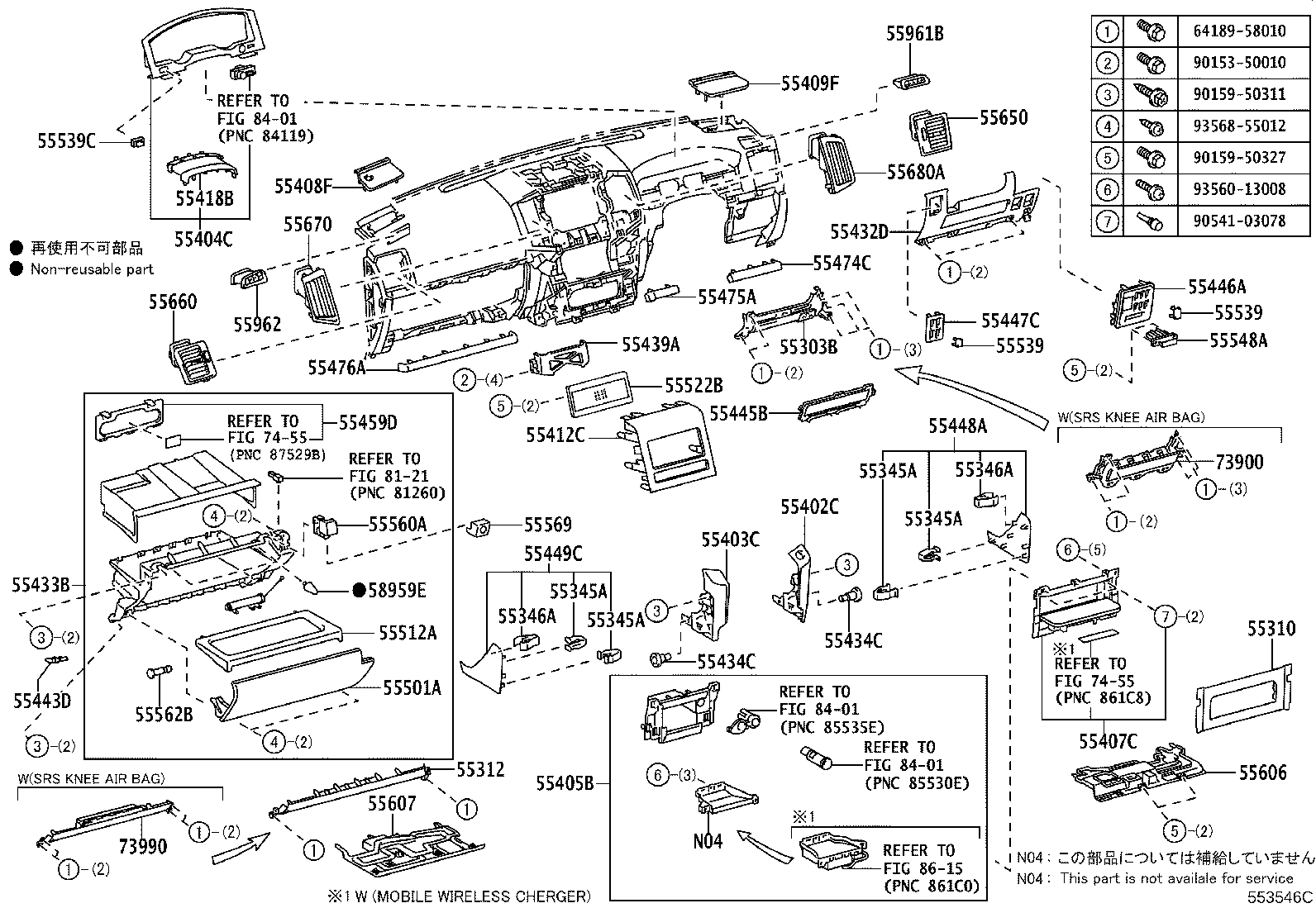

ILLUST NO. 2 OF 2(1508- )RHD..LUB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-60060 |
GRJ200,VDJ200..RHD..GEN |
1 | ||
| 55310 - PANEL ASSY, INSTRUMENT, LOWER | ||||
| 55310-60130B0 |
URJ200,VDJ200..VX,VXR;URJ202..LHD..(VX,VXR) SILVER HAIRLINE,TRIM1#,2#,4# |
1 | ||
| 55310-60130 |
URJ20#,VDJ200..VX,VXR |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-60080A1 |
VDJ200..RHD..GEN..LUB;URJ202,VDJ200..GXR..ARL FLAXEN,TRIM0# |
1 | ||
| 55312-60080C0 |
URJ202,VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR)..GEN BLACK,TRIM1#,2#,4# |
1 | ||
| 55312-60080E1 |
VDJ200..RHD..(VX,VXR)..GEN NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55312-60080C0 |
VDJ200..RHD..(VX,VXR)..GEN BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
GRJ200,URJ20#,VDJ200..LUB |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
GRJ200,URJ20#,VDJ200..LUB |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
GRJ200,URJ20#,VDJ200..LUB |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
GRJ200,URJ20#,VDJ200..LUB |
4 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
GRJ200,URJ20#,VDJ200..LUB MELLOW WHITE |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
GRJ200,URJ20#,VDJ200..LUB MELLOW WHITE |
2 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-60120A2 |
URJ202,VDJ200..RHD..(VX,VXR) FLAXEN,TRIM0# |
1 | ||
| 55402-60120C4 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,4# |
1 | ||
| 55402-60120C4 |
VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55402-60120E0 |
URJ202,VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55402-60121C4 |
VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55402-60121E0 |
URJ202,VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-60120C4 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,4# |
1 | ||
| 55403-60120A2 |
URJ202,VDJ200..RHD..(VX,VXR) FLAXEN,TRIM0# |
1 | ||
| 55403-60120C4 |
VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55403-60120E0 |
URJ202,VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55403-60121E0 |
URJ202,VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55403-60121C4 |
VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60410C0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55404-60410E0 |
URJ202,VDJ200..RHD..(VX,VXR) ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-60430 |
URJ202,VDJ200..RHD..LUB |
1 | ||
| 55405-60500 |
VDJ200..RHD..LUB;URJ202..(VX,VXR)..ARL WIRELESS CHARGER-WITH |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-60090 |
URJ202,VDJ200..RHD..(VX,VXR) WIRELESS CHARGER-WITH |
1 | ||
| 55407-60110 |
URJ20#,VDJ200..VX,VXR |
1 | ||
| 55407-60090B0 |
VDJ200..RHD..(VX,VXR) WIRELESS CHARGER-WITH,SILVER HAIRLINE,TRIM1#,2#,4# |
1 | ||
| 55407-60110B0 |
URJ200,VDJ200..VX,VXR;URJ202..LHD..(VX,VXR) SILVER HAIRLINE,TRIM1#,2#,4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-60100 |
VDJ200..RHD..VX..GEN AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER |
1 | ||
| 55408-60100 |
URJ202,VDJ200..(VX,VXR)..GEN AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55408-60160 |
GRJ200,URJ202,VDJ200..GEN |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-60060 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 55409-60020 |
VDJ200..RHD..VX..GEN;URJ202,VDJ200..VXR..ARL AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER |
1 | ||
| 55409-60020 |
URJ20#,VDJ200..(VX,VXR)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-60400 |
VDJ200..RHD..VX..GEN;URJ202,VDJ200..(VX,VXR)..ARL AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER |
1 | ||
| 55412-60400 |
URJ20#,VDJ200..(VX,VXR)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55412-60400 |
URJ202..GXR,VX;URJ202..LHD..VXR;VDJ200..(GXR,VX)..ARL;GRJ200,URJ200,VDJ200..08S..(5F,6FC,8FC)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 55412-60400 |
GRJ200,URJ20#,VDJ200..LUB |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-60010C0 |
VDJ200..VX,VXR;URJ202..LHD..VX;URJ202..GXR,VXR;VDJ200..GXR..(ARL,GCC);GRJ200,URJ200..08S..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55418-60010E1 |
GRJ200,URJ20#,VDJ200..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55418-60020C0 |
URJ202..VXR;URJ202..LHD..VX;URJ200,VDJ200..VX,VXR BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55418-60020E0 |
URJ202,VDJ200..VX,VXR;URJ202,VDJ200..GXR..GCC;GRJ200,URJ200..(5F,8FC)..GCC..LUB ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60451A3 |
URJ202,VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY),FLAXEN,TRIM0# |
1 | ||
| 55432-60451C0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY),BLACK,TRIM1#,2#,4# |
1 | ||
| 55432-60451A3 |
URJ202,VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY),FLAXEN,TRIM0# |
1 | ||
| 55432-60460A1 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55432-60460C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55432-60451C0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY),BLACK,TRIM1#,2#,4# |
1 | ||
| 55432-60451E1 |
URJ202,VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY),NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55432-60460C0 |
VDJ200..RHD..(VX,VXR);URJ202,VDJ200..GXR..ARL BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55432-60451C0 |
VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55432-60451E1 |
URJ202,VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY),NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55432-60451C0 |
VDJ200..RHD..(VX,VXR) STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55432-60460E1 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-60100C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55320-60100A0 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55320-60100C0 |
URJ202..GXR..ARL;VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55320-60100E0 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55434C - RETAINER,INSTRUMENT PANEL LOWER PAD SET | ||||
| 67771-36030C0 |
GRJ200,URJ20#,VDJ200 BLACK |
2 | ||
| 55434C - RETAINER,INSTRUMENT PANEL LOWER PAD SET | ||||
| 67771-36030C0 |
GRJ200,URJ20#,VDJ200 BLACK |
2 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-60011 |
VDJ200..RHD..(VX,VXR)..GEN;GRJ200,URJ202,VDJ200..(GX,GXR)..GCC..LUB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER |
1 | ||
| 55439-60011 |
VDJ200..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ20#..08S..GCC;VDJ200..RHD..(VX,VXR)..GEN AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-60080 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-60110A1 |
URJ202..GXR;GRJ200..GEN..LUB;VDJ200..GXR..ARL;VDJ200..09S..GCC..SOB;VDJ200..(GCC,GEN)..LUB;GRJ200,URJ200..(08S,09S)..GCC;GRJ200,URJ202..LHD..(05S,08S)..(GX,VX,VXR)..LUB FLAXEN,TRIM0# |
1 | ||
| 55445-60110C0 |
URJ202,VDJ200..GXR..ARL;URJ202,VDJ200..(VX,VXR)..(GCC,GEN);GRJ200,URJ200,VDJ200..08S..(5F,5FC,8FC)..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55445-60110C0 |
URJ202,VDJ200..LHD..VX;VDJ200..RHD..(VX,VXR)..GEN;GRJ200,URJ200,VDJ200..(5F,8FC)..(GXR,VX)..GCC BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55445-60110E1 |
URJ202,VDJ200..LHD..VX;VDJ200..RHD..(VX,VXR)..GEN;GRJ200,URJ200,VDJ200..(5F,8FC)..(GXR,VX)..GCC NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60180C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55446-60180A0 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55446-60270E0 |
URJ202,VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55446-60270C0 |
VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-60080C0 |
VDJ200..VX,VXR;URJ202..VX..GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;URJ202..(GXR,VXR)..(ARL,GEN);GRJ200,URJ200,VDJ200..08S..(5F,5FC,8FC)..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55447-60080A2 |
GRJ200,URJ20#,VDJ200..LUB FLAXEN,TRIM0# |
1 | ||
| 55447-60080C0 |
VDJ200..VX,VXR;URJ202..VX..GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;URJ202..(GXR,VXR)..(ARL,GEN);GRJ200,URJ200,VDJ200..(5F,8FC)..GCC..LUB BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55447-60080E0 |
VDJ200..VX,VXR;URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;GRJ200,URJ200,VDJ200..(5F,8FC)..GCC..LUB NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60060A0 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55448-60060C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55448-60060E0 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55448-60060C0 |
VDJ200..RHD..(VX,VXR);URJ202,VDJ200..GXR..ARL BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-60090A0 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55449-60090C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55449-60090C0 |
VDJ200..RHD..(VX,VXR);URJ202,VDJ200..GXR..ARL BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55449-60090E0 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-60110 |
GRJ200,URJ202,VDJ200..RHD |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55011-60110E3 |
URJ202,VDJ200..RHD..(VX,VXR) LIGHT BROWN,TRIM0#,47 |
1 | ||
| 55011-60110B0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) SILVER HAIRLINE,TRIM11,23,25 |
1 | ||
| 55011-60110E2 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) DK.BRAWN,TRIM11,23,25,42,46 |
1 | ||
| 55011-60110E4 |
URJ202,VDJ200..RHD..(VX,VXR) BROWN,TRIM47 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55012-60110E3 |
URJ202,VDJ200..RHD..(VX,VXR) LIGHT BROWN,TRIM0#,47 |
1 | ||
| 55012-60110E2 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) DK.BRAWN,TRIM11,23,25,42,46 |
1 | ||
| 55012-60110B0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) SILVER HAIRLINE,TRIM11,23,25 |
1 | ||
| 55012-60110E4 |
URJ202,VDJ200..RHD..(VX,VXR) BROWN,TRIM47 |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55043-60060E3 |
URJ202,VDJ200..RHD..(VX,VXR) LIGHT BROWN,TRIM0#,47 |
1 | ||
| 55043-60060E2 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) DK.BRAWN,TRIM11,23,25,42,46 |
1 | ||
| 55043-60060E4 |
URJ202,VDJ200..RHD..(VX,VXR) BROWN,TRIM47 |
1 | ||
| 55043-60060B0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) SILVER HAIRLINE,TRIM11,23,25 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60221C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55501-60221A3 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55501-60221C0 |
VDJ200..RHD..(VX,VXR);URJ202,VDJ200..GXR..ARL BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55501-60221E1 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-60030 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
VDJ200..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ20#..08S..GCC;VDJ200..RHD..(VX,VXR)..GEN AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 55522-52020 |
VDJ200..RHD..(VX,VXR)..GEN;GRJ200,URJ202,VDJ200..(GX,GXR)..GCC..LUB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
URJ20#..(VX,VXR)..GCC;URJ202,VDJ200..RHD..VX PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-52060C0 |
URJ20#..LHD;URJ202..VX..ARL;VDJ200..(GXR,VX)..ARL;VDJ200..6FC..GXR..GCC;VDJ200..(VX,VXR)..(GCC,GEN) TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-52060C0 |
URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..(GXR,VX)..ARL;VDJ200..(VX,VXR)..(GCC,GEN);URJ202..(GXR,VX)..(ARL,GEN) CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..VX..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GEN;URJ202..VX..(ARL,GEN) HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB),BLACK |
1 | ||
| 55539-52060C4 |
VDJ200..VX..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GEN;URJ202..VX..(ARL,GEN) HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB),BLACK |
1 | ||
| 55539-52060C4 |
URJ20#..(VX,VXR)..GCC;URJ202,VDJ200..RHD..VX PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-52060C4 |
URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..(GXR,VX)..ARL;VDJ200..(VX,VXR)..(GCC,GEN);URJ202..(GXR,VX)..(ARL,GEN) CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C4 |
URJ20#..LHD;URJ202..VX..ARL;VDJ200..(GXR,VX)..ARL;VDJ200..6FC..GXR..GCC;VDJ200..(VX,VXR)..(GCC,GEN) TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202..VX,VXR;VDJ200..(GXR,VX)..ARL;GRJ200,URJ200..08S..ATM;VDJ200..(VX,VXR)..(GCC,GEN);URJ202,VDJ200..6FC..GXR..GCC TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200..(VX,VXR)..(ARL,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF & *AGM & *MIH & MEMORY,BLACK |
1 | ||
| 55539-28170C0 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..VX..ARL;VDJ200..(VX,VXR)..GEN;URJ202..(VX,VXR)..(ARL,GEN) HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB),BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..RHD..VX;URJ20#..(VX,VXR)..GCC PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
URJ20#..VX,VXR;VDJ200..VX..ARL;VDJ200..(VX,VXR)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200..(VX,VXR)..(ARL,GEN) OUTSIDE REAR VIEW MIRROR-*273&*RIF&*MIH&*AGM&MEMORY&WITH(CAMERA),BLACK |
1 | ||
| 55539-28170C0 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-28170C0 |
URJ20#..VX,VXR;VDJ200..VX..ARL;VDJ200..(VX,VXR)..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF & *AGM & *MIH & WITH(CAMERA),BLACK |
1 | ||
| 55539-28170C0 |
URJ20#,VDJ200..VX,VXR OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & *AGM & WITH(CAMERA),BLACK |
1 | ||
| 55539-28170C0 |
URJ20#..VX,VXR;VDJ200..VX..ARL;VDJ200..(VX,VXR)..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF & *MIH & MEMORY & W(CAMERA),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
URJ20#..(VX,VXR)..GCC;URJ202,VDJ200..RHD..VX PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-52060C0 |
URJ20#..LHD;URJ202..VX..ARL;VDJ200..(GXR,VX)..ARL;VDJ200..6FC..GXR..GCC;VDJ200..(VX,VXR)..(GCC,GEN) TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-52060C0 |
URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..(GXR,VX)..ARL;VDJ200..(VX,VXR)..(GCC,GEN);URJ202..(GXR,VX)..(ARL,GEN) CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..VX..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GEN;URJ202..VX..(ARL,GEN) HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB),BLACK |
1 | ||
| 55539-52060C4 |
VDJ200..VX..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GEN;URJ202..VX..(ARL,GEN) HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB),BLACK |
1 | ||
| 55539-52060C4 |
URJ20#..(VX,VXR)..GCC;URJ202,VDJ200..RHD..VX PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-52060C4 |
URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..(GXR,VX)..ARL;VDJ200..(VX,VXR)..(GCC,GEN);URJ202..(GXR,VX)..(ARL,GEN) CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C4 |
URJ20#..LHD;URJ202..VX..ARL;VDJ200..(GXR,VX)..ARL;VDJ200..6FC..GXR..GCC;VDJ200..(VX,VXR)..(GCC,GEN) TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202..VX,VXR;VDJ200..(GXR,VX)..ARL;GRJ200,URJ200..08S..ATM;VDJ200..(VX,VXR)..(GCC,GEN);URJ202,VDJ200..6FC..GXR..GCC TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200..(VX,VXR)..(ARL,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF & *AGM & *MIH & MEMORY,BLACK |
1 | ||
| 55539-28170C0 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..VX..ARL;VDJ200..(VX,VXR)..GEN;URJ202..(VX,VXR)..(ARL,GEN) HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB),BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..RHD..VX;URJ20#..(VX,VXR)..GCC PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
URJ20#..VX,VXR;VDJ200..VX..ARL;VDJ200..(VX,VXR)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200..(VX,VXR)..(ARL,GEN) OUTSIDE REAR VIEW MIRROR-*273&*RIF&*MIH&*AGM&MEMORY&WITH(CAMERA),BLACK |
1 | ||
| 55539-28170C0 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-28170C0 |
URJ20#..VX,VXR;VDJ200..VX..ARL;VDJ200..(VX,VXR)..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF & *AGM & *MIH & WITH(CAMERA),BLACK |
1 | ||
| 55539-28170C0 |
URJ20#,VDJ200..VX,VXR OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & *AGM & WITH(CAMERA),BLACK |
1 | ||
| 55539-28170C0 |
URJ20#..VX,VXR;VDJ200..VX..ARL;VDJ200..(VX,VXR)..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF & *MIH & MEMORY & W(CAMERA),BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-60130C0 |
URJ202..VXR;URJ202..LHD..VX;URJ200,VDJ200..VX,VXR CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55539-60130E1 |
URJ20#,VDJ200..VX,VXR CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55539-60130C0 |
URJ202..VXR;URJ202..LHD..VX;URJ200,VDJ200..VX,VXR BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55539-60130E1 |
URJ20#,VDJ200..VX,VXR BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55539-60130C0 |
URJ202..VXR;URJ202..LHD..VX;URJ200,VDJ200..VX,VXR BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55539-60130E1 |
URJ20#,VDJ200..VX,VXR ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030C0 |
VDJ200..VX,VXR;URJ202..VX..GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;URJ202..(GXR,VXR)..(ARL,GEN);GRJ200,URJ200,VDJ200..08S..(5F,5FC,8FC)..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55548-52030A1 |
GRJ200..05S..LUB;GRJ200..GEN..LUB;URJ20#,VDJ200..LUB;VDJ200..09S..GCC..SOB;GRJ200..(08S,09S)..GCC FLAXEN,TRIM0# |
1 | ||
| 55548-52030C0 |
VDJ200..VX,VXR;URJ202..VX..GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;URJ202..(GXR,VXR)..(ARL,GEN);GRJ200,URJ200,VDJ200..(5F,8FC)..GCC..LUB BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55548-52030E5 |
VDJ200..VX,VXR;URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;GRJ200,URJ200,VDJ200..(5F,8FC)..GCC..LUB NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-60050A3 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55560-60050C0 |
VDJ200..RHD..(VX,VXR);URJ202,VDJ200..GXR..ARL BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55560-60050C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55560-60050E1 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-60040A3 |
URJ202,VDJ200..RHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55569-60040C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,4# |
1 | ||
| 55569-60040E1 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55569-60040C0 |
URJ202..GXR..ARL;VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60091 |
URJ202,VDJ200..RHD..(VX,VXR) |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60120 |
URJ202,VDJ200..RHD..(VX,VXR) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60340C0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55650-60340E0 |
URJ202,VDJ200..RHD..(VX,VXR) ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55650-60341E0 |
URJ202,VDJ200..RHD..(VX,VXR) ORCHID BROWN,TRIM47 |
1 | ||
| 55650-60341C0 |
VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60410E0 |
URJ202,VDJ200..RHD..(VX,VXR) ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55660-60410C0 |
URJ202..VXR..ARL;VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55660-60411C0 |
VDJ200..RHD..(VX,VXR) BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55660-60411E0 |
URJ202,VDJ200..RHD..(VX,VXR) ORCHID BROWN,TRIM47 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60310C0 |
URJ202..VXR;URJ202..LHD..VX;URJ200,VDJ200..VX,VXR BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55670-60310E0 |
URJ20#,VDJ200..VX,VXR ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55670-60310C1 |
URJ200,VDJ200..VX,VXR;URJ202..LHD..(VX,VXR) BLACK/SILVER HAIRLINE,TRIM1#,2#,42,46 |
1 | ||
| 55670-60310E1 |
URJ20#,VDJ200..VX,VXR ORCHID BROWN,TRIM47 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60180C0 |
URJ202..VXR;URJ202..LHD..VX;URJ200,VDJ200..VX,VXR BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55680-60180E0 |
URJ20#,VDJ200..VX,VXR ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55680-60180C1 |
URJ200,VDJ200..VX,VXR;URJ202..LHD..(VX,VXR) BLACK/SILVER HAIRLINE,TRIM1#,2#,42,46 |
1 | ||
| 55680-60180E1 |
URJ20#,VDJ200..VX,VXR ORCHID BROWN,TRIM47 |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-60091C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55961-60091E1 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-60080C0 |
VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR);URJ202..(GXR,VXR)..ARL BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55962-60080E1 |
URJ202..ARL;VDJ200..GXR..ARL;VDJ200..RHD..(VX,VXR) ORCHID BROWN,TRIM0#,47 |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-B1010 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60020E1 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),NEUTRAL BEIGE,TRIM47 |
1 | ||
| 73900-60020A3 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),FLAXEN,TRIM0# |
1 | ||
| 73900-60020C0 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),BLACK,TRIM1#,2#,4# |
1 | ||
| 73900-60020C0 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-60020A1 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),FLAXEN,TRIM0# |
1 | ||
| 73990-60020C0 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 73990-60020E1 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),NEUTRAL BEIGE,TRIM47 |
1 | ||
| 73990-60020C0 |
VDJ200..RHD..(VX,VXR)..GEN SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT/REAR),BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90541-03078 | ||||
| 93560-13008 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8121 | ||||
| 8401 | ||||
| 8615 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
