VDJ200R-GNTEZ (2012)
Toyota Land Cruiser

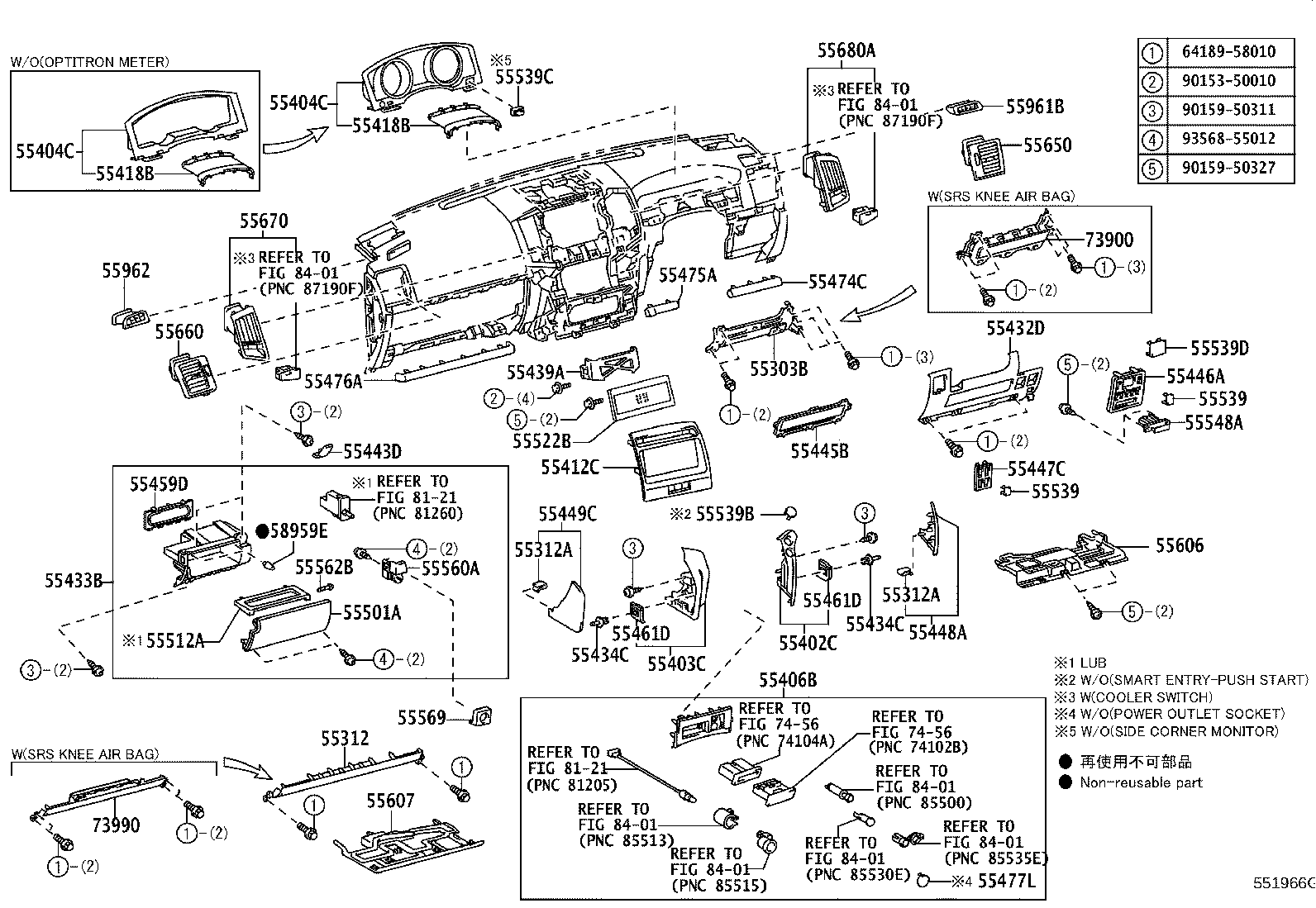

ILLUST NO. 2 OF 2(0709-1508)RHD ; (1508- )RHD..SOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-60080C0 |
VDJ200..RHD..VX..GEN;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55312-60080A0 |
VDJ200..RHD..GEN..LUB;URJ202,VDJ200..GX..ARL SHELL,TRIM0# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90468-05138 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90468-05138 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-60090C0 |
VDJ200..RHD..VX BLACK,TRIM0#,1#,2# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-60090C0 |
VDJ200..RHD..VX BLACK,TRIM0#,1#,2# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60310E0 |
URJ202,VDJ200..RHD..VX ORCHID BROWN,TRIM0# |
1 | ||
| 55404-60310C0 |
VDJ200..RHD..VX BLACK,TRIM1#,2# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60310E0 |
URJ202,VDJ200..RHD..VX ORCHID BROWN,TRIM0# |
1 | ||
| 55404-60310C0 |
VDJ200..RHD..VX BLACK,TRIM1#,2# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-60110 |
URJ202,VDJ200..RHD..LUB |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-60410 |
URJ20#,VDJ200..VX |
1 | ||
| 55412-60410 |
URJ20#,VDJ200..VX..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-60010C0 |
VDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM BLACK,TRIM1#,2# |
1 | ||
| 55418-60010E1 |
GRJ200,URJ20#,VDJ200..GX,VX ORCHID BROWN,TRIM0# |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-60010C0 |
VDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM BLACK,TRIM1#,2# |
1 | ||
| 55418-60010E1 |
GRJ200,URJ20#,VDJ200..GX,VX ORCHID BROWN,TRIM0# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60450C0 |
VDJ200..RHD..VX STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY),BLACK,TRIM1#,2# |
1 | ||
| 55432-60450A1 |
URJ202,VDJ200..RHD..VX STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY),SHELL,TRIM0# |
1 | ||
| 55432-60460A0 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55432-60460C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55432-60450A1 |
URJ202,VDJ200..RHD..VX STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY),SHELL,TRIM0# |
1 | ||
| 55432-60450C0 |
VDJ200..RHD..VX STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY),BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-60041C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55320-60041A1 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-60010 |
VDJ200..RHD..VX..GEN;GRJ200,URJ202,VDJ200..GX..GCC..LUB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER |
1 | ||
| 55439-60011 |
VDJ200..RHD..VX..GEN;GRJ200,URJ202,VDJ200..GX..GCC..LUB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER |
1 | ||
| 55439-60010 |
VDJ200..RHD..VX..GEN AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 55439-60011 |
VDJ200..RHD..VX..GEN;GRJ200,URJ20#,VDJ200..08S..GCC AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-60110A0 |
URJ202..GX;URJ202..LHD..VX;VDJ200..GX..ARL;GRJ200,URJ200,VDJ200..(GX,VX)..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 55445-60110C0 |
URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM;URJ202,VDJ200..VX..(GCC,GEN) BLACK,TRIM1#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60071C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55446-60071A0 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-60030C0 |
GRJ200..08S..5FC;URJ202,VDJ200..VX..GEN DIFFERENTIAL LOCK-WITH,BLACK,TRIM1#,2# |
1 | ||
| 55447-60030A0 |
URJ202..GEN;VDJ200..(GCC,GEN)..LUB;GRJ200,URJ202..LHD..08S..GX DIFFERENTIAL LOCK-WITH,SHELL,TRIM0# |
1 | ||
| 55447-60080A0 |
GRJ200,URJ20#,VDJ200..LUB SHELL,TRIM0# |
1 | ||
| 55447-60080C0 |
VDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM BLACK,TRIM1#,2# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60030A0 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55448-60030C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-60040C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55449-60040A0 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55011-60060E1 |
URJ202,VDJ200..RHD..VX LT.BROWN,TRIM0# |
1 | ||
| 55011-60060E0 |
VDJ200..RHD..VX BROWN,TRIM1#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55012-60060E0 |
VDJ200..RHD..VX BROWN,TRIM1#,2# |
1 | ||
| 55012-60060E1 |
URJ202,VDJ200..RHD..VX LT.BROWN,TRIM0# |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55043-60020E0 |
VDJ200..RHD..VX BROWN,TRIM1#,2# |
1 | ||
| 55043-60020E1 |
URJ202,VDJ200..RHD..VX LT.BROWN,TRIM0# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60221A1 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55501-60221C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
VDJ200..RHD..VX..GEN;GRJ200,URJ202,VDJ200..GX..GCC..LUB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER |
1 | ||
| 55522-52020 |
VDJ200..RHD..VX..GEN AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-60130C0 |
URJ202..LHD..VX;URJ200,VDJ200..VX BLACK,TRIM1#,2# |
1 | ||
| 55539-60130E1 |
URJ20#,VDJ200..VX CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),ORCHID BROWN,TRIM0# |
1 | ||
| 55539-60130C0 |
URJ202..LHD..VX;URJ200,VDJ200..VX CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),BLACK,TRIM1#,2# |
1 | ||
| 55539-60130C0 |
VDJ200..RHD..VX BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),BLACK,TRIM1#,2# |
1 | ||
| 55539-60130E1 |
URJ202,VDJ200..RHD..VX BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),ORCHID BROWN,TRIM0# |
1 | ||
| 55539-60130E1 |
URJ20#,VDJ200..VX ORCHID BROWN,TRIM0# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030C0 |
VDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM BLACK,TRIM1#,2# |
1 | ||
| 55548-52030A0 |
GRJ200,URJ20#,VDJ200..GX,VX SHELL,TRIM0# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-60050C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55560-60050A1 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-60040C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55569-60040A1 |
URJ202,VDJ200..RHD..LUB SHELL,TRIM0# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60090 |
URJ202,VDJ200..RHD..VX |
1 | ||
| 55606-60091 |
URJ202,VDJ200..RHD..VX |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60120 |
URJ202,VDJ200..RHD..VX |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60220C0 |
VDJ200..RHD..VX BLACK,TRIM1#,2# |
1 | ||
| 55650-60220E0 |
URJ202,VDJ200..RHD..VX ORCHID BROWN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60350E0 |
URJ202,VDJ200..RHD..VX ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60350C0 |
VDJ200..RHD..VX BLACK,TRIM1#,2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60260 |
URJ20#,VDJ200..VX |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60100 |
URJ20#,VDJ200..VX |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-60091C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55961-60091E1 |
URJ202,VDJ200..RHD..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-60080C0 |
VDJ200..RHD..VX;URJ202,VDJ200..GX..ARL BLACK,TRIM1#,2# |
1 | ||
| 55962-60080E1 |
URJ202,VDJ200..RHD..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60020A1 |
VDJ200..RHD..VX..GEN KNEE PANEL-W(SRS KNEE AIR BAG(DRIVER & PASSENGER)),SHELL,TRIM0# |
1 | ||
| 73900-60020C0 |
VDJ200..RHD..VX..GEN KNEE PANEL-W(SRS KNEE AIR BAG(DRIVER & PASSENGER)),BLACK,TRIM1#,2# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-60020A0 |
VDJ200..RHD..VX..GEN KNEE PANEL-W(SRS KNEE AIR BAG(DRIVER & PASSENGER)),SHELL,TRIM0# |
1 | ||
| 73990-60020C0 |
VDJ200..RHD..VX..GEN KNEE PANEL-W(SRS KNEE AIR BAG(DRIVER & PASSENGER)),BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8121 | ||||
| 8401 | ||||
