VDJ200R-GNTEZ (2007)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(0709- )
REAR,W(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-60120 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-60040 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 87030-60030 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28111 |
VDJ200..VX;UZJ200..VX..ARL;VDJ200..08S..GCC;GRJ200,URJ200,UZJ200..LHD..08S |
1 | ||
| 87103-28110 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-60210 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87106W - SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR) | ||||
| 87106-28170 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87106X - SERVO SUB-ASSY, DAMPER(FOR MODE REAR) | ||||
| 87106-28180 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28300 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-28010 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28360 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60220 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60280 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-6A170 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88605-6A160 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| Common parts | ||||
| 87124-28540 | ||||
| 87193-87101 | ||||
| 88536-60200 | ||||
| 88578-60410 | ||||
| 88891-20240 | ||||
| 88899-60390 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60008 | ||||
| 91631-B0616 | ||||
ILLUST NO. 2 OF 3(0709- )
REAR,W/O(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-60040 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 87030-60030 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28111 |
VDJ200..VX;UZJ200..VX..ARL;VDJ200..08S..GCC;GRJ200,URJ200,UZJ200..LHD..08S |
1 | ||
| 87103-28110 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-28250 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-28010 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28360 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60220 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60280 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-6A170 |
VDJ200..VX;UZJ200..LHD;UZJ200..VX..ARL;GRJ200,URJ200,VDJ200..08S..GCC |
1 | ||
| 88605-6A160 |
URJ200,UZJ200,VDJ200..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88536-60200 | ||||
| 88578-60410 | ||||
| 88899-60390 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60008 | ||||
| 91631-B0616 | ||||

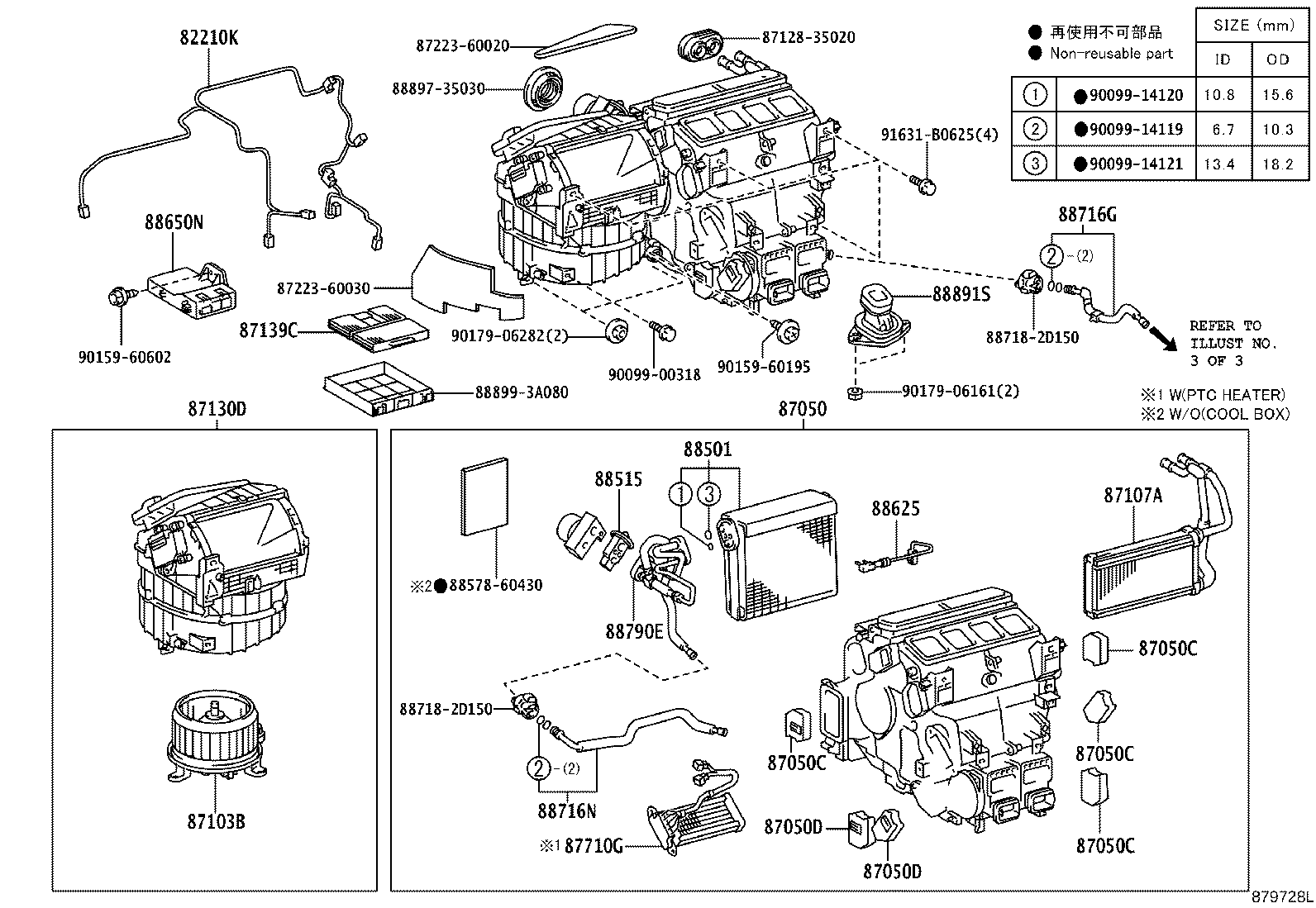

ILLUST NO. 1 OF 3(0709-1201)RHD..G
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60080 |
UZJ200,VDJ200..RHD..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 82212-60070 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60420 |
UZJ200,VDJ200..RHD..VX HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60400 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S |
1 | ||
| 87050-60390 |
VDJ200..RHD..VX..GEN WITH(COOL BOX) |
1 | ||
| 87050-60410 |
VDJ200..RHD..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..RHD..VX HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
6 | ||
| 87106-50390 |
GRJ200..08S..GCC;GRJ200..RHD..08S;URJ200,UZJ200,VDJ200..G;GRJ200..LHD..(05S,09S)..G |
4 | ||
| 87106-50390 |
VDJ200..RHD..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
6 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..RHD..VX HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
6 | ||
| 87106-50390 |
GRJ200..08S..GCC;GRJ200..RHD..08S;URJ200,UZJ200,VDJ200..G;GRJ200..LHD..(05S,09S)..G |
4 | ||
| 87106-50390 |
VDJ200..RHD..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
6 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..RHD..VX HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
6 | ||
| 87106-50390 |
GRJ200..08S..GCC;GRJ200..RHD..08S;URJ200,UZJ200,VDJ200..G;GRJ200..LHD..(05S,09S)..G |
4 | ||
| 87106-50390 |
VDJ200..RHD..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
6 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..RHD..VX HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
6 | ||
| 87106-50390 |
GRJ200..08S..GCC;GRJ200..RHD..08S;URJ200,UZJ200,VDJ200..G;GRJ200..LHD..(05S,09S)..G |
4 | ||
| 87106-50390 |
VDJ200..RHD..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
6 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60260 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60260 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60380 |
GRJ200,UZJ200,VDJ200..RHD |
1 | ||
| 87103-60470 |
GRJ200,UZJ200,VDJ200..RHD..G |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60410 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60520 |
GRJ200,UZJ200,VDJ200..RHD |
1 | ||
| 87130-60521 |
GRJ200,UZJ200,VDJ200..RHD |
1 | ||
| 87130-60522 |
GRJ200,UZJ200,VDJ200..RHD..G |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
GRJ200,URJ200,UZJ200,VDJ200..G MICRO DUST FILTER,MICRO DUST FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60361 |
GRJ200..08S,09S;GRJ200..LHD..05S;URJ200,UZJ200,VDJ200 |
1 | ||
| 88501-60360 |
GRJ200,UZJ200,VDJ200 |
1 | ||
| 88501-60362 |
GRJ200,URJ200,UZJ200,VDJ200..G |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60E62 |
UZJ200,VDJ200..RHD..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60E60 |
GRJ200..RHD..08S;UZJ200,VDJ200..RHD..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60E61 |
UZJ200,VDJ200..RHD..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60D60 |
GRJ200,UZJ200,VDJ200..RHD |
1 | ||
| 88650-60D61 |
GRJ200,UZJ200,VDJ200..RHD..G |
1 | ||
| 88650-60D80 |
GRJ200..RHD..08S;UZJ200,VDJ200..RHD..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60D81 |
GRJ200..RHD..08S;UZJ200,VDJ200..RHD..VX AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-6C270 |
VDJ200..RHD..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88716-6C270 |
VDJ200..RHD..VX..GEN WITH(COOL BOX) |
1 | ||
| 88716N - PIPE, COOLER REFRIGERANT LIQUID, N | ||||
| 88716-6C170 |
VDJ200..RHD..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88716-6C170 |
VDJ200..RHD..VX..GEN WITH(COOL BOX) |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A00 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 88710-60A10 |
VDJ200..VX..GEN HEATER-4SEAT INDEPENDENT CONTROL&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87223-60020 | ||||
| 87223-60030 | ||||
| 88578-60430 | ||||
| 88718-2D150 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 90099-00318 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90179-06161 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||

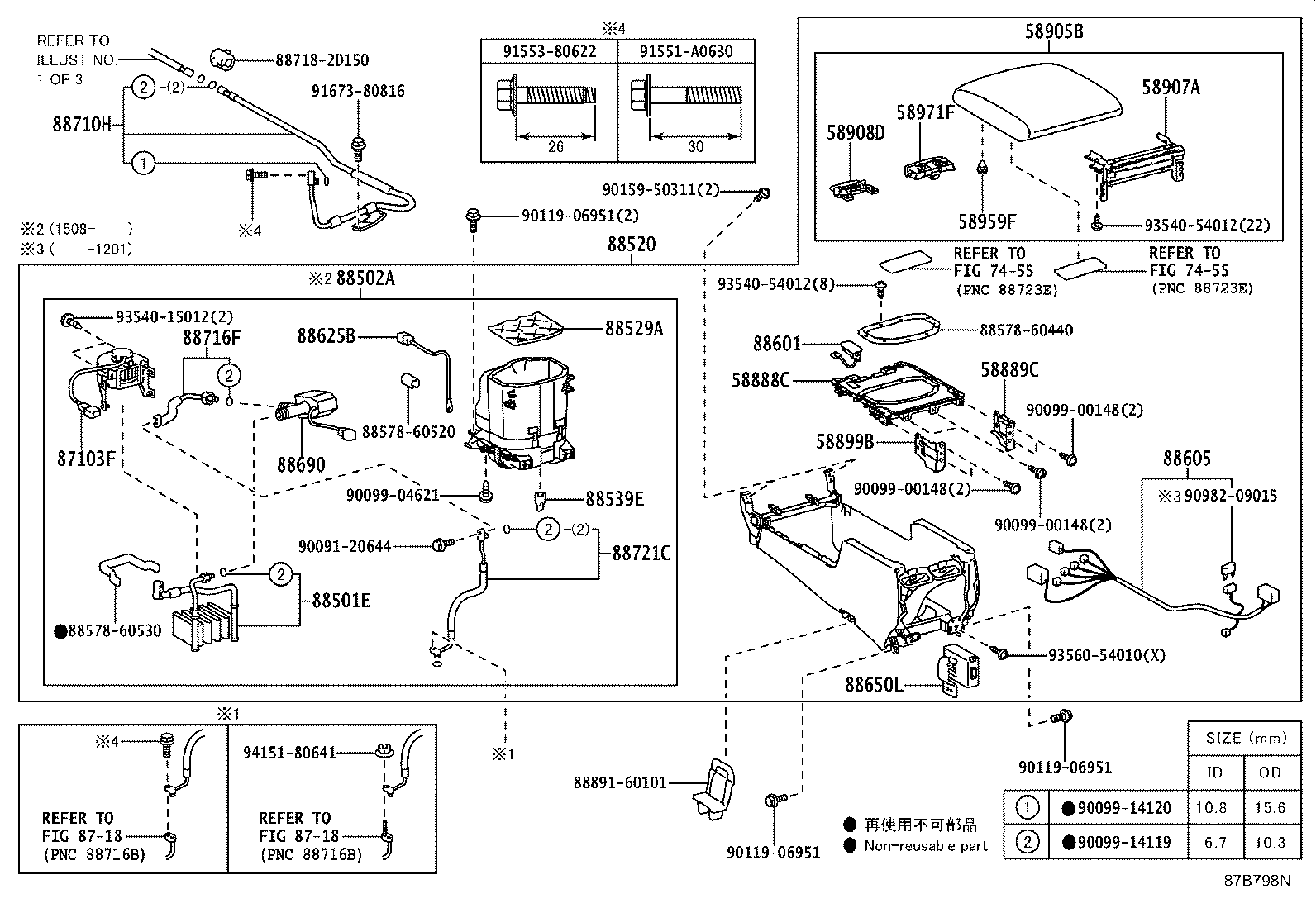

ILLUST NO. 3 OF 3(0709- )RHD
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58888C - BASE, COOLING BOX | ||||
| 58888-60010 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 58888-60010 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58889C - BRACKET, COOLING BOX | ||||
| 58889-60010 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 58889-60010 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58899B - BRACKET, COOLING BOX, NO.2 | ||||
| 58899-60010 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58899-60010 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60220C0 |
VDJ200..VX..GEN WITH(COOL BOX),BLACK,TRIM1# |
1 | ||
| 58905-60230E0 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.BROWN,TRIM4# |
1 | ||
| 58905-60230C0 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 58905-60220E0 |
VDJ200..VX..GEN WITH(COOL BOX),DK. BROWN,TRIM4# |
1 | ||
| 58907A - HINGE SUB-ASSY, COOLING BOX DOOR | ||||
| 58907-60100 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 58907-60100 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58908D - LOCK SUB-ASSY, COOLING BOX DOOR | ||||
| 58908-60040 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 58908-60040 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58959F - CUSHION, COOLING BOX DOOR | ||||
| 58959-60060 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 58959-60060 |
VDJ200..VX..GEN WITH(COOL BOX) |
4 | ||
| 58971F - LOCK, COOLING BOX DOOR | ||||
| 58971-60030 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 58971-60030 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) | ||||
| 87103-60450 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87103-60450 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-60350 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88501-60350 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60450E0 |
VDJ200..RHD..VX WITH(COOL BOX),DK. BROWN,TRIM4# |
1 | ||
| 88520-60460E0 |
VDJ200..RHD..VX WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 88520-60450C0 |
VDJ200..RHD..VX WITH(COOL BOX),BLACK,TRIM1# |
1 | ||
| 88520-60460C0 |
VDJ200..RHD..VX WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 88529A - TRAY, COOLING BOX | ||||
| 88529-60050 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88529-60050 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-60270 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88539-60270 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60050 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88601-60050 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-6A151 |
GRJ200,UZJ200,VDJ200..RHD..(05S,08S)..G WITH(COOL BOX) |
1 | ||
| 88605-6A151 |
VDJ200..RHD..VX WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-60070 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88625-60070 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88650L - AMPLIFIER ASSY, AIR CONDITIONER (FOR COOL BOX) | ||||
| 88650-60C70 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88650-60C70 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60280 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88690-60280 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88720-60200 |
VDJ200..RHD..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88720-60200 |
VDJ200..RHD..VX..GEN WITH(COOL BOX) |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6C280 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88716-6C280 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88721-60170 |
VDJ200..VX..GEN WITH(COOL BOX) |
1 | ||
| 88721-60170 |
VDJ200..VX..GEN WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 88578-60440 | ||||
| 88578-60520 | ||||
| 88578-60530 | ||||
| 88718-2D150 | ||||
| 88891-60101 | ||||
| 90091-20644 | ||||
| 90099-00148 | ||||
| 90099-04621 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90982-09015 | ||||
| 91551-A0630 | ||||
| 91553-80622 | ||||
| 91673-80816 | ||||
| 93540-15012 | ||||
| 93540-54012 | ||||
| 93560-54010 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8718 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
