VDJ200R-GNTAZ (2015)
Toyota Land Cruiser
ILLUST NO. 6 OF 9(1508- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26330 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..LHD..GXR..GEN |
1 | ||
| 84140-26290 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 84140-60430 |
VDJ200..GX..LUB;VDJ200..LHD..GXR..GEN FRONT FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26330 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..LHD..GXR..GEN |
1 | ||
| 84140-26290 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 84140-60430 |
VDJ200..GX..LUB;VDJ200..LHD..GXR..GEN FRONT FOG LAMP-WITH |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-60030E0 |
VDJ200..RHD..6FC..GXR..GEN STEERING SWITCH-WITH(AUDIO, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CD & 6SPEAKER,ORCHID BROWN,TRIM0#,4# |
1 | ||
| 84247-60030C0 |
VDJ200..RHD..6FC..GXR..GEN STEERING SWITCH-WITH(AUDIO, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CD & 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 84247-60030C0 |
GRJ200,VDJ200..GX..LUB BLACK,TRIM1# |
1 | ||
| 84247-60030C0 |
VDJ200..RHD..6FC..GXR..GEN STEERING SWITCH-WITH(AUDIO, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 84247-60030E0 |
VDJ200..RHD..6FC..GXR..GEN STEERING SWITCH-WITH(AUDIO, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & 6SPEAKER,ORCHID BROWN,TRIM0#,4# |
1 | ||
| 84247-60040C0 |
VDJ200..RHD..GXR..GEN STEERING SWITCH-WITH(AUDIO, TELEPHONE, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 84247-60040E0 |
GRJ200,VDJ200..GXR..GEN STEERING SWITCH-WITH(AUDIO, TELEPHONE, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP),ORCHID BROWN,TRIM0#,4# |
1 | ||
| 84247-60040C0 |
VDJ200..RHD..GXR..GEN STEERING SWITCH-WITH(AUDIO, TELEPHONE, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP),BLACK,TRIM1# |
1 | ||
| 84247-60040E0 |
GRJ200,VDJ200..GXR..GEN STEERING SWITCH-WITH(AUDIO, TELEPHONE, DISPLAY(DUMMY))&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER,ORCHID BROWN,TRIM0#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-60150 |
GRJ200,VDJ200..GXR..GEN STEERING SWITCH-WITH(AUDIO, TELEPHONE, DISPLAY(DUMMY)) |
1 | ||
| 84306-60150 |
VDJ200..RHD..6FC..GXR..GEN STEERING SWITCH-WITH(AUDIO, DISPLAY(DUMMY)) |
1 | ||
| 84306-60160 |
GRJ200,VDJ200..GXR..GEN |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-60150 |
GRJ200,VDJ200..GXR..GEN STEERING SWITCH-WITH(AUDIO, TELEPHONE, DISPLAY(DUMMY)) |
1 | ||
| 84306-60150 |
VDJ200..RHD..6FC..GXR..GEN STEERING SWITCH-WITH(AUDIO, DISPLAY(DUMMY)) |
1 | ||
| 84306-60160 |
GRJ200,VDJ200..GXR..GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26640 |
VDJ200..RHD..GXR..GEN REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL) |
1 | ||
| 84652-26650 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 84652-26640 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26640 |
VDJ200..RHD..GXR..GEN REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL) |
1 | ||
| 84652-26650 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 84652-26640 |
VDJ200..RHD..GXR..GEN |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO. 3 OF 9(1508- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1GRFE,1URFE,3URFE,1VDFTV..GRJ200,URJ20#,VDJ200 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1GRFE,1URFE,3URFE,1VDFTV..GRJ200,URJ20#,VDJ200 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1VDFTV..VDJ200 |
2 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
VDJ200..ARL..SOB;VDJ200..RHD..(08S,09S)..(GX,GXR)..GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
VDJ200..ARL..SOB;VDJ200..RHD..(08S,09S)..(GX,GXR)..GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
VDJ200..ARL..SOB;VDJ200..RHD..(GX,GXR)..GEN 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08296 |
VDJ200..ARL..SOB;VDJ200..RHD..(GX,GXR)..GEN 50A,TERM.:FEMALE,RED |
3 | ||
| 90982-08296 |
GRJ200,URJ20#;VDJ200..LHD..(08S,09S)..(GX,GXR);VDJ200..(05S,08S)..(GX,VX,VXR)..(GCC,GEN) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
GRJ200,URJ20#;VDJ200..LHD..(08S,09S)..(GX,GXR);VDJ200..(05S,08S)..(GX,VX,VXR)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GRJ200,URJ20#,VDJ200 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GRJ200,URJ20#,VDJ200 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GRJ200,URJ20#,VDJ200 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRJ200,URJ20#,VDJ200 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
GRJ200,URJ20#,VDJ200 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
GRJ200,URJ20#,VDJ200 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ200,URJ20#,VDJ200 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GRJ200,URJ20#,VDJ200 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GRJ200,URJ20#,VDJ200 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GRJ200,URJ20#,VDJ200 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRJ200,URJ20#,VDJ200 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
GRJ200,URJ20#,VDJ200 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
GRJ200,URJ20#,VDJ200 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ200,URJ20#,VDJ200 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-60120 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60170 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60200 |
VDJ200 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-60090 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0C100 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-60190 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-60200 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-60270 |
GRJ200,URJ20#,VDJ200 |
9 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60410 |
VDJ200 |
1 | ||
| 82661-60411 |
VDJ200 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60150 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60070 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
VDJ200..6FC..GX;GRJ200..5FC..GXR;VDJ200..LHD..GXR;GRJ200,URJ202..(08S,09S)..(5F,6FC)..(GX,GXR)..GCC FRONT FOG LAMP-WITH |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 90987-02025 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 85931A - RELAY, BRAKE LAMP | ||||
| 90987-04004 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
GRJ200,URJ202..GXR;VDJ200..(08S,09S)..(GX,GXR)..LUB ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| Linked diagrams | ||||
| 8405 | ||||
| 8419 | ||||

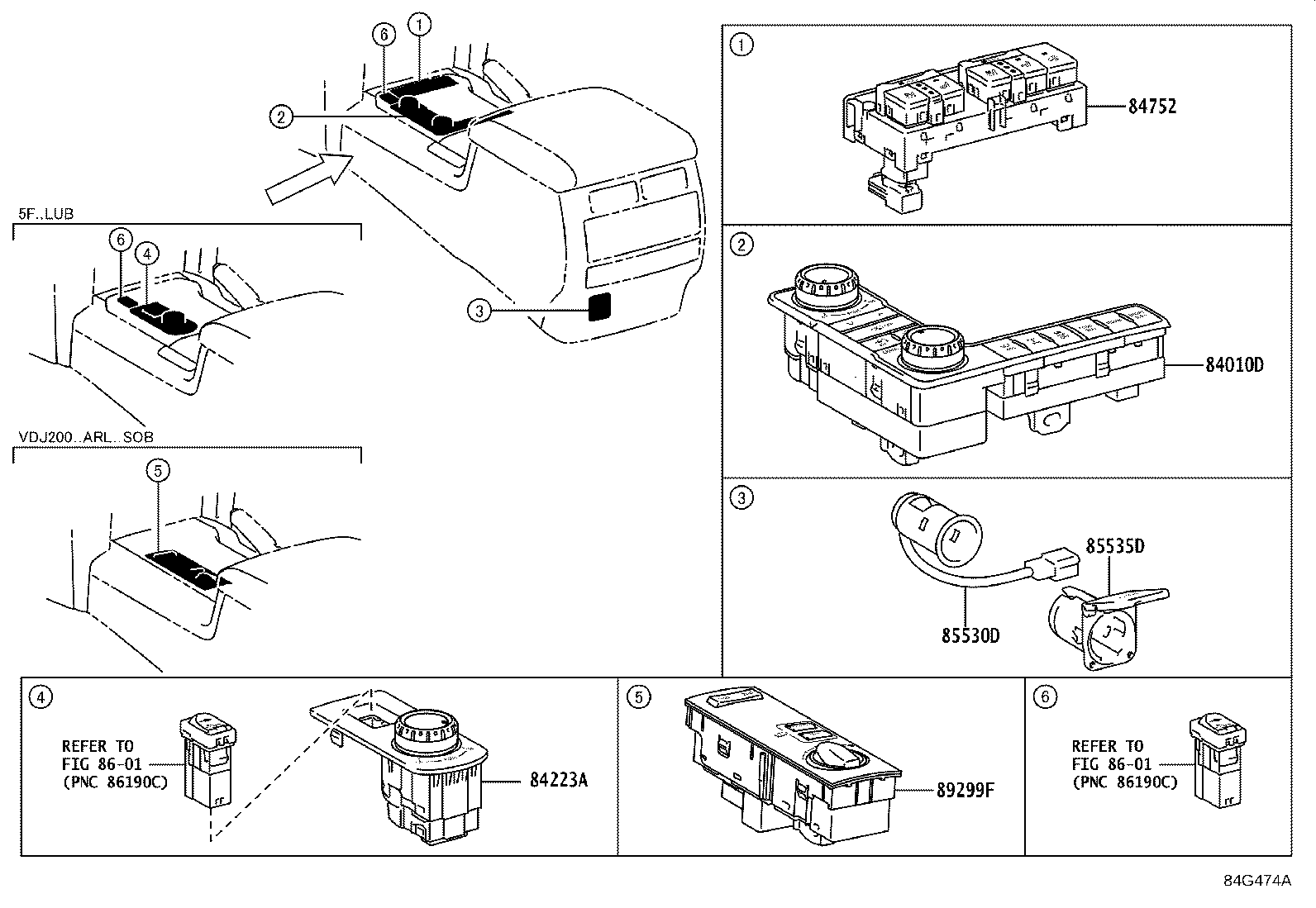

ILLUST NO. 5 OF 9(1508- )RHD
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-60G20 |
VDJ200..RHD..6FC..GEN |
1 | ||
| 84010-60G41 |
GRJ200..6FC;VDJ200..GX..LUB SAUDI ARABIA SPEC |
1 | ||
| 84010-60G21 |
VDJ200..RHD..6FC..GEN |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-60390 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-60110C0 |
GRJ200..GX;VDJ200..09S..LUB;VDJ200..05S..(ARL,GCC);VDJ200..RHD..(05S,08S)..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 85535-60110A2 |
GRJ200..05S..LUB;GRJ200..GEN..LUB;URJ20#,VDJ200..LUB;VDJ200..09S..GCC..SOB;GRJ200..(08S,09S)..GCC FLAXEN,TRIM0# |
1 | ||
| 85535-60110E0 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..GXR..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 5 OF 9(1508- )RHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60080 |
URJ202..GCC;GRJ200,URJ200..08S;VDJ200..(VX,VXR)..GCC;VDJ200..GXR..(GCC,GEN) |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-60110 |
URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ20#,VDJ200..(VX,VXR)..GCC;VDJ200..6FC..(GX,VX,VXR)..(ARL,GEN) |
1 | ||
| 84415-60120 |
URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ20#,VDJ200..(VX,VXR)..GCC;VDJ200..6FC..(GX,VX,VXR)..(ARL,GEN) |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-60110 |
URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ20#,VDJ200..(VX,VXR)..GCC;VDJ200..6FC..(GX,VX,VXR)..(ARL,GEN) |
1 | ||
| 84415-60120 |
URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ20#,VDJ200..(VX,VXR)..GCC;VDJ200..6FC..(GX,VX,VXR)..(ARL,GEN) |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60100 |
VDJ200 |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60030 |
GRJ200..05S..SOB;GRJ200..5FC..GXR;VDJ200..(GX,GXR)..(GCC,GEN);GRJ200,URJ202..(08S,09S)..(5F,6FC)..(GX,GXR)..(GCC,GEN) DIFFERENTIAL LOCK-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60200 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84870-60190 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 84870-60210 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-60020 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-48070C0 |
GRJ200,URJ202,VDJ200..RHD BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
GRJ200,URJ20#,VDJ200..LUB |
1 | ||
| 89611-42012 |
GRJ200,URJ20#,VDJ200..LUB |
1 | ||
| Linked diagrams | ||||
| 8301 | ||||

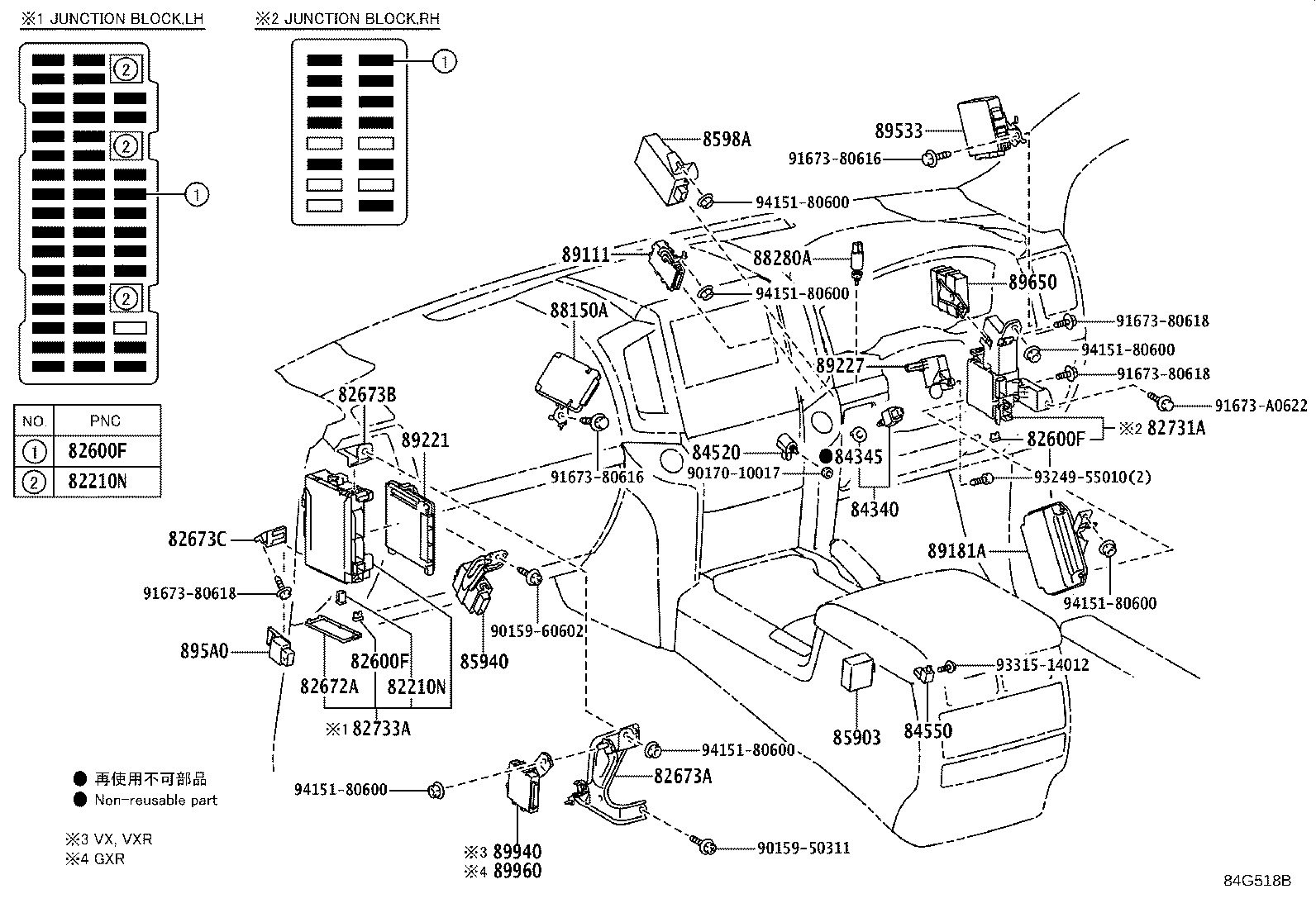

ILLUST NO. 4 OF 9(1508- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GRJ200,URJ20#,VDJ200 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GRJ200,URJ20#,VDJ200 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
GRJ200,URJ20#,VDJ200 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GRJ200,URJ20#,VDJ200 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRJ200,URJ20#,VDJ200 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ200,URJ20#,VDJ200 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ200,URJ20#,VDJ200 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ200,URJ20#,VDJ200 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
GRJ200,URJ20#,VDJ200 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
GRJ200,URJ20#,VDJ200 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GRJ200,URJ20#,VDJ200 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRJ200,URJ20#,VDJ200 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ200,URJ20#,VDJ200 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ200,URJ20#,VDJ200 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ200,URJ20#,VDJ200 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
GRJ200,URJ20#,VDJ200 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
GRJ200,URJ20#,VDJ200 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GRJ200,URJ20#,VDJ200 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRJ200,URJ20#,VDJ200 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ200,URJ20#,VDJ200 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ200,URJ20#,VDJ200 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ200,URJ20#,VDJ200 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
GRJ200,URJ20#,VDJ200 5A,MINI FUSE,TAN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-60110 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82702-60100 |
GRJ200,URJ202,VDJ200..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82817-60V10 |
GRJ200,URJ202,VDJ200..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82817-30W60 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60P30 |
GRJ200,URJ200;URJ202,VDJ200..GX,GXR;URJ202,VDJ200..(VX,VXR)..GCC |
1 | ||
| 82733-60P31 |
GRJ200,URJ200;URJ202,VDJ200..(05S,08S)..(GX,GXR);URJ202,VDJ200..(08S,09S)..(GX,VX,VXR)..GCC..LUB |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-39015 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
GRJ200,URJ202,VDJ200..RHD |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52020 |
GRJ200,URJ20#,VDJ200..ATM..LUB |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-6E070 |
VDJ200..GX..LUB ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6E030 |
GRJ200,VDJ200..GX..LUB |
1 | ||
| 89220-6E240 |
GRJ200,VDJ200..GX..LUB SAUDI ARABIA SPEC |
1 | ||
| 89220-6E280 |
VDJ200..GX..LUB SAUDI ARABIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6EC40 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 89220-6EC60 |
VDJ200..RHD..GXR..GEN ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6EK00 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC |
1 | ||
| 89220-6EK00 |
VDJ200..RHD..GXR..GEN PAPUA NEW GUINEA SPEC |
1 | ||
| 89220-6EK20 |
VDJ200..RHD..GXR..GEN PAPUA NEW GUINEA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6EG80 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC |
1 | ||
| 89220-6EJ00 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6EK20 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6E031 |
GRJ200,VDJ200..GX..LUB |
1 | ||
| 89220-6E071 |
VDJ200..GX..LUB ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6EC61 |
VDJ200..RHD..GXR..GEN ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6EC41 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 89220-6EK01 |
VDJ200..RHD..GXR..GEN PAPUA NEW GUINEA SPEC |
1 | ||
| 89220-6EK21 |
VDJ200..RHD..GXR..GEN PAPUA NEW GUINEA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6H570 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89220-6H640 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC |
1 | ||
| 89220-6H580 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC |
1 | ||
| 89220-6H630 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60R30 |
VDJ200..RHD..6FC..GXR..GEN BRUNEI SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60S60 |
GRJ200,VDJ200..GX..LUB |
1 | ||
| 892G0-60S80 |
VDJ200..GX..LUB ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60T40 |
GRJ200,VDJ200..GX..LUB SAUDI ARABIA SPEC |
1 | ||
| 892G0-60T60 |
VDJ200..GX..LUB SAUDI ARABIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60Y40 |
VDJ200..RHD..GXR..GEN ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60Y30 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 892G0-6A180 |
VDJ200..RHD..GXR..GEN PAPUA NEW GUINEA SPEC |
1 | ||
| 892G0-6A190 |
VDJ200..RHD..GXR..GEN PAPUA NEW GUINEA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AC90 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AD00 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC |
1 | ||
| 892G0-6AD60 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC |
1 | ||
| 892G0-6AD50 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60S81 |
VDJ200..GX..LUB ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60S61 |
GRJ200,VDJ200..GX..LUB |
1 | ||
| 892G0-60T61 |
VDJ200..GX..LUB SAUDI ARABIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60T41 |
GRJ200,VDJ200..GX..LUB SAUDI ARABIA SPEC |
1 | ||
| 892G0-60Y41 |
VDJ200..RHD..GXR..GEN ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60Y31 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 892G0-6A181 |
VDJ200..RHD..6FC..GXR..GEN PAPUA NEW GUINEA SPEC |
1 | ||
| 892G0-6A191 |
VDJ200..RHD..6FC..GXR..GEN PAPUA NEW GUINEA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AC91 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AD01 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC |
1 | ||
| 892G0-6AD61 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC |
1 | ||
| 892G0-6AD51 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60S62 |
GRJ200,VDJ200..GX..LUB |
1 | ||
| 892G0-60S82 |
VDJ200..GX..LUB ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60T42 |
GRJ200,VDJ200..GX..LUB SAUDI ARABIA SPEC |
1 | ||
| 892G0-60T62 |
VDJ200..GX..LUB SAUDI ARABIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60Y42 |
VDJ200..RHD..GXR..GEN ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-60Y32 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 892G0-6A182 |
VDJ200..RHD..6FC..GXR..GEN PAPUA NEW GUINEA SPEC |
1 | ||
| 892G0-6A192 |
VDJ200..RHD..6FC..GXR..GEN PAPUA NEW GUINEA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AD62 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC |
1 | ||
| 892G0-6AD52 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AC92 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AD02 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC |
1 | ||
| 892G0-60S63 |
GRJ200,VDJ200..GX..LUB |
1 | ||
| 892G0-60Y33 |
VDJ200..RHD..GXR..GEN |
1 | ||
| 892G0-60Y43 |
VDJ200..RHD..GXR..GEN ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6A183 |
VDJ200..RHD..6FC..GXR..GEN PAPUA NEW GUINEA SPEC |
1 | ||
| 892G0-6A193 |
VDJ200..RHD..6FC..GXR..GEN PAPUA NEW GUINEA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AC93 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 892G0-6AD63 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC |
1 | ||
| 892G0-6AD03 |
VDJ200..RHD..GXR..GEN PAKISTAN SPEC |
1 | ||
| 892G0-6AD53 |
VDJ200..RHD..GXR..GEN ZIMBABWE SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60310 |
URJ202,VDJ200;GRJ200,URJ200..5F,5FC,8FC |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-60021 |
GRJ200,URJ202,VDJ200..RHD |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 90170-10017 | ||||
| 91673-80616 | ||||
| 91673-80618 | ||||
| 91673-A0622 | ||||
| 93249-55010 | ||||
| 93315-14012 | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF 9(1508- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-60240 |
GRJ200,URJ202..RHD;VDJ200..RHD..(05S,08S) |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-60240 |
GRJ200,URJ202..RHD;VDJ200..RHD..(05S,08S) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30220 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30220 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30220 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30220 |
GRJ200,URJ20#;VDJ200..05S,08S;VDJ200..09S..LUB |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-60360A2 |
VDJ200..GX..LUB;GRJ200..05S..LUB;VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..LHD..GXR..GEN;GRJ200,VDJ200..09S..(5F,5FC)..GCC FLAXEN,TRIM0# |
1 | ||
| 85530-60360C0 |
GRJ200..GX;GRJ200..GEN..LUB;VDJ200..GX..(ARL,GCC);VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 85530-60360C1 |
GRJ200,VDJ200..05S;VDJ200..RHD..GXR..GEN BLACK,TRIM1# |
1 | ||
| 85530-60360E0 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..GXR..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-60360A2 |
VDJ200..GX..LUB;GRJ200..05S..LUB;VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..LHD..GXR..GEN;GRJ200,VDJ200..09S..(5F,5FC)..GCC FLAXEN,TRIM0# |
1 | ||
| 85530-60360C0 |
GRJ200..GX;GRJ200..GEN..LUB;VDJ200..GX..(ARL,GCC);VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 85530-60360C1 |
GRJ200,VDJ200..05S;VDJ200..RHD..GXR..GEN BLACK,TRIM1# |
1 | ||
| 85530-60360E0 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..GXR..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-60360A2 |
VDJ200..GX..LUB;GRJ200..05S..LUB;VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..LHD..GXR..GEN;GRJ200,VDJ200..09S..(5F,5FC)..GCC FLAXEN,TRIM0# |
1 | ||
| 85530-60360C0 |
GRJ200..GX;GRJ200..GEN..LUB;VDJ200..GX..(ARL,GCC);VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 85530-60360C1 |
GRJ200,VDJ200..05S;VDJ200..RHD..GXR..GEN BLACK,TRIM1# |
1 | ||
| 85530-60360E0 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..GXR..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
GRJ200..GX;VDJ200..09S..LUB;VDJ200..05S..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,VDJ200..LHD..GXR..GEN |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-44050A3 |
VDJ200..GX..LUB;GRJ200..05S..LUB;VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..LHD..GXR..GEN;GRJ200,VDJ200..09S..(5F,5FC)..GCC FLAXEN,TRIM0# |
1 | ||
| 85535-44050C0 |
GRJ200..GX;GRJ200..GEN..LUB;VDJ200..GX..(ARL,GCC);VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 85535-44050C1 |
GRJ200,VDJ200..05S;VDJ200..RHD..GXR..GEN BLACK,TRIM1# |
1 | ||
| 85535-44050E2 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..GXR..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60080A3 |
VDJ200..GX..LUB;GRJ200..05S..LUB;VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..LHD..GXR..GEN;GRJ200,VDJ200..09S..(5F,5FC)..GCC FLAXEN,TRIM0# |
1 | ||
| 85536-60080E1 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..GXR..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85536-60080C0 |
GRJ200..GX;VDJ200..09S..LUB;VDJ200..05S..(ARL,GCC);VDJ200..RHD..(05S,08S)..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-60140 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF,LH |
1 | ||
| 89430-60130 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF,RH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-60140 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF,LH |
1 | ||
| 89430-60130 |
GRJ200,URJ200..08S..ATM;URJ202,VDJ200..(GX,VX,VXR)..LUB;URJ202,VDJ200..6FC..GXR..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *RIF,RH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06983 | ||||
| 90119-06A06 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 9 OF 9(1508- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60690 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-69545 |
VDJ200..RHD..6FC..GXR..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 83320-69545 |
VDJ200..RHD..6FC..GXR..GEN |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60110 |
GRJ200..05S..SOB;GRJ200..5FC..GXR;VDJ200..(GX,GXR)..(GCC,GEN);GRJ200,URJ202..(08S,09S)..(5F,6FC)..(GX,GXR)..(GCC,GEN) DIFFERENTIAL LOCK-WITH |
1 | ||
| 84231D - SWITCH, COURTESY LAMP (FOR TIRE CARRIER) | ||||
| 84230-60010 |
URJ200;VDJ200..LHD..VX..GEN;VDJ200..RHD..GEN..LUB;VDJ200..LHD..(05S,08S)..(GX,VXR)..LUB SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-60021 |
GRJ200,URJ20#,VDJ200..LUB |
1 | ||
| 84840-60020 |
GRJ200,URJ20#,VDJ200..LUB |
1 | ||
| 84840-28040 |
GRJ200,URJ20#,VDJ200..LUB |
1 | ||
| 84840-60023 |
GRJ200,URJ20#,VDJ200..LUB |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90149-60079 | ||||
| 90178-06012 | ||||
| 90179-06178 | ||||
| 93319-A4010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
