VDJ200R-GNMNZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1508)RHD..LUB

Click highlighted areas on diagram

W(SMART ENTRY)

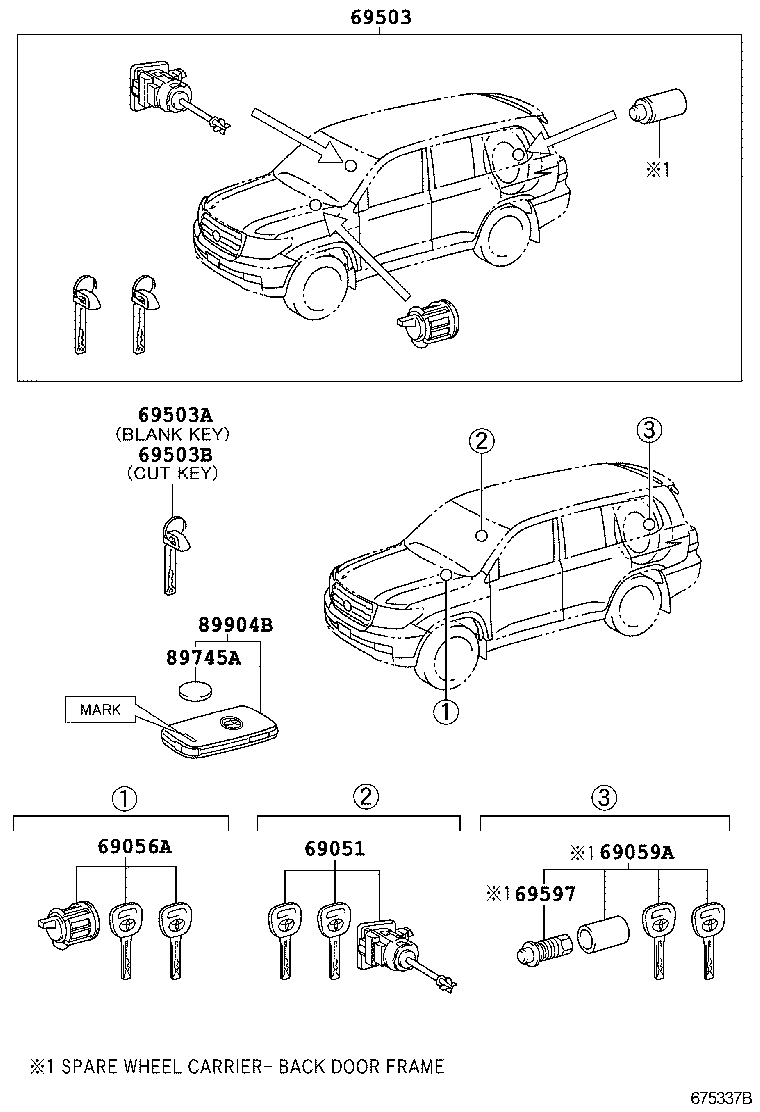

diagram 69051 69056A 69059A 69503 69503A 69503B 69597 89745A 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-60271

URJ202,VDJ200..RHD..LUB

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30240

GRJ200,URJ20#,VDJ200..LUB

 1
69059A - CYLINDER & KEY SET, SPARE WHEEL LOCK
69059-60240

VDJ200..5F..LUB;VDJ200..VX..GEN;VDJ200..LHD..6FC..GX;GRJ200,URJ20#..LHD..08S

SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

 1
69059-60240

GRJ200,URJ20#,VDJ200..08S..(GCC,GEN)

SPARE WHEEL CARRIER-BACK DOOR FRAME

 1
69503 - CYLINDER SET, LOCK
69005-6C221

URJ202,VDJ200..RHD..LUB

 1
69005-6C211

VDJ200..RHD..GEN..LUB

SPARE WHEEL CARRIER-BACK DOOR FRAME

 1
69005-6C211

VDJ200..RHD..5F..LUB;VDJ200..RHD..VX..GEN

SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

 1
69503A - KEY, BLANK
69515-30320

GRJ200,URJ20#,VDJ200..LUB

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-30310

GRJ200,URJ20#,VDJ200..LUB

MASTER KEY,W(*68)

 2
69597 - NUT, SPARE WHEEL LOCK
69597-60060

VDJ200..5F..LUB;VDJ200..VX..GEN;VDJ200..LHD..6FC..GX;GRJ200,URJ20#..LHD..08S

SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

 1
69597-60060

GRJ200,URJ20#,VDJ200..08S..(GCC,GEN)

SPARE WHEEL CARRIER-BACK DOOR FRAME

 1
89745A - BATTERY, TRANSMITTER
89745-52030

GRJ200,URJ20#,VDJ200..(GCC,GEN)..LUB

CR1632

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-60781

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

 2
89904-60791

GRJ200,URJ202,VDJ200..(05S,08S)..GX..(GCC,GEN)

ANTI-THEFT SYSTEM-WITH(*IM & ALARM)

 2
89904-60792

GRJ200,URJ202,VDJ200..(05S,08S)..GX..(GCC,GEN)

ANTI-THEFT SYSTEM-WITH(*IM & ALARM)

 2
89904-60782

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

 2
89904-60793

GRJ200,URJ202,VDJ200..(05S,08S)..GX..(GCC,GEN)

ANTI-THEFT SYSTEM-WITH(*IM & ALARM)

 2
