Toyota Land cruiser VDJ200 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
LAND CRUISER
VDJ200R-GDMRZ (2012)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

VDJ200R-GDMRZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015

Engine 1VDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

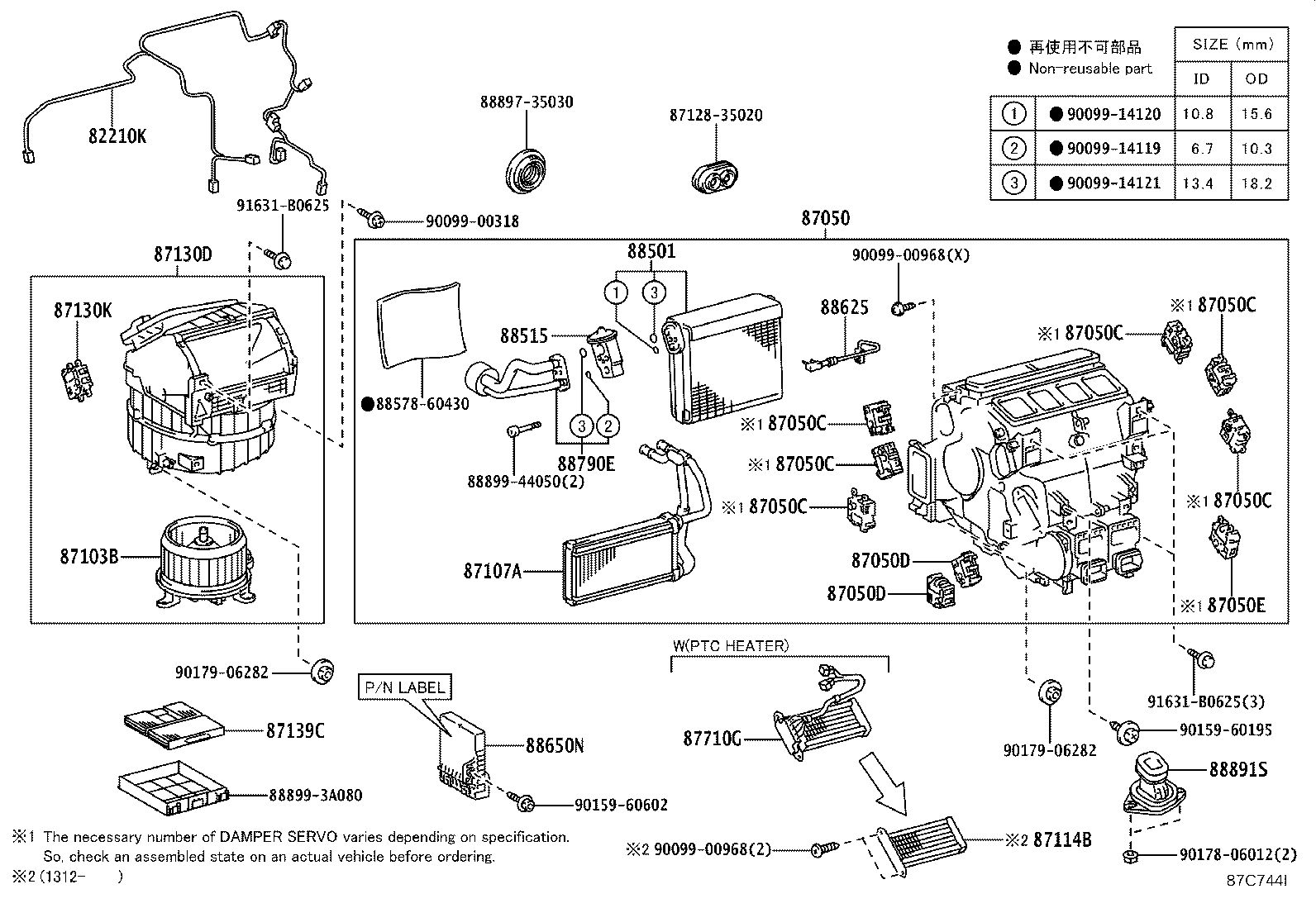

ILLUST NO. 1 OF 3(1201- )RHD

Click highlighted areas on diagram

FRONT AUTO *AIC,W/O(COOL BOX)

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60031	GRJ200,VDJ200..RHD..SOB	01/2013 - 08/2015	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60751	GRJ200,VDJ200..RHD..SOB	01/2013 - 12/2013	1
87050-60A10	GRJ200,VDJ200..RHD..SOB	12/2013 - 08/2015	1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60471	GRJ200,URJ202,VDJ200..RHD	12/2014 - 08/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60411	GRJ200,URJ20#,VDJ200	01/2013 - 08/2015	1
87114B - COVER, HEATER
87114-60070	GRJ200,URJ20#,VDJ200	12/2013 - 08/2015	1
87130D - BLOWER ASSY
87130-60523	GRJ200,URJ202,VDJ200..RHD	01/2013 - 11/2014	1
87130-60524	GRJ200,URJ202,VDJ200..RHD	12/2014 - 08/2015	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-50550	GRJ200,URJ20#,VDJ200	01/2013 - 08/2015	1
87139C - FILTER, CLEAN AIR
87139-76010	GRJ200,URJ20#,VDJ200 MICRO DUST FILTER, MICRO DUST FILTER	01/2012 - 08/2015	1
87139-50100	GRJ200,URJ20#,VDJ200 POLLEN DEODORANT,*DPF	05/2012 - 08/2015	1
87139-52040	GRJ200,URJ20#,VDJ200 POLLEN FILTER	01/2012 - 08/2015	1
87139-50060	GRJ200,URJ20#,VDJ200 DEODORANT FILTER	01/2012 - 04/2012	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-60E80	GRJ200,VDJ200..RHD..SOB P/N LABEL=8865060E80	01/2012 - 01/2013	1
88650-60E81	GRJ200,VDJ200..RHD..SOB P/N LABEL=8865060E81	01/2013 - 08/2015	1
Common parts
87128-35020
88578-60430
88897-35030
88899-3A080
88899-44050
90099-00318
90099-00968
90099-14119
90099-14120
90099-14121
90159-60195
90159-60602
90178-06012
90179-06282
91631-B0625

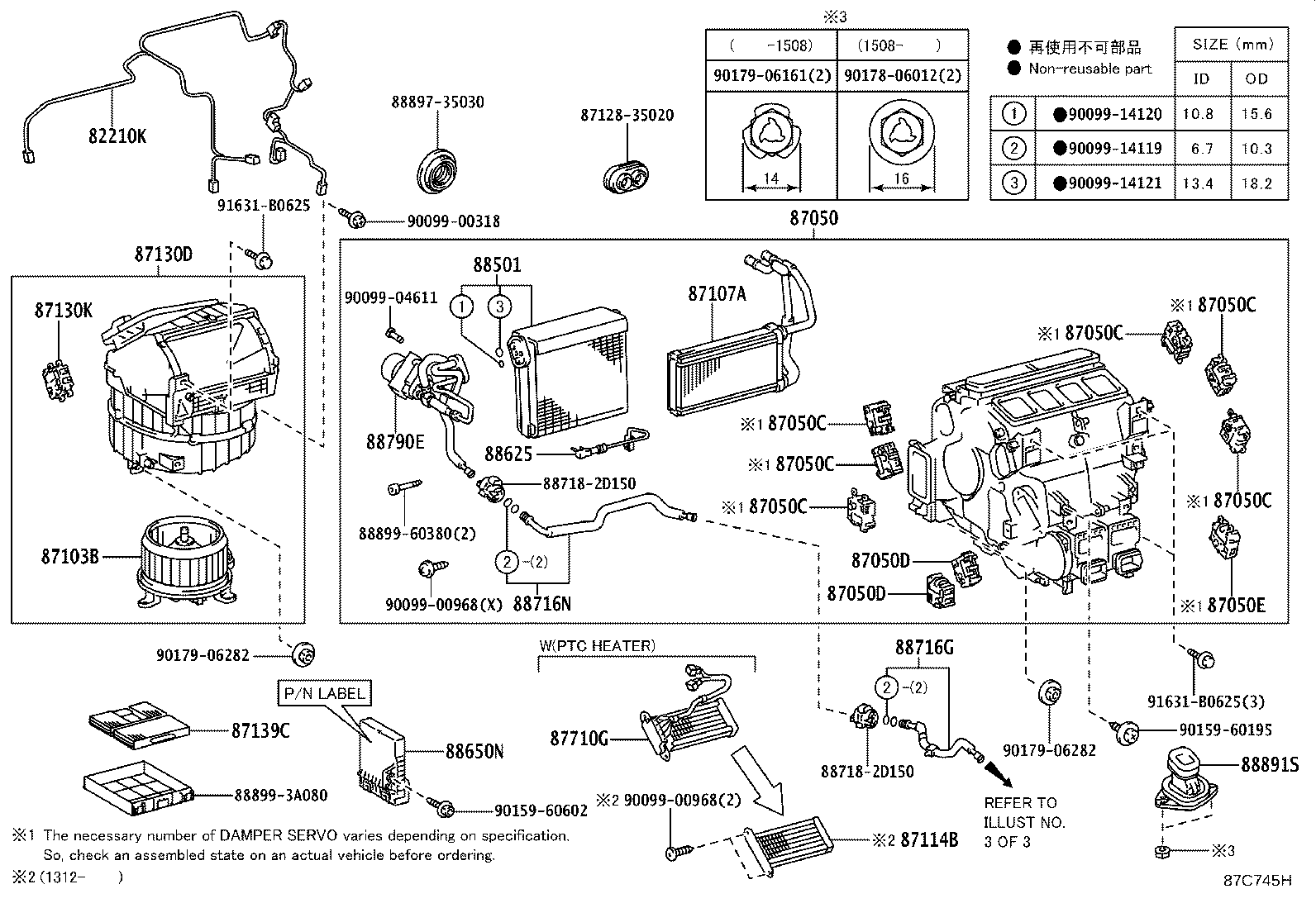

ILLUST NO. 1 OF 3(1201- )RHD

Click highlighted areas on diagram

FRONT AUTO *AIC,W(COOL BOX)

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60031	GRJ200,VDJ200..RHD..SOB	01/2013 - 08/2015	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60751	GRJ200,VDJ200..RHD..SOB	01/2013 - 12/2013	1
87050-60A10	GRJ200,VDJ200..RHD..SOB	12/2013 - 08/2015	1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60471	GRJ200,URJ202,VDJ200..RHD	12/2014 - 08/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60411	GRJ200,URJ20#,VDJ200	01/2013 - 08/2015	1
87114B - COVER, HEATER
87114-60070	GRJ200,URJ20#,VDJ200	12/2013 - 08/2015	1
87130D - BLOWER ASSY
87130-60523	GRJ200,URJ202,VDJ200..RHD	01/2013 - 11/2014	1
87130-60524	GRJ200,URJ202,VDJ200..RHD	12/2014 - 08/2015	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-50550	GRJ200,URJ20#,VDJ200	01/2013 - 08/2015	1
87139C - FILTER, CLEAN AIR
87139-76010	GRJ200,URJ20#,VDJ200 MICRO DUST FILTER, MICRO DUST FILTER	01/2012 - 08/2015	1
87139-50100	GRJ200,URJ20#,VDJ200 POLLEN DEODORANT,*DPF	05/2012 - 08/2015	1
87139-52040	GRJ200,URJ20#,VDJ200 POLLEN FILTER	01/2012 - 08/2015	1
87139-50060	GRJ200,URJ20#,VDJ200 DEODORANT FILTER	01/2012 - 04/2012	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-60E80	GRJ200,VDJ200..RHD..SOB P/N LABEL=8865060E80	01/2012 - 01/2013	1
88650-60E81	GRJ200,VDJ200..RHD..SOB P/N LABEL=8865060E81	01/2013 - 08/2015	1
Common parts
87128-35020
88718-2D150
88897-35030
88899-3A080
88899-60380
90099-00318
90099-00968
90099-04611
90099-14119
90099-14120
90099-14121
90159-60195
90159-60602
90178-06012
90179-06161
90179-06282
91631-B0625

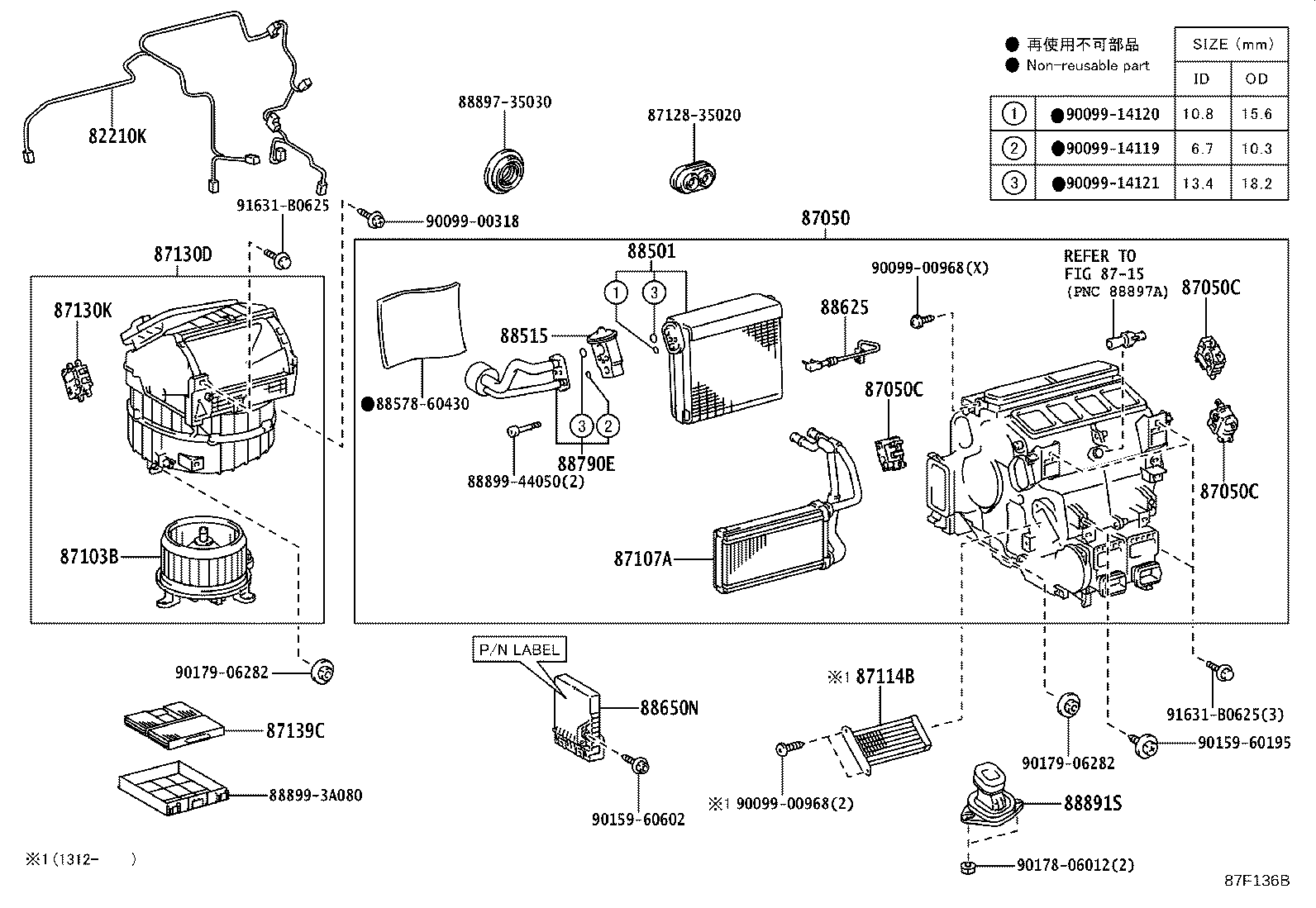

ILLUST NO. 1 OF 3(1201- )RHD

Click highlighted areas on diagram

FRONT MANUAL *AIC

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60031	GRJ200,VDJ200..RHD..SOB	01/2013 - 08/2015	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60751	GRJ200,VDJ200..RHD..SOB	01/2013 - 12/2013	1
87050-60A10	GRJ200,VDJ200..RHD..SOB	12/2013 - 08/2015	1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	GRJ200,VDJ200..STD	01/2013 - 08/2015	3
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60471	GRJ200,URJ202,VDJ200..RHD	12/2014 - 08/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60411	GRJ200,URJ20#,VDJ200	01/2013 - 08/2015	1
87114B - COVER, HEATER
87114-60070	GRJ200,URJ20#,VDJ200	12/2013 - 08/2015	1
87130D - BLOWER ASSY
87130-60523	GRJ200,URJ202,VDJ200..RHD	01/2013 - 11/2014	1
87130-60524	GRJ200,URJ202,VDJ200..RHD	12/2014 - 08/2015	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-50550	GRJ200,URJ20#,VDJ200	01/2013 - 08/2015	1
87139C - FILTER, CLEAN AIR
87139-76010	GRJ200,URJ20#,VDJ200 MICRO DUST FILTER, MICRO DUST FILTER	01/2012 - 08/2015	1
87139-50100	GRJ200,URJ20#,VDJ200 POLLEN DEODORANT,*DPF	05/2012 - 08/2015	1
87139-52040	GRJ200,URJ20#,VDJ200 POLLEN FILTER	01/2012 - 08/2015	1
87139-50060	GRJ200,URJ20#,VDJ200 DEODORANT FILTER	01/2012 - 04/2012	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-60E80	GRJ200,VDJ200..RHD..SOB P/N LABEL=8865060E80	01/2012 - 01/2013	1
88650-60E81	GRJ200,VDJ200..RHD..SOB P/N LABEL=8865060E81	01/2013 - 08/2015	1
Common parts
87128-35020
88578-60430
88897-35030
88899-3A080
88899-44050
90099-00318
90099-00968
90099-14119
90099-14120
90099-14121
90159-60195
90159-60602
90178-06012
90179-06282
91631-B0625
Linked diagrams
8715

VDJ200R-GDMRZ (2012)

ILLUST NO. 1 OF 3(1201- )RHD

ILLUST NO. 1 OF 3(1201- )RHD

ILLUST NO. 1 OF 3(1201- )RHD
