VDJ200R-GCTNZQ (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )RHD

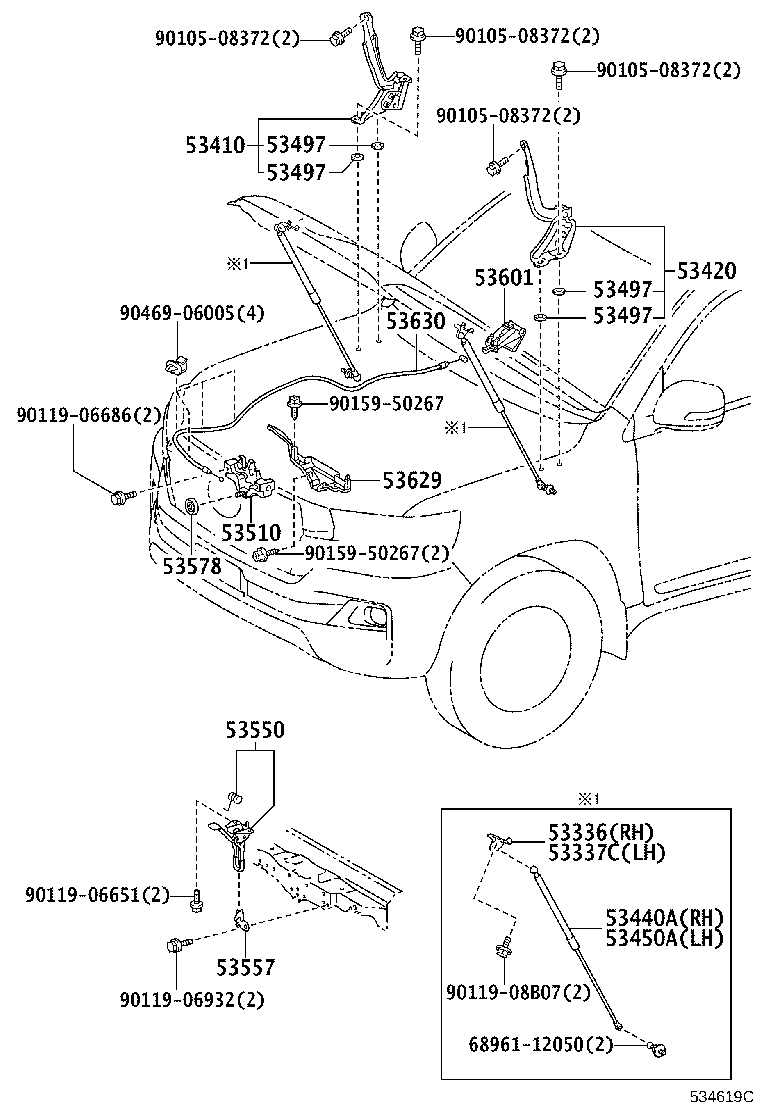

Click highlighted areas on diagram

diagram 53336 53337C 53410 53420 53440A 53450A 53497 53497 53497 53497 53510 53550 53557 53578 53601 53629 53630 6896112050 9010508372 9010508372 9010508372 9010508372 9011906651 9011906686 9011906932 9011908B07 9015950267 9015950267 9046906005
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-60020

GRJ200,URJ20#,VDJ200

 1
53337C - BRACKET, HOOD STAY, LH
53337-60010

GRJ200,URJ20#,VDJ200

 1
53410 - HINGE ASSY, HOOD, RH
53410-60110

GRJ200,URJ20#,VDJ200

 1
53410-60150

GRJ200,URJ20#,VDJ200

 1
53420 - HINGE ASSY, HOOD, LH
53420-60140

GRJ200,URJ20#,VDJ200

 1
53420-60090

GRJ200,URJ20#,VDJ200

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0W330

VDJ200..LUB;VDJ200..(ARL,GCC)..SOB

 1
53450A - SUPPORT ASSY, HOOD, LH
53450-0W300

VDJ200..LUB;VDJ200..(ARL,GCC)..SOB

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GRJ200,URJ20#,VDJ200

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GRJ200,URJ20#,VDJ200

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GRJ200,URJ20#,VDJ200

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GRJ200,URJ20#,VDJ200

T=1.0

 4
53510 - LOCK ASSY, HOOD
53510-60400

GRJ200,VDJ200..RHD..SOB

ANTI-THEFT SYSTEM-WITH(*IM & ALARM)

 1
53510-60410

GRJ200,URJ202,VDJ200..RHD..(GX,GXR)

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-60110

GRJ200,URJ20#,VDJ200

 1
53557 - CATCH, HOOD AUXILIARY HOOK
53557-60010

GRJ200,URJ20#,VDJ200

 1
53578 - NUT, HOOD LOCK
53578-50010

GRJ200,URJ20#,VDJ200

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

GRJ200..GX;GRJ200..GEN..LUB;VDJ200..(GX,GXR)..GEN;VDJ200..GX..(ARL,GCC)

BLACK,TRIM1#

 1
53601-52010C1

GRJ200..GX;VDJ200..GX..(ARL,GCC);VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN

BLACK,TRIM1#

 1
53629 - COVER, HOOD LOCK CONTROL CABLE
53629-60060

GRJ200,URJ202,VDJ200..RHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-60200

GRJ200,URJ202,VDJ200..RHD

 1
Common parts
68961-12050
90105-08372
90119-06651
90119-06686
90119-06932
90119-08B07
90159-50267
90469-06005
