VDJ200R-GCMNZ (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )RHD

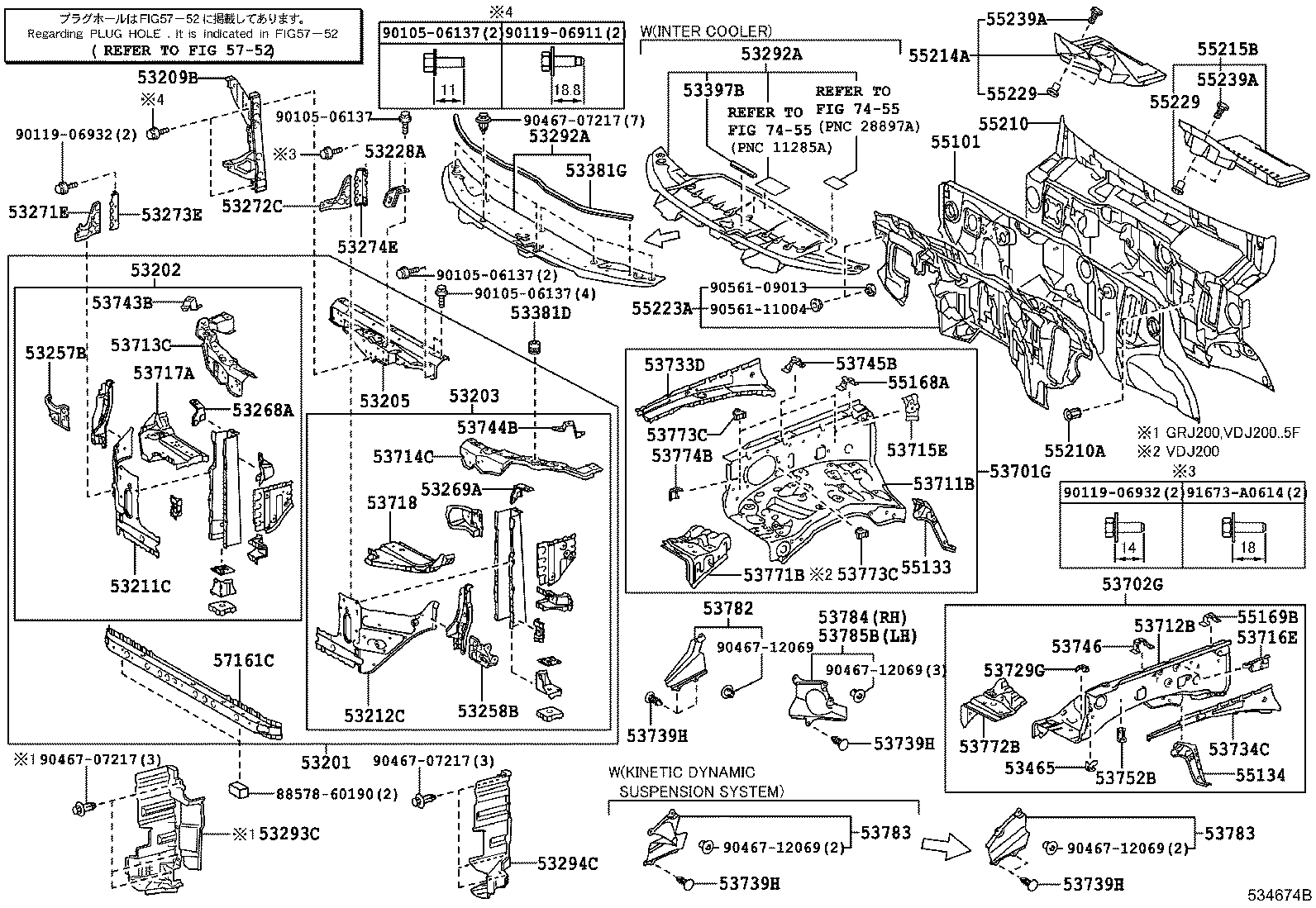

Click highlighted areas on diagram

diagram 53201 53202 53203 53205 53209B 53211C 53212C 53228A 53257B 53258B 53268A 53269A 53271E 53272C 53273E 53274E 53292A 53292A 53293C 53294C 53381D 53381G 53397B 53465 53701G 53702G 53711B 53712B 53713C 53714C 53715E 53716E 53717A 53718 53729G 53733D 53734C 53739H 53739H 53739H 53739H 53743B 53744B 53745B 53746 53752B 53771B 53772B 53773C 53773C 53774B 53782 53783 53783 53784 53785B 55101 55133 55134 55168A 55169B 55210 55210A 55214A 55215B 55223A 55229 55229 55239A 55239A 57161C 5752 7455 7455 8857860190 9010506137 9010506137 9010506137 9010506137 9011906911 9011906932 9011906932 9046707217 9046707217 9046707217 9046712069 9046712069 9046712069 9046712069 9056109013 9056111004 91673A0614
Part # Description Qty Price
53292A - SEAL, RADIATOR SUPPORT, UPPER
53292-60150

VDJ200..RHD..GEN..SOB

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

 1
53292-60150

VDJ200..GEN..SOB

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

 1
53292A - SEAL, RADIATOR SUPPORT, UPPER
53292-60150

VDJ200..RHD..GEN..SOB

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

 1
53292-60150

VDJ200..GEN..SOB

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

 1
53739H - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10210

URJ202..GXR..GCC;GRJ200,VDJ200..GX,GXR

 6
53739H - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10210

URJ202..GXR..GCC;GRJ200,VDJ200..GX,GXR

 6
53739H - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10210

URJ202..GXR..GCC;GRJ200,VDJ200..GX,GXR

 6
53739H - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10210

URJ202..GXR..GCC;GRJ200,VDJ200..GX,GXR

 6
55210 - INSULATOR ASSY, DASH PANEL
55210-60210

GRJ200,URJ202..RHD;VDJ200..RHD..(GX,GXR)

 1
Common parts
88578-60190
90105-06137
90119-06911
90119-06932
90467-07217
90467-12069
90561-09013
90561-11004
91673-A0614
Linked diagrams
5752
7455
