VDJ200L-GNTNZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )LUB

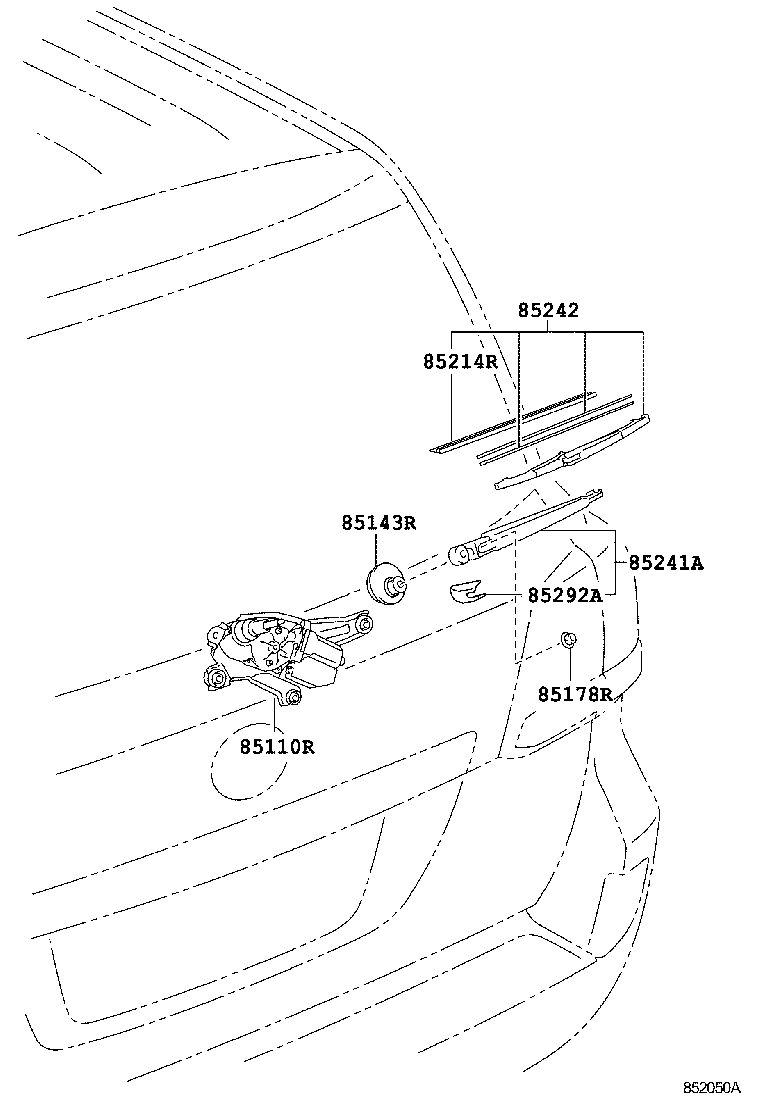

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-60290

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
85130-60190

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85130-60291

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-60150

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85143-60150

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
90179-06158

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
85214R - RUBBER, REAR WIPER
85214-42040

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85214-42040

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
85241A - ARM, REAR WIPER
85241-28100

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
85241-28100

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85242 - BLADE, RR WIPER
85242-42030

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
85242-42030

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-42010

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85292-42010

GRJ200,URJ202,VDJ200..GX..(GCC,GEN)..LUB

REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)

 1
