VDJ200L-GNTNZ (2012)
Toyota Land Cruiser

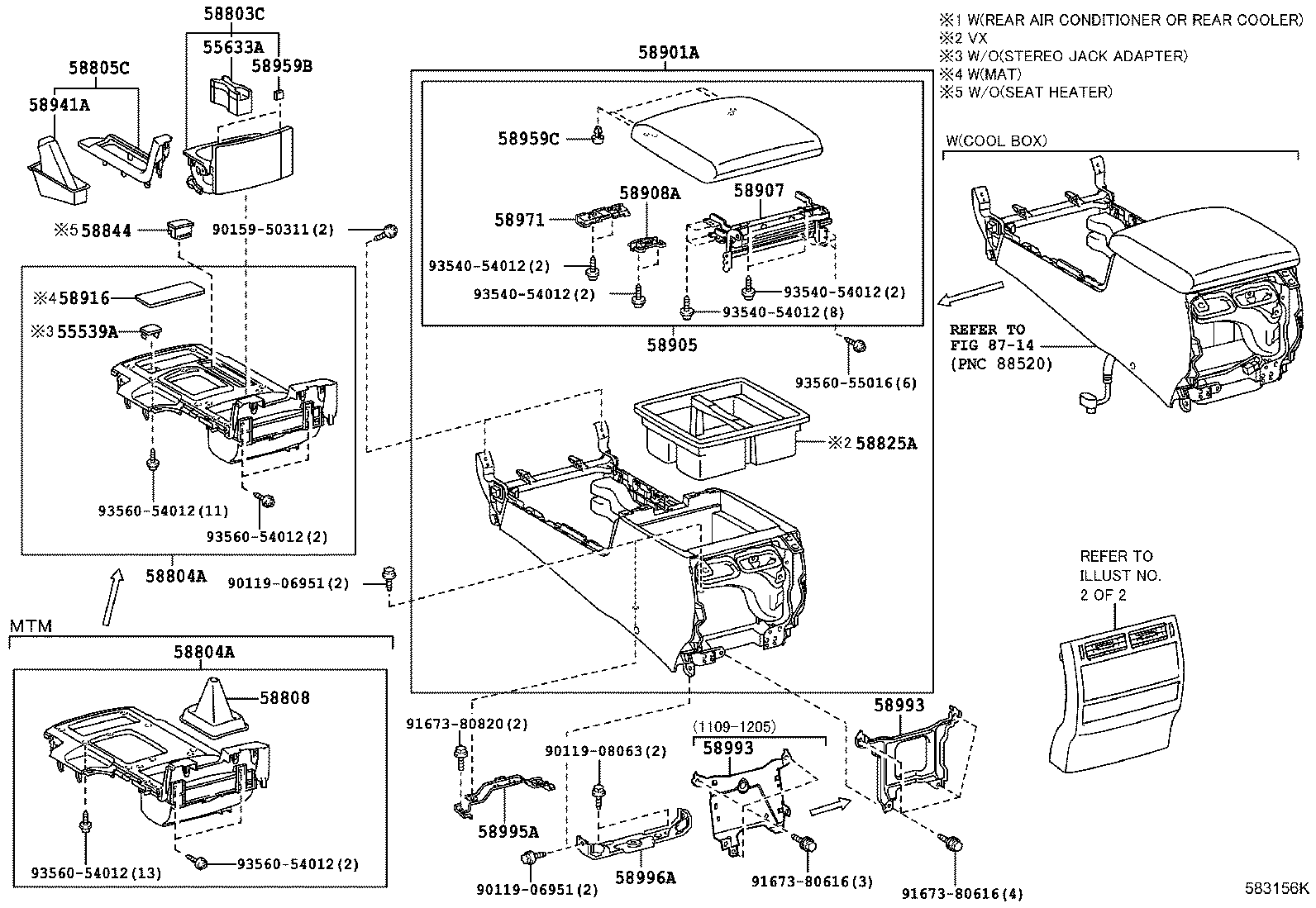

ILLUST NO. 1 OF 2(0709-1508)LHD..LUB ; (1109-1508)GX..SOB ; (1201-1508)STD..GCC ; (1508- )LHD..SO
W(CONSOLE BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-60050A0 |
GRJ200,URJ202,VDJ200..LHD..GX SHELL,TRIM0# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60A10C0 |
VDJ200..LHD..6FC..GX..GEN BLACK,TRIM1# |
1 | ||
| 58804-60A10A0 |
VDJ200..LHD..6FC..GX..GEN SHELL,TRIM0# |
1 | ||
| 58804-60A70A0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 58804-60A70C0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 58804-60A70C0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 58804-60A70A0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60A10C0 |
VDJ200..LHD..6FC..GX..GEN BLACK,TRIM1# |
1 | ||
| 58804-60A10A0 |
VDJ200..LHD..6FC..GX..GEN SHELL,TRIM0# |
1 | ||
| 58804-60A70A0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 58804-60A70C0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 58804-60A70C0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 58804-60A70A0 |
VDJ200..LHD..6FC..GX..GEN AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-60050A0 |
GRJ200,URJ202,VDJ200..LHD..GX SHELL,TRIM0# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-60690A0 |
GRJ200,URJ202,VDJ200..LHD..GX SHELL,TRIM0# |
1 | ||
| 58901-60690C0 |
GRJ200..09S..GX;VDJ200..LHD..GX;GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB BLACK,TRIM1# |
1 | ||
| 58901-60691A0 |
GRJ200,URJ202,VDJ200..LHD..GX SHELL,TRIM0# |
1 | ||
| 58901-60691C0 |
GRJ200..09S..GX;VDJ200..LHD..GX;GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB BLACK,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60280A0 |
GRJ200,URJ202,VDJ200..GX SHELL,TRIM0# |
1 | ||
| 58905-60280C0 |
GRJ200..09S..GX;VDJ200..ARL..SOB;VDJ200..GX..(GCC,GEN);GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB BLACK,TRIM1# |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58809-60060A0 |
GRJ200,URJ20#,VDJ200..LHD..(GX,VX) SHELL,TRIM0# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-60060 |
VDJ200..6FC;VDJ200..5F..GX;GRJ200,URJ20#..GX,VX |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-60090 |
VDJ200..6FC;VDJ200..5F..GX;GRJ200,URJ20#..GX,VX |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-60090 |
VDJ200..6FC;VDJ200..5F..GX;GRJ200,URJ20#..GX,VX |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-08063 | ||||
| 90159-50311 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93540-54012 | ||||
| 93560-54012 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(0709- )
REAR END PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60050A0 |
GRJ200,URJ20#,VDJ200..GX,VX SHELL,TRIM0# |
1 | ||
| 55549C - COVER, REAR COOLER SWITCH HOLE | ||||
| 55549-60040A0 |
VDJ200..LHD..08S..5F..GEN;URJ202,VDJ200..6FC..GX..(ARL,GEN) AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER,SHELL,TRIM0# |
1 | ||
| 55549-60040A0 |
GRJ200,VDJ200..09S..GX;URJ202,VDJ200..GX..(ARL,GEN) SHELL,TRIM0# |
1 | ||
| 55549-60040C0 |
VDJ200..6FC..GX..GEN;VDJ200..LHD..08S..5F..GEN AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER,BLACK,TRIM1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60400A0 |
GRJ200,URJ202,VDJ200..GX SHELL,TRIM0# |
1 | ||
| 58903-60400C0 |
GRJ200..09S..GX;VDJ200..GX..(GCC,GEN);GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB BLACK,TRIM1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60400A0 |
GRJ200,URJ202,VDJ200..GX SHELL,TRIM0# |
1 | ||
| 58903-60400C0 |
GRJ200..09S..GX;VDJ200..GX..(GCC,GEN);GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB BLACK,TRIM1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60400A0 |
GRJ200,URJ202,VDJ200..GX SHELL,TRIM0# |
1 | ||
| 58903-60400C0 |
GRJ200..09S..GX;VDJ200..GX..(GCC,GEN);GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8606 | ||||
| 8715 | ||||
