VDJ200L-GNTNZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )LHD..GX,GXR,STD

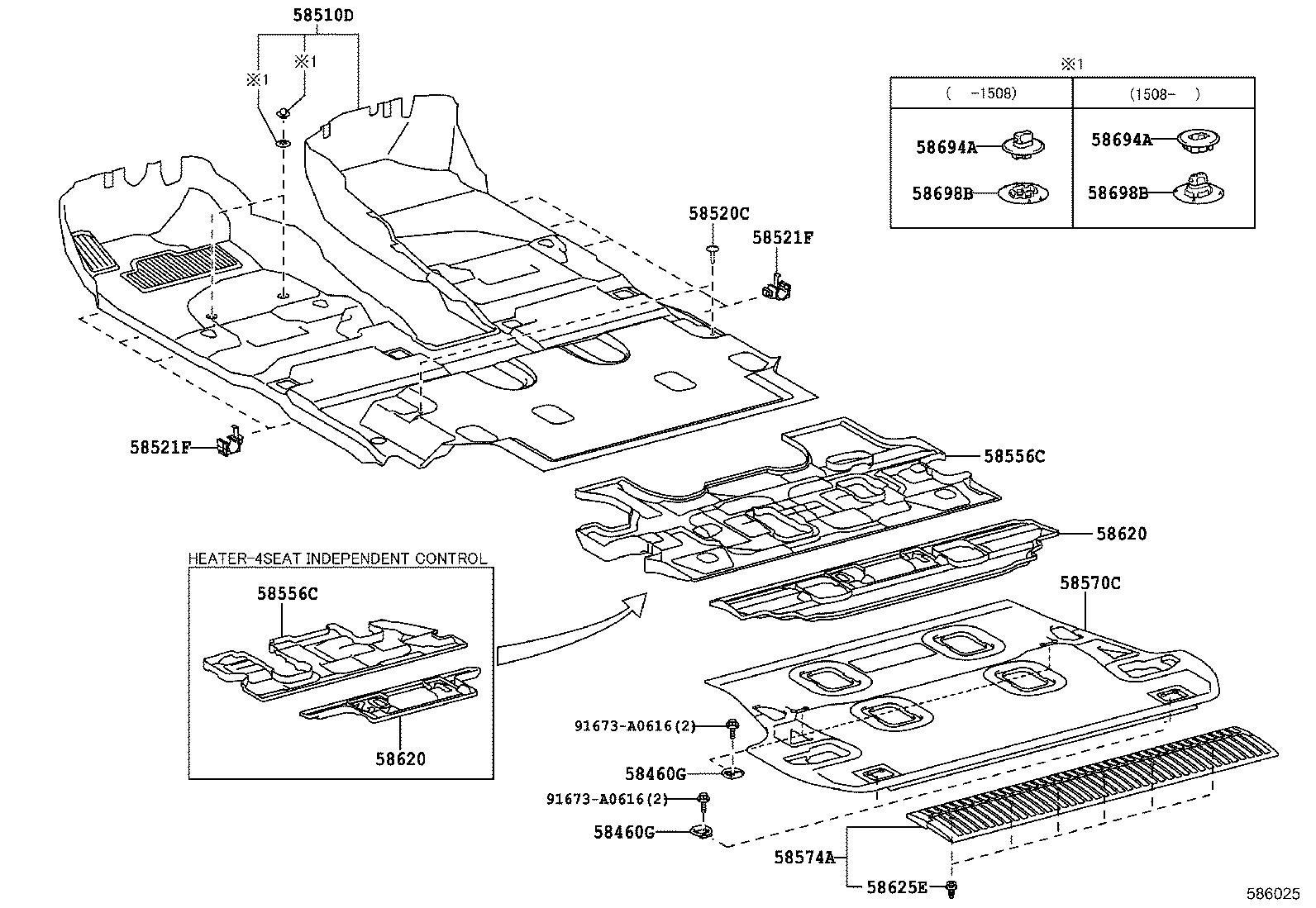

Click highlighted areas on diagram

diagram 58460G 58460G 58510D 58520C 58521F 58521F 58556C 58556C 58570C 58574A 58620 58620 58625E 58694A 58694A 58698B 58698B 91673A0616 91673A0616
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-60D51B2

GRJ200..09S..LUB;GRJ200,URJ202,VDJ200..LHD..(5F,6FC)..GX..LUB

MD.GRAY,TRIM1#

 1
58510-60D51A1

GRJ200,URJ202,VDJ200..LHD..GX..LUB

SHELL,TRIM0#

 1
58556C - SILENCER, REAR FLOOR
58556-60040

GRJ200,URJ202,VDJ200..LHD..GX..LUB

 1
58556-60041

GRJ200,URJ202,VDJ200..LHD..GX..LUB

 1
58556C - SILENCER, REAR FLOOR
58556-60040

GRJ200,URJ202,VDJ200..LHD..GX..LUB

 1
58556-60041

GRJ200,URJ202,VDJ200..LHD..GX..LUB

 1
58570C - CARPET ASSY, REAR FLOOR
58570-60A71A0

GRJ200,URJ202,VDJ200..08S..GX

SHELL,TRIM0#

 1
58570-60A71B1

GRJ200,URJ202,VDJ200..08S..(5F,6FC)..GX..(GCC,GEN)

MD.GRAY,TRIM1#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-60110A1

GRJ200,URJ20#,VDJ200..LUB

SHELL,TRIM0#

 1
58574-60110B0

GRJ200..09S..LUB;GRJ200,URJ202,VDJ200..(5F,6FC)..GX..(GCC,GEN)..LUB

MD.GRAY,TRIM1#

 1
58620 - SILENCER, REAR FLOOR
58557-60060

GRJ200,URJ20#,VDJ200..08S

 1
58557-60061

GRJ200,URJ20#,VDJ200..08S

 1
58620 - SILENCER, REAR FLOOR
58557-60060

GRJ200,URJ20#,VDJ200..08S

 1
58557-60061

GRJ200,URJ20#,VDJ200..08S

 1
58694A - PLATE, MAT SET, UPPER
58694-60010A0

GRJ200,URJ202,VDJ200..GX

IVORY,TRIM0#

 2
58694-60010C0

GRJ200,VDJ200..05S,09S;GRJ200,URJ202,VDJ200..08S..(5F,6FC)..GX..(GCC,GEN)

BLACK,TRIM1#

 2
58694A - PLATE, MAT SET, UPPER
58694-60010A0

GRJ200,URJ202,VDJ200..GX

IVORY,TRIM0#

 2
58694-60010C0

GRJ200,VDJ200..05S,09S;GRJ200,URJ202,VDJ200..08S..(5F,6FC)..GX..(GCC,GEN)

BLACK,TRIM1#

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GRJ200,URJ202,VDJ200..GX,STD

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GRJ200,URJ202,VDJ200..GX,STD

 2
Common parts
91673-A0616
