VDJ200L-GNTNZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )VDJ200..6FC

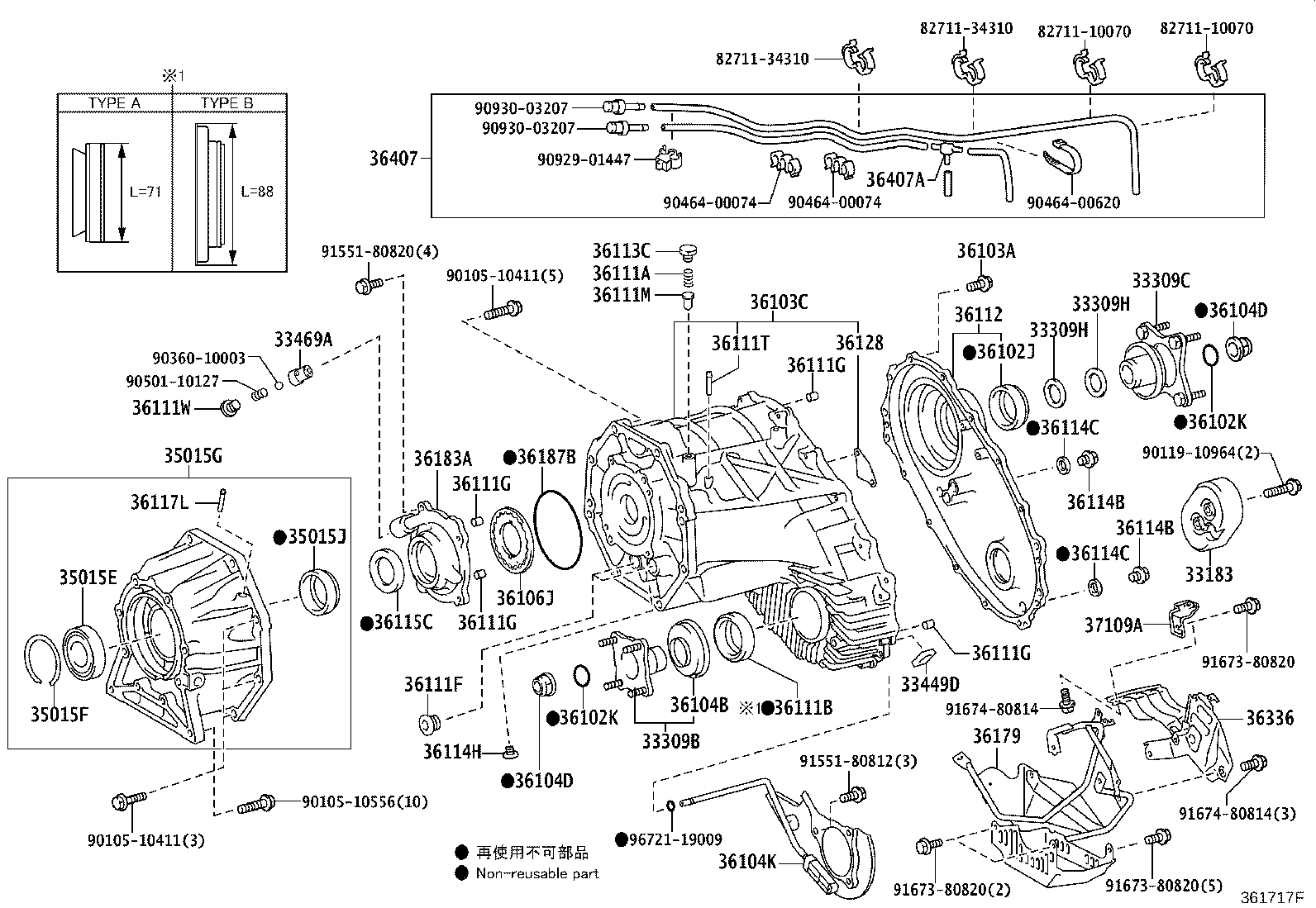

Click highlighted areas on diagram

diagram 33183 33309B 33309C 33309H 33309H 33449D 33469A 35015E 35015F 35015G 35015J 36102J 36102K 36102K 36103A 36103C 36104B 36104D 36104D 36104K 36106J 36111A 36111B 36111F 36111G 36111G 36111G 36111G 36111M 36111T 36111W 36112 36113C 36114B 36114B 36114C 36114C 36114H 36115C 36117L 36128 36179 36183A 36187B 36336 36407 36407A 37109A 8271110070 8271110070 8271134310 8271134310 9010510411 9010510411 9010510556 9011910964 9036010003 9046400074 9046400074 9046400620 9050110127 9092901447 9093003207 9093003207 9155180812 9155180820 9167380820 9167380820 9167380820 9167480814 9167480814 9672119009
Part # Description Qty Price
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-34030

GRJ200,URJ20#,VDJ200

PNC 36111B=TYPE B

 1
36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
33325-34030

GRJ200,URJ20#,VDJ200

PNC 36111B=TYPE B

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-50055

GRJ200,URJ20#,VDJ200

TYPE B:REFER ILLUST.

 1
Common parts
82711-10070
82711-34310
90105-10411
90105-10556
90119-10964
90360-10003
90464-00074
90464-00620
90501-10127
90929-01447
90930-03207
91551-80812
91551-80820
91673-80820
91674-80814
96721-19009
