VDJ200L-GNTNZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )URJ20#,VDJ200..6FC

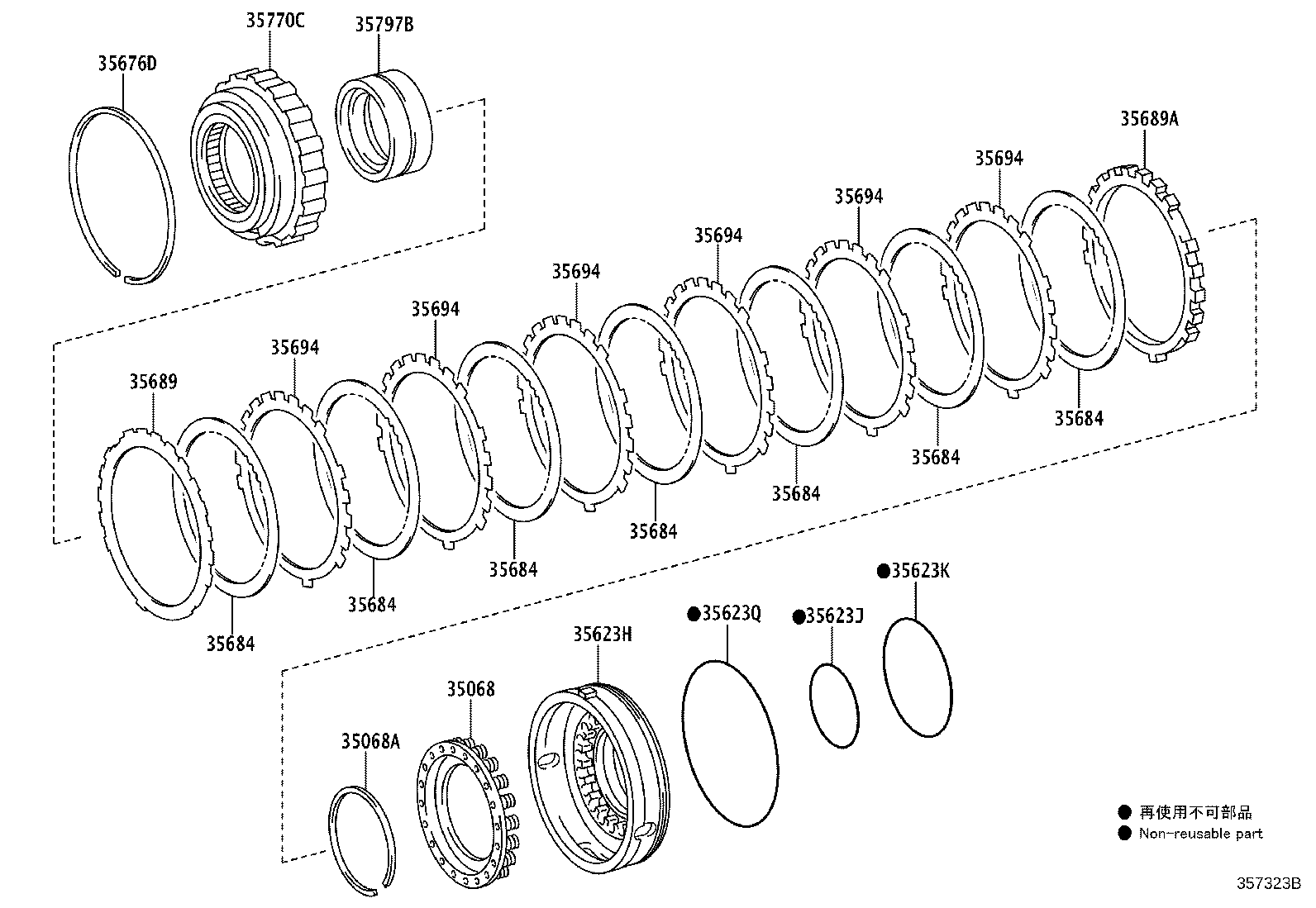

Click highlighted areas on diagram

AB60F

diagram 35068 35068A 35623H 35623J 35623K 35623Q 35676D 35684 35684 35684 35684 35684 35684 35684 35689 35689A 35694 35694 35694 35694 35694 35694 35770C 35797B
Part # Description Qty Price
35689 - FLANGE, BRAKE, NO.4
35689-60380

URJ202,VDJ200..6FC

T=1.97,MARK 1

 1
35689-60260

URJ202,VDJ200..6FC

T=1.8,MARK 0

 1
35689-60420

URJ202,VDJ200..6FC

T=2.53,MARK 7

 1
35689-60390

URJ202,VDJ200..6FC

T=2.11,MARK 3

 1
35689-60440

URJ202,VDJ200..6FC

T=2.81,MARK 10

 1
35689-60400

URJ202,VDJ200..6FC

T=2.25,MARK 4

 1
35689-60430

URJ202,VDJ200..6FC

T=2.67,MARK 8

 1
35689-60410

URJ202,VDJ200..6FC

T=2.39,MARK 5

 1
35689-60450

URJ202,VDJ200..6FC

T=2.95,MARK 11

 1
