VDJ200L-GNTNZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1VDFTV

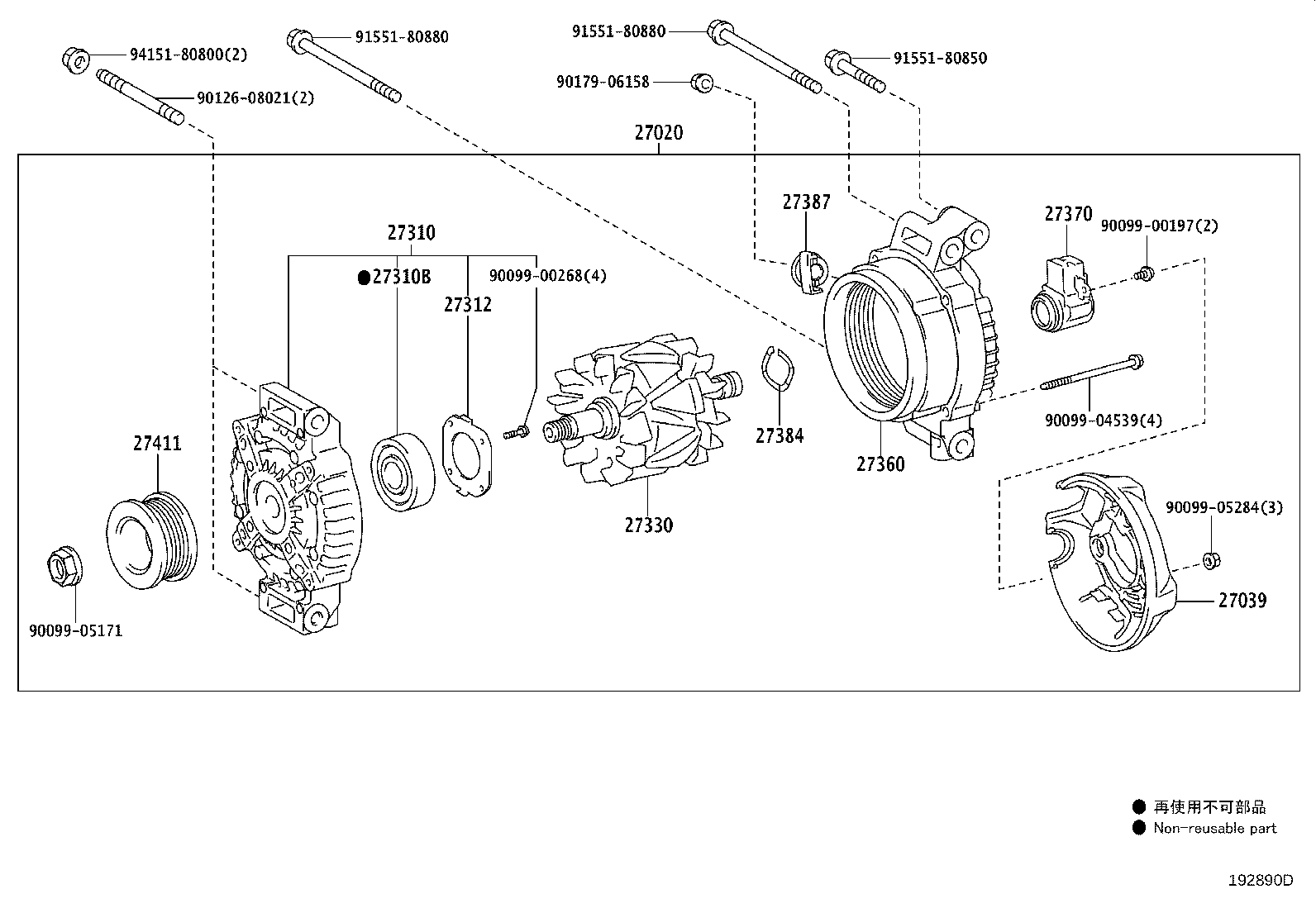

Click highlighted areas on diagram

12V 130A,150A

diagram 27020 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27411 9009900197 9009900268 9009904539 9009905171 9009905284 9012608021 9017906158 9155180850 9155180880 9155180880 9415180800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-51020

1VDFTV..VDJ200..6FC..GEN

12V 150A,TOWING PACKAGE-WITH

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-58460

1URFE,1VDFTV..URJ202,VDJ200..6FC..GEN

TOWING PACKAGE-WITH

 1
27360 - COIL ASSY, ALTERNATOR
27360-51040

1VDFTV..VDJ200..6FC..GEN

TOWING PACKAGE-WITH

 1
Common parts
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
90126-08021
90179-06158
91551-80850
91551-80880
94151-80800
