VDJ200L-GNTNZ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

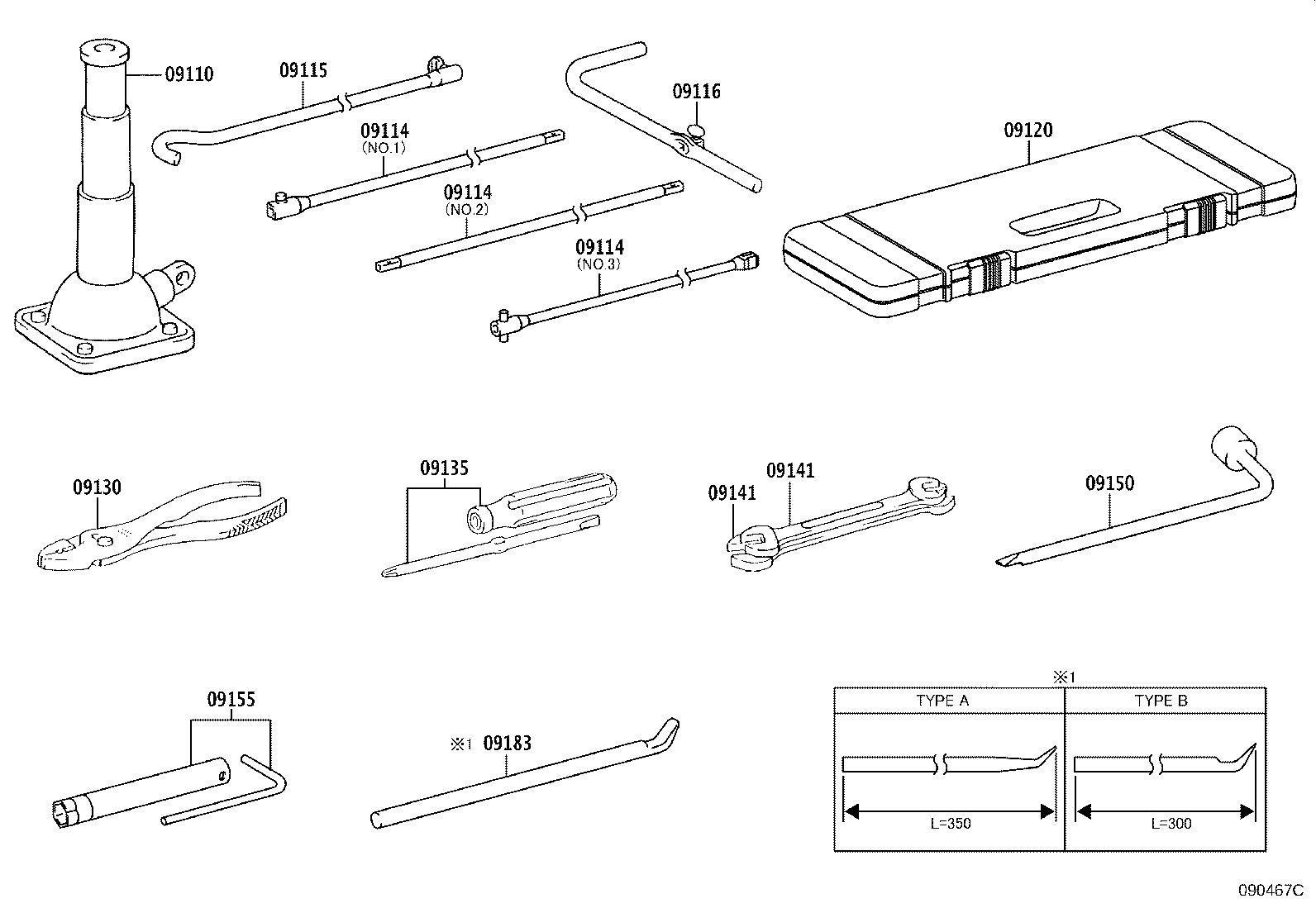

Click highlighted areas on diagram

diagram 09110 09114 09114 09114 09115 09116 09120 09130 09135 09141 09141 09150 09155 09183
Part # Description Qty Price
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60080

GRJ200,URJ20#,VDJ200..LUB

NO.2

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60080

GRJ200,URJ20#,VDJ200..LUB

NO.2

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60080

GRJ200,URJ20#,VDJ200..LUB

NO.2

 1
09120 - BAG, TOOL
09120-60210

GRJ200,URJ20#,VDJ200..LUB

 1
09183 - WRENCH, WHEEL CAP
09183-60050

GRJ200,URJ20#,VDJ200

TYPE B:REFER ILLUST.

 1
09183-00030

GRJ200,URJ20#,VDJ200

TYPE A:REFER ILLUST.

 1
