VDJ200L-GMMNZ (2007)
Toyota Land Cruiser

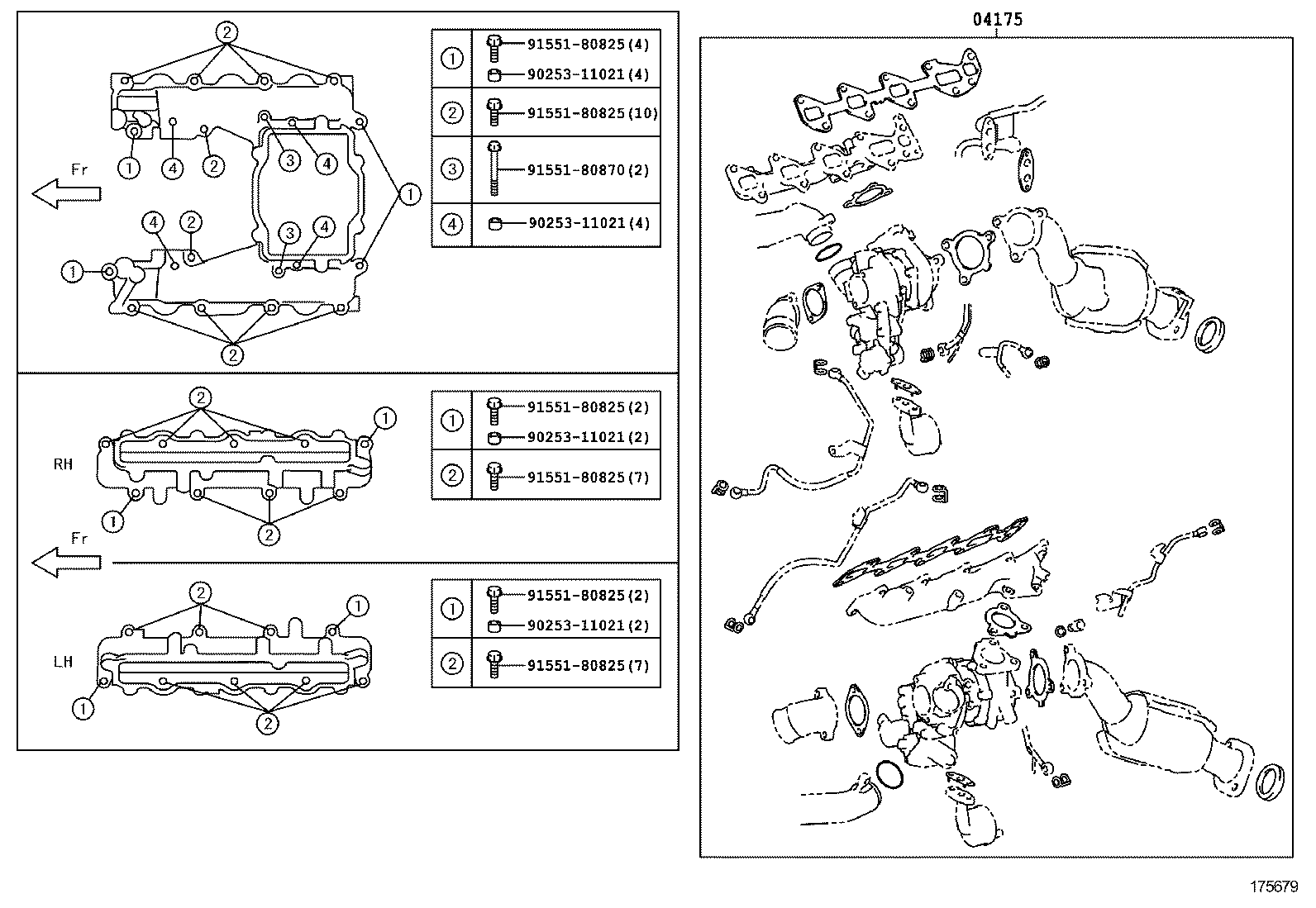

ILLUST NO. 3 OF 3(0709-1011)1VDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-51030 |
1VDFTV..VDJ200 RH |
1 | ||
| 04175-51041 |
1VDFTV..VDJ200..G LH |
1 | ||
| 04175-51020 |
1VDFTV..VDJ200 |
1 | ||
| 04175-51031 |
1VDFTV..VDJ200..G RH |
1 | ||
| 04175-51040 |
1VDFTV..VDJ200 LH |
1 | ||
| Common parts | ||||
| 90253-11021 | ||||
| 91551-80825 | ||||
| 91551-80870 | ||||
ILLUST NO. 1 OF 3(0709- )1VDFTV
EXCEPT EUROPE STEP5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17112 - MANIFOLD, INTAKE, NO.2 | ||||
| 17112-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17113-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17114D - MANIFOLD, INTAKE, NO.3 | ||||
| 17114-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17114-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17116B - GASKET, INTAKE FLANGE | ||||
| 17116-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17135-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17136-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-51030 |
1VDFTV..VDJ200..G |
1 | ||
| 17142 - CASE, EXHAUST MANIFOLD, NO.2 | ||||
| 17142-51030 |
1VDFTV..VDJ200..G |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-51011 |
1VDFTV..VDJ200..G |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-51011 |
1VDFTV..VDJ200..G |
2 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17853B - INSULATOR, INTAKE MANIFOLD | ||||
| 17853-51010 |
1VDFTV..VDJ200..(05S,08S)..5F..GEN EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17853-51010 |
1VDFTV..VDJ200..LHD..09S..GEN;1VDFTV..VDJ200..(05S,08S)..5F..GEN EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 25617C - PLATE, EGR HOLE COVER | ||||
| 25617-51010 |
1VDFTV..VDJ200..(GCC,GEN)..G |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-51010 |
1VDFTV..VDJ200..(GCC,GEN)..G |
1 | ||
| Common parts | ||||
| 90126-08052 | ||||
| 90126-10024 | ||||
| 90179-10070 | ||||
| 90389-10060 | ||||
| 91551-80825 | ||||
| 91671-80825 | ||||
| 94151-80800 | ||||
ILLUST NO. 2 OF 3(0709- )1VDFTV
EXCEPT EUROPE STEP5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15387A - BRACKET, OIL TANK | ||||
| 15387-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10069 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90401-12023 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10069 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90401-12023 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10025 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90430-12037 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10025 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 90430-12037 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 15408G - PIPE SUB-ASSY, TURBO OIL INLET, LH | ||||
| 15408-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 15408H - GASKET(FOR TURBO OIL INLET PIPE LH) | ||||
| 90430-10025 |
1VDFTV..VDJ200..G |
2 | ||
| 15408H - GASKET(FOR TURBO OIL INLET PIPE LH) | ||||
| 90430-10025 |
1VDFTV..VDJ200..G |
2 | ||
| 15408J - BOLT, UNION(FOR TURBO OIL INLET PIPE LH) | ||||
| 90401-10065 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 90401-10069 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 15408J - BOLT, UNION(FOR TURBO OIL INLET PIPE LH) | ||||
| 90401-10065 |
1VDFTV..VDJ200..G NO.2 |
1 | ||
| 90401-10069 |
1VDFTV..VDJ200..G NO.1 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-51020 |
1VDFTV..VDJ200..G |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-51020 |
1VDFTV..VDJ200..G |
2 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-15022 |
1VDFTV..VDJ200..G |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-15022 |
1VDFTV..VDJ200..G |
2 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 15482 - PIPE, TURBO OIL, NO.2 | ||||
| 15482-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 15492 - HOSE, TURBO OIL OUTLET, NO.2 | ||||
| 15492-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-15022 |
1VDFTV..VDJ200..G |
2 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-15022 |
1VDFTV..VDJ200..G |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17201-51021 |
1VDFTV..VDJ200..G |
1 | ||
| 17208 - TURBOCHARGER SUB-ASSY, NO.2 | ||||
| 17208-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17208-51011 |
1VDFTV..VDJ200..G |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-51010 |
1VDFTV..VDJ200..G |
2 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-51010 |
1VDFTV..VDJ200..G |
2 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-51030 |
1VDFTV..VDJ200..G |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-51020 |
1VDFTV..VDJ200..G |
2 | ||
| 17279-51010 |
1VDFTV..VDJ200 |
2 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-51020 |
1VDFTV..VDJ200..G |
2 | ||
| 17279-51010 |
1VDFTV..VDJ200 |
2 | ||
| 1727A - GASKET, TURBO TO EXHAUST MANIFOLD, LH | ||||
| 1727A-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17286 - ELBOW, COMPRESSOR INLET, NO.2 | ||||
| 17286-51010 |
1VDFTV..VDJ200..G |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-51010 |
1VDFTV..VDJ200..(GCC,GEN)..G |
1 | ||
| 17292 - ELBOW, TURBINE OUTLET, LH | ||||
| 17292-51010 |
1VDFTV..VDJ200..(GCC,GEN)..G |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-51021 |
1VDFTV..VDJ200..G |
1 | ||
| 17293-51020 |
1VDFTV..VDJ200..G |
1 | ||
| 17297 - STAY, TURBOCHARGER, NO.2 | ||||
| 17297-51010 |
1VDFTV..VDJ200..G |
1 | ||
| Common parts | ||||
| 90105-10564 | ||||
| 90116-10117 | ||||
| 90116-10175 | ||||
| 90126-10033 | ||||
| 90177-10002 | ||||
| 90179-10070 | ||||
| 90467-13020 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 1703 | ||||

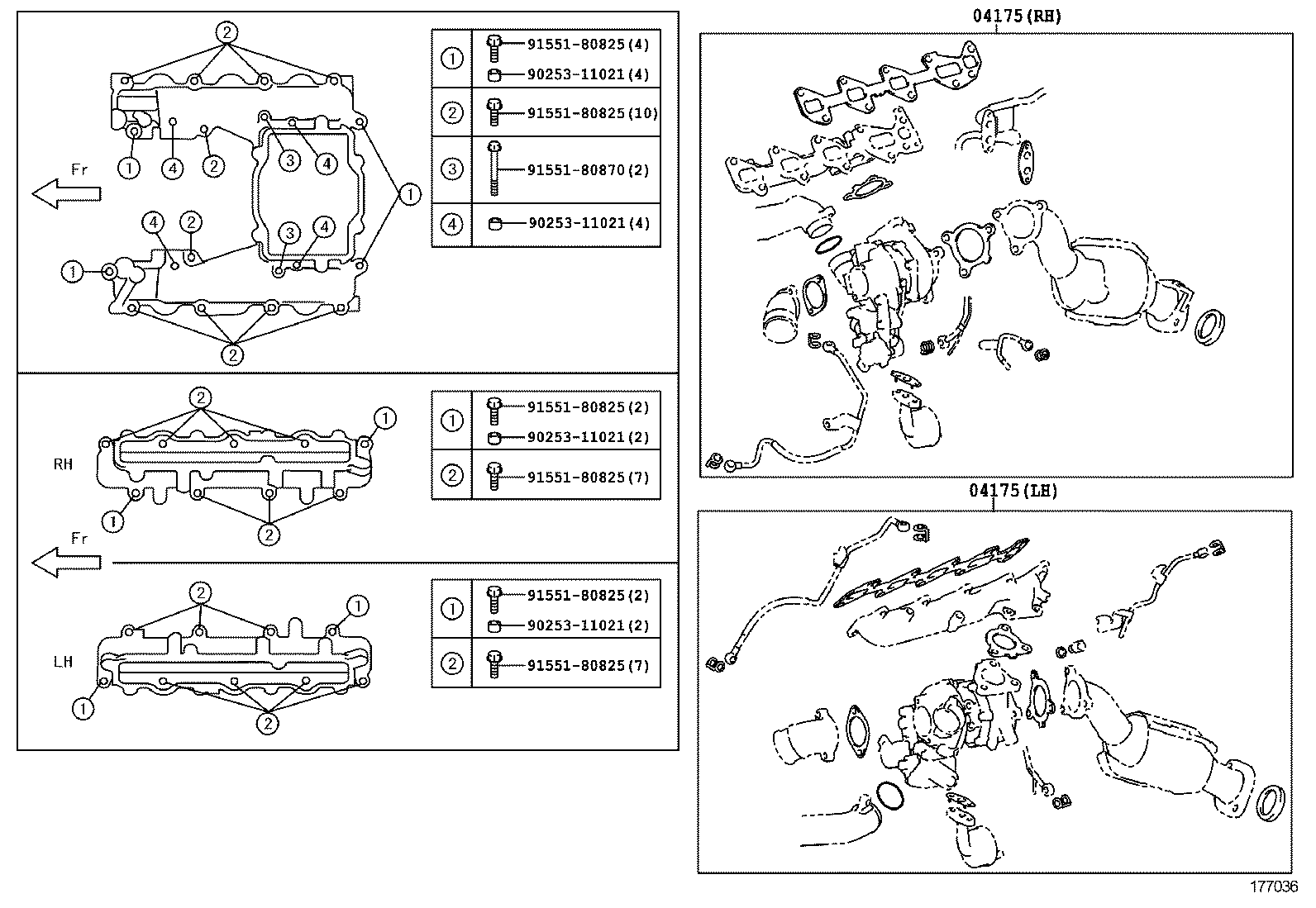

ILLUST NO. 3 OF 3(1011- )1VDFTV
EXCEPT EUROPE STEP5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-51030 |
1VDFTV..VDJ200 RH |
1 | ||
| 04175-51041 |
1VDFTV..VDJ200..G LH |
1 | ||
| 04175-51020 |
1VDFTV..VDJ200 |
1 | ||
| 04175-51031 |
1VDFTV..VDJ200..G RH |
1 | ||
| 04175-51040 |
1VDFTV..VDJ200 LH |
1 | ||
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-51030 |
1VDFTV..VDJ200 RH |
1 | ||
| 04175-51041 |
1VDFTV..VDJ200..G LH |
1 | ||
| 04175-51020 |
1VDFTV..VDJ200 |
1 | ||
| 04175-51031 |
1VDFTV..VDJ200..G RH |
1 | ||
| 04175-51040 |
1VDFTV..VDJ200 LH |
1 | ||
| Common parts | ||||
| 90253-11021 | ||||
| 91551-80825 | ||||
| 91551-80870 | ||||
