VDJ200L-GDMNZ (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

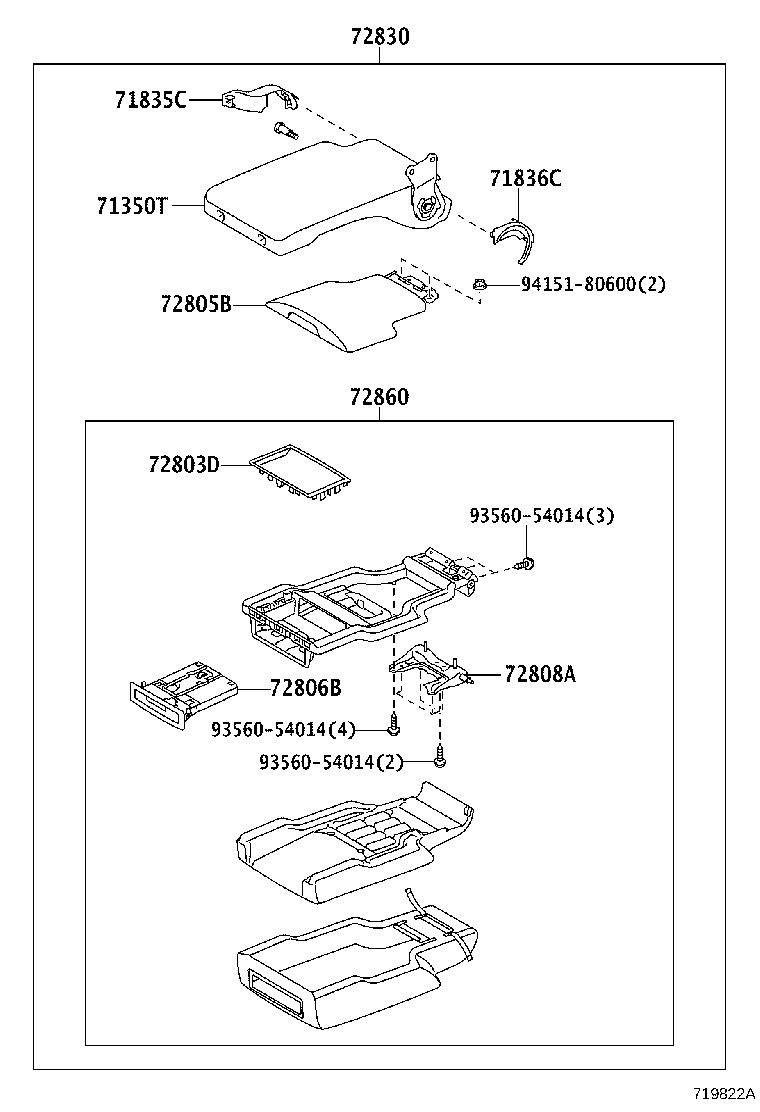

ILLUST NO. 3 OF 5(1508- )LHD

Click highlighted areas on diagram

CENTER ARMREST(REAR NO.1 SEAT)

diagram 71350T 71835C 71836C 72803D 72805B 72806B 72808A 72830 72860 9356054014 9356054014 9356054014 9415180600
Part # Description Qty Price
Common parts
93560-54014
94151-80600

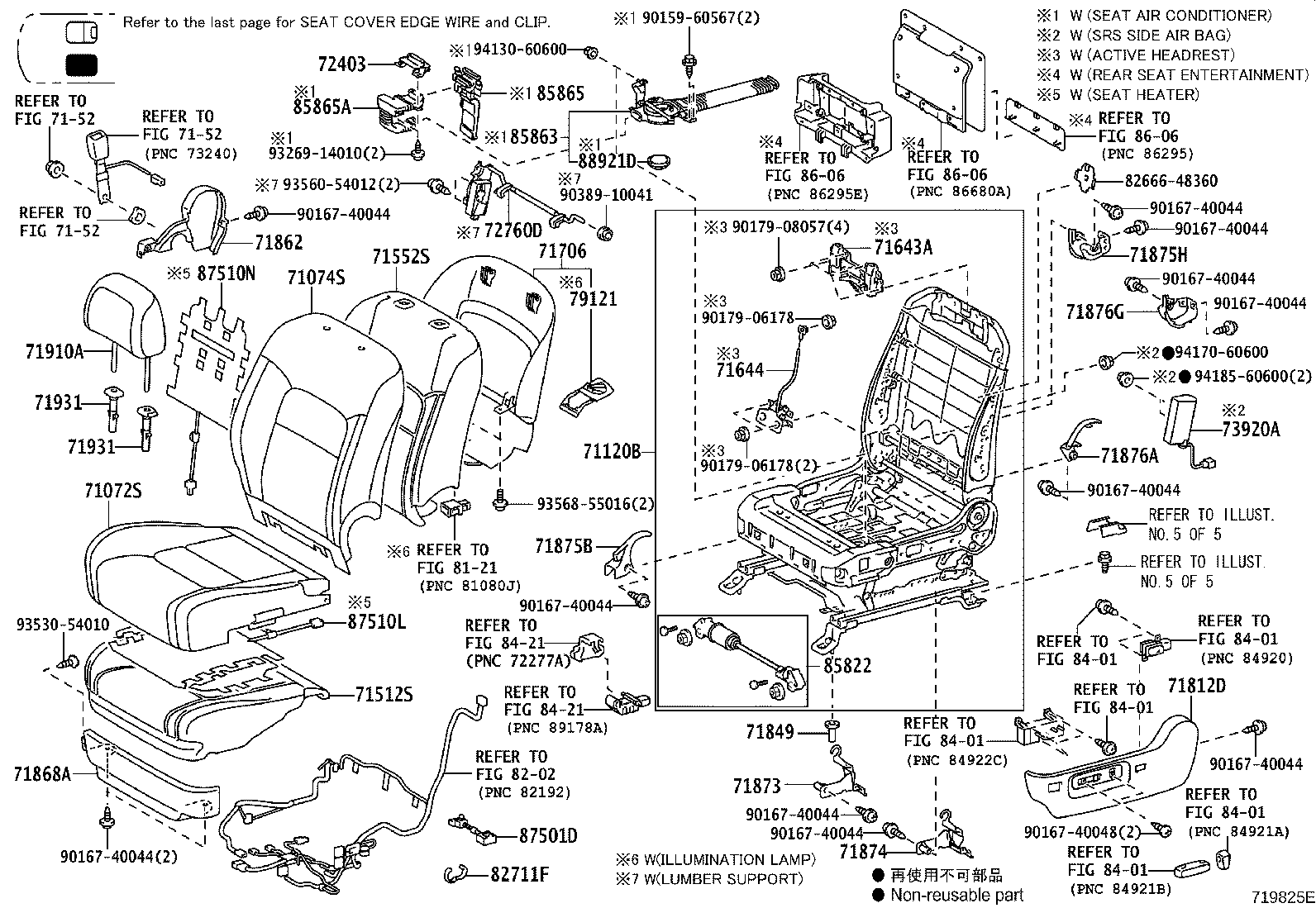

ILLUST NO. 1 OF 5(1508- )LHD

Click highlighted areas on diagram

LH,W(POWER SEAT)

diagram 71072S 71074S 71120B 71512S 7152 7152 7152 71552S 71643A 71644 71706 71812D 71849 71862 71868A 71873 71874 71875B 71875H 71876A 71876G 71910A 71931 71931 72403 72760D 73920A 79121 8121 8202 8266648360 82711F 8401 8401 8401 8401 8401 8401 8421 8421 85822 85863 85865 85865A 8606 8606 8606 87501D 87510L 87510N 88921D 9015960567 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9017906178 9017906178 9017908057 9038910041 9326914010 9353054010 9356054012 9356855016 9413060600 9417060600 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-60E20B0

VDJ200..LHD..GEN..SOB

BLUISH GRAY,TRIM1#

 1
71072-60F10B0

VDJ200..LHD..GEN..SOB

SEAT COVER MATERIAL-VINYL LEATHER,MD.GRAY,TRIM1#

 1
71072-60F10B0

VDJ200..LHD..GEN..SOB

MD.GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-6A040B1

VDJ200..LHD..GEN..SOB

SEAT COVER MATERIAL-VINYL LEATHER,MD.GRAY,TRIM1#

 1
71074-60D00B0

VDJ200..LHD..GEN..SOB

BLUISH GRAY,TRIM1#

 1
71074-6A040B1

VDJ200..LHD..GEN..SOB

MD.GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-60411

GRJ200,URJ202,VDJ200..(GX,GXR)..(GCC,GEN)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-60160

GRJ200,URJ202,VDJ200..LHD..(GX,GXR)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-60200

GRJ200,URJ202,VDJ200..(GX,GXR)..(GCC,GEN)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-60280C0

GRJ200..GX;VDJ200..GX..GCC;URJ202,VDJ200..(GX,GXR)..(ARL,GEN)

BLACK,TRIM1#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-33010

GRJ200,URJ20#,VDJ200

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-33090C0

GRJ200..GX;VDJ200..GX..GCC;URJ202,VDJ200..(GX,GXR)..(ARL,GEN)

BLACK,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-53030

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 2
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-53010

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 2
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58040C0

GRJ200..GX;VDJ200..GX..GCC;URJ202,VDJ200..(GX,GXR)..(ARL,GEN)

BLACK,TRIM1#

 1
71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-58060

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58040C0

GRJ200..GX;VDJ200..GX..GCC;URJ202,VDJ200..(GX,GXR)..(ARL,GEN)

BLACK,TRIM1#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-58060

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-60A00B0

VDJ200..LHD..GEN..SOB

SEAT COVER MATERIAL-VINYL LEATHER,MD.GRAY,TRIM1#

 2
71910-60A60B0

VDJ200..LHD..GEN..SOB

BLUISH GRAY,TRIM1#

 2
71910-60A00B0

VDJ200..LHD..GEN..SOB

MD.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020B1

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK),MD.GRAY,TRIM1#

 2
71930-48010B0

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020B1

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK),MD.GRAY,TRIM1#

 2
71930-48010B0

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#

 2
Common parts
82666-48360
90159-60567
90167-40044
90167-40048
90179-06178
90179-08057
90389-10041
93269-14010
93530-54010
93560-54012
93568-55016
94130-60600
94170-60600
94185-60600
Linked diagrams
7152
8121
8202
8401
8421
8606

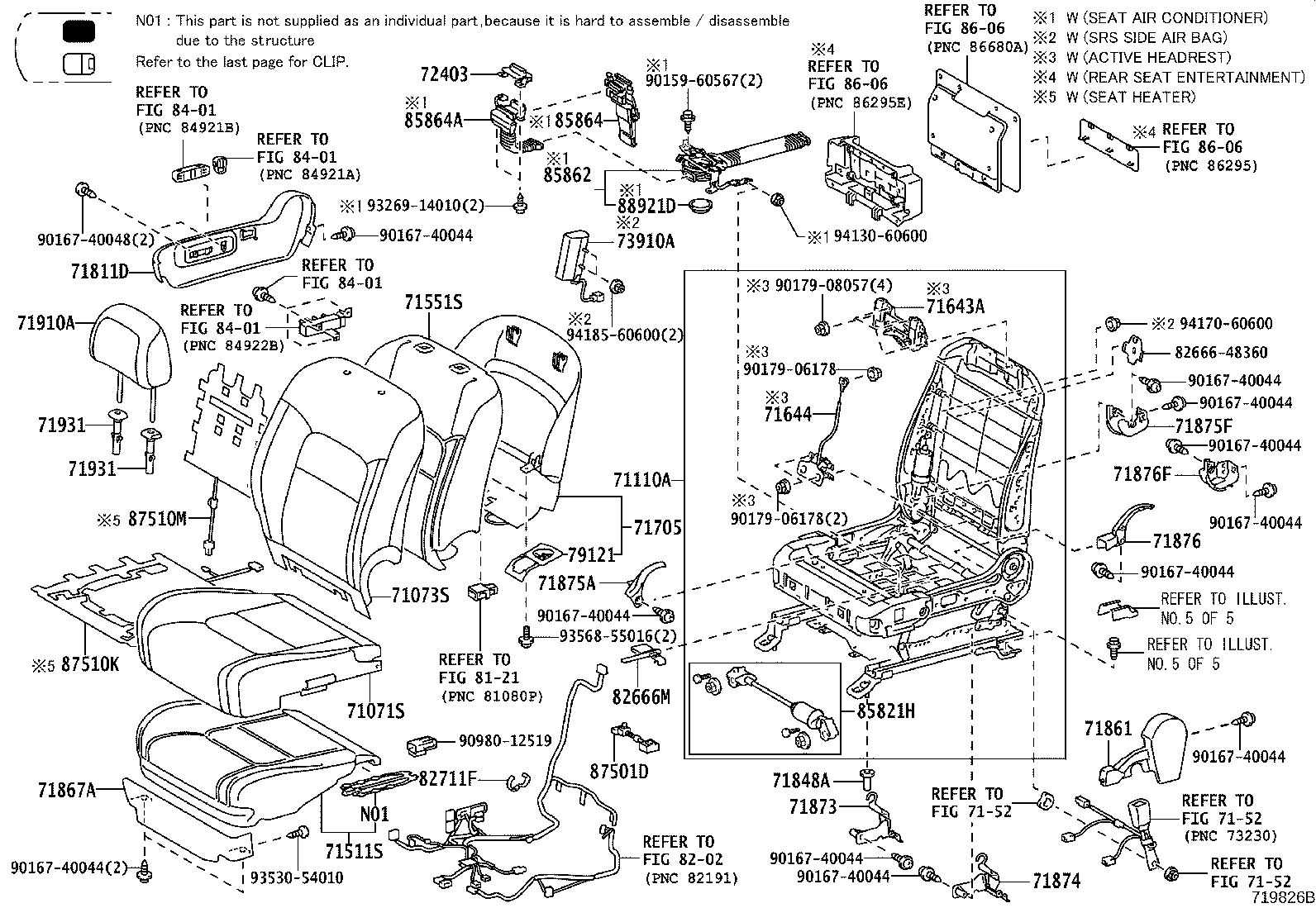

ILLUST NO. 1 OF 5(1508- )LHD

Click highlighted areas on diagram

RH,W(POWER SEAT)

diagram 71071S 71073S 71110A 71511S 7152 7152 7152 71551S 71643A 71644 71705 71811D 71848A 71861 71867A 71873 71874 71875A 71875F 71876 71876F 71910A 71931 71931 72403 73910A 79121 8121 8202 8266648360 82666M 82711F 8401 8401 8401 8401 85821H 85862 85864 85864A 8606 8606 8606 87501D 87510K 87510M 88921D 9015960567 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9017906178 9017906178 9017908057 9098012519 9326914010 9353054010 9356855016 9413060600 9417060600 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-60E60B0

VDJ200..LHD..GEN..SOB

BLUISH GRAY,TRIM1#

 1
71071-60F70B0

VDJ200..LHD..GEN..SOB

SEAT COVER MATERIAL-VINYL LEATHER,MD.GRAY,TRIM1#

 1
71071-60F70B0

VDJ200..LHD..GEN..SOB

MD.GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-60C90B0

VDJ200..LHD..GEN..SOB

BLUISH GRAY,TRIM1#

 1
71073-6A410B1

VDJ200..LHD..GEN..SOB

SEAT COVER MATERIAL-VINYL LEATHER,MD.GRAY,TRIM1#

 1
71073-6A410B1

VDJ200..LHD..GEN..SOB

MD.GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-60371

GRJ200,URJ202,VDJ200..(GX,GXR)..(GCC,GEN)

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-60290

GRJ200,URJ20#,VDJ200..LHD..(GX,GXR,VX)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-60290

GRJ200,URJ202,VDJ200..(GX,GXR)..(GCC,GEN)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-60270C0

GRJ200..GX;VDJ200..GX..GCC;VDJ200..(GX,GXR)..GEN

BLACK,TRIM1#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-33010

GRJ200,URJ20#,VDJ200

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-33050C0

GRJ200..GX;VDJ200..GX..GCC;VDJ200..(GX,GXR)..GEN

BLACK,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-53030

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 2
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-53010

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 2
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58040C0

GRJ200..GX;VDJ200..GX..GCC;URJ202,VDJ200..(GX,GXR)..(ARL,GEN)

BLACK,TRIM1#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-58060

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58040C0

GRJ200..GX;VDJ200..GX..GCC;URJ202,VDJ200..(GX,GXR)..(ARL,GEN)

BLACK,TRIM1#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-58060

URJ202..GXR;URJ202..LHD..VX;GRJ200,URJ200,VDJ200..GX,GXR,VX

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-60A00B0

VDJ200..LHD..GEN..SOB

SEAT COVER MATERIAL-VINYL LEATHER,MD.GRAY,TRIM1#

 2
71910-60A60B0

VDJ200..LHD..GEN..SOB

BLUISH GRAY,TRIM1#

 2
71910-60A00B0

VDJ200..LHD..GEN..SOB

MD.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020B1

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK),MD.GRAY,TRIM1#

 2
71930-48010B0

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020B1

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK),MD.GRAY,TRIM1#

 2
71930-48010B0

VDJ200..(GX,VX)..GCC;VDJ200..5F..GCC..LUB;VDJ200..LHD..VX..GEN;GRJ200,URJ202..LHD..6FC..(GX,VX);URJ202,VDJ200..(GX,GXR)..(ARL,GEN);GRJ200,URJ200..(5F,5FC,8FC)..(GX,GXR,VX)

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#

 2
82666M - HOLDER, CONNECTOR
82666-58030

GRJ200,URJ20#,VDJ200

 1
Common parts
82666-48360
90159-60567
90167-40044
90167-40048
90179-06178
90179-08057
90980-12519
93269-14010
93530-54010
93568-55016
94130-60600
94170-60600
94185-60600
Linked diagrams
7152
8121
8202
8401
8606
