VDJ200L-GDMNZ (2015)
Toyota Land Cruiser

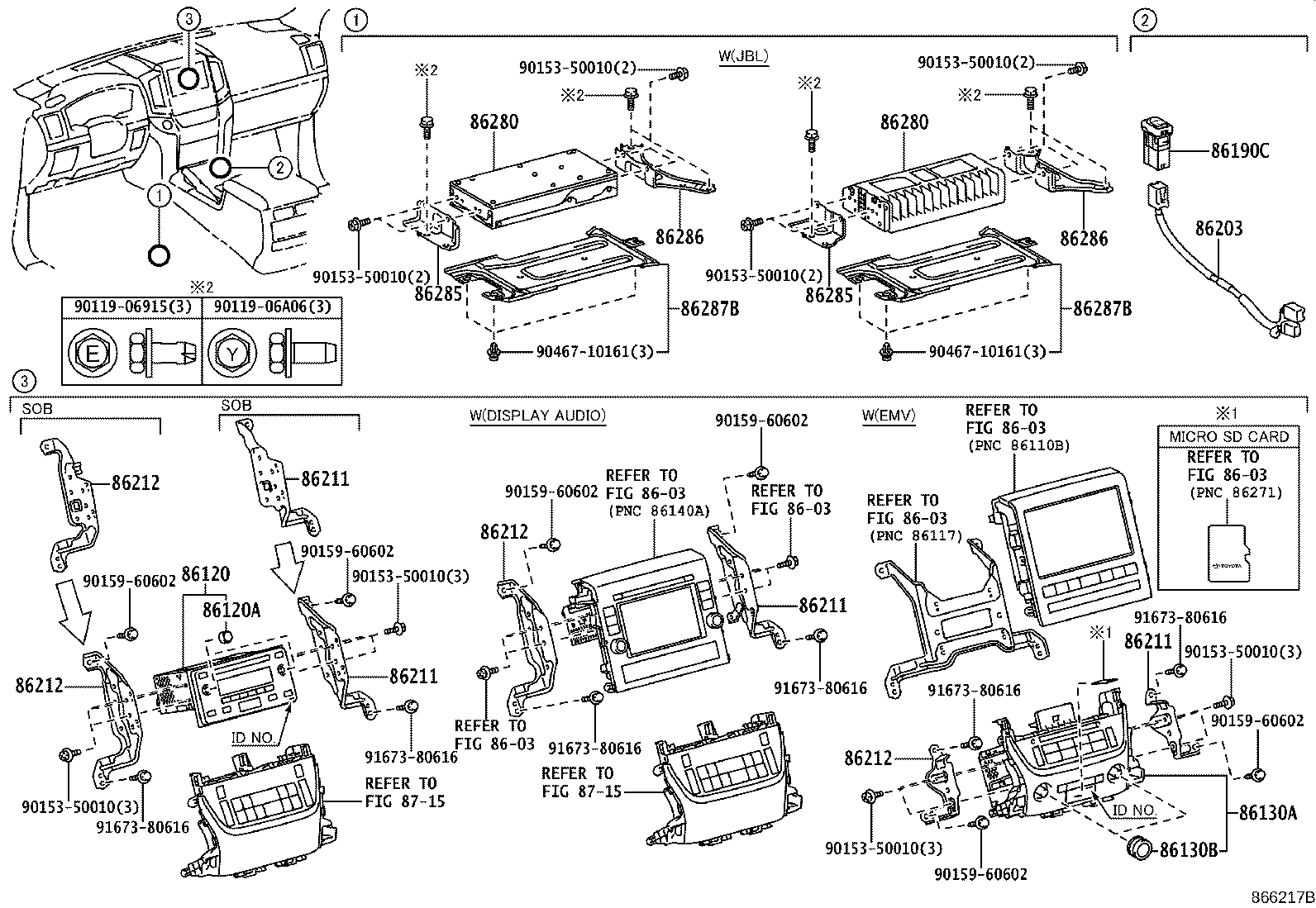

ILLUST NO. 1 OF 2(1508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60M71 |
VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN FUJITSU TEN,ID100610,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CD & 6SPEAKER |
1 | ||
| 86120-60M70 |
GRJ200..GEN..SOB;VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN FUJITSU TEN,ID100610,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CD & 6SPEAKER |
1 | ||
| 86120-60M60 |
VDJ200..09S..SOB FUJITSU TEN,ID100609,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & 6SPEAKER |
1 | ||
| 86120-60M70 |
GRJ200..GEN..SOB;VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN FUJITSU TEN,ID100610,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CD & 6SPEAKER |
1 | ||
| 86120-60M71 |
VDJ200..LHD..GEN..SOB;VDJ200..RHD..(GX,GXR)..GEN FUJITSU TEN,ID100610,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CD & 6SPEAKER |
1 | ||
| 86120-60M60 |
VDJ200..09S..SOB FUJITSU TEN,ID100609,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & 6SPEAKER |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-23051 |
VDJ200..LHD..GEN..SOB;VDJ200..RHD..(08S,09S)..(GX,GXR)..GEN AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CD & 6SPEAKER |
2 | ||
| 90010-23051 |
VDJ200..09S..SOB AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & 6SPEAKER |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60450 |
GRJ200,VDJ200..SOB |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB GRADE MARK-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212-60450 |
GRJ200,VDJ200..GEN..SOB AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90153-50010 | ||||
| 90159-60602 | ||||
| 90467-10161 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8715 | ||||

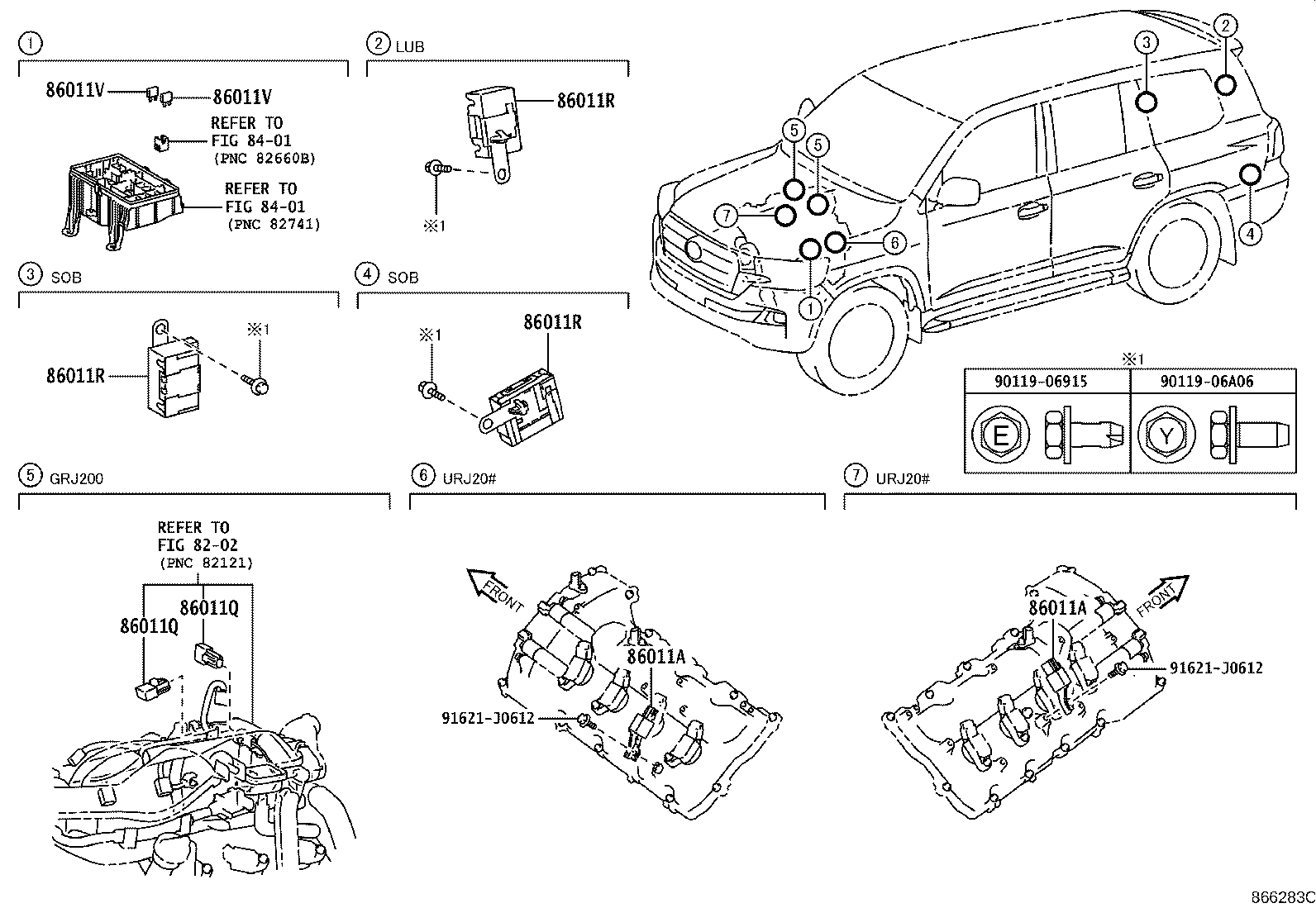

ILLUST NO. 2 OF 2(1508- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
GRJ200,VDJ200..SOB |
2 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
GRJ200,VDJ200..SOB |
2 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
GRJ200,VDJ200..SOB |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
GRJ200,URJ20#,VDJ200 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
