VDJ200L-GDMNZ (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )

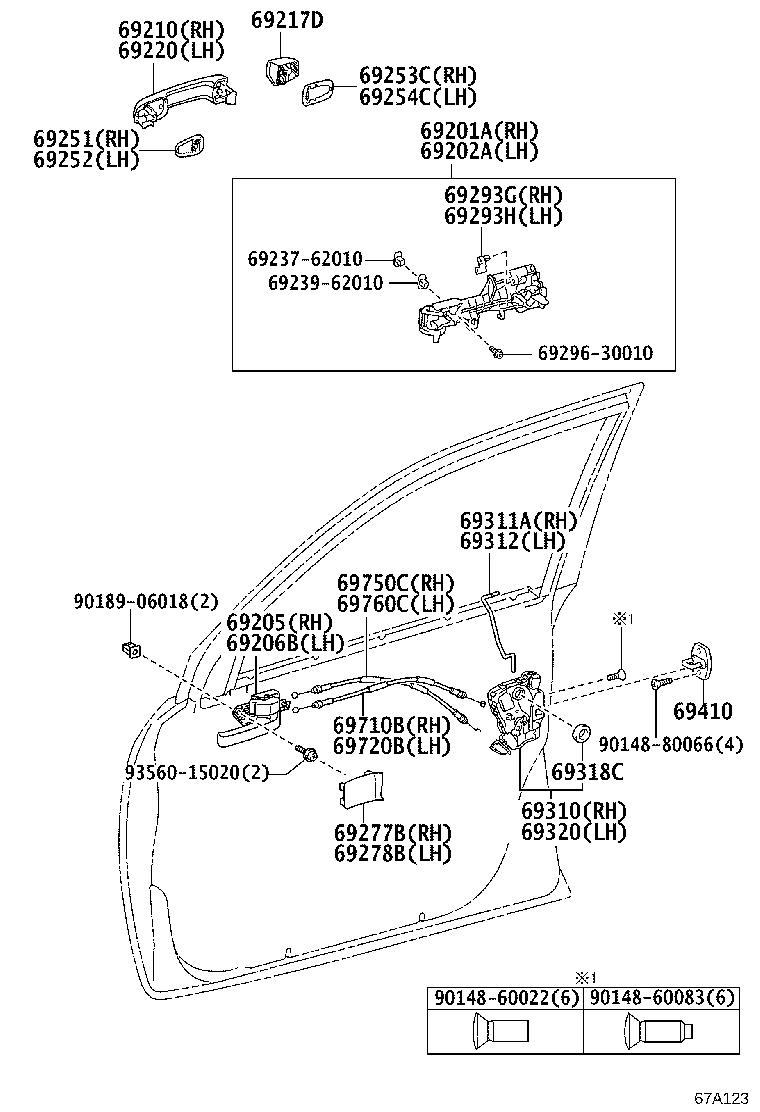

Click highlighted areas on diagram

diagram 69201A 69202A 69205 69206B 69210 69217D 69220 6923762010 6923962010 69251 69252 69253C 69254C 69277B 69278B 69293G 69293H 6929630010 69310 69311A 69312 69318C 69320 69410 69710B 69720B 69750C 69760C 9014860022 9014860083 9014880066 9018906018 9356015020
Part # Description Qty Price
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-60110

GRJ200,URJ20#,VDJ200

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-60050

GRJ200,URJ20#,VDJ200

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-60140C0

GRJ200,VDJ200..05S..GCC..SOB;GRJ200,VDJ200..(ARL,GEN)..SOB

BLACK,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-60140C0

GRJ200,VDJ200..05S..GCC..SOB;GRJ200,VDJ200..(ARL,GEN)..SOB

BLACK,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-60080

VDJ200..09S..SOB

NO PAINT REQ.,STD

 1
69210-60290

VDJ200..09S..SOB

PLATED

 1
69211-60080

VDJ200..09S

NO PAINT REQ.

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-60170

VDJ200..09S..SOB

BLACK MATERIAL,STD,DRIVER SIDE

 1
69217-60220

VDJ200..09S..SOB

*CR,DRIVER SIDE

 1
69217-60230

VDJ200..09S..SOB

*CR,PASSENGER SIDE

 1
69250-60040

VDJ200..09S..SOB

BLACK MATERIAL,STD,PASSENGER SIDE

 1
69250-60040

VDJ200..09S

BLACK MATERIAL,PASSENGER SIDE

 1
69217-60170

VDJ200..09S

BLACK MATERIAL,DRIVER SIDE

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-60080

VDJ200..09S..SOB

NO PAINT REQ.,STD

 1
69210-60290

VDJ200..09S..SOB

PLATED

 1
69211-60080

VDJ200..09S

NO PAINT REQ.

 1
69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69241-60030

GRJ200,URJ20#,VDJ200

 1
69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69241-60030

GRJ200,URJ20#,VDJ200

 1
69253C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69242-60040

GRJ200,URJ20#,VDJ200

 1
69254C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69242-60040

GRJ200,URJ20#,VDJ200

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-60090C0

GRJ200,VDJ200..SOB

BLACK,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-60060C0

GRJ200,VDJ200..SOB

BLACK,TRIM1#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

GRJ200,URJ20#,VDJ200

 1
69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

GRJ200,URJ20#,VDJ200

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-42221

GRJ200,URJ20#,VDJ200..LHD

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-60070

GRJ200,URJ20#,VDJ200

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-60070

GRJ200,URJ20#,VDJ200

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

GRJ200,URJ20#,VDJ200

 2
69320 - LOCK ASSY, FRONT DOOR, LH
69040-42241

GRJ200,URJ20#,VDJ200..LHD

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-60030

GRJ200,URJ20#,VDJ200

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-60020

GRJ200,URJ20#,VDJ200

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-60020

GRJ200,URJ20#,VDJ200

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-60030

GRJ200,URJ20#,VDJ200

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-60030

GRJ200,URJ20#,VDJ200

 1
Common parts
69237-62010
69239-62010
69296-30010
90148-60022
90148-60083
90148-80066
90189-06018
93560-15020
