VDJ200L-GDMNZ (2015)
Toyota Land Cruiser
ILLUST NO. 1 OF 4(0709- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61262C - CHANNEL, ROOF DRIP, REAR | ||||
| 61263-60060 |
GRJ200,VDJ200..SOB |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-60120 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-60050 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60260 |
GRJ200,VDJ200..SOB |
1 | ||
| 63108D - SUPPORT SUB-ASSY, ROOF PANEL | ||||
| 63108-60040 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60780 |
GRJ200,VDJ200..SOB |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63107-60040 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60100 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-60050 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-60050 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-60020 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-60010 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| Common parts | ||||
| 90119-08B13 | ||||
| 90119-08C47 | ||||
| Linked diagrams | ||||
| 7552 | ||||

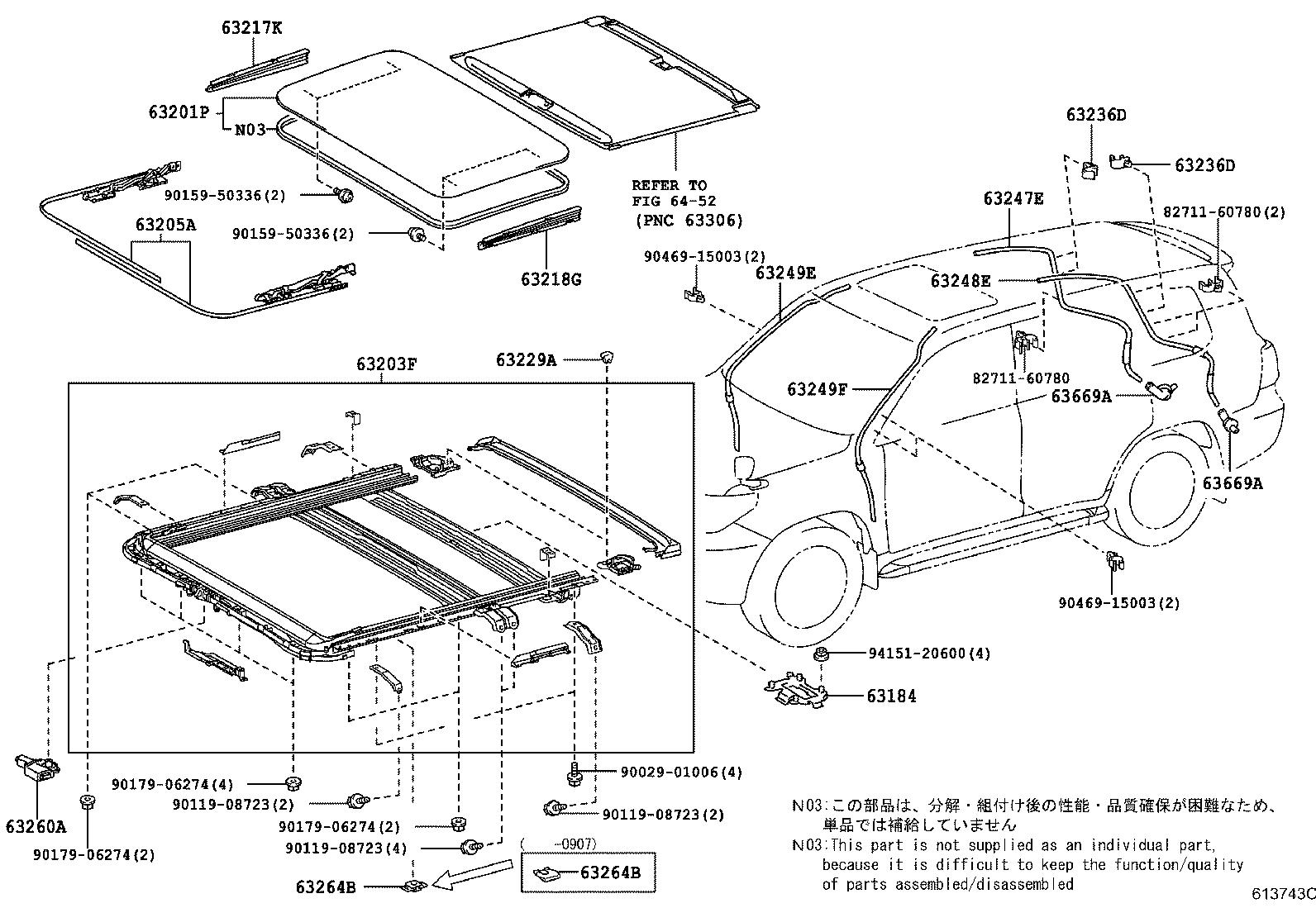

ILLUST NO. 1 OF 4(0709- )
ROOF PANEL(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-60120 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60260 |
GRJ200,VDJ200..SOB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60780 |
GRJ200,VDJ200..SOB |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63107-60040 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-60020 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-60010 |
GRJ200,URJ20#,VDJ200 |
1 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63185-42020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
GRJ200,URJ20#,VDJ200 |
8 | ||
| Common parts | ||||
| 90119-08C47 | ||||
| Linked diagrams | ||||
| 7552 | ||||

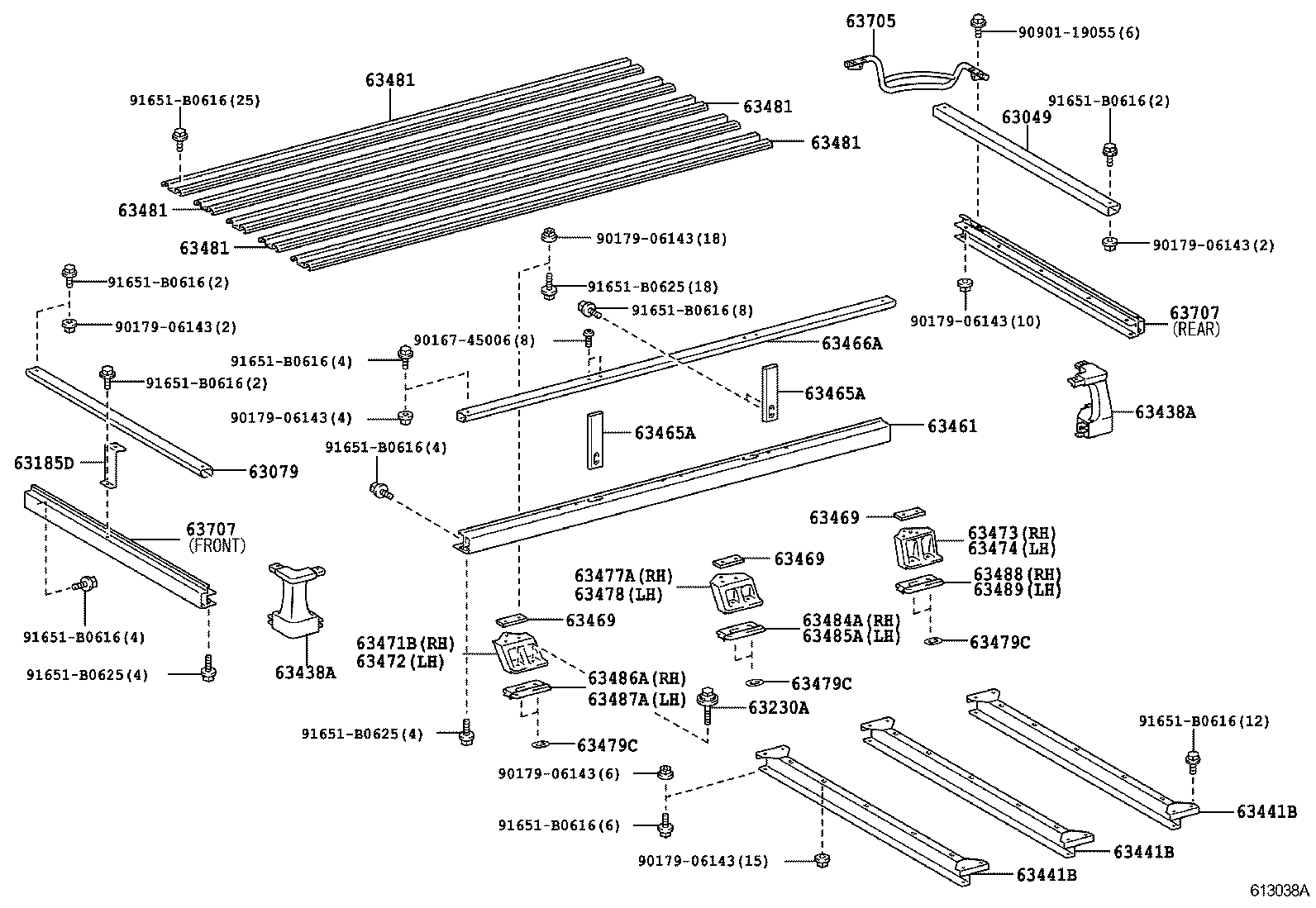

ILLUST NO. 3 OF 4(0709- )
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63468-60060 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63745-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63185-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-60010 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
12 | ||
| 63230-60010 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
8 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
4 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
4 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
3 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
3 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
3 | ||
| 63461 - FRAME, ROOF RACK SIDE RAIL, LOWER | ||||
| 63461-60040 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER),RH |
1 | ||
| 63462-60040 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER),LH |
1 | ||
| 63465A - SUPPORT, ROOF RACK SIDE FLAME | ||||
| 63465-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
4 | ||
| 63465A - SUPPORT, ROOF RACK SIDE FLAME | ||||
| 63465-60020 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
4 | ||
| 63466A - FRAME, ROOF RACK SIDE RAIL, UPPER NO.1 | ||||
| 63466-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
2 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
6 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
6 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
6 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-60120 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-60120 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63477A - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-60130 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-60100 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63479C - PLATE, ROOF RACK LEG | ||||
| 63479-60010 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
12 | ||
| 63479C - PLATE, ROOF RACK LEG | ||||
| 63479-60010 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
12 | ||
| 63479C - PLATE, ROOF RACK LEG | ||||
| 63479-60010 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
12 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
5 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60030 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
5 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60090 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63484-60100 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60100 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63485-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60130 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63486-60110 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60090 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63487-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60090 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63488-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60080 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63489-60100 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63705 - LADDER SUB-ASSY, RACK | ||||
| 63705-60010 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-60040 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER),REAR |
1 | ||
| 63464-60040 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER),FRONT |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-60040 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER),REAR |
1 | ||
| 63464-60040 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER),FRONT |
1 | ||
| Common parts | ||||
| 90167-45006 | ||||
| 90179-06143 | ||||
| 90901-19055 | ||||
| 91651-B0616 | ||||
| 91651-B0625 | ||||

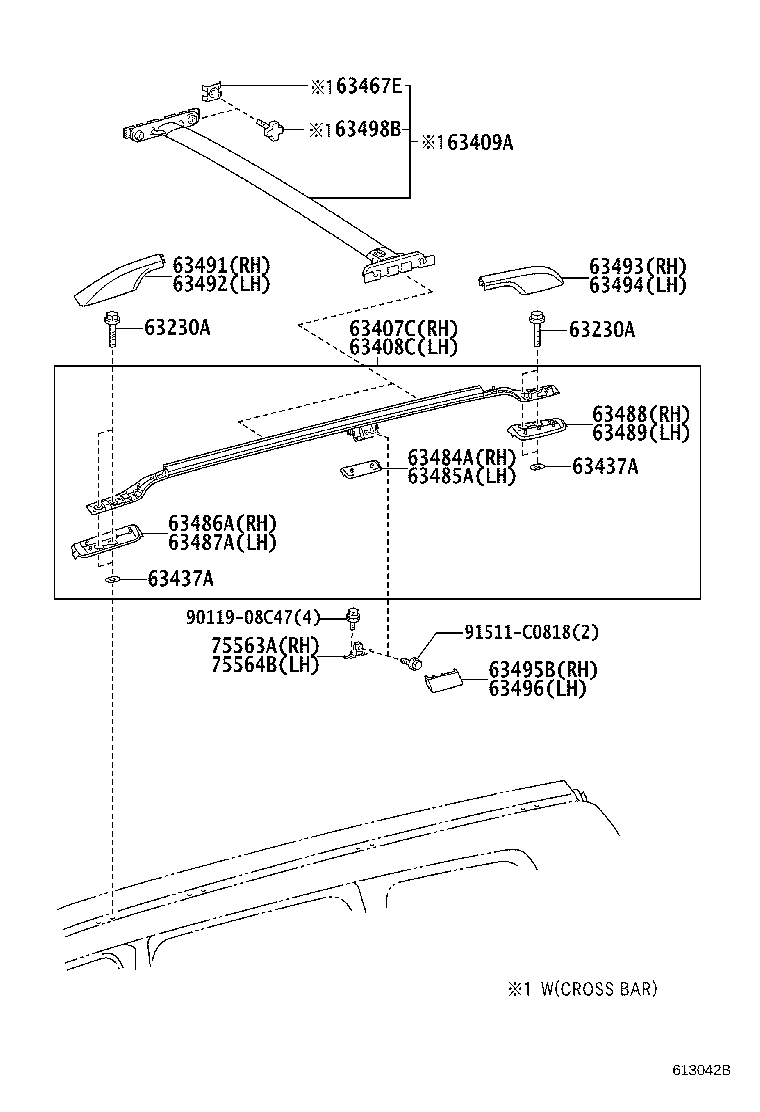

ILLUST NO. 4 OF 4(0709- )
ROOF RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-60010 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
12 | ||
| 63230-60010 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
8 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-60010 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
12 | ||
| 63230-60010 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
8 | ||
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60110C0 |
GRJ200,VDJ200..GEN..SOB ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63407-60110C1 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60100C0 |
GRJ200,VDJ200..GEN..SOB ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63408-60100C1 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-60020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-60020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60090 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63484-60100 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60100 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63485-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60130 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63486-60110 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60090 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63487-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60090 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63488-60110 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60080 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 63489-60100 |
VDJ200..5F..GEN;GRJ200,URJ202..GEN;VDJ200..(VX,VXR)..GEN ROOF RACK-WITH(LADDER) |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-60110C0 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-60090C0 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-60100C0 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-60090C0 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63495B - COVER, ROOF RACK LEG, CENTER RH | ||||
| 63495-60080C0 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-60080C0 |
VDJ200..09S..GEN ROOF RACK-ROOF RAIL ONLY,BLACK,040 ,058 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,4S6 ,8P8 |
1 | ||
| 75563A - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75563-60020 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| 75564B - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2 | ||||
| 75564-60040 |
VDJ200..GCC,GEN;GRJ200..5FC..GXR;GRJ200..05S..SOB;VDJ200..ARL..LUB;GRJ200,URJ20#..(08S,09S)..(5F,6FC,8FC) ROOF RACK-ROOF RAIL ONLY |
1 | ||
| Common parts | ||||
| 90119-08C47 | ||||
| 91511-C0818 | ||||
ILLUST NO. 2 OF 4(0709- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-60780 | ||||
| 90029-01006 | ||||
| 90119-08723 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90469-15003 | ||||
| 94151-20600 | ||||
| Linked diagrams | ||||
| 6452 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
