VDJ200L-GDMNZ (2015)
Toyota Land Cruiser
Production
Aug 2015
-
Sep 9999
Engine
1VDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )VDJ200..LHD..5F

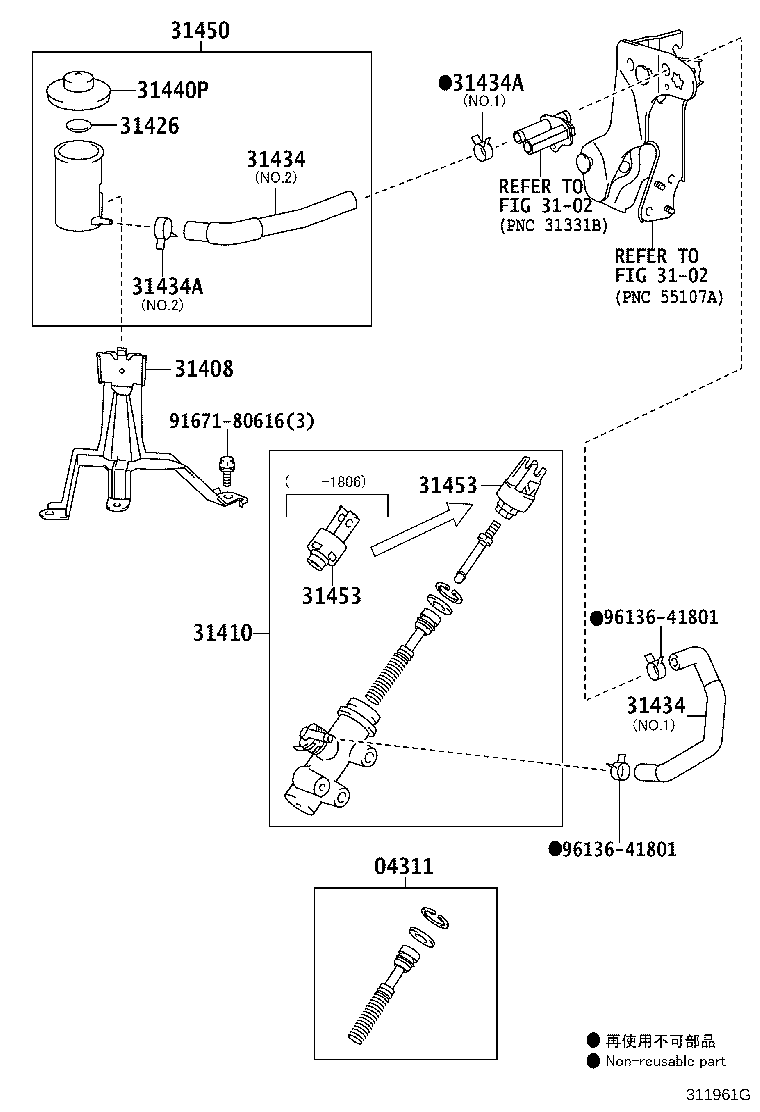

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-60180 |
GRJ200,VDJ200..5F |
1 | ||
| 31408 - HOLDER SUB-ASSY, CLUTCH RESERVOIR | ||||
| 31408-60040 |
VDJ200..LHD..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-35070 |
GRJ200,VDJ200..LHD..5F |
1 | ||
| 31420-60060 |
GRJ200,VDJ200..LHD..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-22020 |
GRJ200,VDJ200..5F |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-60070 |
GRJ200,VDJ200..LHD..5F NO.1 |
1 | ||
| 31434-60100 |
VDJ200..LHD..5F NO.2 |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-60070 |
GRJ200,VDJ200..LHD..5F NO.1 |
1 | ||
| 31434-60100 |
VDJ200..LHD..5F NO.2 |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41500 |
GRJ200,VDJ200..LHD..5F NO.2 |
1 | ||
| 96136-41801 |
GRJ200,VDJ200..LHD..5F NO.1 |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41500 |
GRJ200,VDJ200..LHD..5F NO.2 |
1 | ||
| 96136-41801 |
GRJ200,VDJ200..LHD..5F NO.1 |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 31405-35020 |
GRJ200,VDJ200..5F |
1 | ||
| 31450 - RESERVOIR ASSY, CLUTCH MASTER CYLINDER W/BRACKET | ||||
| 31450-60030 |
VDJ200..LHD..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-35013 |
GRJ200,VDJ200..LHD..5F |
1 | ||
| 31404-0K010 |
GRJ200,VDJ200..LHD..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-35013 |
GRJ200,VDJ200..LHD..5F |
1 | ||
| 31404-0K010 |
GRJ200,VDJ200..LHD..5F |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 96136-41801 | ||||
| Linked diagrams | ||||
| 3102 | ||||
