VDJ200L-GDMNZ (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

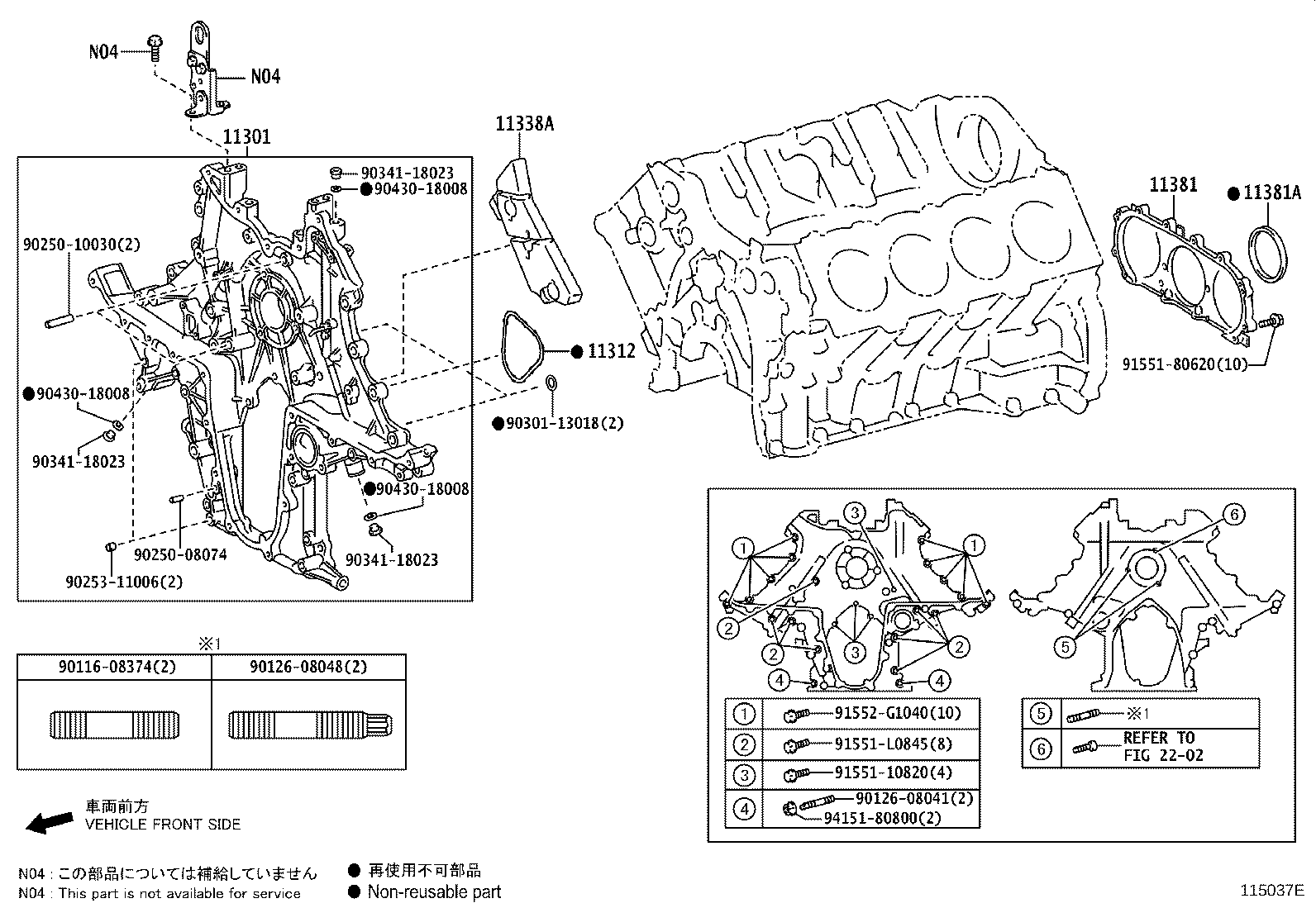

ILLUST NO. 2 OF 2(0709- )1VDFTV

Click highlighted areas on diagram

TIMING CHAINCOVER REAR

diagram 11301 11312 11338A 11381 11381A 2202 9011608374 9012608041 9012608048 9025008074 9025010030 9025311006 9030113018 9034118023 9034118023 9034118023 9043018008 9043018008 9043018008 9155110820 9155180620 91551L0845 91552G1040 9415180800
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-51011

1VDFTV..VDJ200

 1
11312 - GASKET, FRONT END PLATE
11312-51010

1VDFTV..VDJ200

 1
11338A - INSULATOR, TIMING GEAR CASE, NO.2
11338-51010

1VDFTV..VDJ200..GEN..SOB

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-51020

1VDFTV..VDJ200

 1
11381A - SEAL, ENGINE REAR OIL
90311-99014

1VDFTV..VDJ200

 1
90311-99010

1VDFTV..VDJ200

 1
Common parts
90116-08374
90126-08041
90126-08048
90250-08074
90250-10030
90253-11006
90301-13018
90341-18023
90430-18008
91551-10820
91551-80620
91551-L0845
91552-G1040
94151-80800
Linked diagrams
2202

ILLUST NO. 1 OF 2(0709- )1VDFTV

Click highlighted areas on diagram

TIMING CHAINCOVER FRONT

diagram 11301K 11301M 11302 11302A 11302E 11302H 11302R 11324 11328 11336A 11348 12502 16604C 16620D 16621B 9010510221 9012608015 9025311006 9025311006 9025311006 9030149012 9155180612 9155180616 9155180616 9155180830 9155180840 9155180840 9155180880 9155281050 9155281095 9167180614 9167180820 9167281025 9415180800
Part # Description Qty Price
11301K - SENSOR, CRANK POSITION
90919-05072

1VDFTV..VDJ200

 1
11301M - SENSOR, CAM POSITION
90919-05029

1VDFTV..VDJ200

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-51012

1VDFTV..VDJ200

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-52024

1VDFTV..VDJ200

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-16022

1VDFTV..VDJ200

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90029-01518

1VDFTV..VDJ200

 2
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
90331-55001

1VDFTV..VDJ200..GEN..SOB

 1
11324 - PLATE, TIMING CHAIN COVER
11324-51010

1VDFTV..VDJ200

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-51020

1VDFTV..VDJ200

 1
11336A - INSULATOR, TIMING GEAR COVER
11336-51010

1VDFTV..VDJ200..GEN..SOB

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

 1
11348 - SPACER, TIMING GEAR COVER
11348-51010

1VDFTV..VDJ200..GEN..SOB

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

 1
12502 - BRACKET SUB-ASSY, CHAIN COVER & COMPRESSOR
12502-51010

1VDFTV..VDJ200

 1
16604C - PULLEY SUB-ASSY, IDLER, NO.2
16603-51010

1VDFTV..VDJ200

 1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-51011

1VDFTV..VDJ200

 1
16621B - BRACKET, V-RIBBED BELT TENSIONER
16621-51010

1VDFTV..VDJ200

 1
Common parts
90105-10221
90126-08015
90253-11006
90301-49012
91551-80612
91551-80616
91551-80830
91551-80840
91551-80880
91552-81050
91552-81095
91671-80614
91671-80820
91672-81025
94151-80800
