UZJ200R-GNANKQ (2007)
Toyota Land Cruiser

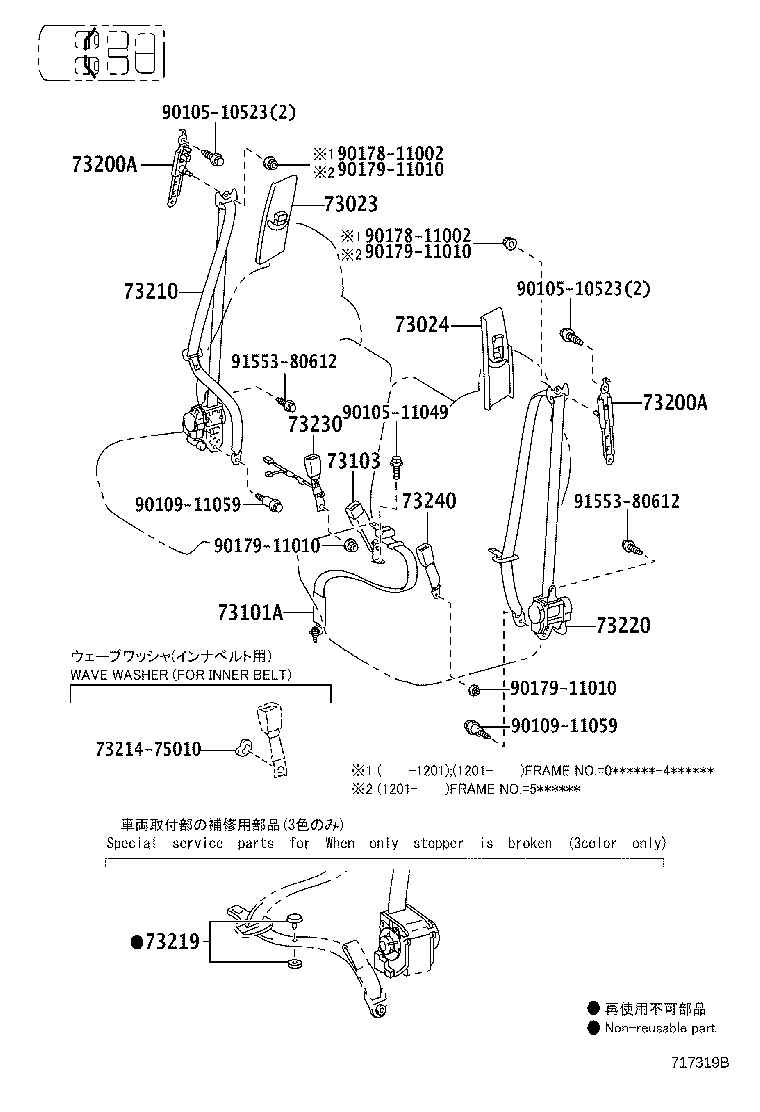

ILLUST NO. 1 OF 3(0709- )
FRONT SEAT(SEPARATE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-30010E1 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73023-30010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-30010E1 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73024-30010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-60700E1 |
UZJ200,VDJ200..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73210-60700B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73210-60701E1 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73210-60701B3 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73210-60700B2 |
UZJ200,VDJ200..GX..ARL BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G GRAY |
1 | ||
| 73219-33010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK |
1 | ||
| 73219-33030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-60560B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73220-60560E0 |
UZJ200,VDJ200..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73220-60560B1 |
UZJ200,VDJ200..GX..ARL BLACK,TRIM1# |
1 | ||
| 73220-60561B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73220-60561E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-60510B0 |
VDJ200..RHD..GX;GRJ200,UZJ200..RHD..08S..GX MD.GRAY,TRIM1# |
1 | ||
| 73230-60500B0 |
UZJ200,VDJ200..GX..ARL FRONT SEAT VERTICAL ADJUSTER-MANUAL(DRIVER SIDE),MD.GRAY,TRIM1# |
1 | ||
| 73230-60510E0 |
VDJ200..RHD..GX;GRJ200,UZJ200..RHD..08S..GX SAND BEIGE,TRIM4# |
1 | ||
| 73230-60480E0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),SAND BEIGE,TRIM4# |
1 | ||
| 73230-60500E0 |
UZJ200,VDJ200..GX..ARL FRONT SEAT VERTICAL ADJUSTER-MANUAL(DRIVER SIDE),SAND BEIGE,TRIM4# |
1 | ||
| 73230-60480C0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73230-60500C0 |
UZJ200,VDJ200..GX..ARL FRONT SEAT VERTICAL ADJUSTER-MANUAL(DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73230-60510C0 |
GRJ200,UZJ200,VDJ200..RHD..GX BLACK,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-60440B0 |
GRJ200..RHD..08S;UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73240-60440E0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S..GX SAND BEIGE,TRIM4# |
1 | ||
| 73240-60410E0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),SAND BEIGE,TRIM4# |
1 | ||
| 73240-60440C0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..GX BLACK,TRIM1# |
1 | ||
| 73240-60410C0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

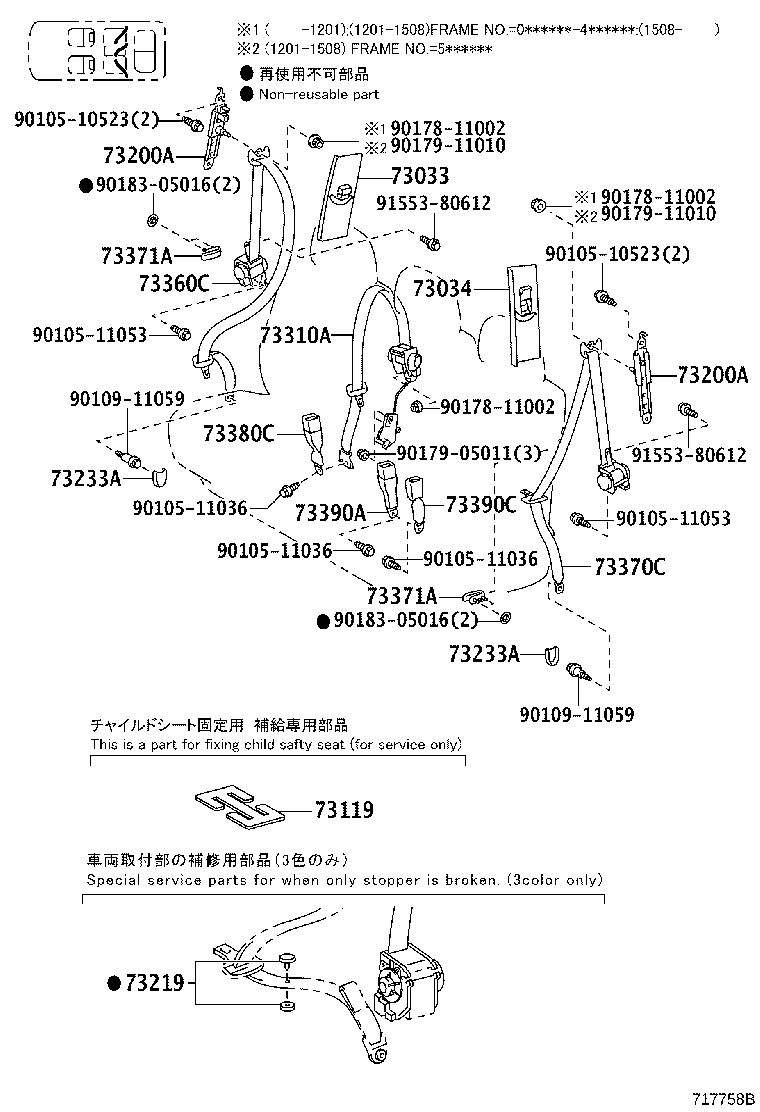

ILLUST NO. 3 OF 3(0709- )08S,09S
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-60010B0 |
GRJ200,URJ200,UZJ200,VDJ200..08S LT.GRAY,TRIM1# |
1 | ||
| 73139-60010E0 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G GRAY |
1 | ||
| 73219-33010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK |
1 | ||
| 73219-33030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BEIGE |
1 | ||
| 73233B - COVER, LAP BELT OUTER ANCHOR, REAR NO.2 SEAT | ||||
| 73233-60020E0 |
GRJ200,UZJ200,VDJ200..08S DK. BROWN,TRIM4# |
1 | ||
| 73233-60020C0 |
GRJ200,UZJ200,VDJ200..08S BLACK,TRIM1# |
1 | ||
| 73233-60020C0 |
GRJ200,UZJ200,VDJ200..08S BLACK,TRIM1# |
1 | ||
| 73233-60020C0 |
GRJ200,URJ200,UZJ200,VDJ200..08S BLACK,TRIM1#,4# |
1 | ||
| 73302 - BELT SUB-ASSY, REAR SEAT OUTER | ||||
| 73302-60170B0 |
GRJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
1 | ||
| 73302-60171C0 |
GRJ200,URJ200,UZJ200,VDJ200..08S BLACK,TRIM1# |
1 | ||
| 73302-60170E0 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
1 | ||
| 73302-60170C0 |
GRJ200,URJ200,UZJ200,VDJ200..08S BLACK,TRIM1# |
1 | ||
| 73302-60171E0 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
1 | ||
| 73302-60170B1 |
GRJ200,URJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
1 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-60080B0 |
GRJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
1 | ||
| 73307-60080B1 |
GRJ200,URJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
1 | ||
| 73307-60080E0 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
1 | ||
| 73307-60080C0 |
GRJ200,URJ200,UZJ200,VDJ200..08S BLACK,TRIM1# |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-60040E1 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
1 | ||
| 73371-60040B1 |
GRJ200,URJ200,UZJ200,VDJ200..08S LT.GRAY,TRIM1# |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-60040B1 |
GRJ200,URJ200,UZJ200,VDJ200..08S LT.GRAY,TRIM1# |
1 | ||
| 73371-60040E1 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-60070E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73510-60070B1 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73510-60070C0 |
UZJ200,VDJ200..ARL..G BLACK,TRIM1# |
1 | ||
| 73510-60070B0 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-60190E0 |
UZJ200,VDJ200..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73560-60190B0 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73560-60191B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73560-60190B1 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73560-60191E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-60190E0 |
UZJ200,VDJ200..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73560-60190B0 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73560-60191B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73560-60190B1 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73560-60191E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-60201B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73570-60200E0 |
UZJ200,VDJ200..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73570-60200B1 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73570-60201E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73570-60200B0 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-60110B1 |
GRJ200,URJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
2 | ||
| 73580-60110B0 |
GRJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
2 | ||
| 73580-60110C0 |
GRJ200,URJ200,UZJ200,VDJ200..08S BLACK,TRIM1# |
2 | ||
| 73580-60110E0 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-60110B1 |
GRJ200,URJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
2 | ||
| 73580-60110B0 |
GRJ200,UZJ200,VDJ200..08S MD.GRAY,TRIM1# |
2 | ||
| 73580-60110C0 |
GRJ200,URJ200,UZJ200,VDJ200..08S BLACK,TRIM1# |
2 | ||
| 73580-60110E0 |
GRJ200,URJ200,UZJ200,VDJ200..08S SAND BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90105-11053 | ||||
| 90109-11031 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90183-05016 | ||||
ILLUST NO. 1 OF 3(1109- )RHD
FRONT SEAT(BENCH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-30010E1 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73023-30010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-30010E1 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73024-30010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-60700E1 |
UZJ200,VDJ200..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73210-60700B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73210-60701E1 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73210-60701B3 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73210-60700B2 |
UZJ200,VDJ200..GX..ARL BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G GRAY |
1 | ||
| 73219-33010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK |
1 | ||
| 73219-33030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-60560B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73220-60560E0 |
UZJ200,VDJ200..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73220-60560B1 |
UZJ200,VDJ200..GX..ARL BLACK,TRIM1# |
1 | ||
| 73220-60561B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73220-60561E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-60510B0 |
VDJ200..RHD..GX;GRJ200,UZJ200..RHD..08S..GX MD.GRAY,TRIM1# |
1 | ||
| 73230-60500B0 |
UZJ200,VDJ200..GX..ARL FRONT SEAT VERTICAL ADJUSTER-MANUAL(DRIVER SIDE),MD.GRAY,TRIM1# |
1 | ||
| 73230-60510E0 |
VDJ200..RHD..GX;GRJ200,UZJ200..RHD..08S..GX SAND BEIGE,TRIM4# |
1 | ||
| 73230-60480E0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),SAND BEIGE,TRIM4# |
1 | ||
| 73230-60500E0 |
UZJ200,VDJ200..GX..ARL FRONT SEAT VERTICAL ADJUSTER-MANUAL(DRIVER SIDE),SAND BEIGE,TRIM4# |
1 | ||
| 73230-60480C0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73230-60500C0 |
UZJ200,VDJ200..GX..ARL FRONT SEAT VERTICAL ADJUSTER-MANUAL(DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73230-60510C0 |
GRJ200,UZJ200,VDJ200..RHD..GX BLACK,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-60440B0 |
GRJ200..RHD..08S;UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73240-60440E0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S..GX SAND BEIGE,TRIM4# |
1 | ||
| 73240-60410E0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),SAND BEIGE,TRIM4# |
1 | ||
| 73240-60440C0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..GX BLACK,TRIM1# |
1 | ||
| 73240-60410C0 |
UZJ200,VDJ200..GX..ARL SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-POWER(DRIVER & PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11049 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
ILLUST NO. 2 OF 3(1109- )
REAR NO.1 SEAT(BENCH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73033 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, RH | ||||
| 73033-60010E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73033-60010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73034 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, LH | ||||
| 73034-60010E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73034-60010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G GRAY |
1 | ||
| 73219-33010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK |
1 | ||
| 73219-33030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BEIGE |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-60020C0 |
UZJ200..LHD..VX;VDJ200..GX..ARL;VDJ200..(05S,08S)..(GCC,GEN);GRJ200,UZJ200..(05S,08S)..GX BLACK,TRIM1# |
2 | ||
| 73233-60020E0 |
GRJ200,UZJ200,VDJ200..05S,08S DK. BROWN,TRIM4# |
2 | ||
| 73233-60020C0 |
GRJ200,URJ200,UZJ200,VDJ200..(05S,08S)..G BLACK,TRIM1#,4# |
2 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-60020C0 |
UZJ200..LHD..VX;VDJ200..GX..ARL;VDJ200..(05S,08S)..(GCC,GEN);GRJ200,UZJ200..(05S,08S)..GX BLACK,TRIM1# |
2 | ||
| 73233-60020E0 |
GRJ200,UZJ200,VDJ200..05S,08S DK. BROWN,TRIM4# |
2 | ||
| 73233-60020C0 |
GRJ200,URJ200,UZJ200,VDJ200..(05S,08S)..G BLACK,TRIM1#,4# |
2 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-60490B1 |
VDJ200..VX;UZJ200..VX..GCC;UZJ200..ARL,GEN;VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-60490B0 |
GRJ200,UZJ200..08S..GX;VDJ200..08S..GX..(ARL,GCC) SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),MD.GRAY,TRIM1# |
1 | ||
| 73360-60491E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73360-60490E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73360-60491B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73360-60500B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-60490E0 |
UZJ200,VDJ200..GX..ARL SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),SAND BEIGE,TRIM4# |
1 | ||
| 73360-60500E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-60340B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73370-60340E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73370-60330B1 |
VDJ200..VX;UZJ200..VX..GCC;UZJ200..ARL,GEN;VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73370-60330E0 |
UZJ200,VDJ200..GX..ARL SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),SAND BEIGE,TRIM4# |
1 | ||
| 73370-60330E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73370-60330B0 |
GRJ200,UZJ200..08S..GX;VDJ200..08S..GX..(ARL,GCC) SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),MD.GRAY,TRIM1# |
1 | ||
| 73370-60331B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73370-60331E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-60040C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
2 | ||
| 73371-60040E0 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S DK. BROWN,TRIM4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-60040C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
2 | ||
| 73371-60040E0 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S DK. BROWN,TRIM4# |
2 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-60220E0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S SAND BEIGE,TRIM4# |
1 | ||
| 73380-60220B0 |
GRJ200,UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73380-60220B1 |
GRJ200,UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73380-60220C0 |
GRJ200,UZJ200,VDJ200..RHD..G BLACK,TRIM1# |
1 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73306-60170C0 |
GRJ200,URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 73306-60170E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73306-60170B0 |
UZJ200,VDJ200;GRJ200..08S,09S;GRJ200..LHD..05S MD.GRAY,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-60020B0 |
GRJ200..RHD..08S;UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73390-60020E0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S SAND BEIGE,TRIM4# |
1 | ||
| 73390-60020C0 |
GRJ200,UZJ200,VDJ200..RHD..G BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90179-11010 | ||||
| 90183-05016 | ||||
| 91553-80612 | ||||
ILLUST NO. 2 OF 3(0709- )RHD
REAR NO.1 SEAT(SEPARATE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73033 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, RH | ||||
| 73033-60010E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73033-60010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73034 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, LH | ||||
| 73034-60010E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73034-60010B2 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G GRAY |
1 | ||
| 73219-33010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK |
1 | ||
| 73219-33030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BEIGE |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-60020C0 |
UZJ200..LHD..VX;VDJ200..GX..ARL;VDJ200..(05S,08S)..(GCC,GEN);GRJ200,UZJ200..(05S,08S)..GX BLACK,TRIM1# |
2 | ||
| 73233-60020E0 |
GRJ200,UZJ200,VDJ200..05S,08S DK. BROWN,TRIM4# |
2 | ||
| 73233-60020C0 |
GRJ200,URJ200,UZJ200,VDJ200..(05S,08S)..G BLACK,TRIM1#,4# |
2 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-60020C0 |
UZJ200..LHD..VX;VDJ200..GX..ARL;VDJ200..(05S,08S)..(GCC,GEN);GRJ200,UZJ200..(05S,08S)..GX BLACK,TRIM1# |
2 | ||
| 73233-60020E0 |
GRJ200,UZJ200,VDJ200..05S,08S DK. BROWN,TRIM4# |
2 | ||
| 73233-60020C0 |
GRJ200,URJ200,UZJ200,VDJ200..(05S,08S)..G BLACK,TRIM1#,4# |
2 | ||
| 73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH | ||||
| 73310-60070B0 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73310-60070B1 |
UZJ200,VDJ200..ARL MD.GRAY,TRIM1# |
1 | ||
| 73310-60070E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73310-60070C0 |
UZJ200,VDJ200..ARL..G BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-60490B1 |
VDJ200..VX;UZJ200..VX..GCC;UZJ200..ARL,GEN;VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-60490B0 |
GRJ200,UZJ200..08S..GX;VDJ200..08S..GX..(ARL,GCC) SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),MD.GRAY,TRIM1# |
1 | ||
| 73360-60491E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73360-60490E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73360-60491B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73360-60500B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-60490E0 |
UZJ200,VDJ200..GX..ARL SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),SAND BEIGE,TRIM4# |
1 | ||
| 73360-60500E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-60340B0 |
UZJ200,VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73370-60340E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73370-60330B1 |
VDJ200..VX;UZJ200..VX..GCC;UZJ200..ARL,GEN;VDJ200..GX..ARL MD.GRAY,TRIM1# |
1 | ||
| 73370-60330E0 |
UZJ200,VDJ200..GX..ARL SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),SAND BEIGE,TRIM4# |
1 | ||
| 73370-60330E0 |
UZJ200,VDJ200..GX..ARL SAND BEIGE,TRIM4# |
1 | ||
| 73370-60330B0 |
GRJ200,UZJ200..08S..GX;VDJ200..08S..GX..(ARL,GCC) SRS AIR BAG-DRIVER&PASSENGER&CURTAIN&SIDE(FR),MD.GRAY,TRIM1# |
1 | ||
| 73370-60331B2 |
UZJ200,VDJ200..ARL..G LT.GRAY/BLACK,TRIM1# |
1 | ||
| 73370-60331E0 |
UZJ200,VDJ200..ARL..G SAND BEIGE,TRIM4# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-60040C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
2 | ||
| 73371-60040E0 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S DK. BROWN,TRIM4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-60040C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
2 | ||
| 73371-60040E0 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S DK. BROWN,TRIM4# |
2 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-60220E0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S SAND BEIGE,TRIM4# |
1 | ||
| 73380-60220B0 |
GRJ200,UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73380-60220B1 |
GRJ200,UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73380-60220C0 |
GRJ200,UZJ200,VDJ200..RHD..G BLACK,TRIM1# |
1 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73306-60170C0 |
GRJ200,URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 73306-60170E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 73306-60170B0 |
UZJ200,VDJ200;GRJ200..08S,09S;GRJ200..LHD..05S MD.GRAY,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-60020B0 |
GRJ200..RHD..08S;UZJ200,VDJ200..RHD MD.GRAY,TRIM1# |
1 | ||
| 73390-60020E0 |
VDJ200..RHD..G;GRJ200,UZJ200..RHD..08S SAND BEIGE,TRIM4# |
1 | ||
| 73390-60020C0 |
GRJ200,UZJ200,VDJ200..RHD..G BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11036 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90179-11010 | ||||
| 90183-05016 | ||||
| 91553-80612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
