UZJ200R-GNANKQ (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)2UZFE

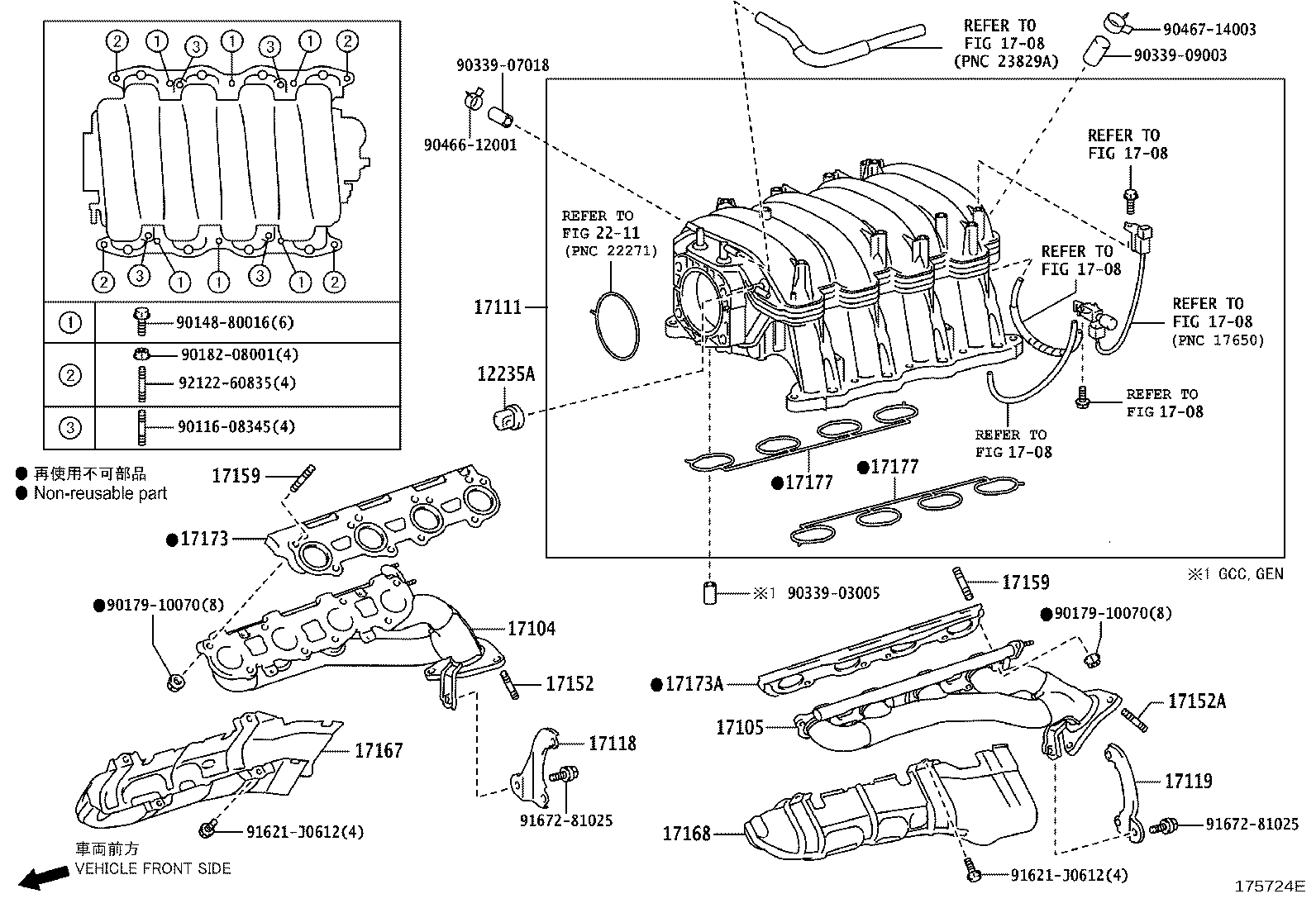

Click highlighted areas on diagram

diagram 12235A 1708 1708 1708 1708 1708 1708 17104 17105 17111 17118 17119 17152 17152A 17159 17159 17167 17168 17173 17173A 17177 17177 2211 9011608345 9014880016 9017910070 9017910070 9018208001 9033903005 9033907018 9033909003 9046612001 9046714003 91621J0612 91621J0612 9167281025 9167281025 9212260835
Part # Description Qty Price
12235A - CAP, VENTILATION
12235-50020

2UZFE..UZJ200

 1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17104-50230

2UZFE..UZJ200..ARL

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17105-50220

2UZFE..UZJ200..ARL

 1
17111 - MANIFOLD, INTAKE
17120-50020

2UZFE..UZJ200

 1
17118 - STAY, MANIFOLD
17118-50030

2UZFE..UZJ200

 1
17119 - STAY, MANIFOLD, NO.2
17119-50010

2UZFE..UZJ200

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10033

2UZFE..UZJ200

 3
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10033

2UZFE..UZJ200

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015

2UZFE..UZJ200

 16
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015

2UZFE..UZJ200

 16
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-50200

2UZFE..UZJ200

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-50190

2UZFE..UZJ200

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-50030

2UZFE..UZJ200

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17198-50010

2UZFE..UZJ200

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50030

2UZFE..UZJ200

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50030

2UZFE..UZJ200

 2
Common parts
90116-08345
90148-80016
90179-10070
90182-08001
90339-03005
90339-07018
90339-09003
90466-12001
90467-14003
91621-J0612
91672-81025
92122-60835
Linked diagrams
1708
2211
