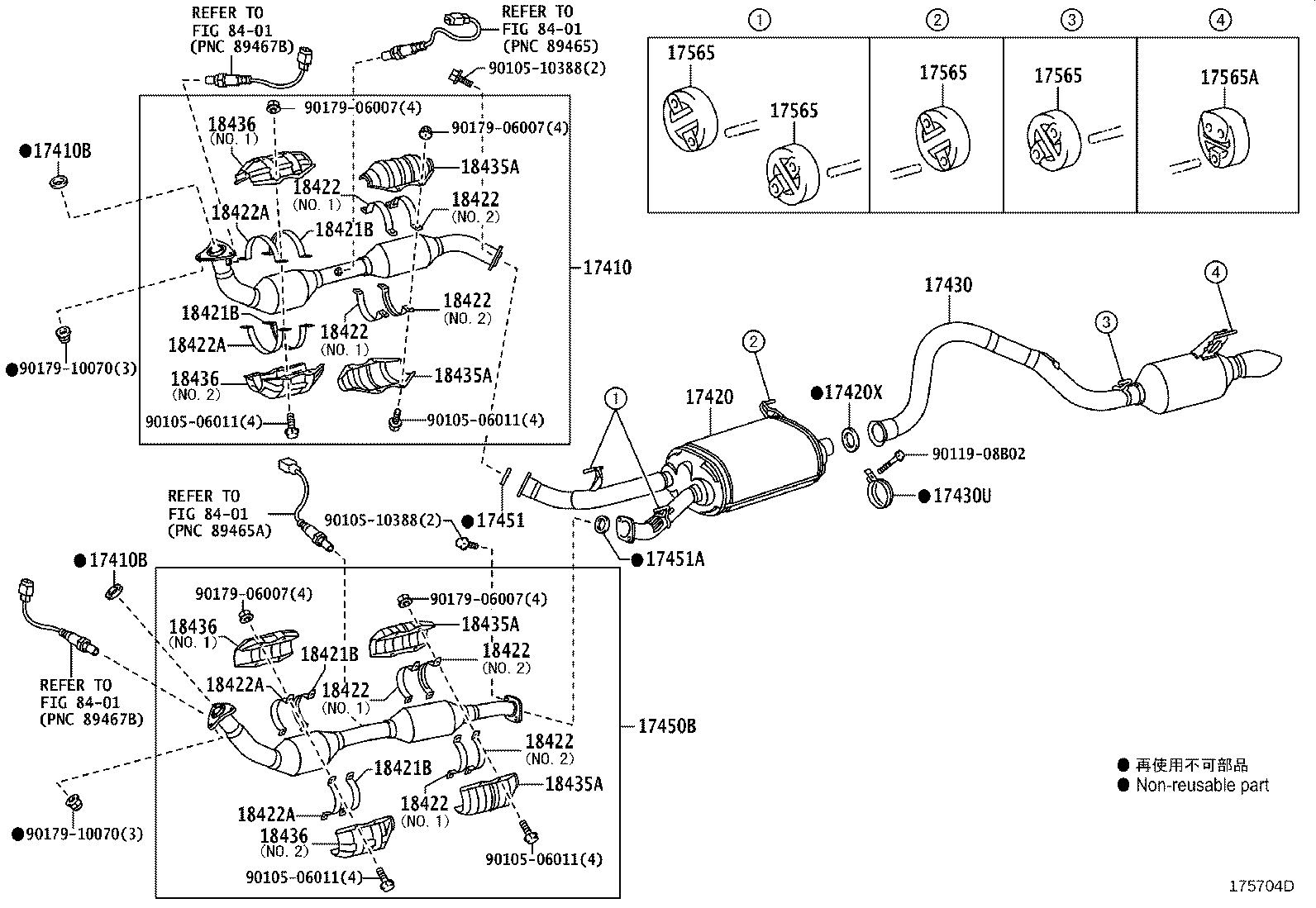

UZJ200L-GNAEK (2007)
Toyota Land Cruiser
(0709-1201)2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-50500 |
2UZFE..UZJ200..GEN *114=TOYOTA/T77T89/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06066 |
2UZFE,1VDFTV..UZJ200,VDJ200..G |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06066 |
2UZFE,1VDFTV..UZJ200,VDJ200..G |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-50270 |
2UZFE..UZJ200..LHD |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06085 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-50290 |
2UZFE..UZJ200 |
1 | ||
| 17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90080-46263 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
1 | ||
| 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 | ||||
| 17450-50140 |
2UZFE..UZJ200..GEN *114=TOYOTA/T77T89/Y |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06090 |
2UZFE..UZJ200 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 90917-06089 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,3URFE,1VDFTV..URJ200,UZJ200,VDJ200..G |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,3URFE,1VDFTV..URJ200,UZJ200,VDJ200..G |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,3URFE,1VDFTV..URJ200,UZJ200,VDJ200..G |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,3URFE,1VDFTV..URJ200,UZJ200,VDJ200..G |
4 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-31050 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,3URFE,1VDFTV..URJ200,UZJ200,VDJ200..G |
1 | ||
| 18421B - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18421B - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18421B - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18421B - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-22020 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 18421-50010 |
2UZFE..UZJ200 NO.1 |
4 | ||
| 18422A - STAY, CONVERTER PROTECTOR, NO.3 | ||||
| 18421-50010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18422A - STAY, CONVERTER PROTECTOR, NO.3 | ||||
| 18421-50010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18422A - STAY, CONVERTER PROTECTOR, NO.3 | ||||
| 18421-50010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18422A - STAY, CONVERTER PROTECTOR, NO.3 | ||||
| 18421-50010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE..GRJ200,UZJ200..(08S,09S)..G |
4 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-50130 |
2UZFE..UZJ200..LHD |
4 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-50130 |
2UZFE..UZJ200..LHD |
4 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-50130 |
2UZFE..UZJ200..LHD |
4 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-50130 |
2UZFE..UZJ200..LHD |
4 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18435-38040 |
2UZFE..UZJ200..LHD NO.1 |
2 | ||
| 18445-38010 |
2UZFE..UZJ200..LHD NO.2 |
2 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18435-38040 |
2UZFE..UZJ200..LHD NO.1 |
2 | ||
| 18445-38010 |
2UZFE..UZJ200..LHD NO.2 |
2 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18435-38040 |
2UZFE..UZJ200..LHD NO.1 |
2 | ||
| 18445-38010 |
2UZFE..UZJ200..LHD NO.2 |
2 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18435-38040 |
2UZFE..UZJ200..LHD NO.1 |
2 | ||
| 18445-38010 |
2UZFE..UZJ200..LHD NO.2 |
2 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-10388 | ||||
| 90119-08B02 | ||||
| 90179-06007 | ||||
| 90179-10070 | ||||
| Linked diagrams | ||||
| 8401 | ||||
