UZJ200L-GNAEK (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012

Engine 2UZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0709-1201)2UZFE

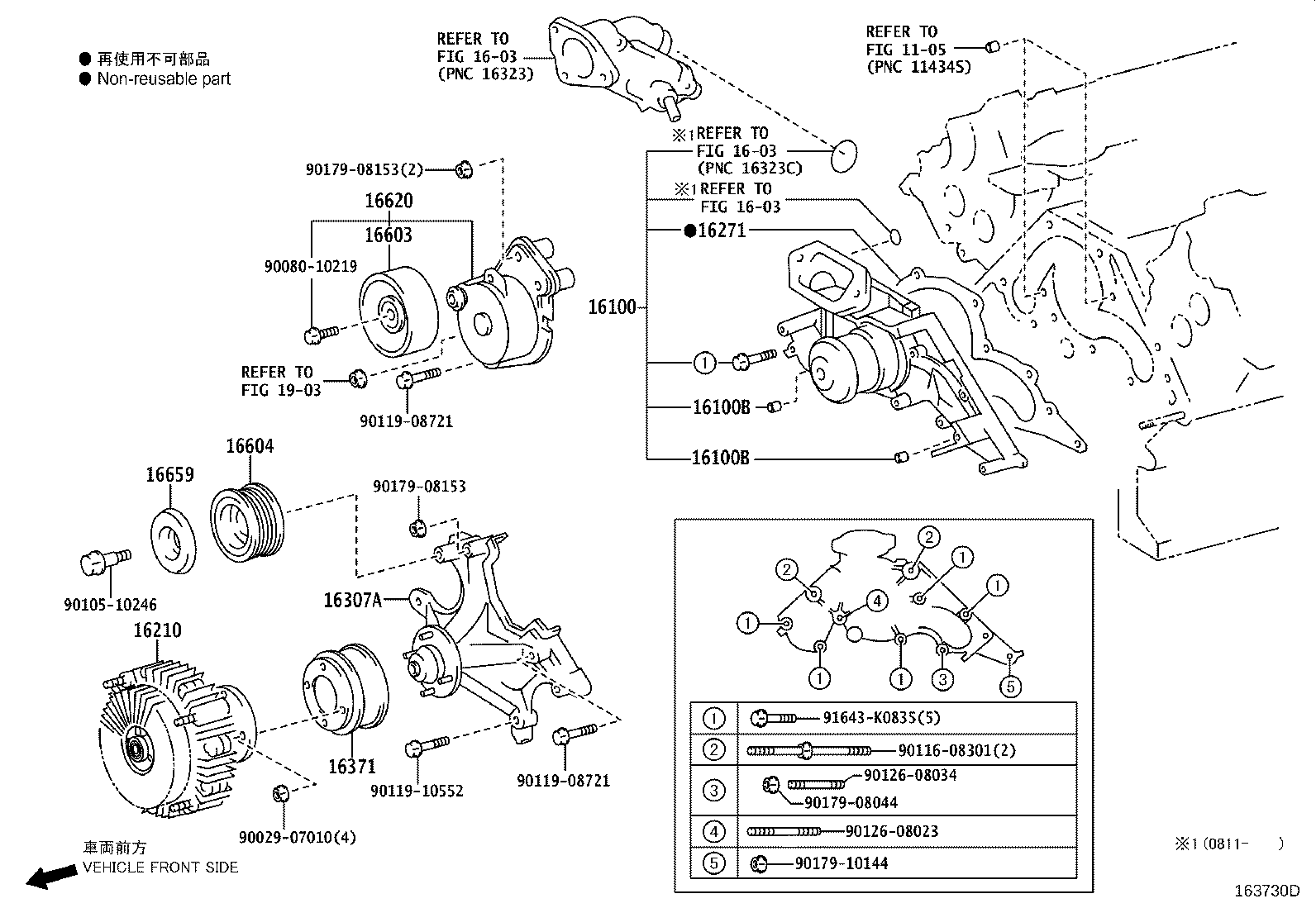

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
16100 - PUMP ASSY, ENGINE WATER
16100-59275	2UZFE..UZJ200	09/2007 - 11/2008	1
16100-59276	2UZFE..UZJ200	11/2008 - 01/2012	1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021	2UZFE..UZJ200	09/2007 - 01/2012	2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021	2UZFE..UZJ200	09/2007 - 01/2012	2
16210 - COUPLING ASSY, FLUID
16210-50110	2UZFE..UZJ200..LHD	09/2007 - 01/2012	1
16271 - GASKET, WATER PUMP
16271-50010	2UZFE..UZJ200	09/2007 - 01/2012	1
16307A - BRACKET SUB-ASSY, FAN
16307-50012	2UZFE..UZJ200	09/2007 - 01/2012	1
16371 - PULLEY, FAN
16371-50040	2UZFE..UZJ200	09/2007 - 01/2012	1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-0W030	2UZFE..UZJ200	09/2007 - 01/2012	1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-50030	2UZFE..UZJ200	09/2007 - 01/2012	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W101	2UZFE..UZJ200	09/2007 - 01/2012	1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-50022	2UZFE..UZJ200	09/2007 - 01/2012	1
Common parts
90029-07010
90080-10219
90105-10246
90116-08301
90119-08721
90119-10552
90126-08023
90126-08034
90179-08044
90179-08153
90179-10144
91643-K0835
Linked diagrams
1105
1603
1903
