URJ202R-GNTVKQ (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

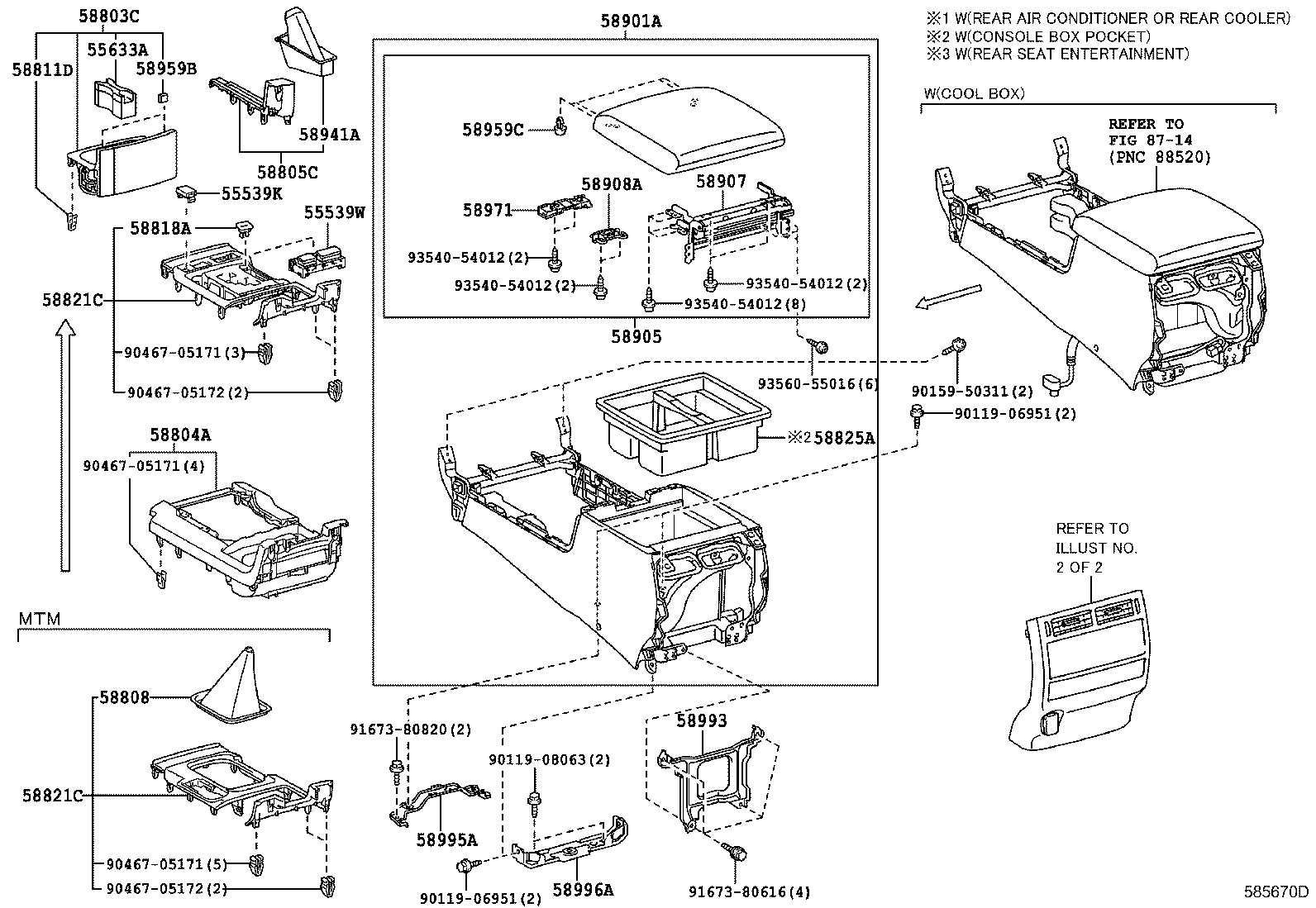

ILLUST NO. 1 OF 2(1508- )RHD..LUB

Click highlighted areas on diagram

W(CONSOLE BOX)

diagram 55539K 55539W 55633A 58803C 58804A 58805C 58808 58811D 58818A 58821C 58821C 58825A 58901A 58905 58907 58908A 58941A 58959B 58959C 58971 58993 58995A 58996A 8714 9011906951 9011906951 9011908063 9015950311 9046705171 9046705171 9046705171 9046705172 9046705172 9167380616 9167380820 9354054012 9354054012 9354054012 9354054012 9356055016
Part # Description Qty Price
55539K - COVER, SPARE SWITCH HOLE
55539-52060C0

URJ202,VDJ200..VX..ARL

AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS),BLACK

 1
55539-52060C0

GRJ200,URJ20#,VDJ200..LUB

BLACK

 1
55539-52060C0

URJ202,VDJ200..RHD..VX

AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,BLACK

 1
Common parts
90119-06951
90119-08063
90159-50311
90467-05171
90467-05172
91673-80616
91673-80820
93540-54012
93560-55016
Linked diagrams
8714
