URJ202R-GNTNKQ (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )1URFE

Click highlighted areas on diagram

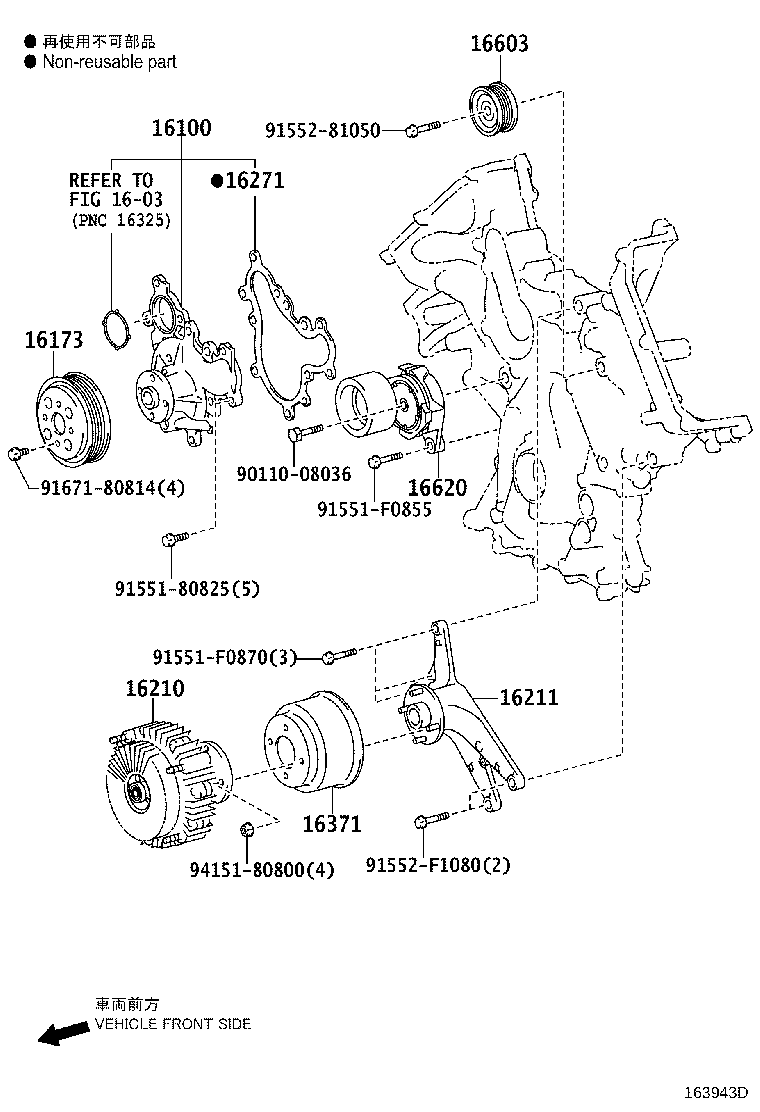

diagram 1603 16100 16173 16210 16211 16271 16371 16603 16620 9011008036 9155180825 91551F0855 91551F0870 9155281050 91552F1080 9167180814 9415180800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39555

1URFE..URJ202

 1
16173 - PULLEY, WATER PUMP
16173-38030

1URFE,3URFE..URJ20#

 1
16210 - COUPLING ASSY, FLUID
16210-38070

1URFE,3URFE..URJ20#

 1
16210-38071

1URFE,3URFE..URJ20#

 1
16211 - BRACKET, FLUID COUPLING
16380-38020

1URFE..URJ202

 1
16271 - GASKET, WATER PUMP
16271-38030

1URFE..URJ202

 1
16371 - PULLEY, FAN
16371-38010

1URFE,3URFE..URJ20#

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-38010

1URFE,3URFE..URJ20#

 1
16603-38011

1URFE,3URFE..URJ20#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0S010

1URFE,3URFE..URJ20#

 1
16620-0S011

1URFE,3URFE..URJ20#

 1
Common parts
90110-08036
91551-80825
91551-F0855
91551-F0870
91552-81050
91552-F1080
91671-80814
94151-80800
Linked diagrams
1603
