URJ200L-GNZVKV (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999
Engine 3URFE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )URJ200

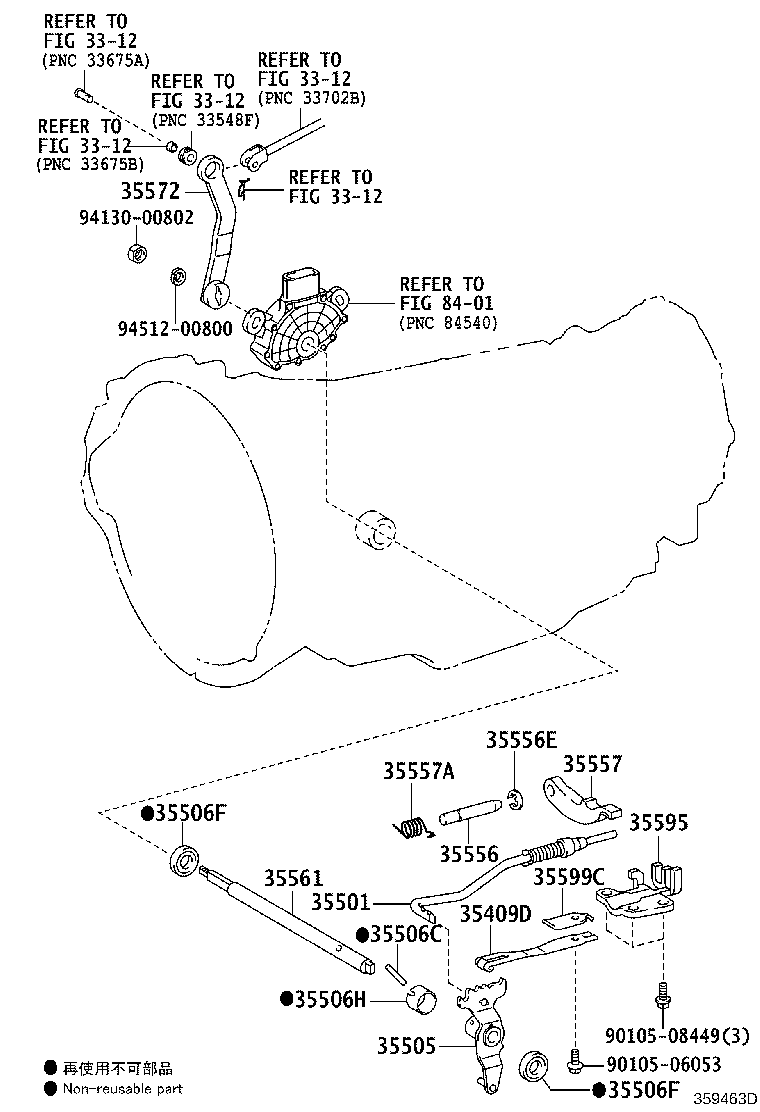

Click highlighted areas on diagram

AE80F

diagram 3312 3312 3312 3312 3312 35409D 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35572 35595 35599C 8401 9010506053 9010508449 9413000802 9451200800
Part # Description Qty Price
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-60050

URJ200

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-60040

URJ200

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60080

URJ200

 1
35505-60100

URJ200

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

GRJ200,URJ20#,VDJ200..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRJ200,URJ20#,VDJ200..ATM

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRJ200,URJ20#,VDJ200..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20025

GRJ200,URJ20#,VDJ200..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-60030

URJ200

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GRJ200,URJ20#,VDJ200..ATM

 1
35557 - PAWL, PARKING LOCK
35557-60050

URJ200

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-24007

URJ200

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60040

URJ200

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-60130

URJ200

 1
35572-60150

URJ200

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-60040

URJ200

 1
35599C - COVER, MANUAL DETENT SPRING
35599-60030

URJ200

 1
Common parts
90105-06053
90105-08449
94130-00802
94512-00800
Linked diagrams
3312
8401
