URJ200L-GNZVKV (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999
Engine 3URFE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )URJ200

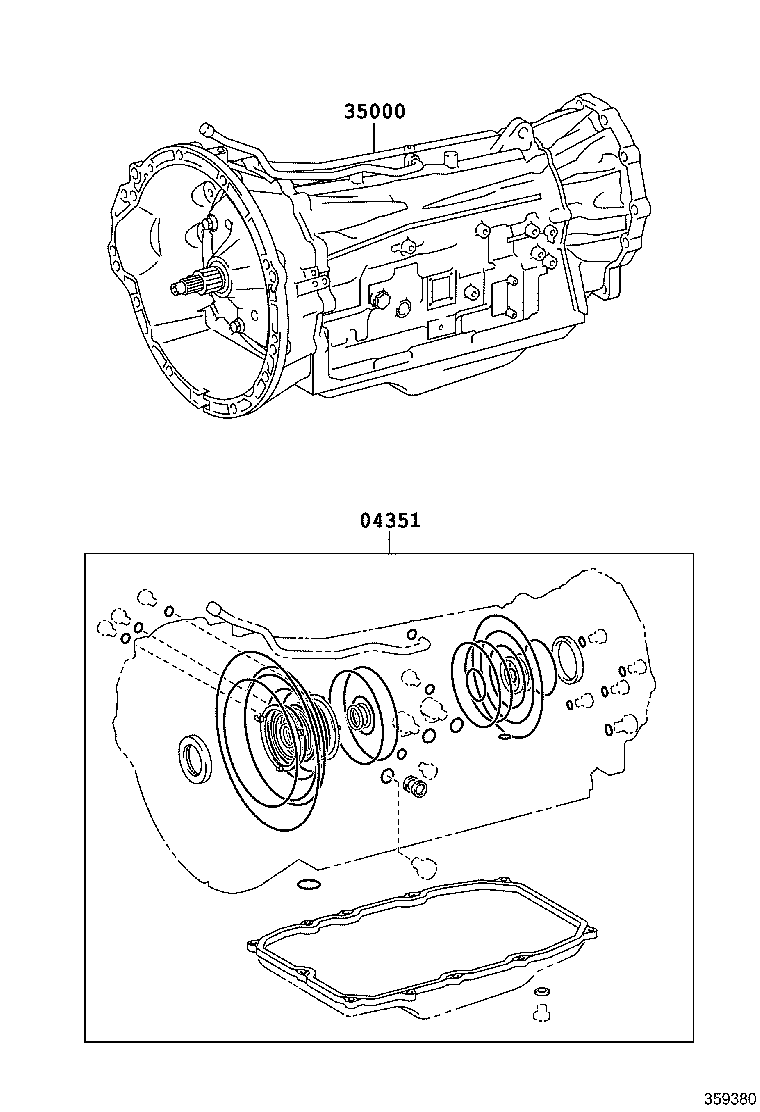

Click highlighted areas on diagram

AE80F

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-60610

URJ200

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-60E50

URJ200

AE80F

 1
35000-60E51

URJ200

AE80F

 1
35000-60F20

URJ200

AE80F

 1
