RJ70RV-MNQ (1990)
Toyota Land Cruiser

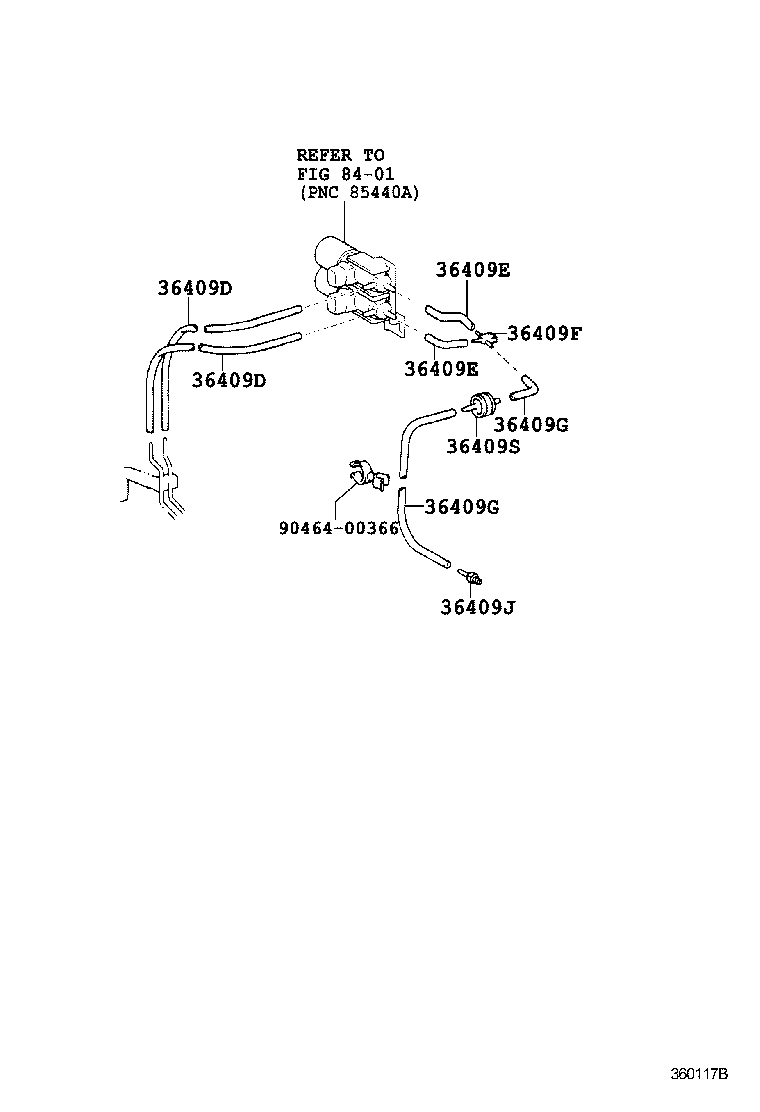

ILLUST NO. 2 OF 2(9001-9604)RJ7#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92002 |
HZJ70,73,LJ70,RJ70..ARL;HZJ71,75,78,79,LJ72,77,79,PZJ7#..RHD..(ARL,GEN) *H,L=260,MARK=#* |
2 | ||
| 36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92002 |
HZJ70,73,LJ70,RJ70..ARL;HZJ71,75,78,79,LJ72,77,79,PZJ7#..RHD..(ARL,GEN) *H,L=260,MARK=#* |
2 | ||
| 36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92002 |
HZJ70..ARL;HZJ79..ARL,GEN;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);FJ7#,HZJ71,73,78,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN *H,L=80,MARK=#* |
2 | ||
| 36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92002 |
HZJ70..ARL;HZJ79..ARL,GEN;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);FJ7#,HZJ71,73,78,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN *H,L=80,MARK=#* |
2 | ||
| 36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT) | ||||
| 90413-04005 |
HZJ70..ARL;HZJ79..ARL,GEN;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);FJ7#,HZJ71,73,78,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92003 |
RJ7#..RHD *H,L=390,MARK=#* |
1 | ||
| 90999-92002 |
RJ7# *H,L=40,MARK=#* |
1 | ||
| 36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92003 |
RJ7#..RHD *H,L=390,MARK=#* |
1 | ||
| 90999-92002 |
RJ7# *H,L=40,MARK=#* |
1 | ||
| 36409J - UNION (FOR FRONT DRIVE SHIFT) | ||||
| 90404-51093 |
FJ7#,RJ70 |
1 | ||
| 90404-51093 |
FJ7#,RJ7# |
1 | ||
| 36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT) | ||||
| 90917-10065 |
FJ7#,RJ70..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90464-00366 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9001-0701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION | ||||
| 36489-60030 |
RJ70..RHD;RJ77..GCC;HJ75,HZJ7#,LJ7#,PZJ7#..MTM |
1 | ||
| 36409-60030 |
RJ70..RHD;RJ77..GCC;HZJ7#,LJ7#,PZJ7#..MTM..(ARL,GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION | ||||
| 36489-60030 |
RJ70..RHD;RJ77..GCC;HJ75,HZJ7#,LJ7#,PZJ7#..MTM |
1 | ||
| 36409-60030 |
RJ70..RHD;RJ77..GCC;HZJ7#,LJ7#,PZJ7#..MTM..(ARL,GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT) | ||||
| 95441-09300 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM..(ARL,GCC,GEN) L=300 |
1 | ||
| 36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT) | ||||
| 95441-09300 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM..(ARL,GCC,GEN) L=300 |
1 | ||
| 36481 - TUBE, FRONT DRIVE VACUUM, NO.1 | ||||
| 36481-60070 |
FZJ7#..GCC;FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 36481B - CLAMP, FRONT DRIVE VACUUM TUBE, NO.1 | ||||
| 47371-60040 |
HZJ79..ARL,GEN;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);FZJ70,73,75,HZJ70..(ARL,GCC)..(CBR,DSL);FJ7#,HZJ71,73,78,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 36481C - CLAMP, FRONT DRIVE VACUUM TUBE, NO.2 | ||||
| 47372-35010 |
HZJ79..ARL,GEN;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);FZJ70,73,75,HZJ70..(ARL,GCC)..(CBR,DSL);FJ7#,HZJ71,73,78,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 36482 - TUBE, FRONT DRIVE VACUUM, NO.2 | ||||
| 36482-60070 |
FZJ7#..GCC;FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 96132-41500 | ||||
