RJ70RV-MNQ (1986)

Toyota Land Cruiser

Production Aug 1986 - Jan 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

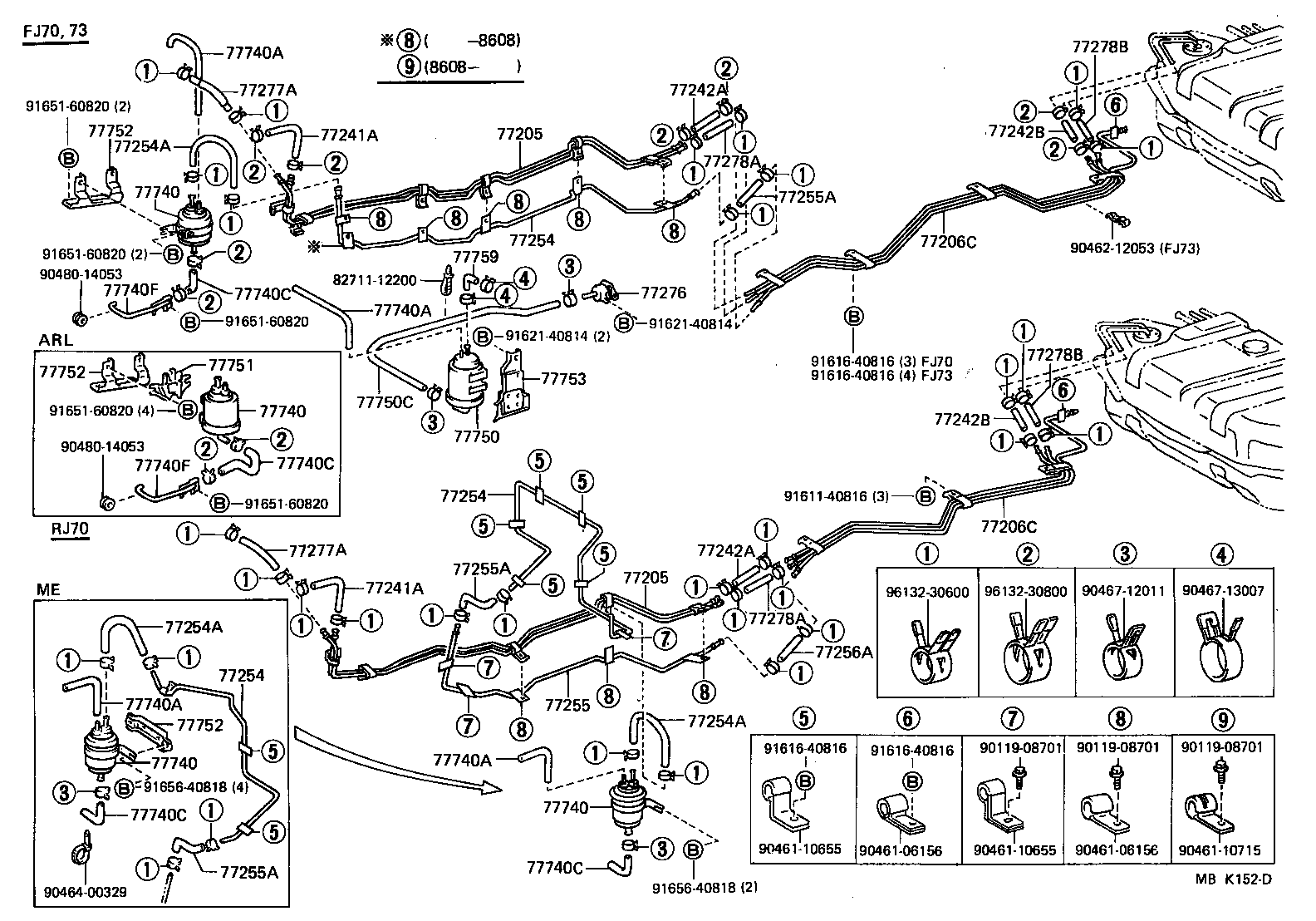

ILLUST NO. 2 OF 2(8411-8708)FJ70,73,RJ70..ARL,ME ; (8708- )RJ70..ME

Click highlighted areas on diagram

diagram 77205 77205 77206C 77206C 77241A 77241A 77242A 77242A 77242B 77242B 77254 77254 77254 77254A 77254A 77254A 77255 77255A 77255A 77255A 77256A 77276 77277A 77277A 77278A 77278A 77278B 77278B 77740 77740 77740 77740 77740A 77740A 77740A 77740A 77740C 77740C 77740C 77740C 77740F 77740F 77750 77750C 77751 77752 77752 77752 77753 77759 8271112200 9011908701 9011908701 9011908701 9046106156 9046106156 9046110655 9046110655 9046110715 9046212053 9046400329 9046712011 9046713007 9048014053 9048014053 9161140816 9161640816 9161640816 9161640816 9161640816 9162140814 9162140814 9165160820 9165160820 9165160820 9165160820 9165160820 9165640818 9165640818 9613230600 9613230800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60160

RJ70

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60160

RJ70

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-60240

RJ70..ARL,ME

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-60240

RJ70..ARL,ME

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
90447-12057

RJ70

L=340

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
90447-12057

RJ70

L=340

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-60050

RJ70..ARL

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-60050

RJ70..ARL

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-60050

RJ70..ARL

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06024

RJ70..ARL,ME

*H,L=240

 1
95333-06030

RJ70..ARL

*H,L=260

 1
95333-06030

RJ70..ARL,ME

*H,L=240

 1
95332-06030

RJ70..ARL,ME

*H,L=240

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06024

RJ70..ARL,ME

*H,L=240

 1
95333-06030

RJ70..ARL

*H,L=260

 1
95333-06030

RJ70..ARL,ME

*H,L=240

 1
95332-06030

RJ70..ARL,ME

*H,L=240

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06024

RJ70..ARL,ME

*H,L=240

 1
95333-06030

RJ70..ARL

*H,L=260

 1
95333-06030

RJ70..ARL,ME

*H,L=240

 1
95332-06030

RJ70..ARL,ME

*H,L=240

 1
77255 - TUBE, FUEL EMISSION, NO.2
77262-60040

RJ70..ARL,ME

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

RJ70..ARL

*H,L=180

 1
95333-06018

RJ70..ARL

*H,L=180

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

RJ70..ARL

*H,L=180

 1
95333-06018

RJ70..ARL

*H,L=180

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

RJ70..ARL

*H,L=180

 1
95333-06018

RJ70..ARL

*H,L=180

 1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95332-06020

RJ70..ARL,ME

*H,L=200

 1
95333-06020

RJ70..ARL,ME

*H,L=200

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06032

RJ70

*H,L=320

 1
95332-06080

RJ70

*H,L=700

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06032

RJ70

*H,L=320

 1
95332-06080

RJ70

*H,L=700

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
95333-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
95333-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020

FJ70,73,RJ70

*H,L=200

 1
95332-06020

FJ70,73,RJ70

*H,L=200

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020

FJ70,73,RJ70

*H,L=200

 1
95332-06020

FJ70,73,RJ70

*H,L=200

 1
77740 - CANISTER ASSY, CHARCOAL
77740-60090

RJ70..ARL,ME

 1
77740-60140

RJ70..ARL

 1
77740 - CANISTER ASSY, CHARCOAL
77740-60090

RJ70..ARL,ME

 1
77740-60140

RJ70..ARL

 1
77740 - CANISTER ASSY, CHARCOAL
77740-60090

RJ70..ARL,ME

 1
77740-60140

RJ70..ARL

 1
77740 - CANISTER ASSY, CHARCOAL
77740-60090

RJ70..ARL,ME

 1
77740-60140

RJ70..ARL

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
95411-19995

RJ70..ARL

*H,L=800,MARK=#*

 1
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
95411-19995

RJ70..ARL

*H,L=800,MARK=#*

 1
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
95411-19995

RJ70..ARL

*H,L=800,MARK=#*

 1
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
95411-19995

RJ70..ARL

*H,L=800,MARK=#*

 1
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RJ70..ARL,ME

 1
77754-60030

RJ70..ARL

L=450

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RJ70..ARL,ME

 1
77754-60030

RJ70..ARL

L=450

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RJ70..ARL,ME

 1
77754-60030

RJ70..ARL

L=450

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RJ70..ARL,ME

 1
77754-60030

RJ70..ARL

L=450

 1
77750 - CANISTER ASSY, CHARCOAL
77740-60150

RJ70..ARL

 1
77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)
77754-60040

RJ70..ARL

L=380

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60100

RJ70..ARL

 1
Common parts
82711-12200
90119-08701
90461-06156
90461-10655
90461-10715
90462-12053
90464-00329
90467-12011
90467-13007
90480-14053
91611-40816
91616-40816
91621-40814
91651-60820
91656-40818
96132-30600
96132-30800

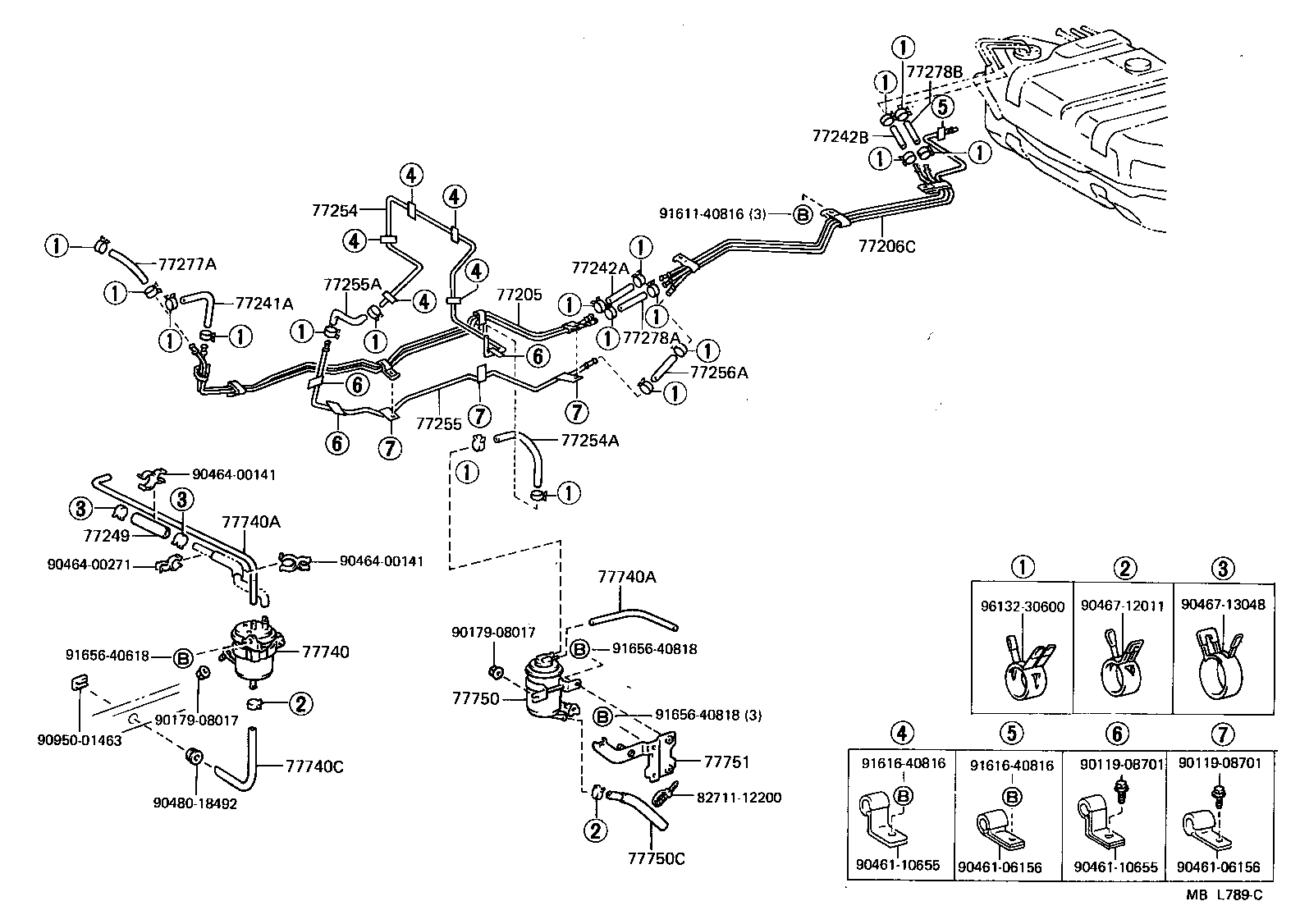

ILLUST NO. 2 OF 2(8708- )RJ70..ARL

Click highlighted areas on diagram

diagram 77205 77206C 77241A 77242A 77242B 77249 77254 77254A 77255 77255A 77256A 77277A 77278A 77278B 77740 77740A 77740A 77740C 77750 77750C 77751 8271112200 9011908701 9011908701 9017908017 9017908017 9046106156 9046106156 9046110655 9046110655 9046400141 9046400141 9046400271 9046712011 9046713048 9048018492 9095001463 9161140816 9161640816 9161640816 9165640618 9165640818 9165640818 9613230600
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60160

RJ70

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-60240

RJ70..ARL,ME

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
90447-12057

RJ70

L=340

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77249 - HOSE, FUEL EMISSION
77249-60060

RJ70..ARL

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-60050

RJ70..ARL

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06024

RJ70..ARL,ME

*H,L=240

 1
95333-06030

RJ70..ARL

*H,L=260

 1
95333-06030

RJ70..ARL,ME

*H,L=240

 1
95332-06030

RJ70..ARL,ME

*H,L=240

 1
77255 - TUBE, FUEL EMISSION, NO.2
77262-60040

RJ70..ARL,ME

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

RJ70..ARL

*H,L=180

 1
95333-06018

RJ70..ARL

*H,L=180

 1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95332-06020

RJ70..ARL,ME

*H,L=200

 1
95333-06020

RJ70..ARL,ME

*H,L=200

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06032

RJ70

*H,L=320

 1
95332-06080

RJ70

*H,L=700

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
95333-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020

FJ70,73,RJ70

*H,L=200

 1
95332-06020

FJ70,73,RJ70

*H,L=200

 1
77740 - CANISTER ASSY, CHARCOAL
77740-60090

RJ70..ARL,ME

 1
77740-60140

RJ70..ARL

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
95411-19995

RJ70..ARL

*H,L=800,MARK=#*

 1
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
95411-19995

RJ70..ARL

*H,L=800,MARK=#*

 1
95411-19930

RJ70..ARL

*H,L=220,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RJ70..ARL,ME

 1
77754-60030

RJ70..ARL

L=450

 1
77750 - CANISTER ASSY, CHARCOAL
77740-60150

RJ70..ARL

 1
77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)
77754-60040

RJ70..ARL

L=380

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60100

RJ70..ARL

 1
Common parts
82711-12200
90119-08701
90179-08017
90461-06156
90461-10655
90464-00141
90464-00271
90467-12011
90467-13048
90480-18492
90950-01463
91611-40816
91616-40816
91656-40618
91656-40818
96132-30600

ILLUST NO. 1 OF 3(9001-9908)FJ70,73,FZJ70,73,HZJ70,73,KZJ7#,LJ7#,PZJ70,73,RJ7#

Click highlighted areas on diagram

FUEL TANK

diagram 77011 77017 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77031 77031B 77035 77037 77100 77100A 77100B 77100D 77131 77178 77201 77206 77206A 77213 77277R 77290 77293A 77305A 77308A 77319 77338A 77366 77378A 77391 77606 77611 77611 77611A 77631 77632 77653A 77675B 77676B 77682 77701T 8271112200 8401 9008011405 9011906195 9011906416 9011906724 9011908511 9011910153 9015940155 9015950219 9017011006 9017910033 9020110038 9040506008 9046065002 9046112296 9046720134 9046814017 9046814022 9048001303 9094901182 9161161020 9165140614 9165161025 9338315014 9413060800 9461210800 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
Common parts
82711-12200
90080-11405
90119-06195
90119-06416
90119-06724
90119-08511
90119-10153
90159-40155
90159-50219
90170-11006
90179-10033
90201-10038
90405-06008
90460-65002
90461-12296
90467-20134
90468-14017
90468-14022
90480-01303
90949-01182
91611-61020
91651-40614
91651-61025
93383-15014
94130-60800
94612-10800
96132-30600
Linked diagrams
8401

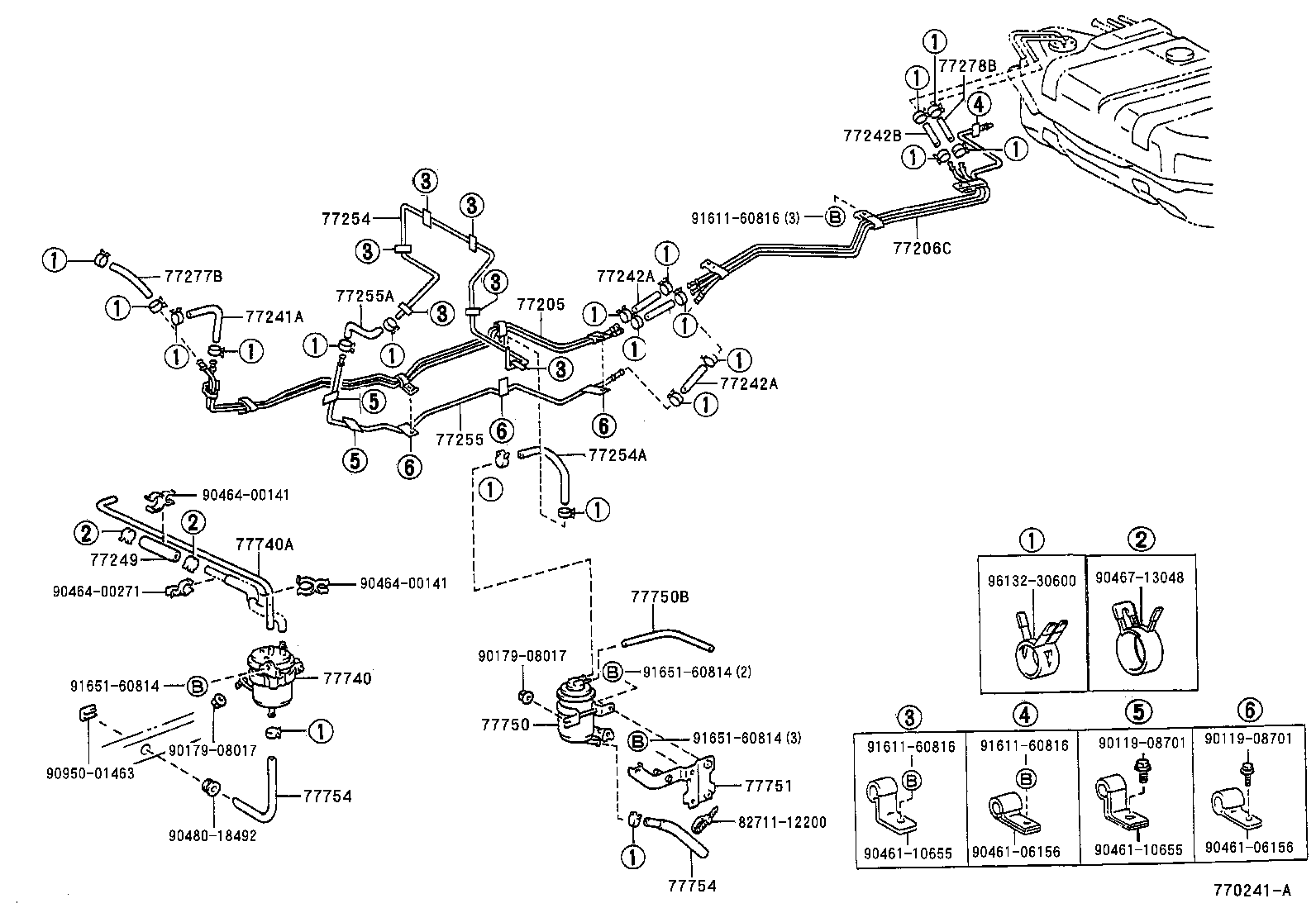

ILLUST NO. 2 OF 3(9001-9108)RJ70..ARL

Click highlighted areas on diagram

FUEL TUBE

diagram 77205 77206C 77241A 77242A 77242A 77242B 77249 77254 77254A 77255 77255A 77277B 77278B 77740 77740A 77750 77750B 77751 77754 77754 8271112200 9011908701 9011908701 9017908017 9017908017 9046106156 9046106156 9046110655 9046110655 9046400141 9046400141 9046400271 9046713048 9048018492 9095001463 9161160816 9161160816 9161160816 9165160814 9165160814 9165160814 9613230600
Part # Description Qty Price
Common parts
82711-12200
90119-08701
90179-08017
90461-06156
90461-10655
90464-00141
90464-00271
90467-13048
90480-18492
90950-01463
91611-60816
91651-60814
96132-30600

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

Click highlighted areas on diagram

FUEL SUB TANK

diagram 58279A 77017 77017B 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77023 77031 77031B 77100 77100A 77100B 77100D 77133 77134 77201 77201 77206 77206A 77206A 77213 77222A 77269 77271C 77271C 77290 77291 77293A 77305A 77308A 77366 77391 77606 77611 77611 77611A 77701V 8401 9011906621 9011908701 9011910153 9011910539 9011910539 9011910556 9011910556 9015940155 9046065002 9046106174 9046112296 9046400239 9046720134 91626B0818 9165140614 9165140614 9165160814 9165160814 9165160820 9165160820 9165160820 9165160820 9166540616 9338315014 93383A6014 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100
Part # Description Qty Price
Common parts
90119-06621
90119-08701
90119-10153
90119-10539
90119-10556
90159-40155
90460-65002
90461-06174
90461-12296
90464-00239
90467-20134
91626-B0818
91651-40614
91651-60814
91651-60820
91665-40616
93383-15014
93383-A6014
96132-41100
Linked diagrams
8401
