RJ70RV-MNQ (1986)

Toyota Land Cruiser

Production Aug 1986 - Jan 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

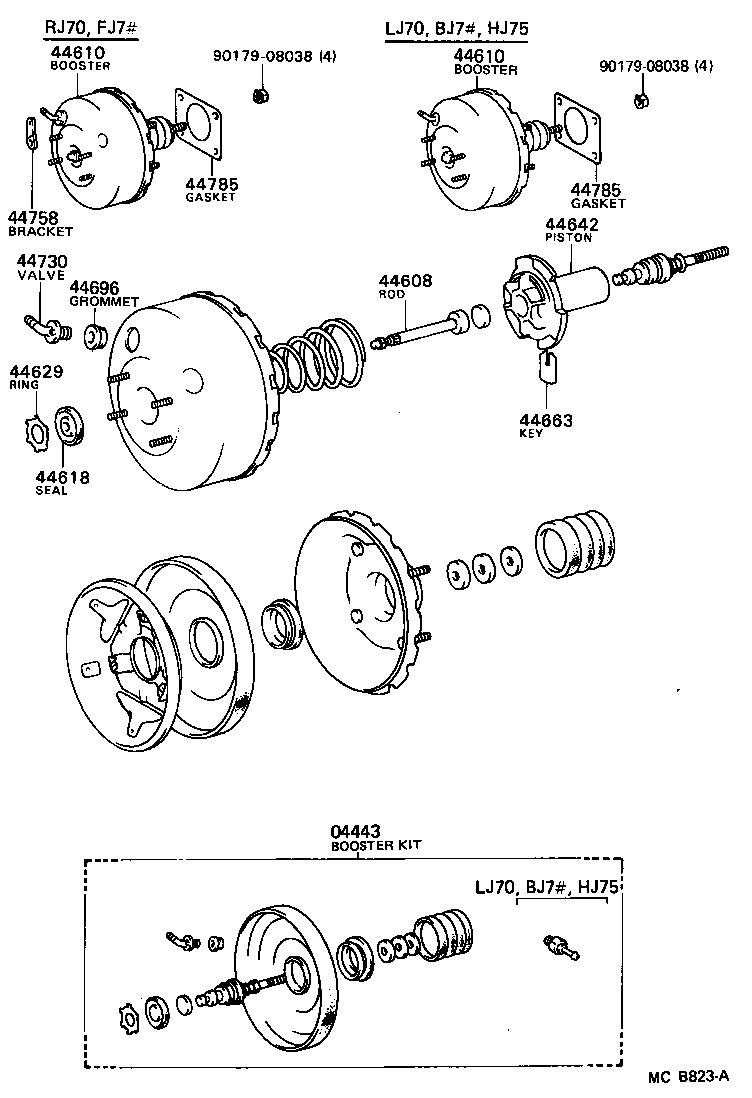

ILLUST NO. 1 OF 2(8411-8708)BJ7#,FJ7#,HJ75,LJ70 ; (8411- )RJ70..LHD ; (8708- )FJ75..STD ; (870

Click highlighted areas on diagram

diagram 04443 44608 44610 44610 44618 44629 44642 44663 44696 44730 44758 44785 44785 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-60260

RJ70..RHD

FR DISC BRAKE

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

RJ70..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-60330

RJ70..RHD

FR DISC BRAKE

 1
44610 - BOOSTER ASSY, BRAKE
44610-60330

RJ70..RHD

FR DISC BRAKE

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RJ70..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

RJ70..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
Common parts
90179-08038

ILLUST NO. 2 OF 2(9001-9604)RJ7#

Click highlighted areas on diagram

diagram 44730F 44730F 44773F 44777 44778 44779 9046108591 9165160814 9165160814 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
Common parts
90461-08591
91651-60814
96133-41500
