RJ70RV-MNQ (1986)
Toyota Land Cruiser

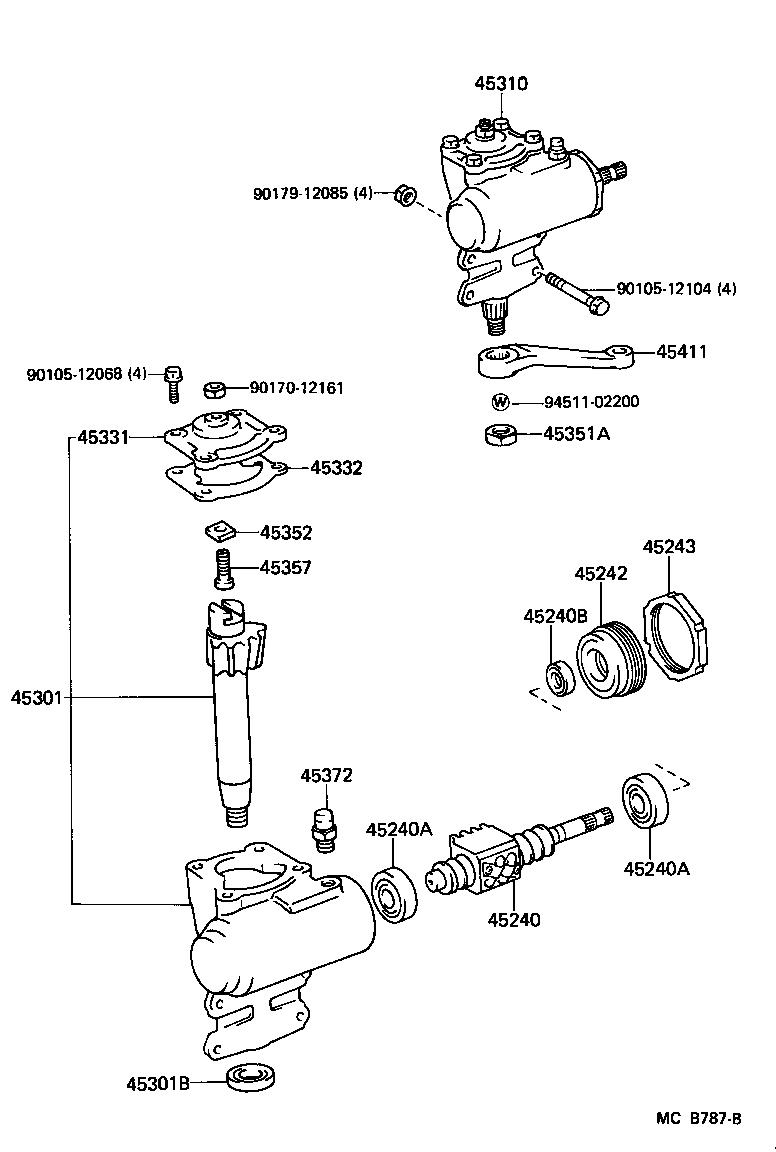

ILLUST NO. 2 OF 3(8411-0608)RHD ; (8608- )RJ70..STD..ARL ; (8608- )BJ70,LJ70,RJ70..RHD..GEN ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-60020 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-60060 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-36001 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-26020 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 MARK 2 |
1 | ||
| 45304-26030 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 MARK 3 |
1 | ||
| 45304-26040 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 MARK 4 |
1 | ||
| 45304-26010 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 MARK 1 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-26010 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-37010 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 T=1.95,T=1.95 |
1 | ||
| 45354-37010 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 T=2.05,T=2.05 |
1 | ||
| 45353-37010 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 T=2.00,T=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LJ70..DSL;LJ70..RHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| Common parts | ||||
| 90105-12068 | ||||
| 90105-12104 | ||||
| 90170-12161 | ||||
| 90179-12085 | ||||
| 94511-02200 | ||||

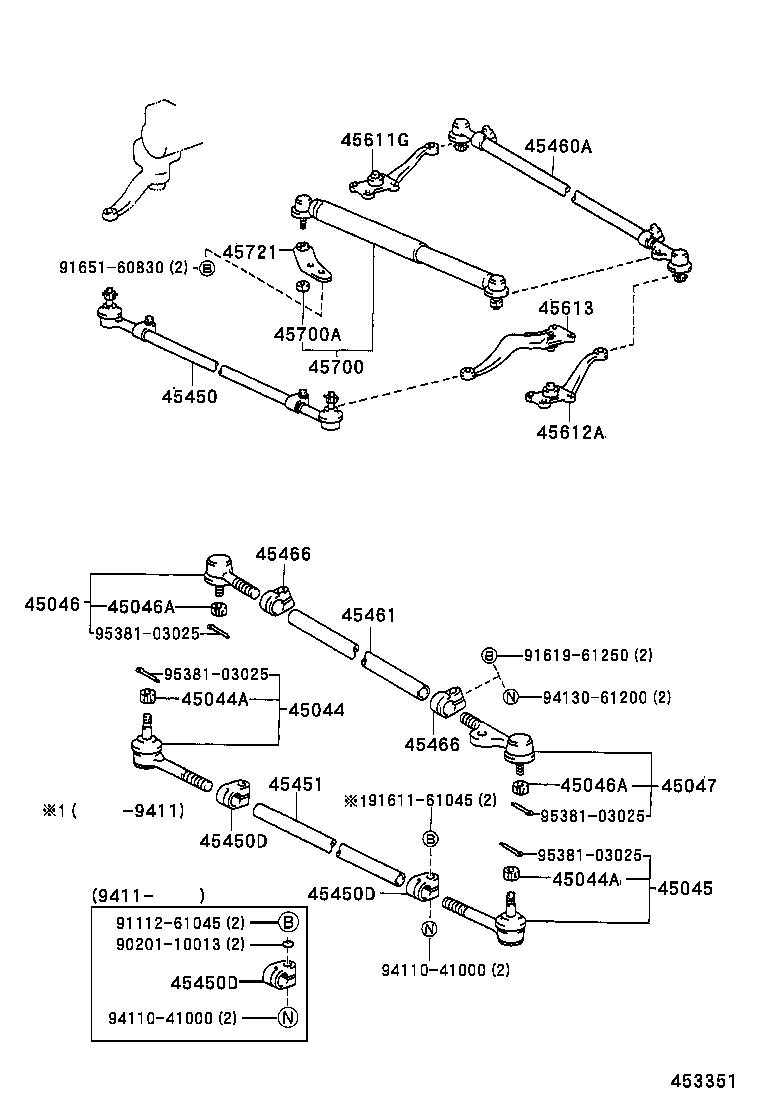

ILLUST NO. 3 OF 3(9001-9604)KZJ7#,LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90201-10013 | ||||
| 91112-61045 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-60830 | ||||
| 94110-41000 | ||||
| 94130-61200 | ||||
| 95381-03025 | ||||
