RJ70RV-MNQ (1986)
Toyota Land Cruiser

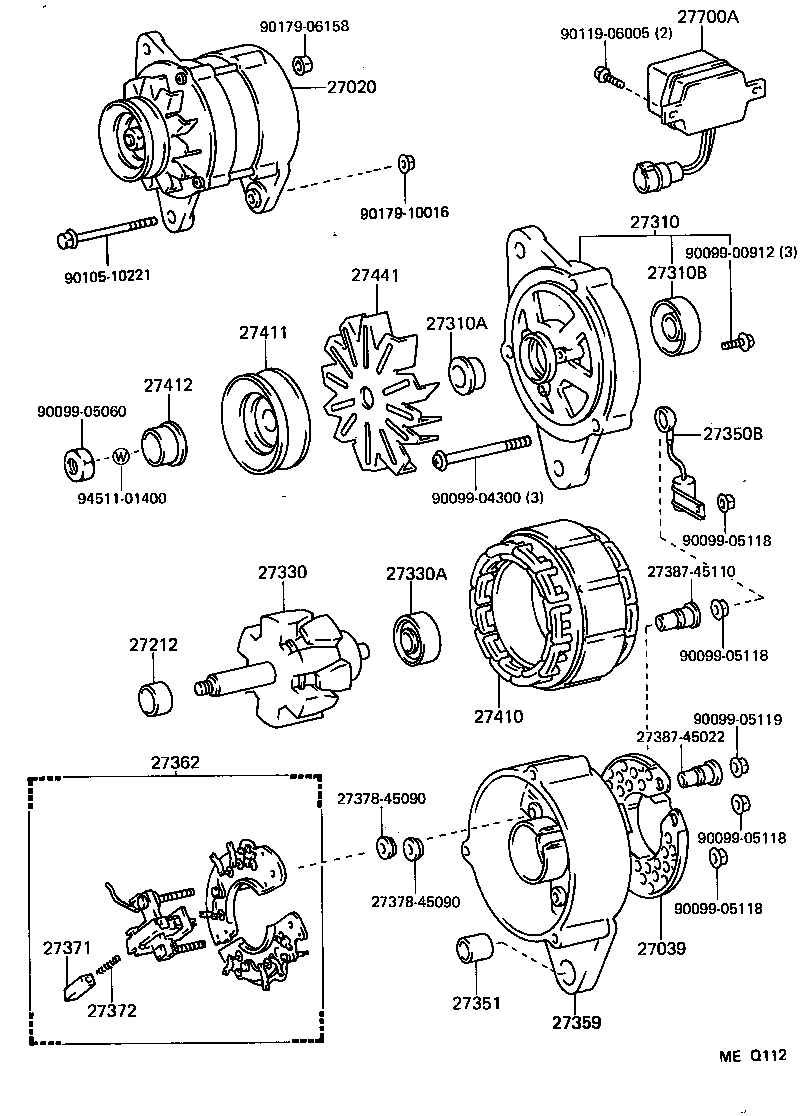

(8608- )22R..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-38120 |
22R..RJ70 12V 45A,12V 45A |
1 | ||
| 27020-34051 |
22R..RJ70..ARL 12V 50A,12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27039-45110 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27412-15150 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-18010 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27310-34050 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
22R..RJ70 12V 40A,45A,50A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 90099-10126 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27330-16030 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 90099-10116 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-24100 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27359-13050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
22R..RJ70 12V 40A,45A,50A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34051 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34051 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
22R..RJ70 12V 40A,45A |
1 | ||
| 27362-15021 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-38120 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27410-41080 |
22R..RJ70..ARL 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
22R..RJ70 12V 40A,45A,50A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
22R..RJ70 12V 40A,45A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
22R,3B,3F,2H,2L..BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27700-15030 |
22R,13BT,2L#..BJ74,LJ70,RJ70 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10083 | ||||
| 90119-06005 | ||||
| 90119-08654 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||

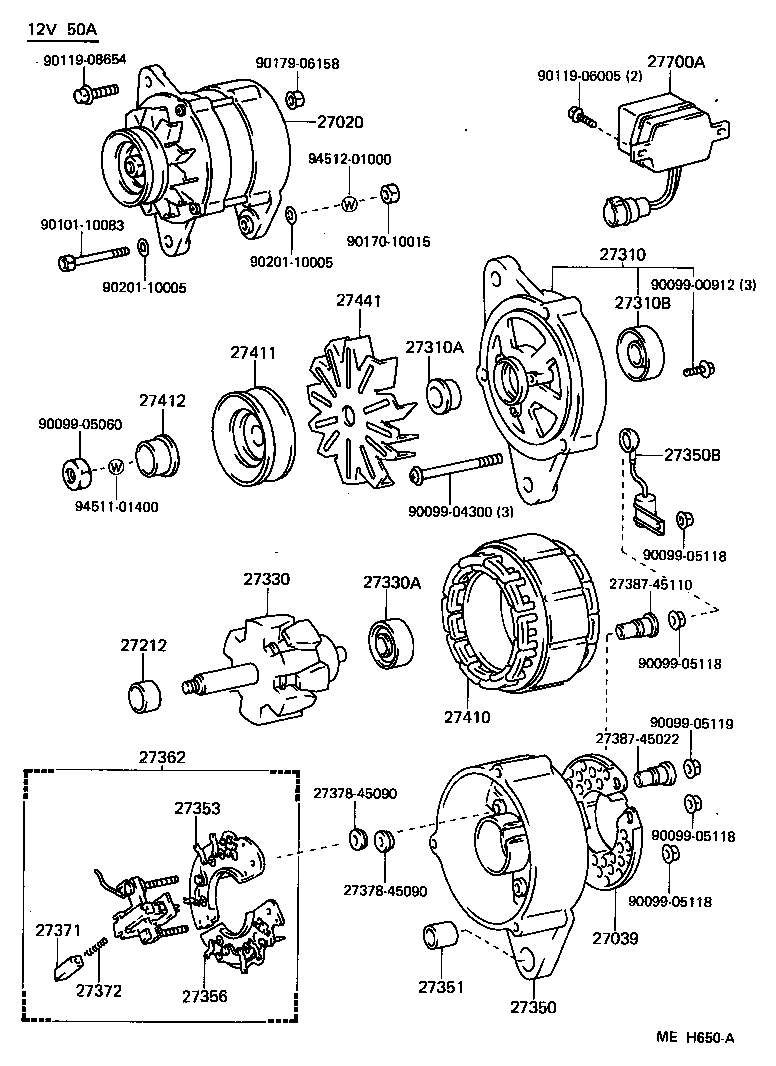

(9001-9604)22R..RJ70..ARL
12V 50A,55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
