RJ70RV-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411-8708)BJ7#,FJ7#,HJ75,LJ70 ; (8411- )RJ70..LHD ; (8708- )FJ75..STD ; (870

Click highlighted areas on diagram

diagram 04443 44608 44610 44610 44618 44629 44642 44663 44696 44730 44758 44785 44785 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-60250

RJ70..RHD..STD..GEN

FR DRUM BRAKE

 1
04443-60260

RJ70..RHD

FR DISC BRAKE

 1
04443-60261

RJ70..RHD

FR DISC BRAKE

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

RJ70..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-60330

RJ70..RHD

FR DISC BRAKE

 1
44610-60290

RJ70..RHD..STD..GEN

FR DRUM BRAKE

 1
44610-60331

RJ70..RHD

FR DISC BRAKE

 1
44610 - BOOSTER ASSY, BRAKE
44610-60330

RJ70..RHD

FR DISC BRAKE

 1
44610-60290

RJ70..RHD..STD..GEN

FR DRUM BRAKE

 1
44610-60331

RJ70..RHD

FR DISC BRAKE

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RJ70..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

RJ70..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
Common parts
90179-08038

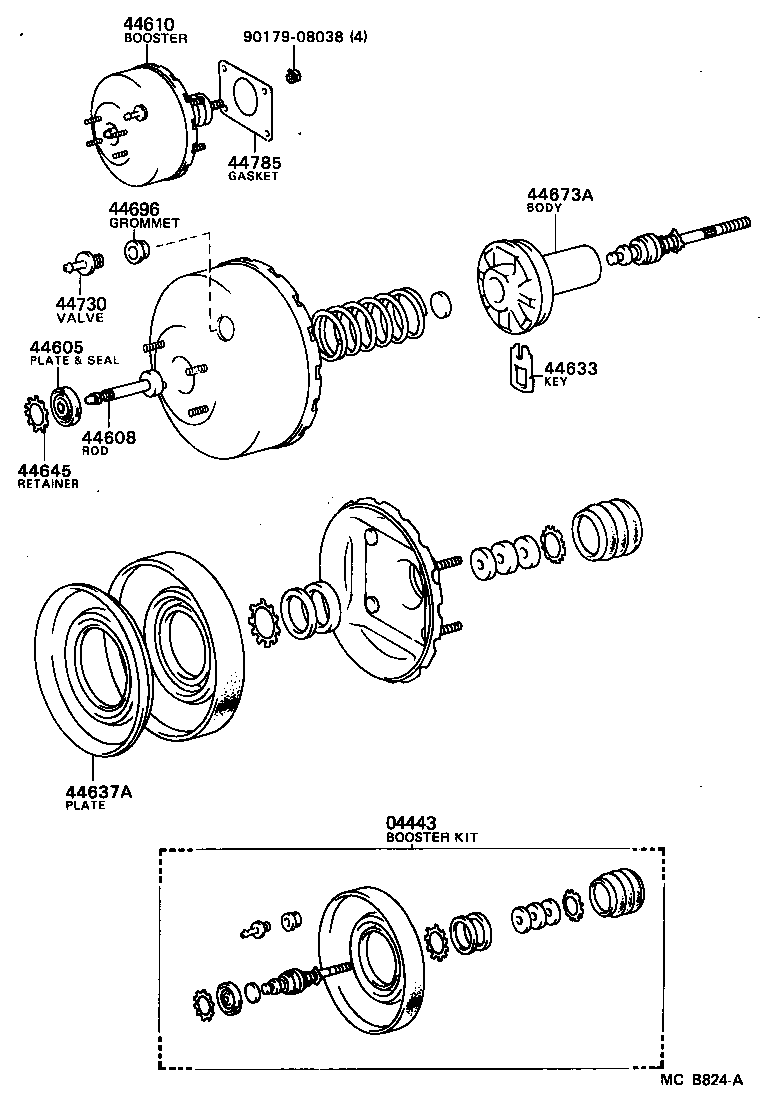

ILLUST NO. 1 OF 2(8411- )RJ70..RHD

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44696 44730 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-60250

RJ70..RHD..STD..GEN

FR DRUM BRAKE

 1
04443-60260

RJ70..RHD

FR DISC BRAKE

 1
04443-60261

RJ70..RHD

FR DISC BRAKE

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

RJ70..RHD

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

RJ70..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-60330

RJ70..RHD

FR DISC BRAKE

 1
44610-60290

RJ70..RHD..STD..GEN

FR DRUM BRAKE

 1
44610-60331

RJ70..RHD

FR DISC BRAKE

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

RJ70..RHD

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

RJ70..RHD

FR DISC BRAKE

 1
44637-32020

RJ70..RHD..STD..GEN

FR DRUM BRAKE

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

RJ70..RHD

 1
44673A - BODY, BOOSTER VALVE
44673-16060

RJ70..RHD..STD..GEN

FR DRUM BRAKE

 1
44673-28190

RJ70..RHD

FR DISC BRAKE

 1
44673-32040

RJ70..RHD

FR DISC BRAKE

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RJ70..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

RJ70..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
Common parts
90179-08038

ILLUST NO. 2 OF 2(8411- )RJ70

Click highlighted areas on diagram

diagram 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44773F 44777 44778 44779 9046108591 9165640818 9165640818
Part # Description Qty Price
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ7#,FJ7#,HJ75,LJ70,RJ70

 11
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ7#,FJ7#,HJ75,LJ70,RJ70

 11
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ7#,FJ7#,HJ75,LJ70,RJ70

 11
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ7#,FJ7#,HJ75,LJ70,RJ70

 11
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ7#,FJ7#,HJ75,LJ70,RJ70

 11
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ7#,FJ7#,HJ75,LJ70,RJ70

 11
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RJ70

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RJ70

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-60050

RJ70..RHD

 1
Common parts
90461-08591
91656-40818

ILLUST NO. 2 OF 2(9001-9604)RJ7#

Click highlighted areas on diagram

diagram 44730F 44730F 44773F 44777 44778 44779 9046108591 9165160814 9165160814 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
Common parts
90461-08591
91651-60814
96133-41500
