RJ70RV-KR (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

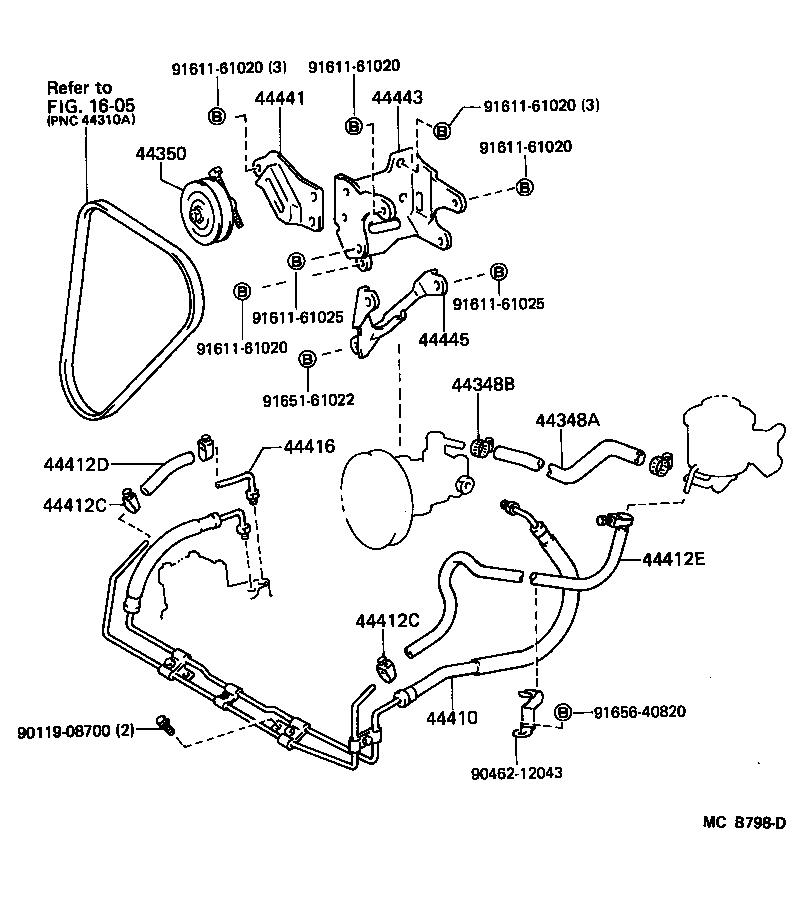

(8411- )RJ70..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60050 |
RJ70 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
BJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-20020 |
RJ70 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-60111 |
RJ70..RHD |
1 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
4 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
4 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-60050 |
LJ70,RJ70 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-60080 |
RJ70 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60110 |
RJ70..RHD |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-20010 |
RJ70 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35020 |
RJ70 |
1 | ||
| 44445 - BRACKET, PUMP, LOWER | ||||
| 44445-35010 |
RJ70 |
1 | ||
| Common parts | ||||
| 90119-08700 | ||||
| 90462-12043 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 1605 | ||||

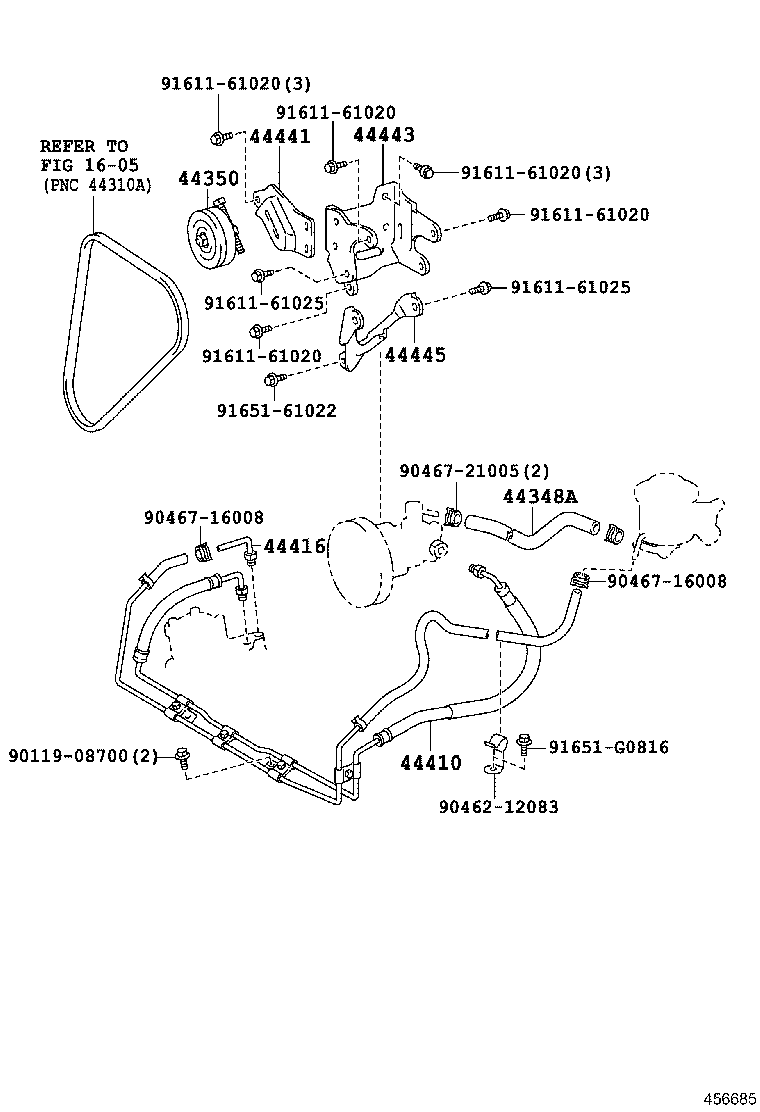

(9001-9604)RJ7#..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08700 | ||||
| 90462-12083 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 91651-G0816 | ||||
| Linked diagrams | ||||
| 1605 | ||||
