RJ70LV-MN (1990)
Toyota Land Cruiser
ILLUST NO. 5 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 04477-60010 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-60050 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47910-60050 |
LJ7#,RJ7# |
1 | ||
| 47910-60110 |
KZJ70,LJ72,RJ70..HT |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-60100 |
LJ7#,RJ7# |
1 | ||
| 47920-60100 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47920-60100 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90387-08099 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
2 | ||
| 90387-08099 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90387-08099 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
2 | ||
| 90387-08099 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90467-31110 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
1 | ||
| 90467-31110 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 90202-10103 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
2 | ||
| 90202-10103 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 90202-10103 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
2 | ||
| 90202-10103 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60060 |
LJ7#,RJ7# |
1 | ||
| 47931-60060 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47931-60060 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60060 |
LJ7#,RJ7# |
1 | ||
| 47931-60060 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47931-60060 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47932A - BRACKET, LOAD SENSING VALVE UNION | ||||
| 47932-60010 |
LJ7#,RJ7# |
1 | ||
| 47932-60010 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47932-60010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47932A - BRACKET, LOAD SENSING VALVE UNION | ||||
| 47932-60010 |
LJ7#,RJ7# |
1 | ||
| 47932-60010 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47932-60010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60090 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47933-60090 |
LJ7#,RJ7# |
1 | ||
| 47933-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60090 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47933-60090 |
LJ7#,RJ7# |
1 | ||
| 47933-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47935-35020 |
LJ7#,RJ7# |
1 | ||
| 47935-35020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90387-08099 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 90387-08099 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
2 | ||
| 90385-10064 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90385-10064 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
2 | ||
| 90385-10064 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90385-10064 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 90201-08062 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 90201-08062 |
LJ7#,RJ7# |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 90201-08062 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 90201-08062 |
LJ7#,RJ7# |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 90201-08062 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 90201-08062 |
LJ7#,RJ7# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-60020 |
LJ7#,RJ7# |
1 | ||
| 47936-60020 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47936-60020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LJ72..LHD;FJ7#,FZJ7#,HZJ7#,LJ70,77,79,PZJ7#,RJ7# |
1 | ||
| 47937-60010 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 47937-60010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| Common parts | ||||
| 90119-08834 | ||||
| 90179-08204 | ||||
| 90179-10132 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94110-41000 | ||||
| 94130-00802 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
RJ77;FJ70,RJ70..LX;FJ73..LX..GEN;FJ70..STD..(ARL,GCC);FJ73,75,HJ75..ARL,GCC,SA |
1 | ||
| 90413-10173 |
FJ7#,RJ7# |
1 | ||
| 90413-10173 |
RJ7#..HT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
RJ77;FJ70,RJ70..LX;FJ73..LX..GEN;FJ70..STD..(ARL,GCC);FJ73,75,HJ75..ARL,GCC,SA |
1 | ||
| 90413-10173 |
FJ7#,RJ7# |
1 | ||
| 90413-10173 |
RJ7#..HT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
RJ77;FJ70,RJ70..LX;FJ73..LX..GEN;FJ70..STD..(ARL,GCC);FJ73,75,HJ75..ARL,GCC,SA |
1 | ||
| 90413-10173 |
FJ7#,RJ7# |
1 | ||
| 90413-10173 |
RJ7#..HT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
RJ77;FJ70,RJ70..LX;FJ73..LX..GEN;FJ70..STD..(ARL,GCC);FJ73,75,HJ75..ARL,GCC,SA |
1 | ||
| 90413-10173 |
FJ7#,RJ7# |
1 | ||
| 90413-10173 |
RJ7#..HT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
RJ77;FJ70,RJ70..LX;FJ73..LX..GEN;FJ70..STD..(ARL,GCC);FJ73,75,HJ75..ARL,GCC,SA |
1 | ||
| 90413-10173 |
FJ7#,RJ7# |
1 | ||
| 90413-10173 |
RJ7#..HT |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
LJ70,72,RJ70 |
4 | ||
| 90480-01069 |
LJ72,RJ70..HT |
4 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
LJ70,72,RJ70 |
4 | ||
| 90480-01069 |
LJ72,RJ70..HT |
4 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10178 |
LJ7#,RJ7# |
1 | ||
| 90413-10178 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10178 |
LJ7#,RJ7# |
1 | ||
| 90413-10178 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 47396-60020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47396-60020 |
LJ7#,RJ7# |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 47396-60020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47396-60020 |
LJ7#,RJ7# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60090 |
HJ75,LJ7#,RJ7# |
1 | ||
| 47354-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60090 |
HJ75,LJ7#,RJ7# |
1 | ||
| 47354-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60160 |
LJ7#,RJ7# |
1 | ||
| 47351-60160 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60090 |
LJ7#,RJ7# |
1 | ||
| 47352-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47355-60090 |
LJ7#,RJ7# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47355-60090 |
LJ7#,RJ7# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35020 |
FJ7#,RJ7#..LHD..MTM |
4 | ||
| 47371-60100 |
RJ7#..LHD..HT |
4 | ||
| 47371-60100 |
RJ7#..LHD |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35010 |
FJ7#,RJ7#..LHD..MTM |
1 | ||
| 47372-60060 |
RJ7#..LHD..HT |
1 | ||
| 47372-60060 |
RJ7#..LHD |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10121 | ||||
| 90461-08706 | ||||
| 90461-10629 | ||||
| 90461-10793 | ||||
| 90464-00208 | ||||
| 90949-01071 | ||||
| 90949-01183 | ||||
| 90949-01184 | ||||
| 90949-01854 | ||||
| 91611-60614 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||

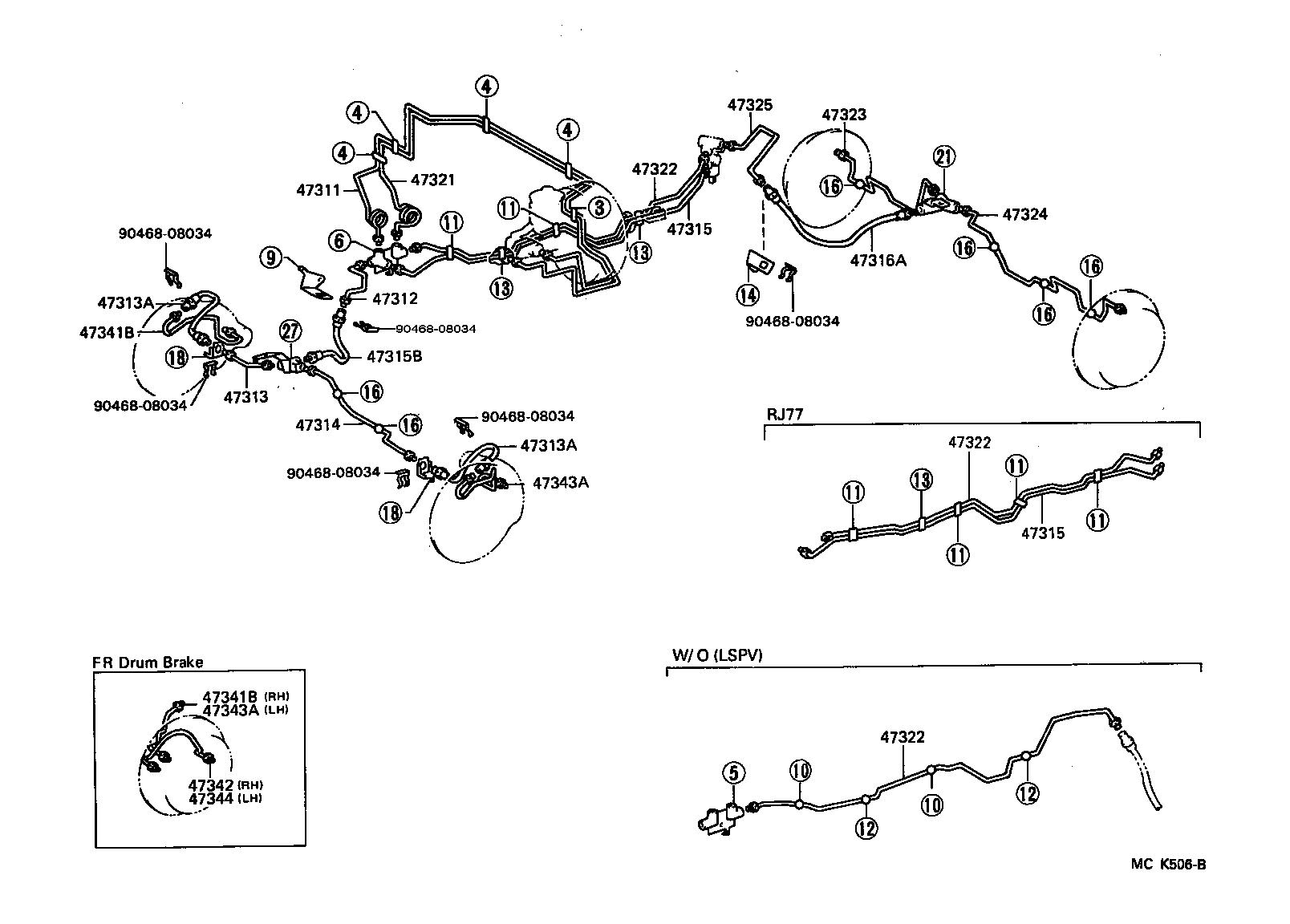

ILLUST NO. 1 OF 6(9001-9604)RJ7#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60532 |
RJ7#..LHD |
1 | ||
| 47312-60532 |
RJ70..LHD |
1 | ||
| 47312-60533 |
RJ70..HT |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60152 |
RJ7#..HT |
1 | ||
| 47313-60151 |
RJ7# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60200 |
LJ7#,RJ7# |
1 | ||
| 47314-60200 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-39855 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 96940-39855 |
LJ72,RJ70..LX;FJ7#,HJ75,HZJ7#,LJ70,77,79,PZJ7#,RJ77 |
2 | ||
| 96940-39855 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-39855 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 96940-39855 |
LJ72,RJ70..LX;FJ7#,HJ75,HZJ7#,LJ70,77,79,PZJ7#,RJ77 |
2 | ||
| 96940-39855 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60350 |
LJ7#,RJ7# |
1 | ||
| 47315-60350 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60261 |
RJ70 |
1 | ||
| 47316-60261 |
RJ70..HT |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60261 |
RJ70 |
1 | ||
| 47316-60261 |
RJ70..HT |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96940-32755 |
LJ7#,RJ7# |
1 | ||
| 96940-32755 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34305 |
LJ7#,RJ7# |
1 | ||
| 96940-34305 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60422 |
RJ7#..LHD |
1 | ||
| 47322-60422 |
RJ70..LHD |
1 | ||
| 47322-60423 |
RJ70..HT |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60331 |
RJ70..LX |
1 | ||
| 47323-60331 |
RJ70 |
1 | ||
| 47323-60331 |
RJ70..HT |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60331 |
RJ70..LX |
1 | ||
| 47323-60331 |
RJ70 |
1 | ||
| 47323-60331 |
RJ70..HT |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60331 |
RJ70..LX |
1 | ||
| 47323-60331 |
RJ70 |
1 | ||
| 47323-60331 |
RJ70..HT |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60170 |
LJ70,72,RJ70 |
1 | ||
| 47324-60180 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60130 |
LJ70,72,RJ70 |
1 | ||
| 47325-60140 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-60071 |
LJ7#,RJ7# |
1 | ||
| 47326-60071 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-60060 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47341-60060 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47341-60060 |
LJ79,RJ77;LJ70,72,77,RJ70..LX |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-60060 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47341-60060 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47341-60060 |
LJ79,RJ77;LJ70,72,77,RJ70..LX |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-60060 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47343-60060 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47343-60060 |
LJ79,RJ77;LJ70,72,77,RJ70..LX |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-60060 |
LJ72..LHD;LJ70,77,79,RJ7# |
1 | ||
| 47343-60060 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 47343-60060 |
LJ79,RJ77;LJ70,72,77,RJ70..LX |
1 | ||
| Common parts | ||||
| 90468-08034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
