RJ70L-MR (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1986
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )22R

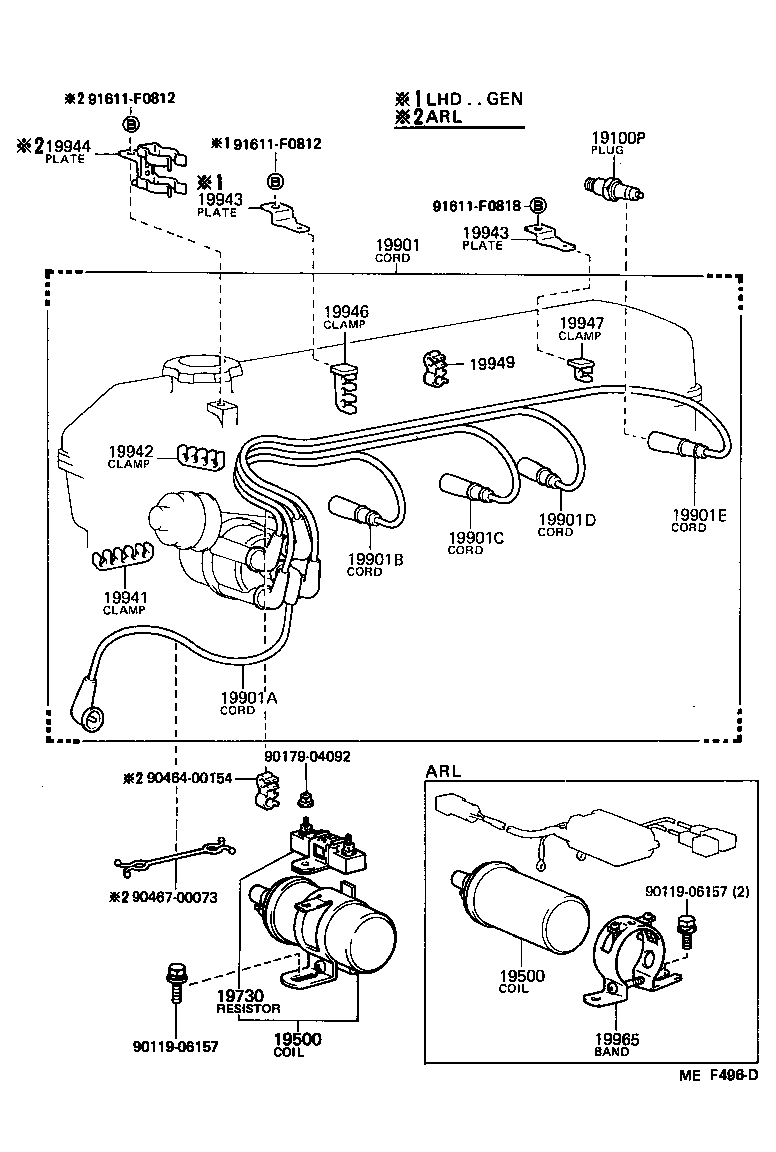

Click highlighted areas on diagram

diagram 19100P 19500 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19943 19944 19946 19947 19949 19965 9011906157 9011906157 9017904092 9046400154 9046700073 91611F0812 91611F0812 91611F0818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22R..RJ70

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02111

22R..RJ70..GEN,ME

 1
19500 - COIL ASSY, IGNITION
90919-02111

22R..RJ70..GEN,ME

 1
19730 - RESISTOR, IGNITION COIL
90919-04033

22R..RJ70..GEN,ME

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21364

22R..RJ70

 1
19901A - CORD, COIL RESISTIVE
90919-13146

22R..RJ70

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

22R..RJ70

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

22R..RJ70

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

22R..RJ70

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

22R..RJ70

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22R..RJ70

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22R..RJ70

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

22R..RJ70

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

22R..RJ70

 2
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22R..RJ70

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22R..RJ70

 1
Common parts
90119-06157
90179-04092
90464-00154
90467-00073
91611-F0812
91611-F0818
