RJ70L-KR (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

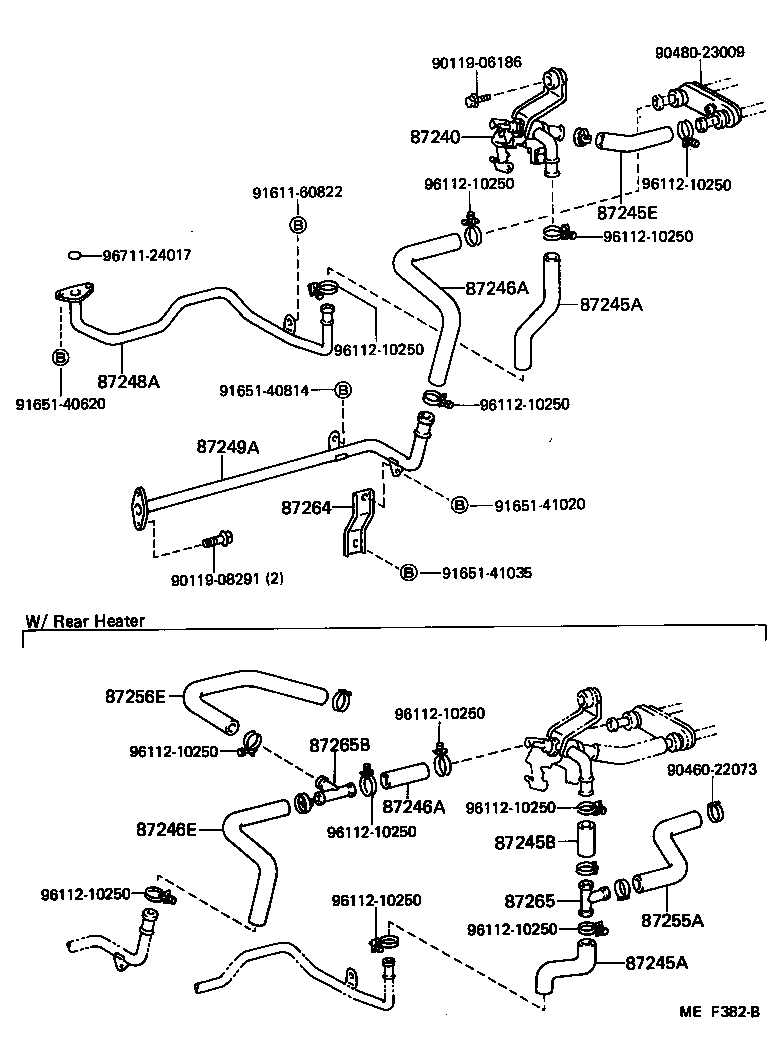

ILLUST NO. 1 OF 2(8411- )RJ70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90K00 |
BJ70,73,75,LJ70,RJ70 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90K20 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245-90K38 |
RJ70 |
1 | ||
| 87245-90K63 |
RJ70 |
1 | ||
| 87245-90K02 |
RJ70 |
1 | ||
| 87245-90K53 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245-90K63 |
RJ70..GEN,ME |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90K02 |
RJ70 |
1 | ||
| 87245-90K20 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245-90K38 |
RJ70 |
1 | ||
| 87245-90K63 |
RJ70 |
1 | ||
| 87245-90K53 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245-90K63 |
RJ70..GEN,ME |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90K21 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245-90K49 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-1B060 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90K21 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245-90K03 |
RJ70 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90K21 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87245-90K03 |
RJ70 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90K22 |
RJ70..GEN W/RR HEATER |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-14280 |
RJ70 |
1 | ||
| 87208-90K00 |
RJ70..GEN,ME |
1 | ||
| 87208-14280 |
RJ70..GEN,ME |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-20062 |
RJ70 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-90K23 |
RJ70..GEN |
1 | ||
| 99556-20100 |
RJ70..GEN *H,L=70 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90K24 |
RJ70..GEN |
1 | ||
| 87264 - BRACKET, HEATER WATER HOSE | ||||
| 87263-14140 |
RJ70 |
1 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87248-95400 |
LJ70,RJ70..GEN |
1 | ||
| 87265B - CONNECTOR, HEATER WATER HOSE, NO.2 | ||||
| 87248-95400 |
BJ70,75,FJ7#,LJ70,RJ70..(HT,SOT)..GEN |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90119-08291 | ||||
| 90460-22073 | ||||
| 90480-23009 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 91651-41020 | ||||
| 91651-41035 | ||||
| 96112-10250 | ||||
| 96711-24017 | ||||

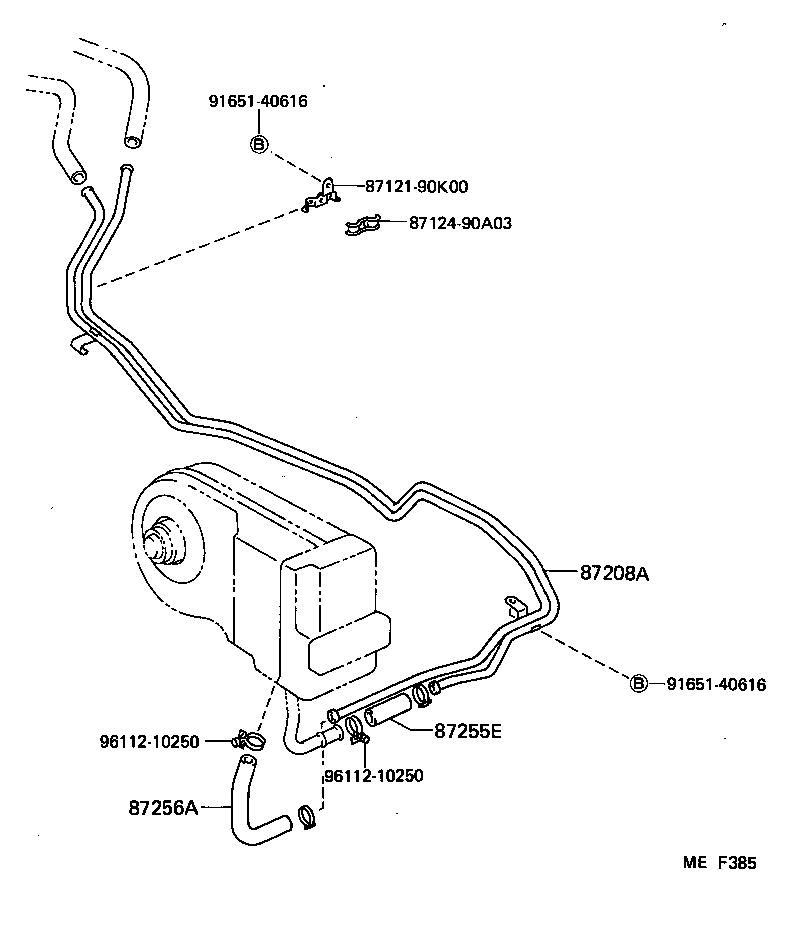

ILLUST NO. 2 OF 2(8411- )BJ70,73,FJ70,73,LJ70,RJ70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90K02 |
LJ70,RJ70..GEN |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20080 |
BJ70,FJ70,73,LJ70,RJ70..GEN *H,L=80 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-90K16 |
BJ70,FJ70,73,LJ70,RJ70..GEN |
1 | ||
| Common parts | ||||
| 87121-90K00 | ||||
| 87124-90A03 | ||||
| 91651-40616 | ||||
| 96112-10250 | ||||
